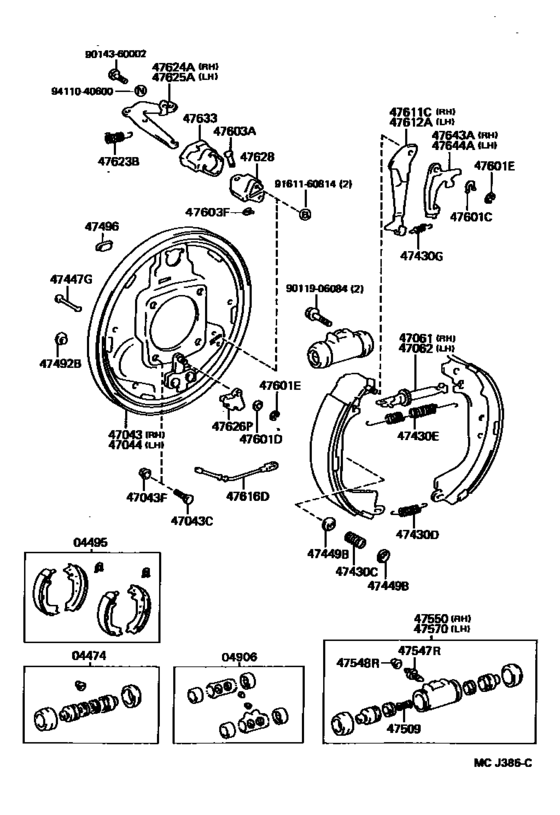

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1989 - ] (8908- )LH108,118,RZH109,119) Diagram Toyota HIACE
- Year
- 1989 - 1995
- Sales region
- Europe
- Frame
- RZH119
- grade
- DX
- body
- V
- ENGINE
- 2RZE
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-60010
Cylinder Kit, Rear Wheel
[08.1989 - 08.1995] LH118,RZH109,119..DX |
04474-60010 |
— | ||
| replacements | |||||
|
04474
|
04474
04474-35100 Cylinder Kit, Rear Wheel[08.1989 - 08.1995] LH118,RZH109,119..DX |
04474-35100 |
from US $24.51 |
||
|
04474
|
04474
90029-60009 Spring Sub-Assy, Rear Wheel Cylinder Piston[08.1989 - 08.1995] LH118,RZH109,119..DX |
90029-60009 |
US $1.61 |
||
|
04495
|
04495
04495-35151
Shoe Kit, Rear Brake
[08.1989 - 08.1995] LH108,118,RZH109,119 MARK NBK LN508 |
04495-35151 |
— | ||
| replacement | |||||
|
04495
|
04495
04495-35230 Shoe Kit, Rear Brake[08.1989 - 08.1995] LH108,118,RZH109,119 MARK NBK LN508 |
04495-35230 |
from US $91.57 |
||
|
04906
|
04906
04906-35130 Cup Kit, Rear Wheel Cylinder[08.1989 - 08.1995] RZH109,119..DX |
04906-35130 |
from US $12.54 |
||
|
47043
|
47043
47043-26070
Plate Sub-Assy, Brake Backing, Rear Rh
[08.1989 - 01.1991] LH108,118,RZH109,119 |
47043-26070 |
— | ||
| replacements | |||||
|
47043
|
47043
47043-26071
Plate Sub-Assy, Brake Backing, Rear Rh
[08.1989 - 01.1991] LH108,118,RZH109,119 |
47043-26071 |
— | ||
|
47043
|
47043
47492-28010 Plug, Shoe Inspection(For Rear Brake)[08.1989 - 01.1991] LH108,118,RZH109,119 |
47492-28010 |
from US $1.52 |
||
|
47043
|
47043
47043-26071
Plate Sub-Assy, Brake Backing, Rear Rh
[01.1991 - 08.1995] LH108,118,RZH109,119 |
47043-26071 |
— | ||
|
47043C
|
47043C
90114-10002 Bolt, Serration (For Rear Axle Flange)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# *10-1.25PX37-18.5 |
90114-10002 |
from US $1.33 |
||
|
47043F
|
47043F
90179-10041 Nut(For Backing Plate To Rear Axle Housing Setting)[08.1989 - 08.1995] LH10#,11#,RZH10#,11# |
90179-10041 |
US $2.33 |
||
|
47044
|
47044
47044-26070
Plate Sub-Assy, Brake Backing, Rear Lh
[08.1989 - 01.1991] LH108,118,RZH109,119 |
47044-26070 |
— | ||
| replacements | |||||
|
47044
|
47044
47044-26071
Plate Sub-Assy, Brake Backing, Rear Lh
[08.1989 - 01.1991] LH108,118,RZH109,119 |
47044-26071 |
— | ||
|
47044
|
47044
47492-28010 Plug, Shoe Inspection(For Rear Brake)[08.1989 - 01.1991] LH108,118,RZH109,119 |
47492-28010 |
from US $1.52 |
||
|
47044
|
47044
47044-26071
Plate Sub-Assy, Brake Backing, Rear Lh
[01.1991 - 08.1995] LH108,118,RZH109,119 |
47044-26071 |
— | ||
|
47061
|
47061
47061-60011 Strut Set, Parking Brake Shoe, Rh[08.1989 - 08.1995] LH108,118,RZH109,119 |
47061-60011 |
from US $30.23 |
||
|
47062
|
47062
47062-60011 Strut Set, Parking Brake Shoe, Rh[08.1989 - 08.1995] LH108,118,RZH109,119 |
47062-60011 |
from US $26.46 |
||
|
47430C
|
47430C
90501-20604 Spring(For Rear Brake Shoe Hold Down)[08.1989 - 08.1995] LH108,118,RZH109,119 |
90501-20604 |
from US $1.37 |
||
|
47430D
|
47430D
90506-18031 Spring, Tension(For Rear Brake Shoe Return)[08.1989 - 08.1995] LH108,118,RZH109,119 |
90506-18031 |
from US $4.72 |
||
|
47430E
|
47430E
90506-26011 Spring, Tension(For Rear Brake Shoe Return)[08.1989 - 08.1993] LH108,118,RZH109,119 RH |
90506-26011 |
from US $7.17 |
||
|
47430E
|
47430E
90506-26014 Spring, Tension(For Rear Brake Shoe Return)[08.1989 - 08.1993] LH108,118,RZH109,119 LH |
90506-26014 |
from US $7.17 |
||
|
47430G
|
47430G
90506-12031 Spring, Tension(For Rear Brake Automatic Adjust Lever)[08.1989 - 08.1995] LH108,118,RZH109,119 |
90506-12031 |
from US $3.20 |
||
|
47447G
|
47447G
47447-30020 Pin, Shoe Hold Down Spring(For Front Brake)[08.1989 - 08.1995] LH108,118,RZH109,119 |
47447-30020 |
from US $1.42 |
||
| replacement | |||||
|
47447G
|
47447G
47447300201
Pin Shoe Hold Down *
[08.1989 - 08.1995] LH108,118,RZH109,119 |
47447300201 |
— | ||
|
47449B
|
47449B
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[08.1989 - 05.1992] LH10#,11#,RZH10#,11# |
47449-30020 |
from US $1.29 |
||
|
47492B
|
47492B
47492-28010 Plug, Shoe Inspection(For Rear Brake)[01.1991 - 05.1992] LH10#,11#,RZH10#,11# |
47492-28010 |
from US $1.52 |
||
|
47496
|
47496
47491-20011 Plug, Hole(For Rear Brake)[08.1989 - 05.1992] LH10#,11#,RZH10#,11# |
47491-20011 |
from US $2.07 |
||
|
47509
|
47509
47509-60010
Spring Sub-Assy, Rear Wheel Cylinder Piston
[08.1989 - 08.1995] LH108,118,RZH109,119 |
47509-60010 |
— | ||
|
47547R
|
47547R
47547-60020 Plug, Bleeder(For Release Cylinder)[08.1989 - 08.1995] LH108,118,RZH109,119 |
47547-60020 |
from US $4.12 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[08.1989 - 05.1992] LH10#,11#,RZH10#,11# |
31478-30010 |
from US $1.60 |
||
|
47550
|
47550
47550-60120 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1989 - 08.1995] LH118,RZH109,119..DX |
47550-60120 |
from US $68.68 |
||
|
47570
|
47570
47550-60120 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1989 - 08.1995] LH118,RZH109,119..DX |
47550-60120 |
from US $68.68 |
||
|
47601C
|
47601C
90213-07010 Washer, Type C(For Parking Brake Shoe)[08.1989 - 08.1993] LH10#,11#,RZH10#,11# T=1.6 |
90213-07010 |
from US $0.47 |
||
|
47601D
|
47601D
90206-08024 Washer, Wave(For Parking Brake Shoe)[08.1989 - 08.1995] LH108,118,RZH109,119 |
90206-08024 |
from US $0.90 |
||
|
47601E
|
47601E
96160-00500 Ring, E(For Over Center Lever)[08.1989 - 08.1993] LH108,118,RZH109,119 ADJUST LEVER; LH102,112,RZH102,103,112,113,115 |
96160-00500 |
from US $0.84 |
||
|
47601E
|
47601E
96160-00600 Ring, E(For Clutch Pedal Pawl)[08.1989 - 08.1993] LH108,118,RZH109,119 SEGMENTAL PULLY |
96160-00600 |
from US $0.84 |
||
|
47603A
|
47603A
90249-08068 Pin, W/hole(For Rear Brake)[08.1989 - 08.1995] LH108,118,RZH109,119 |
90249-08068 |
from US $3.04 |
||
|
47603F
|
47603F
90213-06013 Washer, Type C(For Parking Brake Shoe)[08.1989 - 05.1992] LH10#,11#,RZH10#,11#..LHD |
90213-06013 |
from US $0.86 |
||
|
47611C
|
47611C
47611-60010
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
[08.1989 - 08.1995] LH108,118,RZH109,119 |
47611-60010 |
— | ||
| replacement | |||||
|
47611C
|
47611C
47611-35040 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[08.1989 - 08.1995] LH108,118,RZH109,119 |
47611-35040 |
from US $16.31 |
||
|
47612A
|
47612A
47612-60010
Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
[08.1989 - 08.1995] LH108,118,RZH109,119 |
47612-60010 |
— | ||
| replacement | |||||
|
47612A
|
47612A
47612-35040 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[08.1989 - 08.1995] LH108,118,RZH109,119 |
47612-35040 |
from US $16.31 |
||
|
47616D
|
47616D
47616-60010 Wire, Parking Brake, Rh[08.1989 - 08.1995] LH108,118,RZH109,119 |
47616-60010 |
from US $22.34 |
||
|
47623B
|
47623B
90506-20033 Spring, Tension(For Parking Brake Shoe Strut)[08.1989 - 08.1995] LH108,118,RZH109,119 |
90506-20033 |
from US $3.76 |
||
|
47624A
|
47624A
47624-26050 Bellcrank Sub-Assy, Parking Brake, Rh(For Rear Brake)[08.1989 - 08.1995] LH108,118,RZH109,119 |
47624-26050 |
US $32.32 |
||
|
47625A
|
47625A
47625-26050 Bellcrank Sub-Assy, Parking Brake, Lh (For Rear Brake)[08.1989 - 08.1995] LH108,118,RZH109,119 |
47625-26050 |
US $32.32 |
||
|
47626P
|
47626P
47626-60010 Pulley, Parking Brake Segmental[08.1989 - 08.1995] LH108,118,RZH109,119 |
47626-60010 |
from US $15.91 |
||
|
47628
|
47628
47628-35020 Bracket, Rear Brake Bellcrank[08.1989 - 08.1995] LH108,118,RZH109,119 |
47628-35020 |
from US $18.98 |
||
|
47633
|
47633
47633-35020 Boot, Parking Brake Bellcrank[08.1989 - 08.1995] LH108,118,RZH109,119 |
47633-35020 |
from US $12.90 |
||
|
47643A
|
47643A
47643-60010 Lever, Rear Brake Automatic Adjust, Rh[08.1989 - 08.1995] LH108,118,RZH109,119 |
47643-60010 |
from US $5.15 |
||
|
47644A
|
47644A
47644-60010 Lever, Rear Brake Automatic Adjust, Rh[08.1989 - 08.1995] LH108,118,RZH109,119 |
47644-60010 |
from US $5.23 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $0.99 |
||
|
9014360002
|
9014360002
90143-60002 Bolt, Bellcrank Stopper(For Parking Brake) |
90143-60002 |
from US $1.15 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
