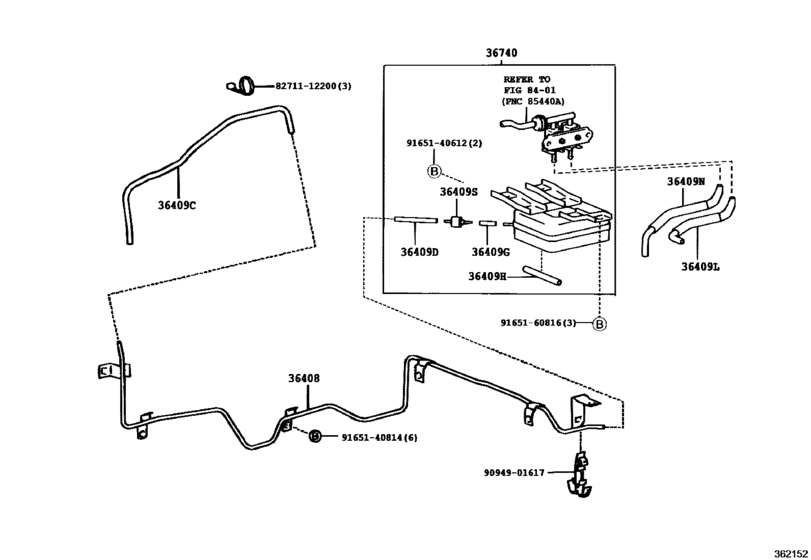

Transfer Vacuum Piping ([08.1989 - ] (8908- )RZH109,119) Diagram Toyota HIACE
- Year
- 1989 - 1995
- Sales region
- Europe
- Frame
- RZH119
- grade
- DX
- body
- V
- ENGINE
- 2RZE
- DESTINATION
- EUR
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1989
- To
- 08.1995
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36408
|
36408
36408-26010 Tube Sub-Assy, Transfer Vacuum[08.1989 - 08.1995] LH108,118,RZH109,119 |
36408-26010 |
US $36.69 |
||
|
36409C
|
36409C
90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1989 - 08.1995] LH108,118,RZH109,119 L=950 |
90999-92004 |
from US $8.99 |
||
|
36409D
|
36409D
90999-92002
Air Hose (300 mm)
[08.1989 - 08.1995] LH108,118,RZH109,119 *H,L=300 |
90999-92002 |
— | ||
|
36409G
|
36409G
90999-92002
Air Hose (300 mm)
[08.1989 - 08.1995] LH108,118,RZH109,119 *H,L=300 |
90999-92002 |
— | ||
|
36409H
|
36409H
90445-10036
Hose, Vacuum, No.5 (For Front Drive Shift)
[08.1989 - 08.1995] LH108,118,RZH109,119 L=105 |
90445-10036 |
— | ||
|
36409L
|
36409L
90447-10020 Hose, Vacuum, No.7 (For Front Drive Shift)[08.1989 - 08.1995] LH108,118,RZH109,119 |
90447-10020 |
US $5.24 |
||
|
36409N
|
36409N
90447-10019 Hose, Vacuum, No.9 (For Front Drive Shift)[08.1989 - 08.1995] LH108,118,RZH109,119 |
90447-10019 |
US $7.43 |
||
|
36409S
|
36409S
90917-10049 Valve, Check, No.1[08.1989 - 08.1995] LH108,118,RZH109,119 |
90917-10049 |
from US $6.03 |
||
|
36740
|
36740
36740-26010
Tank Assy, Transfer Vacuum
[08.1989 - 02.1993] LH108,118,RZH109,119 |
36740-26010 |
— | ||
| replacements | |||||
|
36740
|
36740
36704-26010
Reservoir Sub-assy, Transmission Vacuum
[08.1989 - 02.1993] LH108,118,RZH109,119 |
36704-26010 |
— | ||
|
36740
|
36740
85440-26010
Solenoid Assy, Four Wheel Drive Control
[08.1989 - 02.1993] LH108,118,RZH109,119 |
85440-26010 |
— | ||
|
36740
|
36740
90445-10036
Hose, Vacuum, No.5 (For Front Drive Shift)
[08.1989 - 02.1993] LH108,118,RZH109,119 |
90445-10036 |
— | ||
|
36740
|
36740
90917-10049 Valve, Check, No.1[08.1989 - 02.1993] LH108,118,RZH109,119 |
90917-10049 |
from US $6.03 |
||
|
36740
|
36740
90999-92002
Air Hose (300 mm)
[08.1989 - 02.1993] LH108,118,RZH109,119 |
90999-92002 |
— | ||
|
36740
|
36740
91651-40612 BOLT[08.1989 - 02.1993] LH108,118,RZH109,119 |
91651-40612 |
from US $0.98 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
9094901617
|
9094901617
90949-01617 New Genuine Part |
90949-01617 |
US $4.37 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
