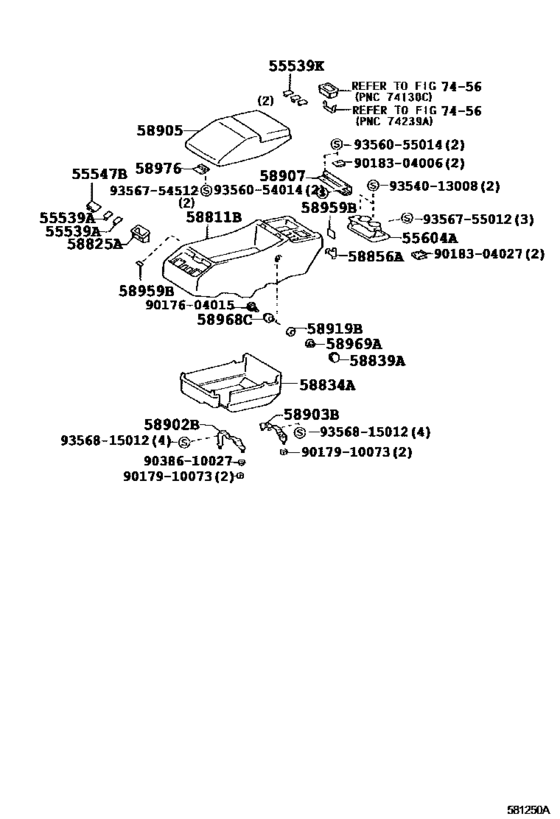

Console Box & Bracket ([08.2000 - ] CENTER CONSOLE BOX (0008- )LH154,RZH155..10S,11S) Diagram Toyota HIACE
- Year
- 2000 - 2004
- Sales region
- Europe
- Frame
- RZH155
- grade
- GL
- body
- COM
- Roof
- SRF
- ENGINE
- 2RZE
- DESTINATION
- CIS
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.2000
- To
- 08.2004
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 11S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539A
|
55539A
55539-32010-C0 Cover, Cooler Switch Hole[07.1999 - 08.2004] RZH155..CIS BLACK,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55539K
|
55539K
55539-20030-B1 Cover, Spare Switch Hole[07.1999 - 08.2004] RZH155..CIS BLUISH GRAY,TRIM1# |
55539-20030-B1 |
US $7.86 |
||
| replacement | |||||
|
55539K
|
55539K
55539-32010-C0 Cover, Cooler Switch Hole[07.1999 - 08.2004] RZH155..CIS BLUISH GRAY,TRIM1# |
55539-32010-C0 |
from US $3.04 |
||
|
55547B
|
55547B
55547-95J00-C0 Cover, Remote Control Mirror Hole[07.1999 - 08.2004] RZH155..CIS BLACK,TRIM1# |
55547-95J00-C0 |
US $8.04 |
||
|
55604A
|
55604A
55604-95J00-B0 Holder Sub-Assy, Instrument Panel Cup[07.1999 - 08.2004] RZH155..CIS BLUISH GRAY,TRIM1# |
55604-95J00-B0 |
US $75.71 |
||
|
58811B
|
58811B
58811-95J05-B0 Box, Console[07.1999 - 01.2005] LH154,RZH155..11S;LH174,RZH115..10S BLUISH GRAY,TRIM1# |
58811-95J05-B0 |
US $257.71 |
||
|
58825A
|
58825A
58825-95J00 Pocket, Console Box[07.1999 - 08.2004] RZH155..CIS |
58825-95J00 |
US $14.41 |
||
|
58834A
|
58834A
58834-26010 Cover, Console, Lower[07.1999 - 08.2004] RZH155..CIS |
58834-26010 |
US $126.67 |
||
|
58839A
|
58839A
58839-95J00-B0 Cover, Console Box Hole[07.1999 - 08.2004] RZH155..CIS BLUISH GRAY,TRIM1# |
58839-95J00-B0 |
US $3.71 |
||
|
58856A
|
58856A
58856-95J05 Holder, Console Box[07.1999 - 08.2004] RZH155..CIS |
58856-95J05 |
US $1.60 |
||
|
58902B
|
58902B
58902-95J03 Bracket Sub-Assy, Console Box Hinge, No.1[07.1999 - 08.2004] RZH155..CIS |
58902-95J03 |
US $16.60 |
||
|
58903B
|
58903B
58903-95J02 Bracket Sub-Assy, Console Box Hinge, No.2[07.1999 - 08.2004] RZH155..CIS |
58903-95J02 |
US $15.72 |
||
|
58905
|
58905
58905-95J03-B0 Door Sub-Assy, Console Compartment[08.2000 - 08.2004] RZH155..CIS BLUISH GRAY,TRIM1# |
58905-95J03-B0 |
US $282.46 |
||
|
58907
|
58907
58907-95J04-B0 Hinge Sub-Assy, Console Compartment Door[07.1999 - 08.2004] RZH155..CIS BLUISH GRAY,TRIM1# |
58907-95J04-B0 |
US $16.89 |
||
|
58919B
|
58919B
58919-32030 Plate, Console Box[07.1999 - 01.2005] LH154,174,RZH113,115,15#..(03S,08S,10S,11S)..(DX,GL,SGL) |
58919-32030 |
US $1.60 |
||
|
58959B
|
58959B
58959-26010 Cushion, Console Compartment Door[07.1999 - 08.2004] RZH155..CIS FRONT |
58959-26010 |
US $2.10 |
||
|
58959B
|
58959B
58959-95J00 Cushion, Console Compartment Door[07.1999 - 08.2004] RZH155..CIS REAR |
58959-95J00 |
US $1.46 |
||
|
58968C
|
58968C
58968-32020 Shim, Console Compartment Door Stopper[07.1999 - 08.2004] RZH155..CIS |
58968-32020 |
US $1.75 |
||
|
58969A
|
58969A
58969-20010 Retainer, Console Compartment Door Stopper[07.1999 - 08.2004] RZH155..CIS |
58969-20010 |
US $3.32 |
||
|
58976
|
58976
58976-20020 Striker, Console Compartment Door Lock[07.1999 - 08.2004] RZH155..CIS |
58976-20020 |
from US $5.19 |
||
|
9017604015
|
9017604015
90176-04015 New Genuine Part |
90176-04015 |
US $0.87 |
||
|
9017910073
|
9017910073
90179-10073 New Genuine Part |
90179-10073 |
US $2.04 |
||
|
9018304006
|
9018304006
90183-04006 New Genuine Part |
90183-04006 |
US $1.22 |
||
|
9018304027
|
9018304027
90183-04027 New Genuine Part |
90183-04027 |
US $1.25 |
||
|
9038610027
|
9038610027
90386-10027 New Genuine Part |
90386-10027 |
US $2.48 |
||
|
9354013008
|
9354013008
93540-13008 New Genuine Part |
93540-13008 |
US $2.33 |
||
|
9356054014
|
9356054014
93560-54014 SCREW |
93560-54014 |
from US $0.70 |
||
|
9356055014
|
9356055014
93560-55014 SCREW |
93560-55014 |
from US $0.64 |
||
|
9356754512
|
9356754512
93567-54512
SCREW
|
93567-54512 |
— | ||
| replacement | |||||
|
9356754512
|
9356754512
93568-54512 SCREW |
93568-54512 |
from US $0.64 |
||
|
9356755012
|
9356755012
93567-55012
New Genuine Part
|
93567-55012 |
— | ||
| replacement | |||||
|
9356755012
|
9356755012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
|
9356815012
|
9356815012
93568-15012
SCREW
|
93568-15012 |
— | ||
| replacement | |||||
|
9356815012
|
9356815012
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
