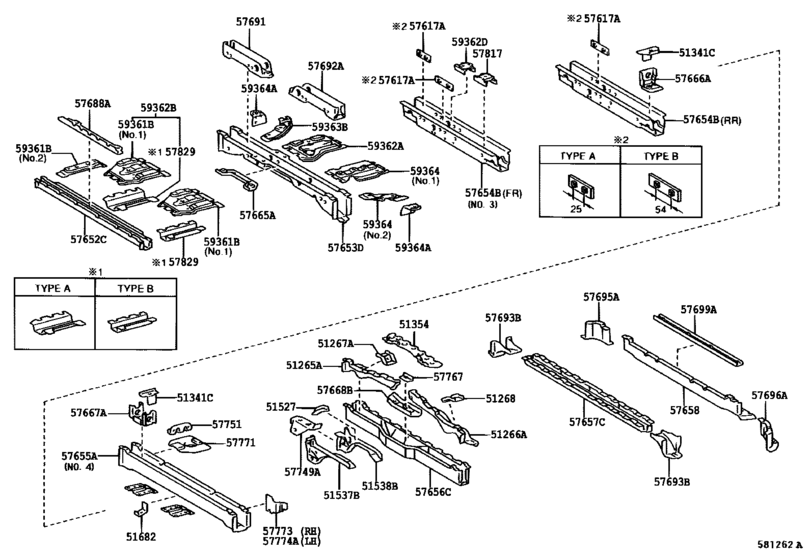

Rear Floor Panel & Rear Floor Member ([08.2000 - ] (0008- )LH154,RZH155) Diagram Toyota HIACE
- Year
- 2000 - 2004
- Sales region
- General
- Frame
- RZH155
- grade
- GL
- body
- COM
- Roof
- SRF
- ENGINE
- 2RZE
- DESTINATION
- CIS
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.2000
- To
- 08.2004
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 11S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Fuel Induction
- EFI
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51265A
|
51265A
51265-95J02 Bracket, Rear Shock Absorber, Rh[07.1999 - 08.2004] RZH155..CIS |
51265-95J02 |
US $85.90 |
||
|
51266A
|
51266A
51266-95J02 Bracket, Rear Shock Absorber, Lh[07.1999 - 08.2004] RZH155..CIS |
51266-95J02 |
US $85.90 |
||
|
51267A
|
51267A
51267-95J00 Reinforcement, Rear Shock Absorber Mounting, Rh[07.1999 - 08.2004] RZH155..CIS |
51267-95J00 |
US $31.01 |
||
|
51268
|
51268
51268-95J00 Reinforcement, Rear Shock Absorber Mounting, Lh[07.1999 - 08.2004] RZH155..CIS |
51268-95J00 |
US $31.01 |
||
|
51341C
|
51341C
51341-95J00 Gusset, Frame No.4 Crossmember, Rh[07.1999 - 08.2004] RZH155..CIS |
51341-95J00 |
US $9.03 |
||
|
51354
|
51354
51354-95J02 Plate, Rear Shock Absorber Member[07.1999 - 08.2004] RZH155..CIS |
51354-95J02 |
US $56.49 |
||
|
51527
|
51527
51527-26010 Bracket, Lateral Rod Support, Rear No.1[07.1999 - 08.2004] RZH155..CIS |
51527-26010 |
US $11.21 |
||
|
51537B
|
51537B
51537-26010 Bracket, Lateral Rod Support, Front[07.1999 - 08.2004] RZH155..CIS |
51537-26010 |
US $87.36 |
||
|
51538B
|
51538B
51538-95J00 Bracket, Lateral Rod Support, Rear[07.1999 - 08.2004] RZH155..CIS |
51538-95J00 |
US $60.57 |
||
|
51682
|
51682
51682-95J00 Bracket, Flexible Hose, No.2[07.1999 - 08.2004] RZH155..CIS |
51682-95J00 |
US $8.15 |
||
|
57617A
|
57617A
57617-95J09 Retainer, Exhaust Pipe Bracket[07.1999 -] RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,16#,172,176,184,RZH10#,113, 114,115,125,155 TYPE A:REFER ILLUST.; LH174..12S TYPE A:REFER TO ILLUSTRATION |
57617-95J09 |
US $3.06 |
||
|
57617A
|
57617A
57617-95J10 Retainer, Exhaust Pipe Bracket[08.2000 - 01.2005] LH154,RZH15# TYPE B:REFER ILLUST. |
57617-95J10 |
US $6.41 |
||
|
57652C
|
57652C
57652-95J04 Member, Rear Floor Cross, No.1[07.1999 -] RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15 5 |
57652-95J04 |
US $218.40 |
||
|
57653D
|
57653D
57653-26110 Member, Rear Floor Cross, No.2[07.1999 -] RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,162,164,172,184,RZH10#,113, 114,115,125,135,155 |
57653-26110 |
US $288.29 |
||
|
57654B
|
57654B
57654-95J05 Member, Rear Floor Cross, No.3[08.2000 - 01.2005] LH154,RZH15# REAR |
57654-95J05 |
US $180.54 |
||
|
57654B
|
57654B
57654-95J06 Member, Rear Floor Cross, No.3[08.2000 - 01.2005] LH154,RZH15# FRONT |
57654-95J06 |
US $180.54 |
||
|
57655A
|
57655A
57655-26070 Member, Rear Floor Cross, No.4[07.1999 - 08.2004] RZH155..CIS |
57655-26070 |
US $179.09 |
||
|
57656C
|
57656C
57656-95J03 Member, Rear Floor Croos, No.5[07.1999 - 01.2005] LH154,RZH135,15# |
57656-95J03 |
US $257.71 |
||
|
57657C
|
57657C
57657-95J05 Crossmember, Rear Floor, No.6[07.1999 -] RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15 # |
57657-95J05 |
US $206.75 |
||
|
57658
|
57658
57658-95J01 Member, Rear Floor Cross, No.7[07.1999 -] RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15 # |
57658-95J01 |
US $138.32 |
||
|
57665A
|
57665A
57665-26020 Reinforcement, Rear Floor Crossmember, No.2[07.1999 -] RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,16#,172,176,184,RZH10#,113, 114,115,125,135,155 |
57665-26020 |
US $12.52 |
||
|
57666A
|
57666A
57083-26010 Reinforcement, Rear Floor Crossmember, No.3[07.1999 - 08.2004] RZH155..CIS |
57083-26010 |
US $31.16 |
||
|
57667A
|
57667A
57084-26010 Reinforcement, Rear Floor Crossmember, No.4[07.1999 - 08.2004] RZH155..CIS |
57084-26010 |
US $18.20 |
||
|
57668B
|
57668B
57668-26020 Reinforcement, Rear Floor Crossmember, No.5[07.1999 - 01.2005] LH154,RZH135,15# |
57668-26020 |
US $31.16 |
||
|
57688A
|
57688A
57688-95J02 Reinforcement, Rear Floor Crossmember[07.1999 -] RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15 5 |
57688-95J02 |
US $28.39 |
||
|
57691
|
57691
57691-95J01 Brace, Rear Floor No.2 Crossmember, Inner Rh[07.1999 -] RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,162,164,172,184,RZH10#,113, 114,115,125,135,155 |
57691-95J01 |
US $45.14 |
||
|
57692A
|
57692A
57692-95J01 Brace, Rear Floor No.2 Crossmember, Inner Lh[07.1999 -] RZH112..5D;LH174,RZH112..03S,10S,15S;LH10#,11#,125,154,162,164,172,184,RZH10#,113, 114,115,125,135,155 |
57692-95J01 |
US $45.14 |
||
|
57693B
|
57693B
57693-95J01 Brace, Rear Floor No.6 Crossmember[07.1999 -] RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15 # |
57693-95J01 |
US $18.64 |
||
|
57695A
|
57695A
57695-95J01 Extension, Rear Floor Crossmember Rear Side, Rh[07.1999 -] RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15 # |
57695-95J01 |
US $24.75 |
||
|
57696A
|
57696A
57696-95J00 Extension, Rear Floor Crossmember Rear Side, Lh[07.1999 -] RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15 # |
57696-95J00 |
US $24.75 |
||
|
57699A
|
57699A
57699-95J01 Retainer, Fuel Tank Set Band[07.1999 -] RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15 # |
57699-95J01 |
US $34.80 |
||
|
57749A
|
57749A
57749-95J01 Reinforcement, Lateral Rod Bracket, No.2[07.1999 - 08.2004] RZH155..CIS |
57749-95J01 |
US $19.66 |
||
|
57751
|
57751
57751-95J01 Support, Rear Suspension Spring, Outer Rh[07.1999 - 08.2004] RZH155..CIS |
57751-95J01 |
US $16.60 |
||
|
57767
|
57767
57767-95J02 Retainer, Fuel Tank Band[07.1999 - 01.2005] LH154,RZH15#; RZH135 TYPE A:REFER TO ILLUSTRATION |
57767-95J02 |
US $5.10 |
||
|
57771
|
57771
57771-95J00 Plate, Rear Spring, Rh[07.1999 - 08.2004] RZH155..CIS |
57771-95J00 |
US $55.04 |
||
|
57773
|
57773
57773-95J00 Reinforcement, Rear Spring[07.1999 - 08.2004] RZH155..CIS |
57773-95J00 |
US $19.66 |
||
|
57774A
|
57774A
57774-95J00 Reinforcement, Rear Spring, Lh[07.1999 - 08.2004] RZH155..CIS |
57774-95J00 |
US $19.66 |
||
|
57817
|
57817
57817-26100 Reinforcement, Belt Anchor, No.2BELT ANCHOR, NO.2 [08.2000 - 08.2004] RZH155..CIS |
57817-26100 |
US $12.52 |
||
|
57829
|
57829
57829-95J04 Reinforcement, Seat Leg[07.1999 - 08.2004] RZH155..CIS |
57829-95J04 |
US $36.25 |
||
|
59361B
|
59361B
59361-95J03 Retainer, Rear Seat, No.1 A[08.2000 - 01.2005] LH154,RZH155..11S,12S NO.1 |
59361-95J03 |
US $59.70 |
||
|
59361B
|
59361B
59361-95J04 Retainer, Rear Seat, No.1 A[08.2000 - 01.2005] LH154,RZH155..11S,12S NO.2 |
59361-95J04 |
US $21.69 |
||
|
59362D
|
59362D
59362-95J07 Retainer, Rear Seat, No.1 B[07.1999 -] LH174..15S;LH154,RZH114,115..(10S,11S,15S)..(GL,STD);LH104,105,114,115,164,166,176 ,RZH104,105,155..11S,12S,15S |
59362-95J07 |
US $14.71 |
||
|
59363B
|
59363B
59363-26140 Retainer, Rear Seat, No.1 CREAR SEAT, NO.1 C [07.1999 - 01.2005] LH174,RZH115..10S;LH154,RZH155..11S,12S |
59363-26140 |
US $36.98 |
||
|
59364
|
59364
59306-26050 Retainer, Rear Seat, No.1 DREAR SEAT, NO.1 D [08.2000 - 08.2004] RZH155..CIS NO.2 |
59306-26050 |
US $20.68 |
||
|
59364
|
59364
59306-26100 Retainer, Rear Seat, No.1 DREAR SEAT, NO.1 D [08.2000 - 08.2004] RZH155..CIS NO.1 |
59306-26100 |
US $136.86 |
||
|
59364A
|
59364A
59364-26080 Retainer, Rear Seat, No.1 DREAR SEAT, NO.1 D [07.1999 - 01.2005] LH174,RZH115..10S;LH154,RZH155..11S,12S |
59364-26080 |
US $14.71 |
