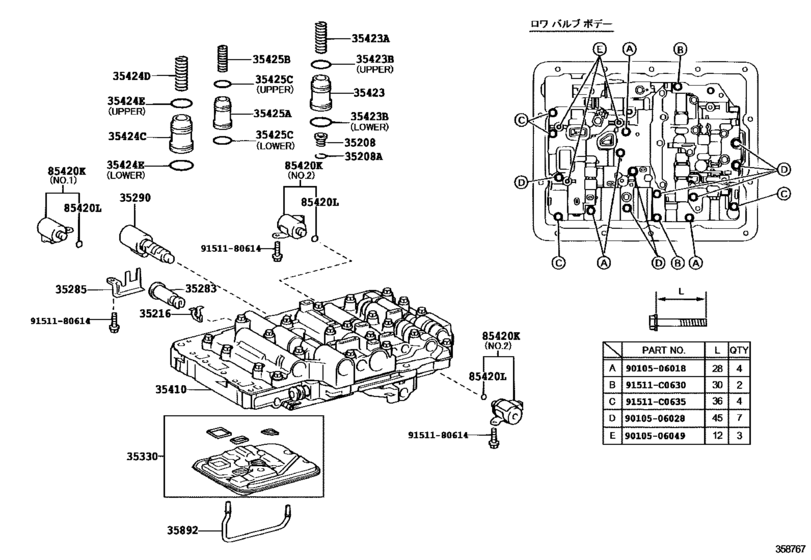

Valve Body & Oil Strainer (Atm) ([08.2013 - ] A45DE (1308- )TRH200) Diagram Toyota HIACE
- Year
- 2013 - 2013
- Sales region
- U.S.A.
- Frame
- TRH200
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1TRFE
- DESTINATION
- GEN
- Model
- HIACE
- From
- 08.2013
- To
- 12.2013
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35208
|
35208
35208-28010 Spring Sub-Assy, B-2 Accumulator[08.2013 - 12.2013] TRH200 |
35208-28010 |
US $1.89 |
||
|
35208A
|
35208A
90521-22004 Ring, Hole Snap (For B-3 Accumulator Spring)[01.2005 - 12.2013] KDH200,201,202,212,22#,TRH20#,213,22#..4FC |
90521-22004 |
from US $1.24 |
||
|
35216
|
35216
35216-28010 Stopper, Valve Sleeve[08.2013 -] TRH200 |
35216-28010 |
US $2.62 |
||
|
35283
|
35283
35283-28010 Sleeve, Lock Up Control Solenoid[08.2013 -] TRH200 |
35283-28010 |
US $11.50 |
||
|
35285
|
35285
35285-28010 Plate, Solenoid Lock[08.2013 - 12.2013] TRH200 |
35285-28010 |
US $3.06 |
||
|
35290
|
35290
35290-25010 Solenoid Assy, Line Pressure Control[08.2013 - 12.2013] TRH200 |
35290-25010 |
US $88.82 |
||
|
35330
|
35330
35330-53010 Strainer Assy, Valve Body Oil[08.2013 - 12.2013] TRH200 |
35330-53010 |
from US $60.70 |
||
|
35410
|
35410
35410-71070 Body Assy, Transmission Valve[08.2013 - 12.2013] TRH200 |
35410-71070 |
US $979.89 |
||
|
35423
|
35423
35421-26010 Piston, Accumulator, No.1[08.2013 - 12.2013] TRH200 |
35421-26010 |
US $16.45 |
||
|
35423A
|
35423A
90501-25037 Spring, Compression (For Accumulator Piston No.1)[08.2013 - 12.2013] TRH200 |
90501-25037 |
US $2.33 |
||
|
35423B
|
35423B
90301-23010 Ring (For Accumulator Piston No.1)[01.2005 - 12.2013] KDH200,201,202,212,22#,TRH20#,213,22#..4FC UPPER |
90301-23010 |
from US $1.79 |
||
|
35423B
|
35423B
90301-29011 Ring (For Accumulator Piston No.1)[08.2013 - 12.2013] TRH200 LOWER |
90301-29011 |
from US $2.62 |
||
|
35424C
|
35424C
35421-22030 Piston, Accumulator, No.3[08.2013 -] TRH200 |
35421-22030 |
US $15.43 |
||
|
35424D
|
35424D
90501-20162 Spring, Compression (For Accumulator Piston No.1)[08.2013 -] TRH200 |
90501-20162 |
US $1.60 |
||
|
35424E
|
35424E
90301-21012 Ring (For Accumulator Piston No.3)[08.2013 -] TRH200 UPPER |
90301-21012 |
from US $1.49 |
||
|
35424E
|
35424E
90301-26012 Ring (For Accumulator Piston No.1)[08.2013 -] TRH200 LOWER |
90301-26012 |
US $1.49 |
||
|
35425A
|
35425A
35441-30010 Piston, Accumulator, No.2[08.2013 - 12.2013] TRH200 |
35441-30010 |
US $15 |
||
|
35425B
|
35425B
90501-25061 Spring, Compression (For Accumulator Piston No.2)[08.2013 - 12.2013] TRH200 |
90501-25061 |
US $2.04 |
||
|
35425C
|
35425C
90301-18010 Ring (For Accumulator Piston No.2)[08.2013 - 12.2013] TRH200 UPPER |
90301-18010 |
US $3.84 |
||
|
35425C
|
35425C
90301-26012 Ring (For Accumulator Piston No.1)[08.2013 - 12.2013] TRH200 LOWER |
90301-26012 |
US $1.49 |
||
|
35892
|
35892
35892-22010 Tube, Overdrive Brake[08.2013 -] TRH200 |
35892-22010 |
US $8.59 |
||
|
85420K
|
85420K
35250-28030 Solenoid Assy, Transmission[08.2013 - 12.2013] TRH200 NO.1 |
35250-28030 |
US $93.48 |
||
|
85420K
|
85420K
35250-30030 Solenoid Assy, Transmission[08.2013 - 12.2013] TRH200 NO.2 |
35250-30030 |
US $214.40 |
||
|
85420L
|
85420L
90301-06004 Ring, O No.3(For Transmission Solenoid)[01.2005 - 12.2013] KDH200,201,202,212,22#,TRH20#,213,22#..4FC |
90301-06004 |
from US $2.15 |
||
|
91511C0630
|
91511C0630
91511-C0630 New Genuine Part |
91511-C0630 |
US $0.52 |
||
|
91511C0635
|
91511C0635
91511-C0635 BOLT FLANGE |
91511-C0635 |
US $1.79 |
||
|
9010506018
|
9010506018
90105-06018 Bolt (For Throttle Valve Cam Set) |
90105-06018 |
US $0.96 |
||
|
9010506028
|
9010506028
90105-06028 New Genuine Part |
90105-06028 |
US $1.02 |
||
|
9010506049
|
9010506049
90105-06049 Bolt(For Transmission Case No.2 Plate) |
90105-06049 |
US $1.25 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
