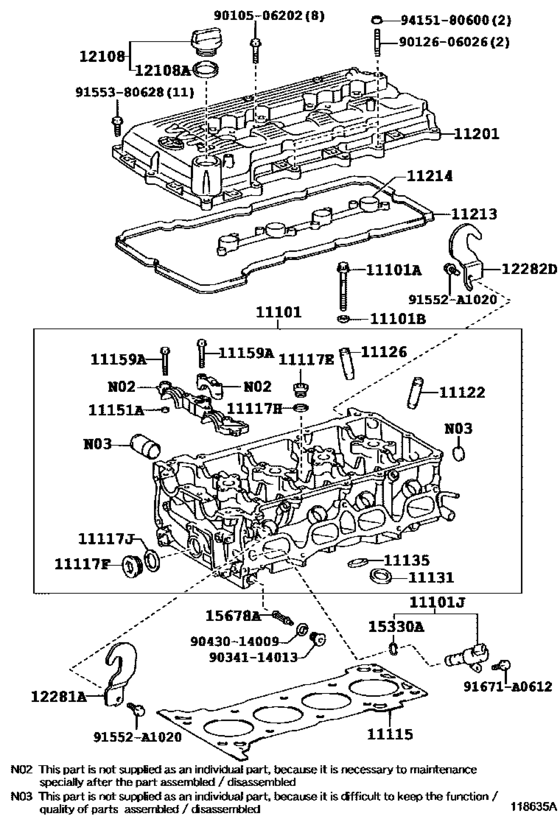

Cylinder Head ([08.2013 - ] (1308- )1TRFE) Diagram Toyota HIACE
- Year
- 2013 - 2013
- Sales region
- General
- Frame
- TRH200
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1TRFE
- DESTINATION
- GEN
- Model
- HIACE
- From
- 08.2013
- To
- 12.2013
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-75160
Head Sub-Assy, Cylinder
[08.2013 - 12.2013] 1TRFE..TRH200 *271 |
11101-75160 |
— | ||
| replacement | |||||
|
11101
|
11101
11101-75161 Head Sub-Assy, Cylinder[08.2013 - 12.2013] 1TRFE..TRH200 *271 |
11101-75161 |
US $1,170.45 |
||
|
11101A
|
11101A
90910-02187 Bolt(For Cylinder Head Set)[03.2013 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22# |
90910-02187 |
from US $4.30 |
||
|
11101B
|
11101B
90201-11034 Washer, Plate(For Cylinder Head Set)[01.2005 - 02.2014] 2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,21 3..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
90201-11034 |
from US $0.90 |
||
|
11101J
|
11101J
15330-75020 Valve Assy, Camshaft Timing Oil Control[08.2010 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
15330-75020 |
US $96.10 |
||
| replacement | |||||
|
11101J
|
11101J
15330-75030 Valve Assy, Camshaft Timing Oil Control[08.2010 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
15330-75030 |
from US $59.34 |
||
|
11115
|
11115
11115-0C030 Gasket, Cylinder Head[08.2013 - 12.2013] 1TRFE..TRH200 (L) |
11115-0C030 |
US $42.82 |
||
|
11115
|
11115
11115-75070 Gasket, Cylinder Head[08.2013 - 12.2013] 1TRFE..TRH200 (J) |
11115-75070 |
from US $45.45 |
||
|
11117E
|
11117E
90341-20002 Plug, W/head Taper Screw, No.1[01.2005 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22# |
90341-20002 |
from US $3.02 |
||
|
11117F
|
11117F
90341-32002 Plug, W/head Straight Screw, No.2[01.2005 - 02.2014] 2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,21 3..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
90341-32002 |
US $4.08 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[01.2005 - 02.2014] 2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,21 3..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
90430-20004 |
from US $0.98 |
||
|
11117J
|
11117J
90430-32004 Gasket(For Cylinder Head Screw Plug)[04.2006 - 02.2014] 2TRFE..TRH203..GCC,MA;2TRFE..TRH203..SRF..GEN;1TRFE,2TRFE..TRH200,201,213,22# |
90430-32004 |
US $1.51 |
||
|
11122
|
11122
11122-75020 Bush, Intake Valve Guide[01.2005 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22# STD |
11122-75020 |
from US $8.25 |
||
|
11122
|
11122
11123-75020 Bush, Intake Valve Guide[01.2005 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22# O/S 0.05 |
11123-75020 |
from US $7.43 |
||
|
11126
|
11126
11122-75020 Bush, Intake Valve Guide[01.2005 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22# STD |
11122-75020 |
from US $8.25 |
||
|
11126
|
11126
11123-75020 Bush, Intake Valve Guide[01.2005 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22# O/S 0.05 |
11123-75020 |
from US $7.43 |
||
|
11131
|
11131
11131-75090 Seat, Intake Valve[08.2013 - 12.2013] 1TRFE..TRH200 STD |
11131-75090 |
US $13.61 |
||
|
11131
|
11131
11132-75090 Seat, Intake Valve[08.2013 - 12.2013] 1TRFE..TRH200 O/S 0.03 |
11132-75090 |
US $10.48 |
||
|
11135
|
11135
11135-75080 Seat, Exhaust Valve[08.2013 - 12.2013] 1TRFE..TRH200 STD |
11135-75080 |
US $10.77 |
||
|
11135
|
11135
11136-75080 Seat, Exhaust Valve[08.2013 - 12.2013] 1TRFE..TRH200 O/S 0.03 |
11136-75080 |
US $10.77 |
||
|
11151A
|
11151A
90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)[01.2005 - 02.2014] 2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,21 3..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) L=7,OD=10 |
90253-10006 |
US $0.79 |
||
|
11159A
|
11159A
90119-07013 Bolt(For Camshaft Bearing Cap To Housing Rh, No.1)[01.2005 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22# |
90119-07013 |
US $1.31 |
||
|
11201
|
11201
11201-75054 Cover Sub-Assy, Cylinder Head[03.2012 - 10.2013] 1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
11201-75054 |
US $144.14 |
||
| replacement | |||||
|
11201
|
11201
11201-75055 Cover Sub-Assy, Cylinder Head[03.2012 - 10.2013] 1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
11201-75055 |
from US $160.72 |
||
|
11201
|
11201
11201-75055 Cover Sub-Assy, Cylinder Head[10.2013 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
11201-75055 |
from US $160.72 |
||
|
11213
|
11213
11213-75041 Gasket, Cylinder Head Cover[08.2008 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
11213-75041 |
from US $15.46 |
||
|
11214
|
11214
11214-75012 Gasket, Cylinder Head Cover, No.2[01.2011 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
11214-75012 |
from US $10.65 |
||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[11.2009 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
12180-38010 |
from US $11.47 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[11.2009 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22#..ARL,CIS,GCC,GEN,SA,TH |
90430-35001 |
from US $1.17 |
||
|
12281A
|
12281A
12281-75050 Hanger, Engine, No.1[01.2005 - 02.2014] 2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,21 3..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
12281-75050 |
US $19.66 |
||
|
12282D
|
12282D
12281-75050 Hanger, Engine, No.1[01.2005 - 02.2014] 2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,21 3..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
12281-75050 |
US $19.66 |
||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[01.2005 - 02.2014] 1TRFE,2TRFE..TRH20#,213,22# |
90099-14137 |
from US $2.16 |
||
|
15678A
|
15678A
15678-21010 Filter, Oil Control Valve[01.2005 - 02.2014] 2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,21 3..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN) |
15678-21010 |
from US $5.15 |
||
|
91552A1020
|
91552A1020
91552-A1020 New Genuine Part |
91552-A1020 |
US $1.97 |
||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.64 |
||
|
9010506202
|
9010506202
90105-06202 Bolt(For Cylinder Head Cover) |
90105-06202 |
from US $0.84 |
||
|
9012606026
|
9012606026
90126-06026 Bolt, Stud(Manifold To Throttle Body) |
90126-06026 |
from US $0.64 |
||
|
9034114013
|
9034114013
90341-14013 Plug, W/head Taper Screw, No.1 |
90341-14013 |
from US $2.13 |
||
|
9043014009
|
9043014009
90430-14009 Gasket(For Cylinder Head Screw Plug) |
90430-14009 |
from US $0.84 |
||
|
9155380628
|
9155380628
91553-80628 BOLT FLANGE |
91553-80628 |
from US $0.76 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
