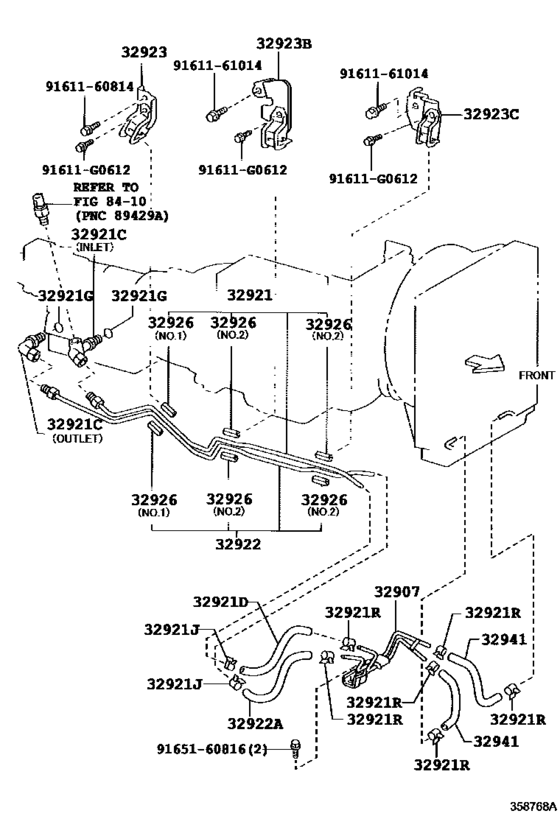

Oil Cooler & Tube (Atm) ([08.2013 - ] A45DE (1308- )TRH200) Diagram Toyota HIACE
- Year
- 2013 - 2013
- Sales region
- General
- Frame
- TRH200
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 1TRFE
- DESTINATION
- GEN
- Model
- HIACE
- From
- 08.2013
- To
- 12.2013
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Side Window
- SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32907
|
32907
32907-26050 Tube Sub-Assy, Oil Cooler Outlet, No.2[01.2005 - 12.2013] KDH200,201,202,212,22#,TRH20#,213,22#..4FC |
32907-26050 |
US $52.56 |
||
| replacement | |||||
|
32907
|
32907
32907-26052 Tube Sub-Assy, Oil Cooler Outlet, No.2[01.2005 - 12.2013] KDH200,201,202,212,22#,TRH20#,213,22#..4FC |
32907-26052 |
US $59.64 |
||
|
32921
|
32921
32921-26360 Tube, Oil Cooler Inlet, No.1[08.2013 - 12.2013] TRH200 |
32921-26360 |
US $17.47 |
||
|
32921C
|
32921C
32918-26010 Union(For Oil Cooler Tube)[08.2013 - 12.2013] TRH200 INLET |
32918-26010 |
US $9.32 |
||
|
32921C
|
32921C
90407-16010 Union(For Oil Cooler Tube)[08.2013 - 12.2013] TRH200 OUTLET |
90407-16010 |
US $9.50 |
||
|
32921D
|
32921D
32941-26200 Hose(For Oil Cooler Inlet)[01.2005 - 12.2013] TRH20#,213,22#..4FC |
32941-26200 |
US $25.70 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[08.2013 - 12.2013] TRH200 |
90301-10189 |
from US $2.63 |
||
|
32921J
|
32921J
90466-16004 Clip(For Ventilation Hose No.2)[05.2008 - 12.2013] KDH200,201,212,221,223,TRH20#,213,22#..4FC |
90466-16004 |
from US $1.85 |
||
|
32921R
|
32921R
90466-16004 Clip(For Ventilation Hose No.2)[09.2007 - 12.2013] KDH200,201,212,221,223,TRH20#,213,22#..4FC |
90466-16004 |
from US $1.85 |
||
|
32922
|
32922
32922-26350 Tube, Oil Cooler Outlet, No.1[08.2013 - 12.2013] TRH200 |
32922-26350 |
US $17.47 |
||
|
32922A
|
32922A
90445-17073 Hose(For Oil Cooler Outlet)[01.2005 - 12.2013] TRH20#,213,22#..4FC |
90445-17073 |
US $17.18 |
||
| replacement | |||||
|
32922A
|
32922A
90445-17097 Hose, Oil Cooler Water Outlet[01.2005 - 12.2013] TRH20#,213,22#..4FC |
90445-17097 |
from US $18.72 |
||
|
32923
|
32923
32909-25080 Clamp, Automatic Transmission Oil Cooler Tube[08.2013 - 12.2013] TRH200 |
32909-25080 |
US $7.86 |
||
|
32923B
|
32923B
32909-26180 Clamp, Automatic Transmission Oil Cooler Tube, No.1[01.2005 - 12.2013] TRH20#,213,22#..4FC |
32909-26180 |
US $13.10 |
||
|
32923C
|
32923C
32909-34040 Clamp, Automatic Transmission Oil Cooler Tube, No.4[01.2005 - 12.2013] TRH20#,213,22#..4FC |
32909-34040 |
from US $10.05 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[09.2009 - 12.2013] TRH200 L=35,ID=10,NO.1 & NO.2 |
32926-30020 |
US $3.05 |
||
|
32941
|
32941
32941-26180 Hose, Oil Cooler Inlet, No.1[01.2005 - 12.2013] KDH200,201,202,212,22#,TRH20#,213,22#..4FC |
32941-26180 |
US $70.22 |
||
|
91611G0612
|
91611G0612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161161014
|
9161161014
91611-61014
New Genuine Part
|
91611-61014 |
— | ||
| replacement | |||||
|
9161161014
|
9161161014
91612-B1014 BOLT WWASHER |
91612-B1014 |
US $1.16 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
