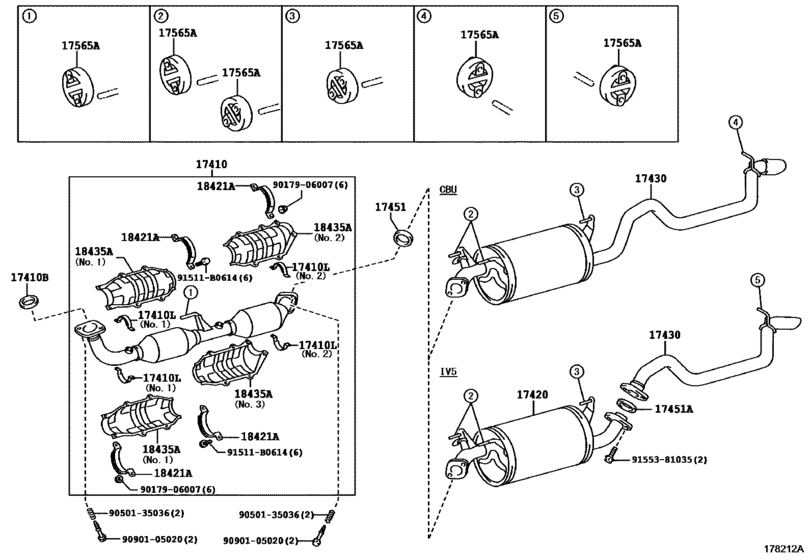

Exhaust Pipe ([12.2013 - ] (1312- )1TRFE) Diagram Toyota HIACE
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- TRH200
- grade
- DX
- body
- V1
- Roof
- SRF
- ENGINE
- 1TRFE
- Model
- HIACE/REGIUSACE
- From
- 12.2013
- To
- 01.2015
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 06S
- Building Condition
- CBU
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-75490 Pipe Assy, Exhaust, Front[12.2013 - 01.2015] 1TRFE..TRH200 |
17410-75490 |
US $2,080.80 |
||
|
17410B
|
17410B
17451-22070 Gasket, Exhaust Pipe[12.2013 -] 1TRFE,2TRFE..TRH200,21#,22# |
17451-22070 |
from US $21.66 |
||
|
17410L
|
17410L
17541-75030 Stay, Exhaust Pipe Protector (For Front)EXHAUST PIPE PROTECTOR (FOR FRONT) [12.2013 -] 1TRFE,2TRFE..TRH200,21#,22# ＮＯ．１ |
17541-75030 |
US $13.44 |
||
|
17410L
|
17410L
17541-75040 Stay, Exhaust Pipe Protector (For Front)[12.2013 -] 1TRFE,2TRFE..TRH200,21#,22# ＮＯ．２ |
17541-75040 |
US $12.64 |
||
|
17430
|
17430
17430-75710 Pipe Assy, Exhaust, Tail[12.2013 -] 1TRFE..TRH200..CBU |
17430-75710 |
US $646.80 |
||
|
17451
|
17451
17451-74040 Gasket, Exhaust Pipe[12.2013 -] 1KDFTV..KDH201..SRF;1KDFTV..KDH201..V2..HRF;1KDFTV..KDH201..V1..HRF..4FC;1KDFTV,1T RFE..KDH206,211,22#,TRH200 |
17451-74040 |
from US $19.29 |
||
|
17565A
|
17565A
17565-0P240 Support, Exhaust Pipe, No.4EXHAUST PIPE, NO.5 [12.2013 -] 1TRFE,2TRFE..TRH200,21#,22# タイ製 |
17565-0P240 |
US $12.15 |
||
|
17565A
|
17565A
17565-28010 Support, Exhaust Pipe, No.1[12.2013 -] 1TRFE,2TRFE..TRH200,21#,22# 日本製 |
17565-28010 |
from US $9.89 |
||
|
18421A
|
18421A
18421-75020 Stay, Converter Protector, Lh[12.2013 -] 1TRFE,2TRFE..TRH200,21#,22# |
18421-75020 |
US $17.18 |
||
|
18435A
|
18435A
18435-75050 Protector, Monolithic Converter[12.2013 - 01.2015] 1TRFE..TRH200 ＮＯ．１ |
18435-75050 |
US $51.54 |
||
| replacement | |||||
|
18435A
|
18435A
18435-75120 Protector, Monolithic Converter[12.2013 - 01.2015] 1TRFE..TRH200 ＮＯ．１ |
18435-75120 |
from US $35.10 |
||
|
18435A
|
18435A
18435-75060 Protector, Monolithic Converter[12.2013 -] 1TRFE,2TRFE..TRH200,21#,22# ＮＯ．２ |
18435-75060 |
US $53.96 |
||
|
18435A
|
18435A
18445-75030 Protector, Monolithic Converter[12.2013 -] 2TRFE..TRH211,214,221,223,224..6FC;1TRFE,2TRFE..TRH200,216,219,226,228,229 ＮＯ．３ |
18445-75030 |
from US $40.93 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.78 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9050135036
|
9050135036
90501-35036 SPRING COMPRESSION |
90501-35036 |
from US $3.20 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $3.68 |
||
|
9155381035
|
9155381035
91553-81035 BOLT, FLANGE |
91553-81035 |
from US $1.31 |
||
