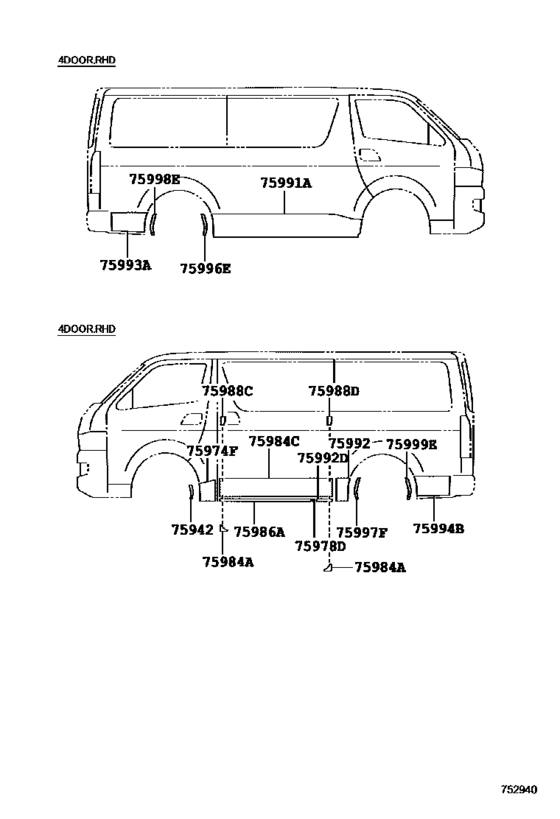

Body Stripe ([12.2013 - ] BODY COLOR-TWO-TONE (1312- )KDH212,TRH213..SA) Diagram Toyota HIACE
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- TRH213
- grade
- GL
- body
- COM
- Roof
- SMRF
- ENGINE
- 2TRFE
- DESTINATION
- SA
- Model
- HIACE
- From
- 12.2013
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 10S
- Vehicle Model
- Hiace
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75942
|
75942
75942-26400-F0 Stripe, Center Pillar, No.2CENTER PILLAR, NO.2 [12.2013 -] KDH213..11S..GEN;KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75942-26400-F0 |
US $7.72 |
||
|
75974F
|
75974F
75974-26040-F0 Stripe, Front Side Panel, LhFRONT SIDE PANEL, LH [12.2013 -] KDH213..11S..GEN;KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75974-26040-F0 |
US $43.83 |
||
|
75978D
|
75978D
75985-26490-F0 Stripe, Rear Door, RhREAR DOOR, RH [12.2013 -] KDH213..11S..GEN;KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75985-26490-F0 |
US $2.77 |
||
|
75984A
|
75984A
75984-26520-F0 Stripe, Slide DoorSLIDE DOOR [12.2013 -] KDH21#,TRH213..4D..GL BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75984-26520-F0 |
US $3.64 |
||
|
75984A
|
75984A
75984-26580
Stripe, Slide Door
[12.2013 -] TRH221..SP;TRH223..GL..SA;TRH213..RHD..5F;KDH200,201..LHD..5D;KDH212..(10S,11S,16S )..(GEN,SA);KDH201,222,TRH223..RHD..(ARL,GEN,TH);GDH201,KDH200,202,203,221,223,LH2 0#,212,222,TRH200,203..RHD..STD;KDH213,220,222,TRH201..(02S,03S,05S,06S,11S,1 |
75984-26580 |
— | ||
|
75984C
|
75984C
75984-26510-F0 Stripe, Slide Door, Lh UpperSLIDE DOOR, LH UPPER [12.2013 -] KDH213..11S..GEN;KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75984-26510-F0 |
US $144.14 |
||
|
75986A
|
75986A
75986-26480-F0 Stripe, Side Panel, LhSIDE PANEL, LH [12.2013 -] KDH213..11S..GEN;KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75986-26480-F0 |
US $27.52 |
||
|
75988C
|
75988C
75984-26540-F0 Stripe, Rear Door, Outside LhREAR DOOR, OUTSIDE LH [12.2013 -] KDH213..11S..GEN;KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75984-26540-F0 |
US $1.89 |
||
|
75988D
|
75988D
75984-26550-F0 Stripe, Rear Door Outside, LhREAR DOOR OUTSIDE, LH [12.2013 -] KDH213..11S..GEN;KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75984-26550-F0 |
US $1.60 |
||
|
75991A
|
75991A
75991-26610-F0
Stripe, Quarter, Rh
[12.2013 -] KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75991-26610-F0 |
— | ||
|
75992
|
75992
75992-26400-F0 Stripe, Quarter, Lh No.1QUARTER, LH NO.1 [12.2013 -] KDH213..11S..GEN;KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75992-26400-F0 |
US $39.02 |
||
|
75992D
|
75992D
75992-26390-F0 Stripe, Quarter, Front LhQUARTER, FRONT LH [12.2013 -] TRH213..SA;KDH212..10S,11S;KDH213..11S..GEN BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75992-26390-F0 |
US $10.77 |
||
|
75992D
|
75992D
75992-26430
Stripe, Quarter, Front Lh
[12.2013 -] KDH200,201..LHD..5D;KDH212..(10S,11S,16S)..(GEN,SA);KDH201,TRH213..RHD..(02S,03S,0 5S,06S,10S,16S);GDH201,KDH200,202,203,LH20#,212,TRH200,203..RHD..STD;KDH213,TRH201 ..(02S,03S,05S,06S,11S)..(ARL,GCC,GEN,SA) BODY STRIPE-WITH |
75992-26430 |
— | ||
|
75993A
|
75993A
75993-26300-F0 Stripe, Quarter, Rear RhQUARTER, REAR RH [12.2013 -] KDH21#,TRH213..GL..(GEN,SA) BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75993-26300-F0 |
US $63.48 |
||
|
75993A
|
75993A
75993-26320 Stripe, Quarter, Rear Rh[12.2013 -] KDH201,212,223;KDH222,TRH223..GL..SA;KDH213,TRH213..GCC,GEN,SA;KDH222,TRH223..ARL, GCC,GEN,RUS,TH;GDH201,KDH200,202,203,220,221,LH20#,212,222,TRH20#,221..STD BODY STRIPE-WITH |
75993-26320 |
US $50.33 |
||
|
75994B
|
75994B
75994-26420-F0 Strip, Quarter, Rear LhQUARTER, REAR LH [12.2013 -] KDH21#,TRH213..GL..(GEN,SA) BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75994-26420-F0 |
US $63.48 |
||
|
75994B
|
75994B
75994-26440 Strip, Quarter, Rear Lh[12.2013 -] KDH201,212,223;KDH222,TRH223..GL..SA;KDH213,TRH213..GCC,GEN,SA;KDH222,TRH223..ARL, GCC,GEN,RUS,TH;GDH201,KDH200,202,203,220,221,LH20#,212,222,TRH20#,221..STD BODY STRIPE-WITH |
75994-26440 |
US $50.33 |
||
|
75996E
|
75996E
75996-26010-F0 Stripe, Quarter, Front Lower RhQUARTER, FRONT LOWER RH [12.2013 -] KDH213..GEN;KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75996-26010-F0 |
US $9.17 |
||
|
75997F
|
75997F
75997-26010-F0 Stripe, Quarter, Front Lower LhQUARTER, FRONT LOWER LH [12.2013 -] KDH213..GEN;KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75997-26010-F0 |
US $9.17 |
||
|
75998E
|
75998E
75998-26060-F0 Stripe, Quarter Rear Lower, RhQUARTER REAR LOWER, RH [12.2013 -] KDH213..GEN;KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75998-26060-F0 |
US $9.17 |
||
|
75999E
|
75999E
75999-26050-F0 Stripe, Quarter Rear Lower, LhQUARTER REAR LOWER, LH [12.2013 -] KDH213..GEN;KDH212,TRH213..SA BODY COLOR-TWO-TONE(METALLIC),GOLD ME.,2JZ |
75999-26050-F0 |
US $9.17 |
