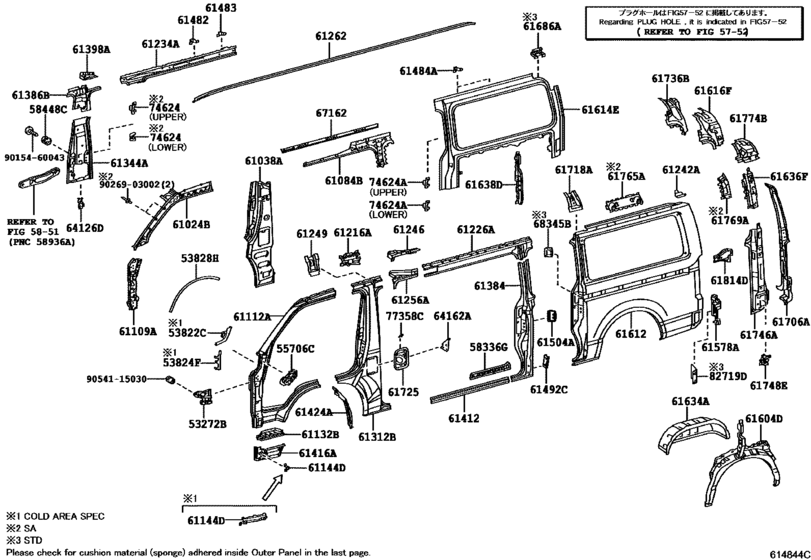

Side Member ([12.2013 - ] LH (1312- )KDH212,LH212,TRH213..RHD..5F) Diagram Toyota HIACE
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- TRH213
- grade
- GL
- body
- COM
- Roof
- SMRF
- ENGINE
- 2TRFE
- DESTINATION
- SA
- Model
- HIACE
- From
- 12.2013
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 10S
- Vehicle Model
- Hiace
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53272B
|
53272B
53272-26011 Bracket, Headlamp Mounting, Lh[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
53272-26011 |
from US $22.18 |
||
|
53828H
|
53828H
53827-26010 Protector, Front Fender Side Panel, Rh[12.2013 -] KDH201,203,21#,222,TRH213;KDH223,TRH223..ARL,GCC,GEN,RUS,SA;GDH201,KDH200,202,220, 221,LH20#,212,222,TRH20#,221..STD |
53827-26010 |
from US $18.82 |
||
|
55706C
|
55706C
55706-26050 Panel Sub-Assy, Cowl Top Side, LhCOWL TOP SIDE, LH [12.2013 -] KDH201..SG;KDH201..02S,03S,05S;KDH200,202,203,21#,22#,LH20#,212,222,TRH201,203,213 ,22# |
55706-26050 |
from US $33.49 |
||
|
58336G
|
58336G
58336-26040 Plate, Floor Side, Fr Lh[12.2013 -] TRH221..SP;KDH200,201..LHD..5D;KDH212..(10S,11S,16S)..(GEN,SA);KDH213,220,TRH201.. 02S,03S,05S,06S,11S;GDH201,KDH20#,221,222,223,LH20#,212,222,TRH200,203,213,223..RH D |
58336-26040 |
US $25.87 |
||
|
58448C
|
58448C
58448-26010-B0 Hook, Engine Service Hole Cover, No.2 Lh[12.2013 -] KDH201,203,21#,222,223,TRH213,223;GDH201,KDH200,202,220,221,LH20#,212,222,TRH20#,2 21..STD LT.GRAY,TRIM1# |
58448-26010-B0 |
US $4.84 |
||
|
61024B
|
61024B
61024-26190
Pillar Sub-Assy, Front Body, Inner Lh
[12.2013 -] KDH212,TRH213..SA |
61024-26190 |
— | ||
|
61038A
|
61038A
61038-26010 Reinforcement Sub-Assy, Center Body Pillar, Lh[12.2013 -] KDH223,TRH223..RHD;KDH213,TRH201..5D..SG;KDH212..(10S,11S,16S)..(GEN,SA);GDH201,KD H201,202,203,222,LH202,212,222,TRH200,203,213..RHD..(02S,06S,10S,11S,12S,14S,15S,1 6S)..(GEN,MA,SA,TH) |
61038-26010 |
US $214.40 |
||
|
61084B
|
61084B
61084-26060 Brace Sub-Assy, Roof Side Inner, Fr Lh[12.2013 -] KDH200,201..LHD..5D;KDH212..(10S,11S,16S)..(GEN,SA);KDH213,TRH201..02S,03S,05S,06S ,11S;GDH201,KDH20#,LH20#,212,TRH200,203,213..RHD |
61084-26060 |
US $64.65 |
||
|
61109A
|
61109A
61109-26010 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
61109-26010 |
from US $93.48 |
||
|
61112A
|
61112A
61132-26141 Panel, Front Side, Outer Lh[12.2013 -] KDH200,201..LHD..5D;KDH201,203,TRH213..RHD;KDH212..(10S,11S,16S)..(GEN,SA);KDH213, TRH201..02S,03S,05S,06S,11S;GDH201,KDH200,202,LH20#,212,TRH200,203..RHD..STD |
61132-26141 |
US $231.20 |
||
|
61132B
|
61132B
61132-26121 Pillar, Front Body, Outer Lh[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
61132-26121 |
from US $20.94 |
||
|
61144D
|
61144D
61144-26010 Retainer, Front Bumper Side, Lh[12.2013 -] TRH213..RHD;TRH223..14S,16S;TRH213..LHD..STD;GDH201,KDH20#,21#,22#,LH20#,212,222,T RH20#,221..ARL,GCC,GEN,MA,SA,TH |
61144-26010 |
US $8.60 |
||
|
61216A
|
61216A
61216-26020 Rail, Roof Side, Outer Rear Lh[12.2013 -] KDH200,201..LHD..5D;KDH212..(10S,11S,16S)..(GEN,SA);KDH213,TRH201..02S,03S,05S,06S ,11S;GDH201,KDH20#,LH20#,212,TRH200,203,213..RHD |
61216-26020 |
US $31.45 |
||
|
61226A
|
61226A
61226-26010 Rail, Roof Side Outer Upper No.1, LhROOF SIDE OUTER UPPER NO.1, LH [12.2013 -] KDH200,201..LHD..5D;KDH201,203,TRH213..RHD;KDH212..(10S,11S,16S)..(GEN,SA);KDH213, TRH201..02S,03S,05S,06S,11S;GDH201,KDH200,202,LH20#,212,TRH200,203..RHD..STD |
61226-26010 |
US $63.92 |
||
|
61234A
|
61234A
61234-26370 Rail, Roof Side, Inner No.2 Lh[12.2013 -] KDH212,LH212,TRH213..RHD..5F |
61234-26370 |
US $120.85 |
||
|
61242A
|
61242A
61242-26010 Gusset, Roof Side Rail, Rear Lh[12.2013 -] KDH201,203,21#,TRH213;GDH201,KDH200,202,LH20#,212,TRH20#..STD |
61242-26010 |
US $4.66 |
||
|
61246
|
61246
61246-26030 Reinforcement, Roof Side Rail, Outer Lh[12.2013 -] KDH200,201..LHD..5D;KDH212..(10S,11S,16S)..(GEN,SA);KDH213,TRH201..02S,03S,05S,06S ,11S;GDH201,KDH20#,LH20#,212,TRH200,203,213..RHD |
61246-26030 |
US $31.45 |
||
|
61249
|
61249
61249-26020 Retainer, Roof Side Rail, Outer Lh[12.2013 -] KDH21#,LH212,TRH213 |
61249-26020 |
US $18.78 |
||
|
61256A
|
61256A
61256-26020 Plate, Roof Side Rail, Outer Lh[12.2013 -] KDH200,201..LHD..5D;KDH212..(10S,11S,16S)..(GEN,SA);KDH213,TRH201..02S,03S,05S,06S ,11S;GDH201,KDH20#,LH20#,212,TRH200,203,213..RHD |
61256-26020 |
US $36.55 |
||
|
61262
|
61262
61262-26021 Channel, Roof Drip, Lh[12.2013 -] KDH201,203,21#,TRH213;GDH201,KDH200,202,LH20#,212,TRH20#..STD |
61262-26021 |
US $121.36 |
||
|
61312B
|
61312B
61312-26110 Pillar, Center Body, Outer Lh[12.2013 -] KDH213..11S;KDH212..10S,11S;KDH201..RHD..(ARL,GEN);KDH203,TRH213..RHD..(02S,10S,11 S,12S);GDH201,TRH200,201..RHD..STD..(ARL,GEN); KDH201..TH;TRH201..03S;TRH201..06S..GCC;KDH200,201..LHD..5D;KDH200,202,212,LH20#,2 12,TRH203,213..RHD..STD POWER |
61312-26110 |
US $341.25 |
||
| replacements | |||||
|
61312B
|
61312B
61302-V3010 PILLAR SUBASSY CTR[12.2013 -] KDH213..11S;KDH212..10S,11S;KDH201..RHD..(ARL,GEN);KDH203,TRH213..RHD..(02S,10S,11 S,12S);GDH201,TRH200,201..RHD..STD..(ARL,GEN); KDH201..TH;TRH201..03S;TRH201..06S..GCC;KDH200,201..LHD..5D;KDH200,202,212,LH20#,2 12,TRH203,213..RHD..STD POWER |
61302-V3010 |
from US $217.60 |
||
|
61312B
|
61312B
61412-V3010 PANEL, ROCKER, OUTER LH[12.2013 -] KDH213..11S;KDH212..10S,11S;KDH201..RHD..(ARL,GEN);KDH203,TRH213..RHD..(02S,10S,11 S,12S);GDH201,TRH200,201..RHD..STD..(ARL,GEN); KDH201..TH;TRH201..03S;TRH201..06S..GCC;KDH200,201..LHD..5D;KDH200,202,212,LH20#,2 12,TRH203,213..RHD..STD POWER |
61412-V3010 |
US $168 |
||
|
61344A
|
61344A
61344-26410 Pillar, Center Body, Inner Lh[12.2013 -] KDH212,TRH213..SA |
61344-26410 |
US $145.60 |
||
|
61384
|
61384
61384-26020 Extension, Center Body Pillar, Outer LhCENTER BODY PILLAR, OUTER LH [12.2013 -] KDH200,201..LHD..5D;KDH201,203,TRH213..RHD;KDH212..(10S,11S,16S)..(GEN,SA);KDH213, TRH201..02S,03S,05S,06S,11S;GDH201,KDH200,202,LH20#,212,TRH200,203..RHD..STD |
61384-26020 |
US $96.36 |
||
|
61386B
|
61386B
61386-26010 Extension, Center Body Pillar, Inner Lh[12.2013 -] KDH200,201..LHD..5D;KDH201,203,TRH213..RHD;KDH212..(10S,11S,16S)..(GEN,SA);KDH213, TRH201..02S,03S,05S,06S,11S;GDH201,KDH200,202,LH20#,212,TRH200,203..RHD..STD |
61386-26010 |
US $47.76 |
||
|
61398A
|
61398A
61398-26060 Patch, Center Body Pillar, Inner Lh[12.2013 -] KDH200,201..LHD..5D;KDH201,203,TRH213..RHD;KDH212..(10S,11S,16S)..(GEN,SA);KDH213, TRH201..02S,03S,05S,06S,11S;GDH201,KDH200,202,LH20#,212,TRH200,203..RHD..STD |
61398-26060 |
US $19.07 |
||
|
61412
|
61412
61412-26270 Panel, Rocker, Outer Lh[12.2013 -] KDH200,201..LHD..5D;KDH201,203,TRH213..RHD;KDH212..(10S,11S,16S)..(GEN,SA);KDH213, TRH201..02S,03S,05S,06S,11S;GDH201,KDH200,202,LH20#,212,TRH200,203..RHD..STD |
61412-26270 |
US $148.24 |
||
| replacement | |||||
|
61412
|
61412
61412-V3010 PANEL, ROCKER, OUTER LH[12.2013 -] KDH200,201..LHD..5D;KDH201,203,TRH213..RHD;KDH212..(10S,11S,16S)..(GEN,SA);KDH213, TRH201..02S,03S,05S,06S,11S;GDH201,KDH200,202,LH20#,212,TRH200,203..RHD..STD |
61412-V3010 |
US $168 |
||
|
61416A
|
61416A
61416-26021 Panel, Front Step Under, Lh[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
61416-26021 |
from US $34.32 |
||
|
61424A
|
61424A
61424-26030 Panel, Fender, Inner Lower Lh[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
61424-26030 |
US $31.42 |
||
|
61482
|
61482
61481-26070 Bracket, Roof Side Rail Reinforce, No.1[12.2013 -] KDH21#,LH212,TRH213..4D |
61481-26070 |
US $3.06 |
||
|
61483
|
61483
61481-26060 Bracket, Roof Side Rail Reinforce, No.3[12.2013 -] TRH213..RHD;KDH213,LH212;KDH212..10S,16S;KDH212,TRH213..LHD..STD..GEN |
61481-26060 |
US $2.91 |
||
|
61484A
|
61484A
61481-26080 Bracket, Roof Side Rail Reinforce, No.4[12.2013 -] KDH21#,LH212,TRH213..4D |
61481-26080 |
US $4.12 |
||
|
61492C
|
61492C
61491-26010 Plate, No.3 Lower Rail, Inner Rh[12.2013 -] TRH221..SP;KDH200,201..LHD..5D;KDH212..(10S,11S,16S)..(GEN,SA);KDH213,220,TRH201.. 02S,03S,05S,06S,11S;GDH201,KDH20#,221,222,223,LH20#,212,222,TRH200,203,213,223..RH D |
61491-26010 |
US $6.81 |
||
|
61504A
|
61504A
61503-26030 Reinforce Sub-Assy, Slide Door Lock Striker, Rh[12.2013 -] TRH221..SP;KDH200,201..LHD..5D;KDH212..(10S,11S,16S)..(GEN,SA);KDH213,220,TRH201.. 02S,03S,05S,06S,11S;GDH201,KDH20#,221,222,223,LH20#,212,222,TRH200,203,213,223..RH D |
61503-26030 |
US $22.18 |
||
|
61578A
|
61578A
61072-26140 Plate, Cab Rear Pillar, Lower Lh[12.2013 -] TRH223..12S,13S,14S;KDH202,21#,222,223,TRH203,213..(HRF,SMRF)..(10S,11S,12S,14S); TRH223..5F..GL..GEN REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS) |
61072-26140 |
US $51.58 |
||
|
61604D
|
61604D
61620-26210
Panel Sub-Assy, Quarter Wheel House, Lh
[12.2013 -] KDH21#,TRH213..10S BODY COLOR-TWO-TONE(METALLIC) |
61620-26210 |
— | ||
|
61604D
|
61604D
61620-26350
Panel Sub-Assy, Quarter Wheel House, Lh
[12.2013 -] KDH202,21#,TRH203,213..10S |
61620-26350 |
— | ||
|
61612
|
61612
61612-26520 Panel, Quarter, Lh[12.2013 -] KDH213,TRH201..5D..SG;KDH212..(10S,11S,16S)..(GEN,SA);KDH201,202,203,LH202,212,TRH 203,213..RHD..SG |
61612-26520 |
US $725.40 |
||
|
61612
|
61612
61612-26600 Panel, Quarter, Lh[12.2013 -] TRH213..SA;KDH212..10S,11S;KDH213..11S..GEN BODY COLOR-TWO-TONE(METALLIC) |
61612-26600 |
US $637.73 |
||
|
61614E
|
61614E
61614-26F70
Panel, Quarter, Inner Lh
[12.2013 -] KDH212,TRH213..SA |
61614-26F70 |
— | ||
|
61616F
|
61616F
61616-26120 Reinforcement, Rear Body Rear Side Panel, Lh[12.2013 -] KDH21#,LH212,TRH213 |
61616-26120 |
US $59.55 |
||
|
61634A
|
61634A
61634-26050 Panel, Quarter Wheel House, Inner Lh[12.2013 -] KDH202,LH202,TRH203..RHD;KDH202,TRH223..LHD..(10S,12S,13S);GDH201,KDH200,201,203,2 1#,220,221,223,LH20#,TRH200,201,213,221..02S,03S,05S,06S,10S,12S; KDH222,TRH223..LHD..STD..GEN;KDH202,203,LH202,222,TRH203..LHD..(15S,16S) AMBURANCE BASE FOR EX |
61634-26050 |
US $118.08 |
||
|
61636F
|
61636F
61636-26030 Reinforcement, Quarter Panel, Upr Lh[12.2013 -] TRH223..12S,13S,14S;KDH21#,222,223,TRH213..10S,11S,12S,14S; TRH223..5F..GL..GEN REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS) |
61636-26030 |
US $53.14 |
||
|
61638D
|
61638D
61638-26030 Reinforcement, Quarter, Inner Lh[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
61638-26030 |
US $24.53 |
||
|
61706A
|
61706A
61706-26270 Frame Sub-Assy, Back Door Opening Side, Lh[12.2013 -] KDH21#,LH212,TRH213 |
61706-26270 |
from US $215.05 |
||
|
61718A
|
61718A
61718-26040 Reinforcement, Quarter Panel Extension, Lh[12.2013 -] KDH21#,LH212,TRH213 |
61718-26040 |
US $116.48 |
||
|
61725
|
61725
61725-26041 Box, Fuel Inlet[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
61725-26041 |
US $37.30 |
||
|
61736B
|
61736B
61736-26A40 Extension, Quarter Panel, Inner LhQUARTER PANEL, INNER LH [12.2013 -] KDH21#,TRH213..GL |
61736-26A40 |
US $59.40 |
||
|
61746A
|
61746A
61746-26040 Reinforcement, Back Door Opening, Lower Lh[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
61746-26040 |
from US $110.70 |
||
|
61748E
|
61748E
61748-26010 Brace, Roof Side Inner To Wheel House, Lh[12.2013 -] TRH223..4FC..GEN;KDH212,223,TRH213..GL;KDH203,213,TRH221..SG..(03S,11S,13S,15S);KD H200,202,220,222,TRH201,203,22#..MA,RUS,SA; KDH222..GEN;TRH221..SP..GEN;KDH222..STD..GCC;TRH223..5F..GL..GEN;KDH212,TRH213..ST D..GEN;KDH200,202,220,223,LH20#,2 |
61748-26010 |
US $8.78 |
||
|
61765A
|
61765A
61078-26090 Reinforcement, Seat Belt Anchor, No.2 Lh[12.2013 -] KDH202,21#,TRH203,213..10S |
61078-26090 |
US $51.83 |
||
|
61769A
|
61769A
61802-26010 Reinforcement, Seat Belt Anchor, No.2 Lh[12.2013 -] TRH223..12S,13S,14S;KDH21#,222,223,TRH213..10S,11S,12S,14S; TRH223..5F..GL..GEN REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS) |
61802-26010 |
US $24.32 |
||
|
61774B
|
61774B
61774-26140 Frame, Back Door Opening Side, Upper Lh[12.2013 -] KDH21#,LH212,TRH213 |
61774-26140 |
from US $32.18 |
||
|
61814D
|
61814D
61814-26010 Reinforcement, Quarter Panel Extension, No.3 Lh[12.2013 -] KDH200,201..LHD..5D;KDH212..(10S,11S,16S)..(GEN,SA);KDH213,TRH201..02S,03S,05S,06S ,11S;GDH201,KDH20#,LH20#,212,TRH200,203,213..RHD |
61814-26010 |
US $17.98 |
||
|
64126D
|
64126D
64126-26030 Anchor, Pillar Seat Belt, Lh[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
64126-26030 |
US $7.57 |
||
|
64162A
|
64162A
64162-26010 Bracket, Fuel Inlet[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
64162-26010 |
US $1.79 |
||
|
67162
|
67162
67162-26010 Extension, Slide Door Inside Panel, Upper Lh[12.2013 -] KDH200,201..LHD..5D;KDH212..(10S,11S,16S)..(GEN,SA);KDH213,TRH201..02S,03S,05S,06S ,11S;GDH201,KDH20#,LH20#,212,TRH200,203,213..RHD |
67162-26010 |
US $23.30 |
||
|
74624
|
74624
74623-26050 Reinforcement, Rr Assist Grip, Lh[12.2013 -] KDH222..RHD..GL..GEN;KDH212,222,223,TRH213,223..ARL,SA LOWER |
74623-26050 |
US $3.64 |
||
|
74624
|
74624
74624-26060 Reinforcement, Rr Assist Grip, Lh[12.2013 -] KDH222..RHD..GL..GEN;KDH212,222,223,TRH213,223..ARL,SA UPPER |
74624-26060 |
US $5.24 |
||
|
74624A
|
74624A
74624-26030 Reinforcement, Rear Assist Grip, Lh[12.2013 -] KDH212,222,223,LH212,222,TRH213,223..RHD..4D LOWER |
74624-26030 |
US $6.99 |
||
|
74624A
|
74624A
74624-26050 Reinforcement, Rear Assist Grip, Lh[12.2013 -] KDH212,222,223,LH212,222,TRH213,223..RHD..4D UPPER |
74624-26050 |
US $6.99 |
||
|
77358C
|
77358C
77358-26010 Stopper, Fuel Filler Opening Lid, No.1[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
77358-26010 |
US $4.12 |
||
|
9015460043
|
9015460043
90154-60043 SCREW CROSSRECESS |
90154-60043 |
US $1.08 |
||
|
9026903002
|
9026903002
90269-03002 RIVET |
90269-03002 |
from US $1.19 |
||
|
9054115030
|
9054115030
90541-15030 Cushion, Luggage Door Hinge |
90541-15030 |
from US $3.58 |
||
