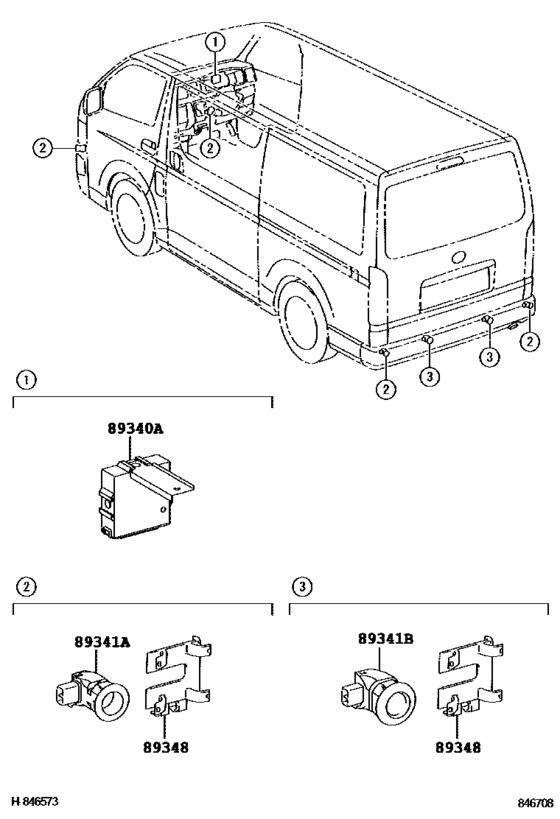

Clearance & Back Sonar ([01.2005 - 08.2010] (0501-1008)TRH213..4FC) Diagram Toyota HIACE
- Year
- 2005 - 2007
- Sales region
- U.S.A.
- Frame
- TRH213
- grade
- GL
- body
- COM
- Roof
- SMRF
- ENGINE
- 2TRFE
- DESTINATION
- GEN
- Model
- HIACE
- From
- 01.2005
- To
- 09.2007
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Seating Capacity
- 11S
- Vehicle Model
- Hiace
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89340A
|
89340A
89340-26170 Computer Assy, Clearance Warning[01.2005 - 08.2010] TRH213,223..(10S,11S,13S)..(GEN,TH) CLEARANCE & BACK SONER-WITH(6SENSOR PER VEHICLE); TRH223..5F..GL..GEN DUAL AIR CONDITIONER&CLEARANCE & BACK SONER-WITH(6SENSOR PER VEHICLE) |
89340-26170 |
US $497.95 |
||
|
89341A
|
89341A
89341-44130 Sensor, Ultrasonic, No.1[01.2005 - 08.2010] TRH213,223..(10S,11S,13S)..(GEN,TH) CLEARANCE & BACK SONER-WITH(6SENSOR PER VEHICLE); TRH223..5F..GL..GEN DUAL AIR CONDITIONER&CLEARANCE & BACK SONER-WITH(6SENSOR PER VEHICLE) |
89341-44130 |
US $166.40 |
||
|
89341B
|
89341B
89341-26360 Sensor, Ultrasonic, No.2[01.2005 - 07.2008] TRH213,223..(10S,11S,13S)..(GEN,TH) CLEARANCE & BACK SONER-WITH(6SENSOR PER VEHICLE); TRH223..5F..GL..GEN DUAL AIR CONDITIONER&CLEARANCE & BACK SONER-WITH(6SENSOR PER VEHICLE) |
89341-26360 |
US $238.78 |
||
| replacement | |||||
|
89341B
|
89341B
89341-26361 Sensor, Ultrasonic, No.2[01.2005 - 07.2008] TRH213,223..(10S,11S,13S)..(GEN,TH) CLEARANCE & BACK SONER-WITH(6SENSOR PER VEHICLE); TRH223..5F..GL..GEN DUAL AIR CONDITIONER&CLEARANCE & BACK SONER-WITH(6SENSOR PER VEHICLE) |
89341-26361 |
US $166.40 |
||
|
89348
|
89348
89348-44010 Retainer, Ultrasonic Sensor, No.1[01.2005 - 08.2010] TRH213,223..(10S,11S,13S)..(GEN,TH) CLEARANCE & BACK SONER-WITH(6SENSOR PER VEHICLE); TRH223..5F..GL..GEN DUAL AIR CONDITIONER&CLEARANCE & BACK SONER-WITH(6SENSOR PER VEHICLE) |
89348-44010 |
from US $2.30 |
||
