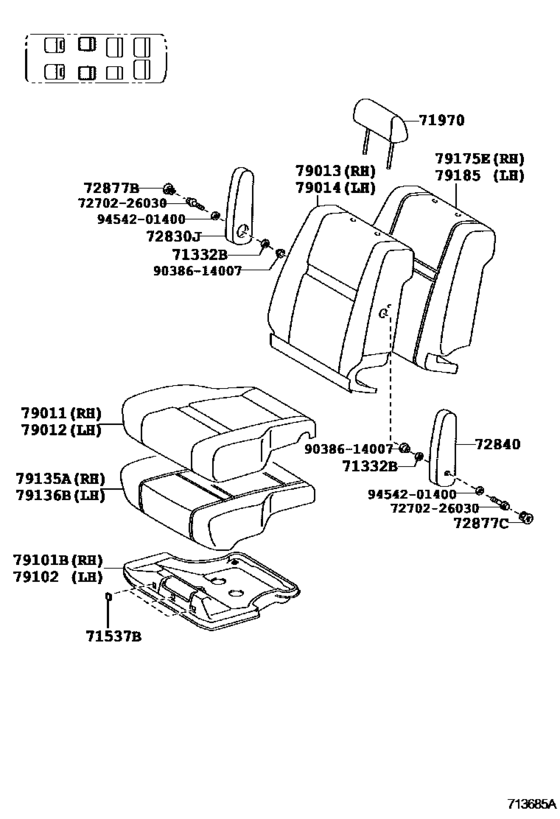

Seat & Seat Track ([01.2005 - 06.2005] RHD RR(CAPTAIN SEAT) (0501-0506)TRH213..4FC) Diagram Toyota HIACE
- Year
- 2005 - 2007
- Sales region
- General
- Frame
- TRH213
- grade
- GL
- body
- COM
- Roof
- SMRF
- ENGINE
- 2TRFE
- DESTINATION
- GEN
- Model
- HIACE
- From
- 01.2005
- To
- 09.2007
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Seating Capacity
- 11S
- Vehicle Model
- Hiace
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71332B
|
71332B
90560-18011 Spacer, Rear Seat Back Hinge[01.2005 - 06.2005] TRH213..4FC |
90560-18011 |
US $2.33 |
||
|
71537B
|
71537B
71537-26010 Protector, Front Seat Cushion[01.2005 - 06.2005] TRH213..4FC |
71537-26010 |
US $1.08 |
||
|
71970
|
71970
71940-26240-A0 Headrest Assy, Rear Seat[01.2005 - 06.2005] TRH213..4FC IVORY |
71940-26240-A0 |
US $398.94 |
||
| replacement | |||||
|
71970
|
71970
71940-26220-A0 Headrest Assy, Rear Seat[01.2005 - 06.2005] TRH213..4FC IVORY |
71940-26220-A0 |
US $371.28 |
||
|
72830J
|
72830J
72830-26270-A0 Armrest Assy, Rear No.1 Seat, Rh[01.2005 - 06.2005] TRH213..4FC IVORY |
72830-26270-A0 |
US $433.89 |
||
|
72840
|
72840
72840-26150-A0 Armrest Assy, Rear No.1 Seat, Lh[01.2005 - 06.2005] TRH213..4FC IVORY |
72840-26150-A0 |
US $433.89 |
||
|
72877B
|
72877B
71877-26030-B1 Cover, Rear Seat Armrest Hole RhSEAT ARMREST, RH [01.2005 - 06.2005] TRH213..4FC GRAY,TRIM1# |
71877-26030-B1 |
US $8.15 |
||
| replacement | |||||
|
72877B
|
72877B
71877-26020-C0 Cover, Rear Seat Armrest Hole Rh[01.2005 - 06.2005] TRH213..4FC GRAY,TRIM1# |
71877-26020-C0 |
US $5.53 |
||
|
72877C
|
72877C
71877-26030-B1 Cover, Rear Seat Armrest Hole RhSEAT ARMREST, RH [01.2005 - 06.2005] TRH213..4FC GRAY,TRIM1# |
71877-26030-B1 |
US $8.15 |
||
| replacement | |||||
|
72877C
|
72877C
71877-26020-C0 Cover, Rear Seat Armrest Hole Rh[01.2005 - 06.2005] TRH213..4FC GRAY,TRIM1# |
71877-26020-C0 |
US $5.53 |
||
|
79011
|
79011
79011-26850-A0 Cover Sub-Assy, No.1 Seat Cushion[01.2005 - 06.2005] TRH213..4FC IVORY |
79011-26850-A0 |
US $620.26 |
||
|
79012
|
79012
79011-26850-A0 Cover Sub-Assy, No.1 Seat Cushion[01.2005 - 06.2005] TRH213..4FC IVORY |
79011-26850-A0 |
US $620.26 |
||
|
79013
|
79013
79013-26800-A0 Cover Sub-Assy, No.1 Seat Back[01.2005 - 06.2005] TRH213..4FC IVORY |
79013-26800-A0 |
US $643.55 |
||
|
79014
|
79014
79013-26800-A0 Cover Sub-Assy, No.1 Seat Back[01.2005 - 06.2005] TRH213..4FC IVORY |
79013-26800-A0 |
US $643.55 |
||
|
79101B
|
79101B
71011-26040 Frame Sub-Assy, Front Seat Cushion, Rh[01.2005 - 06.2005] TRH213..4FC |
71011-26040 |
US $131.04 |
||
|
79102
|
79102
71011-26040 Frame Sub-Assy, Front Seat Cushion, Rh[01.2005 - 06.2005] TRH213..4FC |
71011-26040 |
US $131.04 |
||
|
79135A
|
79135A
79135-26240 Pad, No.1 Seat Cushion[01.2005 - 06.2005] TRH213..4FC |
79135-26240 |
US $218.40 |
||
|
79136B
|
79136B
79135-26240 Pad, No.1 Seat Cushion[01.2005 - 06.2005] TRH213..4FC |
79135-26240 |
US $218.40 |
||
|
79175E
|
79175E
79175-26230 Pad, No.1 Seat Back[01.2005 - 06.2005] TRH213..4FC |
79175-26230 |
US $218.40 |
||
|
79185
|
79185
79175-26230 Pad, No.1 Seat Back[01.2005 - 06.2005] TRH213..4FC |
79175-26230 |
US $218.40 |
||
|
7270226030
|
7270226030
72702-26030 Bracket Sub-assy, Rear Seat Back Striker |
72702-26030 |
US $2.48 |
||
|
9038614007
|
9038614007
90386-14007 Bush, Front Seat Armrest, No.1 |
90386-14007 |
US $5.53 |
||
|
9454201400
|
9454201400
94542-01400 Spacer, Center Seat Hinge |
94542-01400 |
US $2.87 |
||
