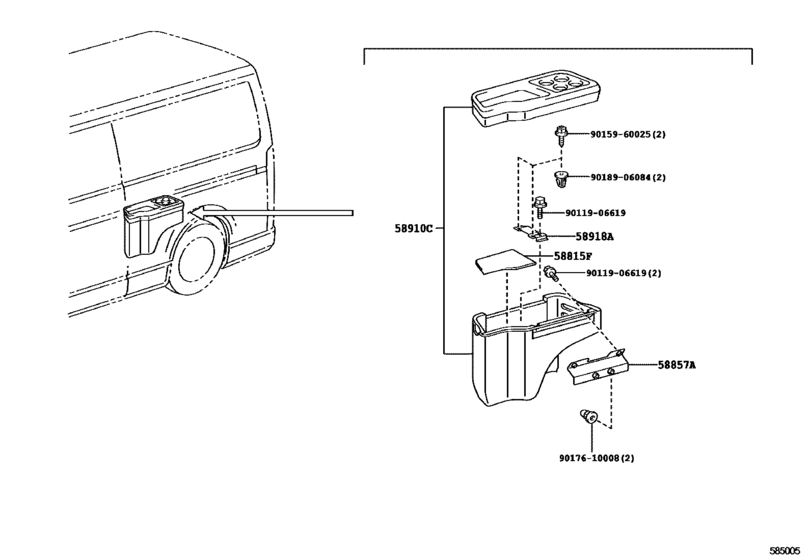

Console Box & Bracket ([12.2013 - ] (1312- )TRH214,219..GL) Diagram Toyota HIACE
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- TRH219
- grade
- GL
- body
- WG
- Roof
- SMRF
- ENGINE
- 2TRFE
- Model
- HIACE/REGIUSACE
- From
- 12.2013
- To
- 01.2015
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 4WD
- Seating Capacity
- 10S
- Building Condition
- CBU
- Side Window
- SG
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58815F
|
58815F
58815-26090 Carpet, Console Box[12.2013 -] TRH214,219..GL |
58815-26090 |
US $4.08 |
||
|
58857A
|
58857A
58857-26050 Bracket, Console Support, Upper No.1[12.2013 -] TRH214,219..GL |
58857-26050 |
US $33.20 |
||
|
58910C
|
58910C
58910-26080-B1 Box Assy, Console, Rear[12.2013 -] TRH214,219..GL DK.GRAY,TRIM1# |
58910-26080-B1 |
US $329.06 |
||
|
58918A
|
58918A
58918-26020 Bracket, Box Support[12.2013 -] TRH214,219..GL |
58918-26020 |
US $11.21 |
||
|
9011906619
|
9011906619
90119-06619 BOLT WWASHER |
90119-06619 |
US $1.44 |
||
|
9015960025
|
9015960025
90159-60025 SCREW W-WASHER |
90159-60025 |
US $3.20 |
||
|
9017610008
|
9017610008
90176-10008 NUT |
90176-10008 |
US $1.12 |
||
|
9018906084
|
9018906084
90189-06084 NUT |
90189-06084 |
US $1.76 |
