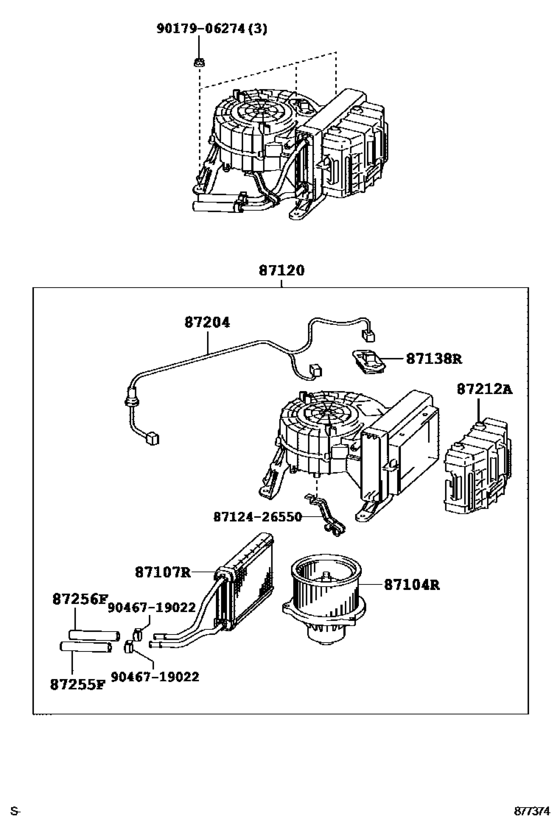

Heating & Air Conditioning - Heater Unit & Blower ([01.2005 - ] (0501-0709)KDH222,227..IV5 ; (0501- )TRH223,2 28..IV5 ; (0709- )KDH223..IV5) Diagram Toyota HIACE
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- TRH223
- grade
- GL
- body
- COM
- Roof
- HRF
- ENGINE
- 2TRFE
- Model
- HIACE/REGIUSACE
- From
- 01.2005
- To
- 12.2013
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 15S
- Building Condition
- IV5
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87104R
|
87104R
87104-26090 Motor Sub-Assy, Rear Heater Blower[08.2004 - 12.2013] KDH20#,TRH200..IV5;KDH222,223,227,TRH214,219,223,224,228,229 |
87104-26090 |
US $243.20 |
||
|
87107R
|
87107R
87107-26300
Unit Sub-Assy, Rear Heater
[01.2005 - 12.2013] KDH222,223,227,TRH223,228..IV5 |
87107-26300 |
— | ||
|
87120
|
87120
87110-26450
Heater Assy, Rear
[01.2005 - 08.2010] KDH222,223,227,TRH223,228..IV5 |
87110-26450 |
— | ||
|
87120
|
87120
87110-26451
Heater Assy, Rear
[08.2010 - 12.2013] KDH223,TRH223,228..IV5 |
87110-26451 |
— | ||
|
87138R
|
87138R
87138-52010 Resistor, Blower[08.2004 - 12.2013] KDH20#,TRH200..IV5;KDH222,223,227,TRH214,219,223,224,228,229 |
87138-52010 |
from US $16.77 |
||
|
87204
|
87204
87204-26030 Wire & Piping Sub-Assy, Heater Parts[01.2005 - 12.2013] KDH222,223,227,TRH223,228..IV5 |
87204-26030 |
US $28.10 |
||
|
87212A
|
87212A
87211-26170
Duct, Air, Rear No.1
[08.2010 - 12.2013] KDH20#,223,TRH200,223,228..IV5 |
87211-26170 |
— | ||
|
87212A
|
87212A
87211-26180
Duct, Air, Rear No.1
[08.2004 - 08.2010] KDH20#,222,223,227,TRH200,223,228..IV5 |
87211-26180 |
— | ||
|
87255F
|
87255F
87245-26E00 Hose, Rear Heater Water Inlet, F(For Heater Unit)[01.2005 - 12.2013] KDH222,223,227,TRH223,228..IV5 長さ＝１４０ |
87245-26E00 |
US $2.62 |
||
|
87256F
|
87256F
87245-26E10 Hose, Rear Heater Water Outlet, F (For Heater Unit)[01.2005 - 12.2013] KDH222,223,227,TRH223,228..IV5 長さ＝１４０ |
87245-26E10 |
US $2.62 |
||
|
8712426550
|
8712426550
87124-26550
Clamp, Heater
|
87124-26550 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9046719022
|
9046719022
90467-19022 Clip(For Ventilation Hose No.2) |
90467-19022 |
from US $2.20 |
