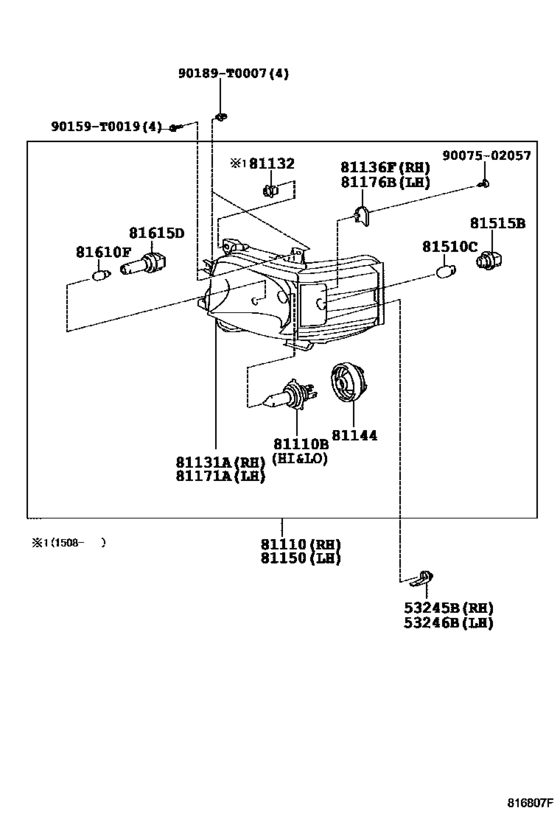

Headlamp ([01.2014 - ] HALOGEN HEADLAMP---THAI CKD (1401- )KDH223,TRH223..TH ; (1505- )KDH222 ..RHD..STD..GEN ; (1506- )KDH223 ..GL..GEN) Diagram Toyota HIACE
- Year
- 2014 - 2018
- Sales region
- General
- Frame
- TRH223
- grade
- STD
- body
- COM
- Roof
- HRF
- ENGINE
- 2TRFE
- DESTINATION
- TH
- Model
- HIACE
- From
- 01.2014
- Gear Shift Type
- 5F
- No.of Doors
- 4D
- Seating Capacity
- 16S
- Vehicle Model
- Hiace
- Driver's Position
- RHD
- Fuel Induction
- HTWC
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53245B
|
53245B
53245-26040 Bracket, Headlamp, Rh[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
53245-26040 |
from US $7.96 |
||
|
53246B
|
53246B
53246-26020 Bracket, Headlamp, Lh[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
53246-26020 |
from US $8.07 |
||
|
81110
|
81110
81110-0L010
Headlamp Assy, Rh
[01.2014 - 09.2015] KDH223,TRH223..TH |
81110-0L010 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-0L011
Headlamp Assy, Rh
[01.2014 - 09.2015] KDH223,TRH223..TH |
81110-0L011 |
— | ||
|
81110
|
81110
81110-0L011
Headlamp Assy, Rh
[10.2015 -] KDH223,TRH223..TH |
81110-0L011 |
— | ||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [12.2013 -] TRH223..12S,13S,14S,16S;GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,221 12V 60/55W,HALOGEN |
90981-13058 |
from US $33.60 |
||
|
81131A
|
81131A
81130-0L010
Unit, Headlamp, Rh
[01.2014 - 10.2015] KDH223,TRH223..TH W/O(PNC 81132) |
81130-0L010 |
— | ||
| replacements | |||||
|
81131A
|
81131A
81130-0L011
Unit, Headlamp, Rh
[01.2014 - 10.2015] KDH223,TRH223..TH W/O(PNC 81132) |
81130-0L011 |
— | ||
|
81131A
|
81131A
90075-10011 Nut, Headlamp Self Locking[01.2014 - 10.2015] KDH223,TRH223..TH W/O(PNC 81132) |
90075-10011 |
from US $1.40 |
||
|
81131A
|
81131A
81130-0L011
Unit, Headlamp, Rh
[10.2015 -] KDH223,TRH223..TH W(PNC 81132) |
81130-0L011 |
— | ||
|
81131A
|
81131A
81130-26740
Unit, Headlamp, Rh
[01.2014 - 08.2015] KDH223,TRH223..5F..TH CBU,W/O(PNC 81132) |
81130-26740 |
— | ||
| replacement | |||||
|
81131A
|
81131A
81130-26741
Unit, Headlamp, Rh
[01.2014 - 08.2015] KDH223,TRH223..5F..TH CBU,W/O(PNC 81132) |
81130-26741 |
— | ||
|
81131A
|
81131A
81130-26741
Unit, Headlamp, Rh
[08.2015 -] TRH223..RHD..STD..(GEN,SA);KDH21#,222,LH212,222,TRH213..RHD..(11S,16S) W(PNC 81132); KDH221..ARL;KDH223..4FC..ARL SINGAPOLE SPEC,W(PNC 81132); KDH223,TRH223..5F..TH CBU,W(PNC 81132) |
81130-26741 |
— | ||
|
81132
|
81132
90075-10011 Nut, Headlamp Self Locking[08.2015 - 10.2015] KDH223,TRH223..5F..TH CBU |
90075-10011 |
from US $1.40 |
||
|
81136F
|
81136F
81136-0L010
Cover, Headlamp, No.2 Rh
[01.2014 -] KDH223,TRH223..TH |
81136-0L010 |
— | ||
|
81136F
|
81136F
81136-26710 Cover, Headlamp, No.2 Rh[01.2014 -] KDH223,TRH223..5F..TH CBU |
81136-26710 |
US $3.58 |
||
|
81144
|
81144
90075-65002 Cover, Headlamp Back, No.1[12.2013 -] TRH223..12S,13S,14S,16S;GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,221 |
90075-65002 |
from US $6.47 |
||
|
81150
|
81150
81150-0L010
Headlamp Assy, Lh
[01.2014 - 09.2015] KDH223,TRH223..TH |
81150-0L010 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-0L011
Headlamp Assy, Lh
[01.2014 - 09.2015] KDH223,TRH223..TH |
81150-0L011 |
— | ||
|
81150
|
81150
81150-0L011
Headlamp Assy, Lh
[10.2015 -] KDH223,TRH223..TH |
81150-0L011 |
— | ||
|
81171A
|
81171A
81170-0L010
Unit, Headlamp, Lh
[01.2014 - 10.2015] KDH223,TRH223..TH W/O(PNC 81132) |
81170-0L010 |
— | ||
| replacements | |||||
|
81171A
|
81171A
81170-0L011
Unit, Headlamp, Lh
[01.2014 - 10.2015] KDH223,TRH223..TH W/O(PNC 81132) |
81170-0L011 |
— | ||
|
81171A
|
81171A
90075-10011 Nut, Headlamp Self Locking[01.2014 - 10.2015] KDH223,TRH223..TH W/O(PNC 81132) |
90075-10011 |
from US $1.40 |
||
|
81171A
|
81171A
81170-0L011
Unit, Headlamp, Lh
[10.2015 -] KDH223,TRH223..TH W(PNC 81132) |
81170-0L011 |
— | ||
|
81171A
|
81171A
81170-26740
Unit, Headlamp, Lh
[01.2014 - 08.2015] KDH223,TRH223..5F..TH CBU,W/O(PNC 81132) |
81170-26740 |
— | ||
| replacement | |||||
|
81171A
|
81171A
81170-26741
Unit, Headlamp, Lh
[01.2014 - 08.2015] KDH223,TRH223..5F..TH CBU,W/O(PNC 81132) |
81170-26741 |
— | ||
|
81171A
|
81171A
81170-26741
Unit, Headlamp, Lh
[08.2015 -] TRH223..RHD..STD..(GEN,SA);KDH21#,222,LH212,222,TRH213..RHD..(11S,16S) W(PNC 81132); KDH221..ARL;KDH223..4FC..ARL SINGAPOLE SPEC,W(PNC 81132); KDH223,TRH223..5F..TH CBU,W(PNC 81132) |
81170-26741 |
— | ||
|
81176B
|
81176B
81176-0L010
Cover, Headlamp, No.2 Lh
[01.2014 -] KDH223,TRH223..TH |
81176-0L010 |
— | ||
|
81176B
|
81176B
81176-26710 Cover, Headlamp, No.2 Lh[01.2014 -] KDH223,TRH223..5F..TH CBU |
81176-26710 |
US $3.58 |
||
|
81510C
|
81510C
90981-15021 Bulb (For Front Turn Signal Lamp)[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 12V 21W,AMBER |
90981-15021 |
from US $3.22 |
||
|
81515B
|
81515B
90075-60028 Socket, Headlamp, Bulb[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# |
90075-60028 |
from US $6.36 |
||
|
81610F
|
81610F
90981-11069 Bulb, Tail Lamp[12.2013 -] GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22# 12V 5W |
90981-11069 |
from US $1.97 |
||
|
81615D
|
81615D
90075-60077 Clearance Lamp Socket[12.2013 -] TRH223..12S,13S,14S,16S;GDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,221 |
90075-60077 |
from US $5.97 |
||
|
90159T0019
|
90159T0019
90159-T0019 SCREW WWASHER TAPP |
90159-T0019 |
US $0.66 |
||
|
90189T0007
|
90189T0007
90189-T0007 GROMMET SCREW |
90189-T0007 |
US $0.68 |
||
|
9007502057
|
9007502057
90075-02057 New Genuine Part |
90075-02057 |
US $1.25 |
||
