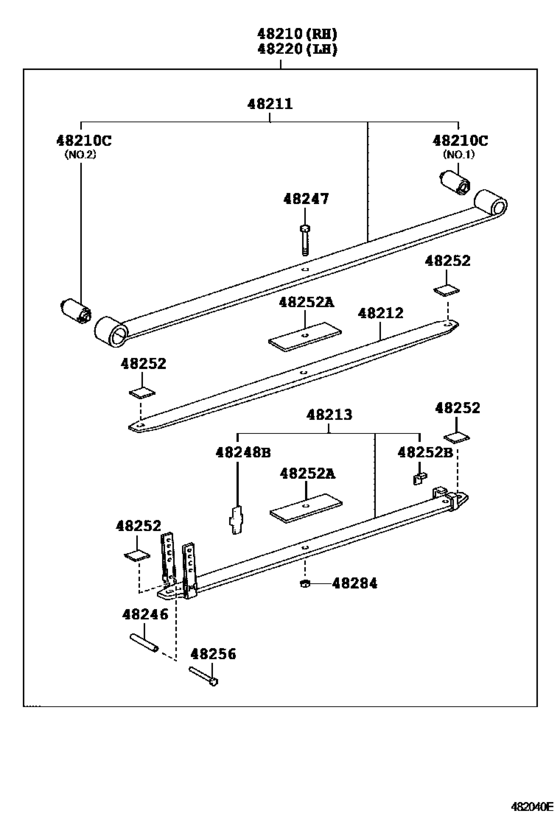

Rear Spring & Shock Absorber ([01.2005 - ] 3-ﾘｰﾌ (0501- )KDH222,223,227,TRH223,224,228,229..IV 5) Diagram Toyota HIACE
- Year
- 2005 - 2013
- Sales region
- Japan
- Frame
- TRH224
- grade
- GC
- body
- WG
- Roof
- HRF
- ENGINE
- 2TRFE
- Model
- HIACE/REGIUSACE
- From
- 01.2005
- To
- 12.2013
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Drive Train
- 2WD
- Seating Capacity
- 10S
- Building Condition
- IV5
- Side Window
- SG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-26C10 Spring Assy, Rear Rh[01.2005 - 07.2010] KDH222,223,TRH223,224..IV5 ３枚リーフ |
48210-26C10 |
US $457.18 |
||
|
48210
|
48210
48210-26C11 Spring Assy, Rear Rh[08.2010 - 05.2012] TRH224..IV5 ３枚リーフ |
48210-26C11 |
US $399.36 |
||
|
48210
|
48210
48210-26C21 Spring Assy, Rear Rh[08.2010 - 05.2012] TRH224..IV5 ３枚リーフ,ウェルキャブ（福祉タクシー） |
48210-26C21 |
US $345.07 |
||
|
48210C
|
48210C
90389-14007 Bush(For Rear Spring Leaf)[08.2004 - 12.2013] KDH20#,211,22#,TRH200,21#,22# ＮＯ．１ |
90389-14007 |
from US $18.65 |
||
|
48210C
|
48210C
90389-14037 Bush(For Rear Spring Leaf)[08.2004 - 12.2013] KDH20#,211,22#,TRH200,21#,22# ＮＯ．２ |
90389-14037 |
from US $8 |
||
|
48211
|
48211
48201-26B90 Leaf, Rear Spring, No.1[08.2004 - 08.2010] KDH200,201,222,223,TRH200,223,224..IV5 |
48201-26B90 |
US $200.93 |
||
|
48211
|
48211
48201-26C11 Leaf, Rear Spring, No.1[08.2010 - 05.2012] TRH224..IV5 |
48201-26C11 |
US $151.42 |
||
|
48211
|
48211
48201-26C21 Leaf, Rear Spring, No.1[08.2010 - 05.2012] TRH224..IV5 ウェルキャブ（福祉タクシー） |
48201-26C21 |
US $151.42 |
||
|
48212
|
48212
48212-26B90 Leaf, Rear Spring, No.2[08.2004 - 08.2010] KDH200,201,222,223,TRH200,223,224..IV5 |
48212-26B90 |
US $122.30 |
||
|
48212
|
48212
48212-26C11 Leaf, Rear Spring, No.2[08.2010 - 05.2012] TRH224..IV5 |
48212-26C11 |
US $100.46 |
||
|
48212
|
48212
48212-26C21 Leaf, Rear Spring, No.2[08.2010 - 05.2012] TRH224..IV5 ウェルキャブ（福祉タクシー） |
48212-26C21 |
US $100.46 |
||
|
48213
|
48213
48202-26B90 Leaf, Rear Spring, No.3[08.2004 - 08.2010] KDH200,201,222,223,TRH200,223,224..IV5 |
48202-26B90 |
US $120.85 |
||
|
48213
|
48213
48202-26C11 Leaf, Rear Spring, No.3[08.2010 - 05.2012] TRH224..IV5 |
48202-26C11 |
US $90.27 |
||
|
48213
|
48213
48202-26C21 Leaf, Rear Spring, No.3[08.2010 - 05.2012] TRH224..IV5 ウェルキャブ（福祉タクシー） |
48202-26C21 |
US $90.27 |
||
|
48220
|
48220
48210-26C10 Spring Assy, Rear Rh[01.2005 - 07.2010] KDH222,223,TRH223,224..IV5 ３枚リーフ |
48210-26C10 |
US $457.18 |
||
|
48220
|
48220
48210-26C11 Spring Assy, Rear Rh[08.2010 - 05.2012] TRH224..IV5 ３枚リーフ |
48210-26C11 |
US $399.36 |
||
|
48220
|
48220
48210-26C21 Spring Assy, Rear Rh[08.2010 - 05.2012] TRH224..IV5 ３枚リーフ,ウェルキャブ（福祉タクシー） |
48210-26C21 |
US $345.07 |
||
|
48246
|
48246
48246-26020 Case, Rear Spring Clip Bolt[01.2005 - 12.2013] KDH220,225,TRH224,229;KDH222,223,227,TRH223,228..IV5 |
48246-26020 |
US $2.15 |
||
|
48247
|
48247
48247-26260 Bolt, Rear Spring, Center[08.2004 - 02.2007] KDH205,222,227,TRH223,228..IV5;KDH200,220,TRH200,21#,221,224,229..V1,WG |
48247-26260 |
US $6.27 |
||
|
48247
|
48247
48247-26A00 Bolt, Rear Spring, Center[02.2007 - 12.2013] KDH201,205,206,222,223,227,TRH200,223,228..IV5;KDH200,220,TRH214,219,224,229..(V1, WG)..(DX,GC,GL) |
48247-26A00 |
US $3.94 |
||
|
48248B
|
48248B
48248-26A00 Spacer, Rear Spring, No.3[08.2004 - 12.2013] KDH200,205,220,225,TRH214,219,224,229;KDH201,206,222,223,227,TRH200,223,228..IV5 |
48248-26A00 |
US $2.77 |
||
|
48252
|
48252
48252-26A00 Silencer, Rear Spring[08.2004 - 05.2012] TRH224..IV5 |
48252-26A00 |
from US $9.98 |
||
|
48252A
|
48252A
48253-26A00 Spacer, Rear Spring, No.2[08.2004 - 12.2013] KDH20#,222,223,227,TRH200,223,224,228,229..IV5 |
48253-26A00 |
US $63.50 |
||
|
48252B
|
48252B
48252-37380 Silencer, Rear Spring[08.2004 - 12.2013] KDH200,205,220,225,TRH214,219,224,229;KDH201,206,222,223,227,TRH200,223,228..IV5 |
48252-37380 |
US $9.68 |
||
|
48256
|
48256
48256-26A00 Bolt, Hexagon(For Rear Spring Clip Set)[08.2004 - 12.2013] KDH200,205,220,225,TRH214,219,224,229;KDH201,206,222,223,227,TRH200,223,228..IV5 |
48256-26A00 |
US $8.24 |
||
|
48284
|
48284
48284-26A30 Nut, Rear Spring Center Bolt[02.2007 - 12.2013] KDH20#,211,22#,TRH200,21#,22# |
48284-26A30 |
US $1.97 |
||
|
48284
|
48284
48284-37130 Nut, Front Spring Center Bolt[08.2004 - 02.2007] KDH20#,22#,TRH200,21#,22# |
48284-37130 |
from US $1.11 |
