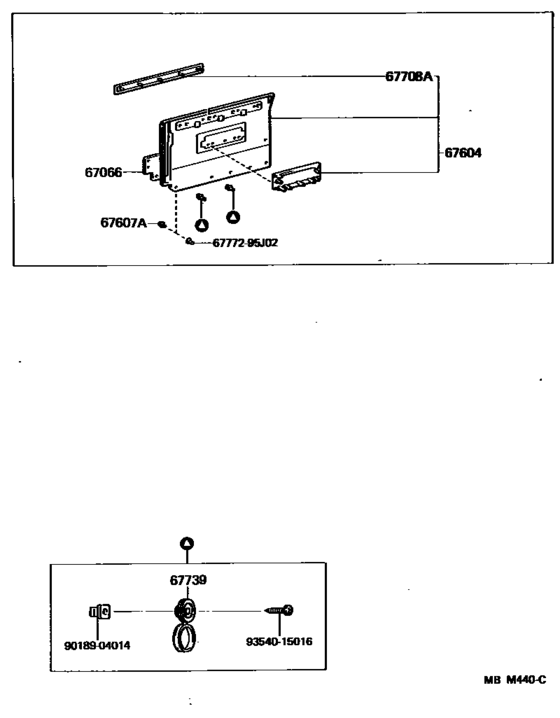

Rear Door Panel & Glass ([08.1987 - ] (8708- )LH51,YH51,57..07S,08S) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH51G
- grade
- SCM
- body
- WG
- Roof
- MRF
- ENGINE
- 3YU
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67066
|
67066
67066-95J01-14 Carpet Sub-Assy, Rear Door Trim[08.1987 - 08.1989] LH51,YH51,57..08S BLUE,TRIM8# |
67066-95J01-14 |
US $224.22 |
||
| replacement | |||||
|
67066
|
67066
67066-95J01-J1 Carpet Sub-Assy, Rear Door Trim[08.1987 - 08.1989] LH51,YH51,57..08S BLUE,TRIM8# |
67066-95J01-J1 |
US $224.22 |
||
|
67066
|
67066
67066-95J01-26 Carpet Sub-Assy, Rear Door Trim[08.1987 - 08.1989] LH51,YH51,57..08S BROWN,TRIM4# |
67066-95J01-26 |
US $224.22 |
||
| replacement | |||||
|
67066
|
67066
67066-95J01-E1 Carpet Sub-Assy, Rear Door Trim[08.1987 - 08.1989] LH51,YH51,57..08S BROWN,TRIM4# |
67066-95J01-E1 |
US $224.22 |
||
|
67604
|
67604
67640-95J08-04 Board Sub-Assy, Rear Door Trim, Lh[08.1987 - 08.1989] LH51,YH51,57..08S BLUE,TRIM8# |
67640-95J08-04 |
US $272.27 |
||
|
67604
|
67604
67640-95J08-16 Board Sub-Assy, Rear Door Trim, Lh[08.1987 - 08.1989] LH51,YH51,57..08S BROWN,TRIM4# |
67640-95J08-16 |
US $272.27 |
||
|
67607A
|
67607A
90467-09010-14 Clip(For Quarter Trim Front Panel)[08.1987 - 08.1989] LH51,YH51,57..08S BLUE,TRIM8# |
90467-09010-14 |
US $2.33 |
||
|
67607A
|
67607A
90467-09010-16 Clip(For Engine Cover Mat)[08.1987 - 08.1989] LH51,YH51,57..07S,08S DARK BROWN,TRIM4# |
90467-09010-16 |
US $2.33 |
||
|
67607A
|
67607A
90467-09010-36 Clip(For Engine Cover Mat)[08.1987 - 08.1989] LH51,YH51,57..07S,08S BROWN,TRIM4# |
90467-09010-36 |
US $2.33 |
||
|
67708A
|
67708A
67708-95J04-04 Ornament Sub-Assy, Rear Door Trim[08.1987 - 08.1989] LH51,YH51,57..08S BLUE,TRIM8# |
67708-95J04-04 |
US $39.31 |
||
|
67708A
|
67708A
67708-95J04-06 Ornament Sub-Assy, Rear Door Trim[08.1987 - 08.1989] LH51,YH51,57..07S,08S BROWN,TRIM4# |
67708-95J04-06 |
US $39.31 |
||
|
67739
|
67739
67739-95J00-14 Washer, Slide Door Trim Setting[08.1987 - 08.1989] LH51,YH51,57..08S BLUE,TRIM8# |
67739-95J00-14 |
US $3.64 |
||
|
67739
|
67739
67739-95J00-26 Cover, Rear Door Trim[08.1987 - 08.1989] LH51,YH51,57..07S,08S BROWN,TRIM4# |
67739-95J00-26 |
US $3.64 |
||
|
6777295J02
|
6777295J02
67772-95J02 Cap, Front Door Trim Retainer |
67772-95J02 |
US $2.06 |
||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $0.98 |
||
|
9354015016
|
9354015016
93540-15016 New Genuine Part |
93540-15016 |
US $0.87 |
||
