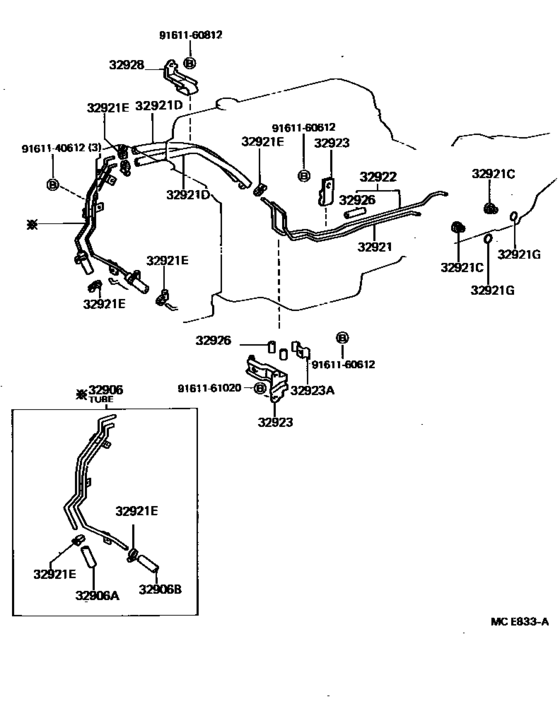

Oil Cooler & Tube (Atm) ([08.1987 - ] (8708- )YH51,61..ATM) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH51G
- grade
- SCM
- body
- WG
- Roof
- MRF
- ENGINE
- 3YU
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32906
|
32906
32906-26030 Tube Sub-Assy, Oil Cooler[08.1987 - 08.1989] LH51,61,YH51,61..ATM..(CBR,DSL) |
32906-26030 |
US $59.40 |
||
|
32906A
|
32906A
90445-16029 Hose, Oil Cooler Tube(For Inlet)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90445-16029 |
US $7.13 |
||
|
32906B
|
32906B
90445-16029 Hose, Oil Cooler Tube(For Inlet)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90445-16029 |
US $7.13 |
||
|
32921
|
32921
32921-26040 Tube, Oil Cooler Inlet, No.1[08.1987 - 10.1987] YH51,61..ATM |
32921-26040 |
US $19.80 |
||
| replacement | |||||
|
32921
|
32921
32921-26041 Tube, Oil Cooler Inlet, No.1[08.1987 - 10.1987] YH51,61..ATM |
32921-26041 |
US $17.18 |
||
|
32921
|
32921
32921-26041 Tube, Oil Cooler Inlet, No.1[10.1987 - 08.1989] YH51,61..ATM |
32921-26041 |
US $17.18 |
||
|
32921C
|
32921C
90404-16021 Union(For Oil Cooler Tube)[08.1987 - 08.1989] LH51,YH51,61..ATM..(CBR,TD) フロント |
90404-16021 |
US $7.34 |
||
|
32921C
|
32921C
90407-16010 Union(For Oil Cooler Tube)[08.1987 - 08.1989] LH51,YH51,61..ATM..(CBR,TD) リヤ |
90407-16010 |
US $9.50 |
||
|
32921D
|
32921D
32941-26030 Hose(For Oil Cooler Inlet)[08.1987 - 08.1989] YH51,61..ATM |
32941-26030 |
US $64.06 |
||
|
32921E
|
32921E
90460-18002 Clamp, Hose(For Oil Cooler)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90460-18002 |
US $4.22 |
||
|
32921G
|
32921G
90301-10189 Ring, O(For Oil Cooler Tube Union)[08.1987 - 08.1989] LH51,61,YH51,61..ATM |
90301-10189 |
from US $2.63 |
||
|
32922
|
32922
32922-26040 Tube, Oil Cooler Outlet, No.1[08.1987 - 10.1987] YH51,61..ATM |
32922-26040 |
US $20.97 |
||
| replacement | |||||
|
32922
|
32922
32922-26041 Tube, Oil Cooler Outlet, No.1[08.1987 - 10.1987] YH51,61..ATM |
32922-26041 |
US $17.91 |
||
|
32922
|
32922
32922-26041 Tube, Oil Cooler Outlet, No.1[10.1987 - 08.1989] YH51,61..ATM |
32922-26041 |
US $17.91 |
||
|
32923
|
32923
32923-26020 Clamp, Automatic Transmission Oil Cooler Tube[08.1987 - 08.1989] YH51,61..ATM エンジン側 |
32923-26020 |
US $10.92 |
||
|
32923
|
32923
90461-08628 Clamp, Automatic Transmission Oil Cooler Tube[08.1987 - 08.1989] YH51,61..ATM HOUSING SIDE |
90461-08628 |
US $2.62 |
||
|
32923A
|
32923A
90462-12044 Clamp, Automatic Transmission Oil Cooler Tube[08.1987 - 08.1989] YH51,61..ATM |
90462-12044 |
US $2.91 |
||
|
32926
|
32926
32926-30020 Cushion, Oil Cooler Tube(Atm)[08.1987 - 08.1989] YH51,61..ATM 長さ＝３５，内径＝１０ |
32926-30020 |
US $3.05 |
||
|
32928
|
32928
90949-01215 Clamp, Flexible Hose, No.1[08.1987 - 08.1989] YH51,61..ATM |
90949-01215 |
US $4.08 |
||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.70 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
