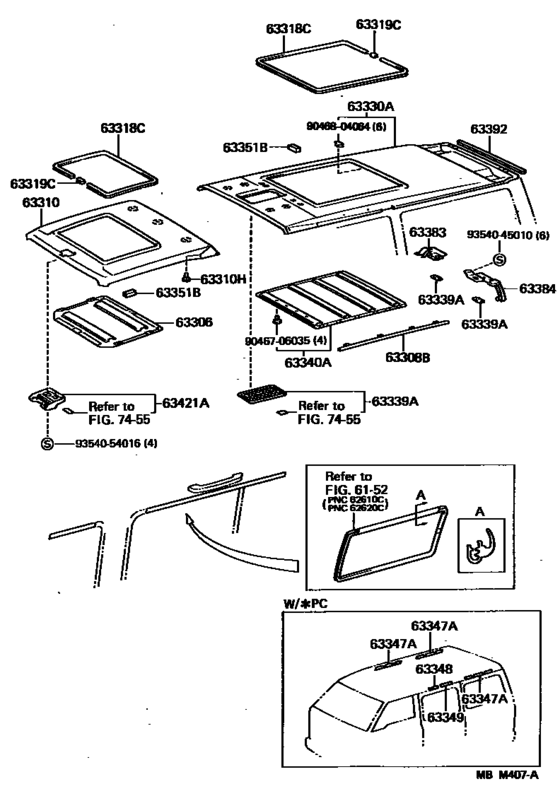

Roof Headlining & Silencer Pad ([08.1987 - ] (8708- )MRF) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH51G
- grade
- SCM
- body
- WG
- Roof
- MRF
- ENGINE
- 3YU
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63306
|
63306
63305-95J02-03 Trim Sub-Assy, Sunshade[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8# |
63305-95J02-03 |
US $918.74 |
||
|
63306
|
63306
63305-95J02-05 Trim Sub-Assy, Sunshade[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAIGE,TRIM4# |
63305-95J02-05 |
US $918.74 |
||
|
63308B
|
63308B
63308-95J00-03 Trim Sub-Assy, Roof Headlining, No.1[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8# |
63308-95J00-03 |
US $24.46 |
||
|
63308B
|
63308B
63308-95J00-05 Trim Sub-Assy, Roof Headlining, Lh[08.1987 - 08.1989] LH51,YH51..MRF GRAIGE,TRIM4# |
63308-95J00-05 |
US $24.46 |
||
|
63310
|
63310
63310-95J12-03 Headlining Assy, Roof[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8# |
63310-95J12-03 |
US $403.31 |
||
|
63310
|
63310
63310-95J12-05 Headlining Assy, Roof[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAIGE,TRIM4# |
63310-95J12-05 |
US $403.31 |
||
|
63310
|
63310
63310-95J13-03 Headlining Assy, Roof[08.1987 - 08.1989] LH51,YH51..MRF..08S ｱﾘ(ｶ-ﾃﾝ),GRAY,TRIM8# |
63310-95J13-03 |
US $403.31 |
||
|
63310
|
63310
63310-95J13-05 Headlining Assy, Roof[08.1987 - 08.1989] LH51,YH51..MRF..08S ｱﾘ(ｶ-ﾃﾝ),GRAIGE,TRIM4# |
63310-95J13-05 |
US $403.31 |
||
|
63310H
|
63310H
90467-05021-03 Clip, Roof Headlining[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8# |
90467-05021-03 |
US $1.89 |
||
|
63310H
|
63310H
90467-05021-15 Clip(For Roof Headlining)[08.1987 - 08.1989] LH51,YH51..MRF GRAIGE,TRIM4# |
90467-05021-15 |
US $1.89 |
||
|
63318C
|
63318C
63318-95J02-03 Moulding, Tilt Roof Opening Trim[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8#,フロント |
63318-95J02-03 |
US $28.83 |
||
| replacement | |||||
|
63318C
|
63318C
63318-95J03-03 Moulding, Tilt Roof Opening Trim[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8#,フロント |
63318-95J03-03 |
US $41.20 |
||
|
63318C
|
63318C
63318-95J02-05 Moulding, Sun Roof Opening Trim[08.1987 - 08.1989] LH51,YH51..MRF GRAIGE,TRIM4#,フロント |
63318-95J02-05 |
US $28.83 |
||
| replacement | |||||
|
63318C
|
63318C
63318-95J03-05 Moulding, Sun Roof Opening Trim[08.1987 - 08.1989] LH51,YH51..MRF GRAIGE,TRIM4#,フロント |
63318-95J03-05 |
US $41.20 |
||
|
63318C
|
63318C
63318-95J03-03 Moulding, Tilt Roof Opening Trim[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8#,リヤ |
63318-95J03-03 |
US $41.20 |
||
|
63318C
|
63318C
63318-95J03-05 Moulding, Sun Roof Opening Trim[08.1987 - 08.1989] LH51,YH51..MRF GRAIGE,TRIM4#,リヤ |
63318-95J03-05 |
US $41.20 |
||
|
63319C
|
63319C
63319-14011
Joint, Sun Roof Opening Trim
[08.1987 - 08.1989] LH51,YH51..MRF |
63319-14011 |
— | ||
|
63330A
|
63330A
63330-95J04-03 Headlining Assy, Roof, Rear[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8# |
63330-95J04-03 |
US $1,659.84 |
||
|
63330A
|
63330A
63330-95J04-05 Headlining Assy, Roof, Rear[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAIGE,TRIM4# |
63330-95J04-05 |
US $1,659.84 |
||
|
63330A
|
63330A
63330-95J06-03 Headlining Assy, Roof, Rear[08.1987 - 08.1989] LH51,YH51..MRF..08S ｱﾘ(ｶ-ﾃﾝ),GRAY,TRIM8# |
63330-95J06-03 |
US $1,659.84 |
||
|
63330A
|
63330A
63330-95J06-05 Headlining Assy, Roof, Rear[08.1987 - 08.1989] LH51,YH51..MRF..08S ｱﾘ(ｶ-ﾃﾝ),GRAIGE,TRIM4# |
63330-95J06-05 |
US $1,659.84 |
||
|
63339A
|
63339A
63339-95700-03 Cover, Roof Headlining Service Hole[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8#,リヤ |
63339-95700-03 |
US $8.74 |
||
|
63339A
|
63339A
63339-95700-05 Cover, Roof Headlining Service Hole[08.1987 - 08.1989] LH51,YH51..MRF GRAIGE,TRIM4#,リヤ |
63339-95700-05 |
US $8.74 |
||
|
63339A
|
63339A
63339-95J00-03 Cover, Roof Headlining Service Hole[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8#,フロント |
63339-95J00-03 |
US $24.46 |
||
|
63339A
|
63339A
63339-95J00-05 Cover, Roof Headlining Service Hole[08.1987 - 08.1989] LH51,YH51..MRF GRAIGE,TRIM4#,フロント |
63339-95J00-05 |
US $24.46 |
||
|
63340A
|
63340A
63340-95J02-05 Headlining Assy, Sun Roof, Rear[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAIGE,TRIM4# |
63340-95J02-05 |
US $556.19 |
||
|
63340A
|
63340A
63340-95J02-13 Headlining Assy, Sun Roof, Rear[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8# |
63340-95J02-13 |
US $556.19 |
||
|
63347A
|
63347A
63347-95J00 Pad, Roof Silencer, No.7[08.1987 - 08.1989] LH51,YH51..07S; LH51,YH51..MRF..08S |
63347-95J00 |
US $8.74 |
||
|
63348
|
63348
63348-95J00 Pad, Roof Silencer, No.8[08.1987 - 08.1989] LH51,YH51..07S; LH51,YH51..MRF..08S |
63348-95J00 |
US $5.24 |
||
|
63349
|
63349
63349-95J00 Pad, Roof Silencer, No.9[08.1987 - 08.1989] LH51,YH51..07S; LH51,YH51..MRF..08S |
63349-95J00 |
US $5.24 |
||
|
63351B
|
63351B
63351-95J00 Pad, Roof Headlining[08.1987 - 08.1989] LH51,YH51..MRF 20X12X30 |
63351-95J00 |
US $8.74 |
||
|
63351B
|
63351B
63351-95J02 Pad, Roof Headlining[08.1987 - 08.1989] LH51,YH51..MRF 20X17X30 |
63351-95J02 |
US $8.74 |
||
|
63383
|
63383
63383-95J00 Retainer, Roof Headlining, Rear Rh[08.1987 - 08.1989] LH51,6#,YH51,57..CTM,SCL,SCM,SGL |
63383-95J00 |
US $31.74 |
||
|
63384
|
63384
63384-95J00 Retainer, Roof Headlining, Rear Lh[08.1987 - 08.1989] LH51,6#,YH51,57..CTM,SCL,SCM,SGL |
63384-95J00 |
US $31.74 |
||
|
63392
|
63392
63392-95J01-03 Trim, Roof Headlining, Rear[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8# |
63392-95J01-03 |
US $49.21 |
||
| replacement | |||||
|
63392
|
63392
63318-95J03-03 Moulding, Tilt Roof Opening Trim[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8# |
63318-95J03-03 |
US $41.20 |
||
|
63392
|
63392
63392-95J01-05 Trim, Roof Headlining, Rear[08.1987 - 08.1989] LH51,YH51..MRF GRAIGE,TRIM4# |
63392-95J01-05 |
US $49.21 |
||
| replacement | |||||
|
63392
|
63392
63318-95J03-05 Moulding, Sun Roof Opening Trim[08.1987 - 08.1989] LH51,YH51..MRF GRAIGE,TRIM4# |
63318-95J03-05 |
US $41.20 |
||
|
63421A
|
63421A
63421-95J00-03 Ornament, Roof Console[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAY,TRIM8# |
63421-95J00-03 |
US $44.41 |
||
|
63421A
|
63421A
63421-95J00-05 Ornament, Roof Console[08.1987 - 08.1989] LH51,YH51..MRF..08S GRAIGE,TRIM4# |
63421-95J00-05 |
US $44.41 |
||
|
9046706035
|
9046706035
90467-06035 New Genuine Part |
90467-06035 |
US $4.08 |
||
|
9046804064
|
9046804064
90468-04064 New Genuine Part |
90468-04064 |
US $3.05 |
||
|
9354045010
|
9354045010
93540-45010
New Genuine Part
|
93540-45010 |
— | ||
|
9354054016
|
9354054016
93540-54016 SCREW |
93540-54016 |
from US $0.78 |
||
