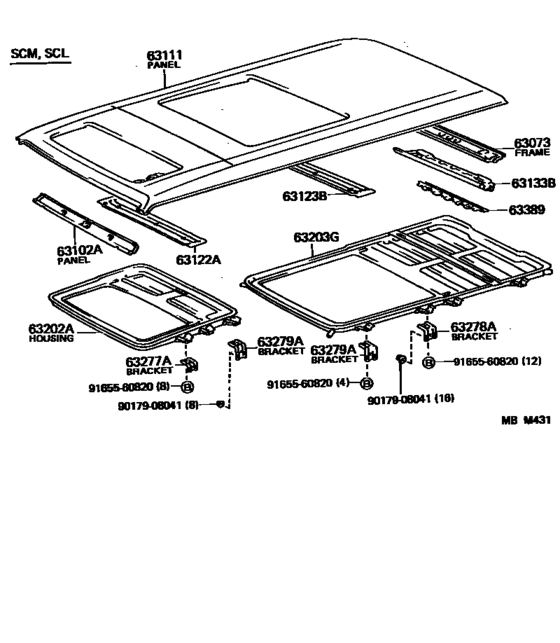

Roof Panel & Back Panel ([08.1987 - ] (8708- )MRF) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH51G
- grade
- SCM
- body
- WG
- Roof
- MRF
- ENGINE
- 3YU
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4FC
- Seating Capacity
- 08S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63073
|
63073
63073-95J01
Frame Sub-Assy, Back Door Opening, Upper Outer
[08.1987 - 08.1989] LH51,YH51..MRF |
63073-95J01 |
— | ||
|
63102A
|
63102A
63102-95J02 Panel Sub-Assy, Windshield Header[08.1987 - 08.1989] LH51,YH51..MRF..08S |
63102-95J02 |
US $128.13 |
||
|
63102A
|
63102A
63102-95J04 Panel Sub-Assy, Windshield Header[08.1987 - 08.1989] LH51,YH51..07S; LH51,YH51..MRF..08S ｱﾘ(ﾌﾛﾝﾄ ﾙ-ﾑ ﾗﾝﾌﾟ) |
63102-95J04 |
US $136.86 |
||
|
63111
|
63111
63111-95J02 Panel, Roof[08.1987 - 08.1989] LH51,YH51..MRF |
63111-95J02 |
US $1,220.13 |
||
|
63122A
|
63122A
63122-95J00 Reinforcement Sub-Assy, Roof Panel, Front[08.1987 - 08.1989] LH51,YH51..MRF |
63122-95J00 |
US $200.93 |
||
|
63123B
|
63123B
63123-95J00 Reinforcement Sub-Assy, Roof Panel, Center[08.1987 - 08.1989] LH51,YH51..MRF |
63123-95J00 |
US $200.93 |
||
|
63133B
|
63133B
63133-95J02 Frame, Back Window Opening, Upper[08.1987 - 08.1989] LH51,6#,YH51,57..CTM,SCL,SCM,SGL |
63133-95J02 |
US $104.83 |
||
|
63202A
|
63202A
63202-95J00
Housing Sub-Assy, Sliding Roof, Front
[08.1987 - 08.1989] LH51,YH51..MRF |
63202-95J00 |
— | ||
|
63203G
|
63203G
63203-95J00 Housing Sub-Assy, Sliding Roof Or Removable Roof[08.1987 - 08.1989] LH51,YH51..MRF |
63203-95J00 |
US $1,166.26 |
||
|
63277A
|
63277A
63277-95J00 Bracket, Housing To Rail, No.1[08.1987 - 08.1989] LH51,YH51..MRF |
63277-95J00 |
US $13.25 |
||
|
63278A
|
63278A
63278-95J00 Bracket, Housing To Rail, No.2[08.1987 - 08.1989] LH51,YH51..MRF |
63278-95J00 |
US $13.54 |
||
|
63279A
|
63279A
63279-95J00 Bracket, Housing To Rail, No.3[08.1987 - 08.1989] LH51,YH51..MRF |
63279-95J00 |
US $14.56 |
||
|
63389
|
63389
63389-95J00 Retainer, Roof Headlining Trim, Center[08.1987 - 08.1989] LH51,6#,YH51,57..CTM,SCL,SCM,SGL |
63389-95J00 |
US $21.11 |
||
|
9017908041
|
9017908041
90179-08041
NUT
|
90179-08041 |
— | ||
| replacement | |||||
|
9017908041
|
9017908041
90179-08017 NUT |
90179-08017 |
from US $0.78 |
||
|
9165560820
|
9165560820
91655-60820
BOLT
|
91655-60820 |
— | ||
| replacement | |||||
|
9165560820
|
9165560820
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
