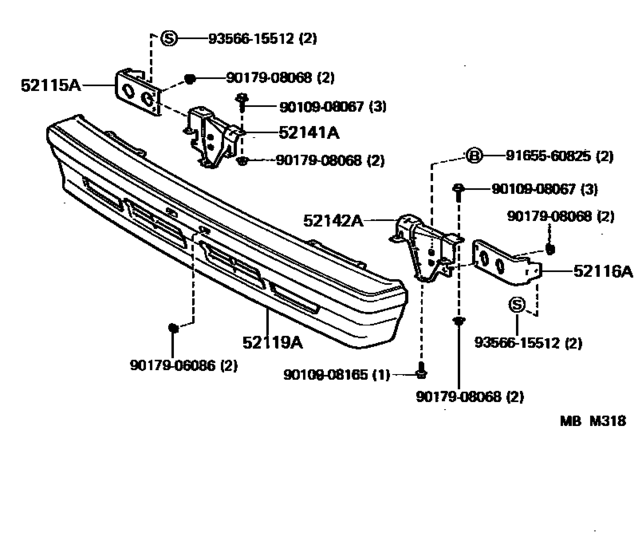

Front Bumper & Bumper Stay ([08.1987 - ] (8708- )CTM,SCL,SCM) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH51G
- grade
- CTM
- body
- WG
- Roof
- SRF
- ENGINE
- 3YU
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4HC
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52115A
|
52115A
52115-95J01 Support, Front Bumper Side, Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCL,SCM |
52115-95J01 |
US $43.39 |
||
|
52116A
|
52116A
52115-95J01 Support, Front Bumper Side, Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCL,SCM |
52115-95J01 |
US $43.39 |
||
|
52119A
|
52119A
52119-95J09 Cover, Front Bumper[08.1987 - 08.1989] LH51,YH51..CTM |
52119-95J09 |
US $331.97 |
||
|
52141A
|
52141A
52141-95J04 Arm, Front Bumper, Upper Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCL,SCM |
52141-95J04 |
US $30.87 |
||
|
52142A
|
52142A
52142-95J04 Arm, Front Bumper, Upper Lh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCL,SCM |
52142-95J04 |
US $30.87 |
||
|
9010908067
|
9010908067
90109-08067 BOLT |
90109-08067 |
US $2.15 |
||
|
9010908165
|
9010908165
90109-08165 New Genuine Part |
90109-08165 |
US $2.04 |
||
|
9017906086
|
9017906086
90179-06086 NUT |
90179-06086 |
US $3.05 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.80 |
||
|
9165560825
|
9165560825
91655-60825 Bolt, Radiator Side Support Plate |
91655-60825 |
US $2.18 |
||
| replacement | |||||
|
9165560825
|
9165560825
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9356615512
|
9356615512
93566-15512
New Genuine Part
|
93566-15512 |
— | ||
| replacement | |||||
|
9356615512
|
9356615512
93568-55012 SCREW |
93568-55012 |
US $1.08 |
||
