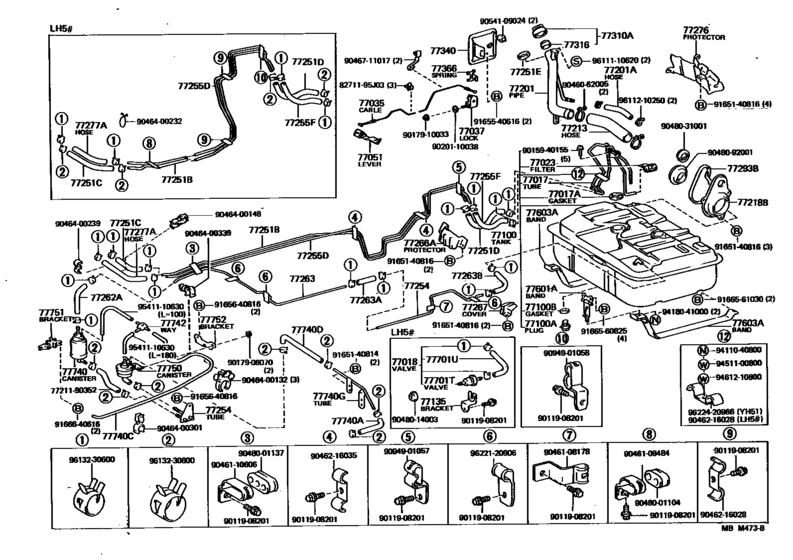

Fuel Tank & Tube ([08.1987 - ] (8708- )LH51,YH51,57..WG) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH51G
- grade
- CTM
- body
- WG
- Roof
- SRF
- ENGINE
- 3YU
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4HC
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77017
|
77017
77017-26050 Tube Sub-Assy, Fuel And Evaporation Vent[08.1987 - 08.1989] YH51,57..WG |
77017-26050 |
US $70.76 |
||
|
77017A
|
77017A
77169-14020 Gasket, Fuel Tank Vent[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
77169-14020 |
from US $3.30 |
||
|
77023
|
77023
77023-14030
Filter Sub-Assy, Fuel Suction Tube
[08.1987 - 08.1989] YH5#,6#,71 |
77023-14030 |
— | ||
|
77100
|
77100
77100-26906 Tank Assy, Fuel[08.1987 - 08.1989] YH51,57..WG |
77100-26906 |
US $690.14 |
||
|
77100A
|
77100A
90105-12116 Plug(For Fuel Tank)[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
90105-12116 |
from US $1.31 |
||
|
77100B
|
77100B
90430-12245 Gasket(For Fuel Tank)[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
90430-12245 |
from US $0.88 |
||
|
77201
|
77201
77201-26060 Pipe Sub-Assy, Fuel Tank Inlet[08.1987 - 08.1989] LH51,YH51,57..WG |
77201-26060 |
US $69.60 |
||
|
77201A
|
77201A
90445-24012
Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..ST ＊Ｈ，L＝３４０ |
90445-24012 |
— | ||
|
77213
|
77213
77213-26060 Hose, Fuel Tank Sub Inlet[08.1987 - 08.1989] LH51,YH51,57..WG |
77213-26060 |
US $41.35 |
||
|
77218B
|
77218B
77218-95J01 Plate, Fuel Inlet Pipe Set[08.1987 - 08.1989] LH51,YH51,57..WG |
77218-95J01 |
US $22.57 |
||
|
77251B
|
77251B
77251-26210 Tube, Fuel Main, No.1[08.1987 - 08.1989] YH51,57..WG |
77251-26210 |
US $29.70 |
||
|
77251C
|
77251C
95333-06040 Hose[08.1987 - 08.1989] YH5#,6#,71 ＊Ｈ，Ｌ＝４００ |
95333-06040 |
from US $13.08 |
||
|
77251D
|
77251D
95333-06030
Hose, Fuel
[08.1987 - 08.1989] YH61..ST;YH50,51,52,62,71..COM,V ＊Ｈ，Ｌ＝３００; YH51,57..WG ＊Ｈ，Ｌ＝３００ |
95333-06030 |
— | ||
| replacement | |||||
|
77251D
|
77251D
95338-06030 HOSE, FUEL[08.1987 - 08.1989] YH61..ST;YH50,51,52,62,71..COM,V ＊Ｈ，Ｌ＝３００; YH51,57..WG ＊Ｈ，Ｌ＝３００ |
95338-06030 |
from US $10.39 |
||
|
77251E
|
77251E
77251-10010 Shield, Fuel Tank, Inlet, No.1[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
77251-10010 |
US $16.97 |
||
|
77254
|
77254
77263-26060 Tube, Fuel Emission, No.1[08.1987 - 08.1989] YH5#,6#,71 |
77263-26060 |
US $22.13 |
||
|
77255D
|
77255D
77255-26100 Tube, Fuel Return[08.1987 - 08.1989] YH51,57..WG |
77255-26100 |
US $29.70 |
||
|
77255F
|
77255F
95333-06030
Hose, Fuel
[08.1987 - 08.1989] YH61..ST;YH50,51,52,62,71..COM,V ＊Ｈ，Ｌ＝３００; LH61,71..ST;LH66..(DX,SGL)..08S;LH5#,66..03S,05S,06S ＊Ｈ，Ｌ＝３００; YH51,57..WG ＊Ｈ，Ｌ＝３００; LH51..WG ＊Ｈ，Ｌ＝３００ |
95333-06030 |
— | ||
| replacement | |||||
|
77255F
|
77255F
95338-06030 HOSE, FUEL[08.1987 - 08.1989] YH61..ST;YH50,51,52,62,71..COM,V ＊Ｈ，Ｌ＝３００; LH61,71..ST;LH66..(DX,SGL)..08S;LH5#,66..03S,05S,06S ＊Ｈ，Ｌ＝３００; YH51,57..WG ＊Ｈ，Ｌ＝３００; LH51..WG ＊Ｈ，Ｌ＝３００ |
95338-06030 |
from US $10.39 |
||
|
77262A
|
77262A
95333-06060 Hose, Fuel[08.1987 - 08.1989] YH5#,6#,71 |
95333-06060 |
from US $17.14 |
||
|
77263
|
77263
77263-26030 Tube, Fuel Emission, No.3[08.1987 - 08.1989] YH5#,6#,71..ST |
77263-26030 |
US $22.13 |
||
|
77263A
|
77263A
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1987 - 08.1989] YH5#,6#,71 |
95333-06020 |
— | ||
| replacement | |||||
|
77263A
|
77263A
95337-06020 Hose, Differential Pressure Control[08.1987 - 08.1989] YH5#,6#,71 |
95337-06020 |
from US $10.21 |
||
|
77263B
|
77263B
95333-06030
Hose, Fuel
[08.1987 - 08.1989] YH51,57..WG |
95333-06030 |
— | ||
| replacement | |||||
|
77263B
|
77263B
95338-06030 HOSE, FUEL[08.1987 - 08.1989] YH51,57..WG |
95338-06030 |
from US $10.39 |
||
|
77266A
|
77266A
77266-26030 Protector, Fuel Tube, No.1[08.1987 - 08.1989] LH51,YH51,57..WG |
77266-26030 |
US $19.80 |
||
|
77276
|
77276
77276-26050
Protector, Fuel Hose
[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..ST |
77276-26050 |
— | ||
|
77277A
|
77277A
95333-06040 Hose[08.1987 - 08.1989] YH5#,6#,71 ＊Ｈ，Ｌ＝４００; LH56,66..05S;LH66..(DX,SGL)..08S ＊Ｈ，Ｌ＝４００ |
95333-06040 |
from US $13.08 |
||
|
77293B
|
77293B
77293-95J00 Packing, Fuel Tank, Lower[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
77293-95J00 |
US $4.80 |
||
|
77310A
|
77310A
77310-12100 Cap Assy, Fuel Tank[08.1987 - 08.1989] YH5#,6#,71 |
77310-12100 |
from US $30.71 |
||
|
77316
|
77316
77316-12050 Gasket (For Fuel Tank Cap)[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
77316-12050 |
from US $4.17 |
||
|
77340
|
77340
77340-95J00 Cover Sub-Assy, Fuel Inlet Box[08.1987 - 08.1989] LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15 S) |
77340-95J00 |
US $25.51 |
||
|
77601A
|
77601A
77601-26020 Band Sub-Assy, Fuel Tank, No.1[08.1987 - 08.1989] LH51,YH51,57..WG |
77601-26020 |
US $44.41 |
||
|
77603A
|
77603A
77603-26020 Band Sub-Assy, Fuel Tank, No.2[08.1987 - 08.1989] LH51,YH51,57..WG |
77603-26020 |
US $24.46 |
||
|
77740
|
77740
77704-60050
Canister Assy, Charcoal
[08.1987 - 08.1989] YH57 ＮＯ．１; YH50,51,52,6#,71 |
77704-60050 |
— | ||
|
77740A
|
77740A
90445-14096
Hose, Fuel, No.1(For Charcoal Canister)
[08.1987 - 08.1989] YH50,51,52,6#,71 ＊Ｈ，L＝４９０ |
90445-14096 |
— | ||
|
77740C
|
77740C
90445-08224 Hose, Fuel, No.3(For Charcoal Canister)[08.1987 - 08.1989] YH5#,6#,71 ＊Ｈ，Ｌ＝１３００ |
90445-08224 |
US $21.84 |
||
| replacement | |||||
|
77740C
|
77740C
90999-92006 Hose, Vacuum, No.1 (For Front Drive Shift)[08.1987 - 08.1989] YH5#,6#,71 ＊Ｈ，Ｌ＝１３００ |
90999-92006 |
from US $20.12 |
||
|
77740D
|
77740D
90445-14102
Hose, No.2(For Air Pipe)
[08.1987 - 08.1988] YH50,51,52,6#,71 ＊Ｈ，L＝６０ |
90445-14102 |
— | ||
|
77740G
|
77740G
23818-72010 Tube, Fuel, No.2(For Charcoal Canister)[08.1987 - 08.1989] YH50,51,52,6#,71 |
23818-72010 |
US $27.96 |
||
|
77742
|
77742
90413-04005 Way, 3, No.1 (For Front Drive Shift)[08.1987 - 08.1989] YH50,51,52,6#,71 |
90413-04005 |
from US $3.40 |
||
|
77750
|
77750
77740-26050
Canister Assy, Charcoal
[08.1987 - 08.1989] YH50,51,52,6#,71 |
77740-26050 |
— | ||
|
77751
|
77751
77751-32010
Bracket, Charcoal Canister Base
[08.1987 - 08.1989] YH5#,6#,71 |
77751-32010 |
— | ||
|
77752
|
77752
77752-26010 Bracket, Charcoal Canister Support[08.1987 - 08.1989] YH5#,6#,71 |
77752-26010 |
US $9.03 |
||
|
8271195J03
|
8271195J03
82711-95J03 Wire, Fuse To Fuse(for Combustion Heater) |
82711-95J03 |
US $6.99 |
||
|
7721190352
|
7721190352
77211-90352 Hose, Fuel, No.1 (For Main Tube, No.1) |
77211-90352 |
US $19.66 |
||
| replacement | |||||
|
7721190352
|
7721190352
95333-08060
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
|
95333-08060 |
— | ||
|
9011908201
|
9011908201
90119-08201 Bolt (for Transmission Control Cable Bracket) |
90119-08201 |
US $2.62 |
||
| replacement | |||||
|
9011908201
|
9011908201
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9015940155
|
9015940155
90159-40155 SCREW WWASHER |
90159-40155 |
US $2.15 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017910033
|
9017910033
90179-10033 Nut (For Front Wiper Arm Setting) |
90179-10033 |
US $1.65 |
||
|
9020110038
|
9020110038
90201-10038 Washer |
90201-10038 |
US $3.05 |
||
|
9046062005
|
9046062005
90460-62005 Clamp, Hose(For Air Connector) |
90460-62005 |
US $5.53 |
||
| replacement | |||||
|
9046062005
|
9046062005
96111-10620 Clamp, Hose(For Air Connector) |
96111-10620 |
from US $3.94 |
||
|
9046108178
|
9046108178
90461-08178 New Genuine Part |
90461-08178 |
US $9.17 |
||
|
9046108484
|
9046108484
90461-08484 New Genuine Part |
90461-08484 |
US $3.35 |
||
|
9046110606
|
9046110606
90461-10606 New Genuine Part |
90461-10606 |
US $4.08 |
||
|
9046216028
|
9046216028
90462-16028 New Genuine Part |
90462-16028 |
US $8.01 |
||
|
9046216035
|
9046216035
90462-16035
New Genuine Part
|
90462-16035 |
— | ||
|
9046400132
|
9046400132
90464-00132 New Genuine Part |
90464-00132 |
US $3.20 |
||
|
9046400148
|
9046400148
90464-00148 New Genuine Part |
90464-00148 |
US $5.24 |
||
|
9046400232
|
9046400232
90464-00232 New Genuine Part |
90464-00232 |
US $0.52 |
||
|
9046400239
|
9046400239
90464-00239 New Genuine Part |
90464-00239 |
from US $3.49 |
||
|
9046400301
|
9046400301
90464-00301 Clamp |
90464-00301 |
US $1.61 |
||
|
9046400339
|
9046400339
90464-00339 New Genuine Part |
90464-00339 |
US $8.15 |
||
|
9046711017
|
9046711017
90467-11017 New Genuine Part |
90467-11017 |
US $9.76 |
||
|
9048001104
|
9048001104
90480-01104
New Genuine Part
|
90480-01104 |
— | ||
|
9048001137
|
9048001137
90480-01137
Grommet, No.2(For Front Brake Tube)
|
90480-01137 |
— | ||
|
9048014003
|
9048014003
90480-14003 New Genuine Part |
90480-14003 |
US $1.22 |
||
|
9048031001
|
9048031001
90480-31001 New Genuine Part |
90480-31001 |
US $5.53 |
||
| replacement | |||||
|
9048031001
|
9048031001
90480-31010 New Genuine Part |
90480-31010 |
US $5.42 |
||
|
9048092001
|
9048092001
90480-92001 New Genuine Part |
90480-92001 |
US $5.24 |
||
|
9054109024
|
9054109024
90541-09024 CUSHION |
90541-09024 |
US $2.51 |
||
|
9094901057
|
9094901057
90949-01057 New Genuine Part |
90949-01057 |
US $7.28 |
||
|
9094901058
|
9094901058
90949-01058 New Genuine Part |
90949-01058 |
US $7.28 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.98 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9165640816
|
9165640816
91656-40816
New Genuine Part
|
91656-40816 |
— | ||
| replacements | |||||
|
9165640816
|
9165640816
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165640816
|
9165640816
90119-A0109 New Genuine Part |
90119-A0109 |
US $2.97 |
||
|
9166560825
|
9166560825
91665-60825
New Genuine Part
|
91665-60825 |
— | ||
| replacement | |||||
|
9166560825
|
9166560825
91661-60825 New Genuine Part |
91661-60825 |
US $2.69 |
||
|
9166561030
|
9166561030
91665-61030
New Genuine Part
|
91665-61030 |
— | ||
| replacement | |||||
|
9166561030
|
9166561030
91661-61030 New Genuine Part |
91661-61030 |
US $2.87 |
||
|
9166640616
|
9166640616
91666-40616
New Genuine Part
|
91666-40616 |
— | ||
| replacement | |||||
|
9166640616
|
9166640616
91661-60616 BOLT |
91661-60616 |
from US $0.70 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.31 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.84 |
||
|
9541110630
|
9541110630
95411-10630 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10630 |
US $6.70 |
||
| replacement | |||||
|
9541110630
|
9541110630
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9611110620
|
9611110620
96111-10620 Clamp, Hose(For Air Connector) |
96111-10620 |
from US $3.94 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.28 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
|
9622120906
|
9622120906
96221-20906
New Genuine Part
|
96221-20906 |
— | ||
|
9622420966
|
9622420966
96224-20966 New Genuine Part |
96224-20966 |
US $2.48 |
||
