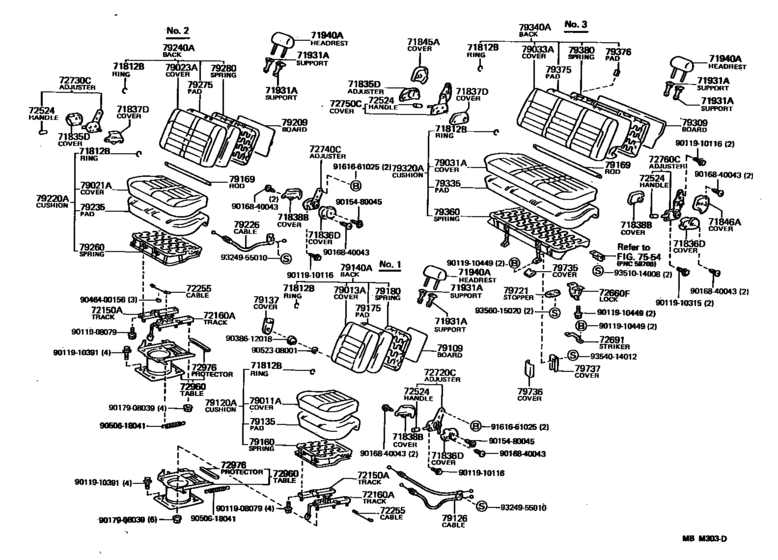

Seat & Seat Track ([08.1987 - ] (8708- )CTM) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH51G
- grade
- CTM
- body
- WG
- Roof
- SRF
- ENGINE
- 3YU
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4HC
- Seating Capacity
- 09S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71812B
|
71812B
90468-18071
Clip (For Front Seat Cushion Cover)
[08.1987 - 08.1989] LH51,YH51,57..08S,09S |
90468-18071 |
— | ||
| replacement | |||||
|
71812B
|
71812B
90468-16019 Clip (For Rear Seat Back)[08.1987 - 08.1989] LH51,YH51,57..08S,09S |
90468-16019 |
from US $0.86 |
||
|
71835D
|
71835D
71835-95700-04 Cover, Rear Seat Reclining, Lower Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．３ |
71835-95700-04 |
US $15 |
||
| replacement | |||||
|
71835D
|
71835D
71835-95700-03 Cover, Rear Seat Reclining, Lower Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．３ |
71835-95700-03 |
US $15 |
||
|
71835D
|
71835D
71835-95J02-14 Cover, Rear Seat Reclining, Lower Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．２ |
71835-95J02-14 |
US $16.31 |
||
|
71836D
|
71836D
71836-95700-14 Cover, Rear Seat Reclining, Lower Lh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．３ |
71836-95700-14 |
US $15 |
||
| replacement | |||||
|
71836D
|
71836D
71836-95700-B0 Cover, Rear Seat Reclining, Lower Lh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．３ |
71836-95700-B0 |
US $15 |
||
|
71836D
|
71836D
71836-95J00-14 Cover, Rear Seat Reclining, Lower Lh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．１ |
71836-95J00-14 |
US $16.31 |
||
|
71836D
|
71836D
71836-95J01-14 Cover, Rear Seat Reclining, Lower Lh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．２ |
71836-95J01-14 |
US $16.31 |
||
|
71837D
|
71837D
71837-95J00-14 Cover, Rear Seat Reclining, Inner Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．２ |
71837-95J00-14 |
US $8.59 |
||
| replacement | |||||
|
71837D
|
71837D
71878-95J02-E0 Cover, Rear Seat Reclining, Inner Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．２ |
71878-95J02-E0 |
US $24.17 |
||
|
71837D
|
71837D
72708-95J00-14 Cover, Rear Seat Reclining, Inner Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．３ |
72708-95J00-14 |
US $13.10 |
||
| replacement | |||||
|
71837D
|
71837D
72708-95J00-B0 Cover, Rear Seat Reclining, Inner Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．３ |
72708-95J00-B0 |
US $16.16 |
||
|
71838B
|
71838B
71838-95J00-14 Cover, Rear Seat Reclining, Inner Lh[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8#,NO.1,NO.2; LH51,YH51,57..08S BLUE,TRIM8#,ＮＯ．２ |
71838-95J00-14 |
US $8.59 |
||
| replacement | |||||
|
71838B
|
71838B
71879-95J01-B0 Cover, Rear Seat Reclining, Inner Lh[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8#,NO.1,NO.2; LH51,YH51,57..08S BLUE,TRIM8#,ＮＯ．２ |
71879-95J01-B0 |
US $24.17 |
||
|
71838B
|
71838B
72709-95J00-14 Cover, Rear Seat Reclining, Inner Lh[08.1987 - 08.1989] LH51,6#..SGL..05S BLUE,TRIM8#; LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．３ |
72709-95J00-14 |
US $13.10 |
||
| replacement | |||||
|
71838B
|
71838B
72709-95J00-B0 Cover, Rear Seat Reclining, Inner Lh[08.1987 - 08.1989] LH51,6#..SGL..05S BLUE,TRIM8#; LH51,YH51,57..CTM,SCM BLUE,TRIM8#,ＮＯ．３ |
72709-95J00-B0 |
US $16.16 |
||
|
71845A
|
71845A
71845-95700-14 Cover, Rear Seat Reclining, Upper Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
71845-95700-14 |
US $8.01 |
||
| replacement | |||||
|
71845A
|
71845A
71845-95700-B0 Cover, Rear Seat Reclining, Upper Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
71845-95700-B0 |
US $8.01 |
||
|
71846A
|
71846A
71846-95700-14 Cover, Rear Seat Reclining, Upper Lh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
71846-95700-14 |
US $8.01 |
||
| replacement | |||||
|
71846A
|
71846A
71846-95700-B0 Cover, Rear Seat Reclining, Upper Lh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
71846-95700-B0 |
US $8.01 |
||
|
71931A
|
71931A
71956-30020-04
Support, Front Seat Headrest
[08.1987 - 08.1989] LH66..SGL..05S;LH51,61,YH51,57..CTM,SCM,SGL ロック無,BLUE,TRIM8# |
71956-30020-04 |
— | ||
| replacement | |||||
|
71931A
|
71931A
71956-30020-01
Support, Front Seat Headrest
[08.1987 - 08.1989] LH66..SGL..05S;LH51,61,YH51,57..CTM,SCM,SGL ロック無,BLUE,TRIM8# |
71956-30020-01 |
— | ||
|
71931A
|
71931A
71990-30020-04
Support, Front Seat Headrest
[08.1987 - 08.1989] LH66..SGL..05S;LH51,61,YH51,57..CTM,SCM,SGL ロック付,BLUE,TRIM8# |
71990-30020-04 |
— | ||
| replacement | |||||
|
71931A
|
71931A
71990-30020-01
Support, Front Seat Headrest
[08.1987 - 08.1989] LH66..SGL..05S;LH51,61,YH51,57..CTM,SCM,SGL ロック付,BLUE,TRIM8# |
71990-30020-01 |
— | ||
|
71940A
|
71940A
71910-95J00-24 Headrest Assy, Front Seat[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
71910-95J00-24 |
US $141.23 |
||
| replacement | |||||
|
71940A
|
71940A
71910-95J00-B1 Headrest Assy, Front Seat[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
71910-95J00-B1 |
US $141.23 |
||
|
72150A
|
72150A
72150-95J04 Track Assy, Rear Seat, Rh[08.1987 - 08.1989] LH51,YH51..CTM,SCL,SCM |
72150-95J04 |
US $106.29 |
||
|
72160A
|
72160A
72160-95J03 Track Assy, Rear Seat, Lh[08.1987 - 08.1989] LH51,YH51..CTM,SCL,SCM |
72160-95J03 |
US $135.41 |
||
|
72255
|
72255
72255-95J00 Cable, Rear Seat Track Lever[08.1987 - 08.1989] LH51,YH51..CTM,SCL,SCM |
72255-95J00 |
US $8.30 |
||
|
72524
|
72524
72525-95J00-14 Handle, Reclining Adjuster Release[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
72525-95J00-14 |
US $9.61 |
||
| replacement | |||||
|
72524
|
72524
72525-95J00-B0 Handle, Reclining Adjuster Release[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
72525-95J00-B0 |
US $9.61 |
||
|
72660F
|
72660F
72660-95J03 Lock Assy, Rear No.3 Seat, Rh[08.1987 - 08.1989] LH51,YH51,57..08S,09S |
72660-95J03 |
US $158.70 |
||
|
72691
|
72691
72691-95J00 Striker, Rear No.3 Seat Lock[08.1987 - 08.1989] LH51,YH51,57..08S,09S |
72691-95J00 |
US $10.63 |
||
|
72720C
|
72720C
72720-95J01-04 Adjuster Assy, No.1 Seat Reclining, Lh[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
72720-95J01-04 |
US $155.79 |
||
|
72730C
|
72730C
72730-95J00-14 Adjuster Assy, No.2 Seat Reclining, Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
72730-95J00-14 |
US $155.79 |
||
|
72740C
|
72740C
72740-95J04 Adjuster Assy, No.2 Seat Reclining, Lh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM |
72740-95J04 |
US $142.69 |
||
|
72750C
|
72750C
72750-95J04-04 Adjuster Assy, No.3 Seat Reclining, Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
72750-95J04-04 |
US $468.83 |
||
| replacement | |||||
|
72750C
|
72750C
72750-95J04-B0 Adjuster Assy, No.3 Seat Reclining, Rh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
72750-95J04-B0 |
US $486.30 |
||
|
72760C
|
72760C
72760-95J04-04 Adjuster Assy, No.3 Seat Reclining, Lh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
72760-95J04-04 |
US $468.83 |
||
| replacement | |||||
|
72760C
|
72760C
72760-95J04-B0 Adjuster Assy, No.3 Seat Reclining, Lh[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
72760-95J04-B0 |
US $486.30 |
||
|
72960
|
72960
72960-95J04 Table Assy, Rear Seat Turn[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM NO.1 SEAT |
72960-95J04 |
US $1,246.34 |
||
|
72960
|
72960
72960-95J08 Table Assy, Rear Seat Turn[08.1987 - 08.1989] LH51,YH51..CTM,SCM NO.2 SEAT |
72960-95J08 |
US $1,246.34 |
||
|
72976
|
72976
72976-95J00 Protector, Rear Seat Turn Table[08.1987 - 08.1989] LH51,YH51..CTM,SCM NO.1 SEAT; YH57;LH51,YH51..07S |
72976-95J00 |
US $4.37 |
||
|
72976
|
72976
72976-95J01 Protector, Rear Seat Turn Table[08.1987 - 08.1989] LH51,YH51..CTM,SCM NO.2 SEAT |
72976-95J01 |
US $3.49 |
||
| replacement | |||||
|
72976
|
72976
72976-95J00 Protector, Rear Seat Turn Table[08.1987 - 08.1989] LH51,YH51..CTM,SCM NO.2 SEAT |
72976-95J00 |
US $4.37 |
||
|
79011A
|
79011A
79011-95J77-04 Cover Sub-Assy, No.1 Seat Cushion[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79011-95J77-04 |
US $391.66 |
||
|
79013A
|
79013A
79013-95J69-04 Cover Sub-Assy, No.1 Seat Back[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79013-95J69-04 |
US $380.02 |
||
|
79021A
|
79021A
79021-95J37-04 Cover Sub-Assy, No.2 Seat Cushion[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79021-95J37-04 |
US $598.42 |
||
|
79023A
|
79023A
79023-95J33-04 Cover Sub-Assy, No.2 Seat Back[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79023-95J33-04 |
US $607.15 |
||
|
79031A
|
79031A
79031-95J32-04 Cover Sub-Assy, No.3 Seat Cushion[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79031-95J32-04 |
US $805.17 |
||
|
79033A
|
79033A
79033-95J30-04 Cover Sub-Assy, No.3 Seat Back[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79033-95J30-04 |
US $835.74 |
||
|
79109
|
79109
79109-95J02-14 Board Sub-Assy, No.1 Seat Back[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79109-95J02-14 |
US $70.62 |
||
|
79120A
|
79120A
79120-95J85-04
Cushion Assy, No.1 Seat
[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79120-95J85-04 |
— | ||
|
79126
|
79126
79126-95J01 Cable, No.1 Seat Lock[08.1987 - 08.1989] LH51,YH51,57..CTM,SCL,SCM |
79126-95J01 |
US $60.13 |
||
|
79135
|
79135
79135-95J01 Pad, No.1 Seat Cushion[08.1987 - 08.1989] LH51,YH51..09S |
79135-95J01 |
US $158.70 |
||
|
79137
|
79137
79137-95J00-14 Cover, No.1 Seat Hinge[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
79137-95J00-14 |
US $8.59 |
||
| replacement | |||||
|
79137
|
79137
79137-95J00-B0 Cover, No.1 Seat Hinge[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
79137-95J00-B0 |
US $8.44 |
||
|
79140A
|
79140A
79140-95J83-04
Back Assy, No.1 Seat
[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79140-95J83-04 |
— | ||
|
79160
|
79160
79160-95J00 Spring Assy, No.1 Seat Cushion[08.1987 - 08.1989] LH51,YH51..09S |
79160-95J00 |
US $432.43 |
||
|
79169
|
79169
79169-95J00 Rod, Rear Seat Hinge Connector[08.1987 - 08.1989] LH51,YH51,57..08S,09S ＮＯ．２ |
79169-95J00 |
US $34.51 |
||
|
79169
|
79169
79169-95J01 Rod, Rear Seat Hinge Connector[08.1987 - 08.1989] LH51,YH51,57..08S,09S ＮＯ．３ |
79169-95J01 |
US $40.62 |
||
|
79175
|
79175
79175-95J01 Pad, No.1 Seat Back[08.1987 - 08.1989] LH51,YH51..09S |
79175-95J01 |
US $158.70 |
||
|
79180
|
79180
79180-95J01 Spring Assy, No.1 Seat Back[08.1987 - 08.1989] LH51,YH51..CTM |
79180-95J01 |
US $336.34 |
||
|
79209
|
79209
79209-95J01-14 Board Sub-Assy, No.2 Seat Back[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79209-95J01-14 |
US $117.94 |
||
|
79220A
|
79220A
79220-95J47-04
Cushion Assy, No.2 Seat
[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79220-95J47-04 |
— | ||
|
79226
|
79226
79226-95J00 Cable, No.2 Seat Lock[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM |
79226-95J00 |
US $38.44 |
||
|
79235
|
79235
79235-95J01 Pad, No.2 Seat Cushion[08.1987 - 08.1989] LH51,YH51..09S |
79235-95J01 |
US $276.64 |
||
|
79240A
|
79240A
79240-95J34-04
Back Assy, No.2 Seat
[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79240-95J34-04 |
— | ||
|
79260
|
79260
79260-95J03 Spring Assy, No.2 Seat Cushion[08.1987 - 08.1989] LH51,YH51..CTM |
79260-95J03 |
US $646.46 |
||
|
79275
|
79275
79275-95J01 Pad, No.2 Seat Back[08.1987 - 08.1989] LH51,YH51..09S |
79275-95J01 |
US $272.27 |
||
|
79280
|
79280
79280-95J01 Spring Assy, No.2 Seat Back[08.1987 - 08.1989] LH51,YH51..CTM |
79280-95J01 |
US $474.66 |
||
|
79309
|
79309
79309-95J00-14 Board Sub-Assy, No.3 Seat Back[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79309-95J00-14 |
US $206.75 |
||
|
79320A
|
79320A
79320-95J42-04
Cushion Assy, No.3 Seat
[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79320-95J42-04 |
— | ||
|
79335
|
79335
79335-95J01 Pad, No.3 Seat Cushion[08.1987 - 08.1989] LH51,YH51..09S |
79335-95J01 |
US $380.02 |
||
|
79340A
|
79340A
79340-95J34-04
Back Assy, No.3 Seat
[08.1987 - 08.1989] LH51,YH51..CTM BLUE,TRIM8# |
79340-95J34-04 |
— | ||
|
79360
|
79360
79360-95J24 Spring Assy, No.3 Seat Cushion[08.1987 - 08.1989] LH51,YH51..09S |
79360-95J24 |
US $784.78 |
||
|
79375
|
79375
79375-95J04 Pad, No.3 Seat Back[08.1987 - 08.1989] LH51,YH51..09S |
79375-95J04 |
US $380.02 |
||
|
79376
|
79376
79376-95J00 Pad, No.3 Seat Back Side[08.1987 - 08.1989] LH51,YH51,57..08S,09S |
79376-95J00 |
US $3.06 |
||
|
79380
|
79380
79380-95J05 Spring Assy, No.3 Seat Back[08.1987 - 08.1989] LH51,YH51..CTM |
79380-95J05 |
US $662.48 |
||
|
79721
|
79721
79721-95J00 Stopper, No.3 Seat[08.1987 - 08.1989] LH51,YH51,57..08S,09S |
79721-95J00 |
US $12.67 |
||
|
79735
|
79735
79735-95J00-14 Cover, No.3 Seat Leg, No.1[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
79735-95J00-14 |
US $5.82 |
||
|
79736
|
79736
79736-95J00-14 Cover, No.3 Seat Leg, No.2[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
79736-95J00-14 |
US $8.15 |
||
|
79737
|
79737
79737-95J00-14 Cover, No.3 Seat Leg, No.3[08.1987 - 08.1989] LH51,YH51,57..CTM,SCM BLUE,TRIM8# |
79737-95J00-14 |
US $8.59 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
|
9011910116
|
9011910116
90119-10116
New Genuine Part
|
90119-10116 |
— | ||
| replacement | |||||
|
9011910116
|
9011910116
90119-10229 BOLT |
90119-10229 |
US $3.67 |
||
|
9011910315
|
9011910315
90119-10315 BOLT |
90119-10315 |
US $1.16 |
||
|
9011910391
|
9011910391
90119-10391 New Genuine Part |
90119-10391 |
US $1.75 |
||
|
9011910449
|
9011910449
90119-10449 BOLT |
90119-10449 |
US $3.58 |
||
|
9015480045
|
9015480045
90154-80045
New Genuine Part
|
90154-80045 |
— | ||
|
9016840043
|
9016840043
90168-40043 SCREW |
90168-40043 |
from US $0.74 |
||
|
9017908039
|
9017908039
90179-08039 New Genuine Part |
90179-08039 |
US $1.16 |
||
|
9038612018
|
9038612018
90386-12018 Bush (For Front Seat Hinge Pin) |
90386-12018 |
US $2.61 |
||
|
9046400156
|
9046400156
90464-00156 Clamp, No.2(For Back Door Lock Control Cable) |
90464-00156 |
US $1.05 |
||
|
9050618041
|
9050618041
90506-18041 New Genuine Part |
90506-18041 |
US $6.99 |
||
|
9052308001
|
9052308001
90523-08001 E Ring (For Tilt Motor Shaft, Lower) |
90523-08001 |
from US $1.40 |
||
|
9161661025
|
9161661025
91616-61025
Bolt (For Control Shaft Cover)
|
91616-61025 |
— | ||
| replacement | |||||
|
9161661025
|
9161661025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9324955010
|
9324955010
93249-55010 New Genuine Part |
93249-55010 |
US $0.73 |
||
|
9351014008
|
9351014008
93510-14008 New Genuine Part |
93510-14008 |
US $2.18 |
||
|
9354014012
|
9354014012
93540-14012 New Genuine Part |
93540-14012 |
US $2.15 |
||
|
9356015020
|
9356015020
93560-15020 SCREW |
93560-15020 |
from US $0.52 |
||
