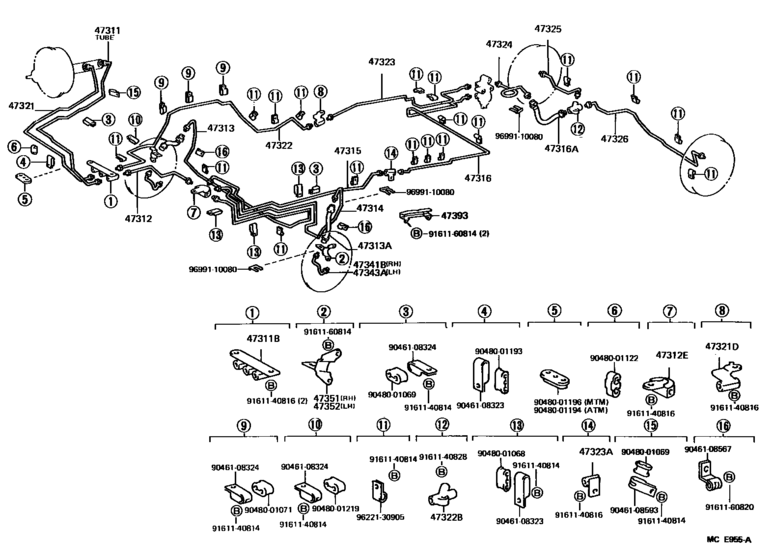

Brake Tube & Clamp ([08.1987 - ] (8708- )LH51,61,YH51,61) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- YH61
- grade
- STD
- body
- V
- ENGINE
- 3Y
- TRANSMISSION
- ATM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 4HC
- No.of Doors
- V4D
- Seating Capacity
- R
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47311
|
47311
47311-26290 Tube, Front Brake, No.1FRONT BRAKE, NO.1 [08.1987 - 08.1989] LH5#,6#,YH5#,6#..LHD |
47311-26290 |
US $18.05 |
||
|
47311B
|
47311B
90412-10100 Way, No.1(For Front Brake Tube)[08.1987 - 08.1989] LH51,61,YH51,61..4HC |
90412-10100 |
US $15.29 |
||
|
47312
|
47312
47312-26171 Tube, Front Brake, No.2[08.1987 - 08.1989] LH51,61,YH51,61 |
47312-26171 |
US $7.86 |
||
|
47312E
|
47312E
90414-10012 Way, No.2(For Front Brake Tube)NO.2(FOR FRONT BRAKE TUBE) [08.1987 - 08.1989] LH5#,6#,YH5#,6# |
90414-10012 |
US $13.83 |
||
|
47313
|
47313
47313-26091 Tube, Front Brake, No.3[08.1987 - 08.1989] LH51,61,YH51,61 |
47313-26091 |
US $27.23 |
||
|
47313A
|
47313A
90947-02477 Hose, Flexible, No.1(For Front)[08.1987 - 08.1989] LH51,61,YH51,61 |
90947-02477 |
US $26.88 |
||
|
47314
|
47314
47314-26081 Tube, Front Brake, No.4[08.1987 - 08.1989] LH51,61,YH51,61 |
47314-26081 |
US $19.80 |
||
|
47315
|
47315
47315-26072 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [08.1987 - 08.1989] LH51,61,YH51,61 |
47315-26072 |
US $14.71 |
||
|
47316
|
47316
47316-26101 Tube, Front Brake, No.6FRONT BRAKE, NO.6 [08.1987 - 08.1989] LH6#,YH6# |
47316-26101 |
US $32.03 |
||
|
47316A
|
47316A
96940-33205 Hose, Flexible(For Rear Brake Tube)[08.1987 - 08.1989] LH51,61,YH51,61 |
96940-33205 |
US $11.15 |
||
|
47321
|
47321
47321-26200 Tube, Rear Brake, No.1REAR BRAKE, NO.1 [08.1987 - 08.1989] LH5#,6#,YH5#,6#..LHD |
47321-26200 |
US $18.05 |
||
|
47321D
|
47321D
90412-10103 Way, No.1(For Rear Brake Tube)[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
90412-10103 |
US $13.40 |
||
|
47322
|
47322
47322-26092 Tube, Rear Brake, No.2[08.1987 - 08.1989] LH51,61,YH51,61 |
47322-26092 |
US $17.91 |
||
|
47322B
|
47322B
90413-10147 Way, 3(For Rear Brake Tube)[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
90413-10147 |
US $12.72 |
||
|
47323
|
47323
47323-26211 Tube, Rear Brake, No.3[08.1987 - 08.1989] LH6#,YH6# |
47323-26211 |
US $14.71 |
||
|
47323A
|
47323A
90412-10006 Way(For Front Brake Tube)[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
90412-10006 |
US $25.92 |
||
|
47324
|
47324
47324-26101 Tube, Rear Brake, No.4[08.1987 - 08.1989] LH5#,6#,YH5#,6# |
47324-26101 |
US $10.48 |
||
|
47325
|
47325
47325-26151 Tube, Rear Brake, No.5[08.1987 - 08.1989] LH51,61,YH51,61 |
47325-26151 |
US $10.48 |
||
|
47326
|
47326
47326-26131 Tube, Rear Brake, No.6[08.1987 - 08.1989] LH51,61,YH51,61 |
47326-26131 |
US $17.76 |
||
|
47341B
|
47341B
47341-26060 Tube, Wheel Cylinder, Front Rh No.1[08.1987 - 08.1989] LH51,61,YH51,61 |
47341-26060 |
US $5.53 |
||
|
47343A
|
47343A
47343-26060 Tube, Wheel Cylinder, Front Lh No.1[08.1987 - 08.1989] LH51,61,YH51,61 |
47343-26060 |
US $5.53 |
||
|
47351
|
47351
47351-26070 Bracket, Flexible Hose(For Front Rh)[08.1987 - 08.1989] LH51,61,YH51,61 |
47351-26070 |
US $13.69 |
||
|
47352
|
47352
47352-26070 Bracket, Flexible Hose(For Front Lh)[08.1987 - 08.1989] LH51,61,YH51,61 |
47352-26070 |
US $13.69 |
||
|
9046108323
|
9046108323
90461-08323 New Genuine Part |
90461-08323 |
US $3.14 |
||
|
9046108324
|
9046108324
90461-08324
New Genuine Part
|
90461-08324 |
— | ||
|
9046108567
|
9046108567
90461-08567 New Genuine Part |
90461-08567 |
US $1.43 |
||
|
9046108593
|
9046108593
90461-08593 New Genuine Part |
90461-08593 |
US $4.22 |
||
|
9048001068
|
9048001068
90480-01068
New Genuine Part
|
90480-01068 |
— | ||
|
9048001069
|
9048001069
90480-01069 Grommet(For Brake Tube) |
90480-01069 |
US $4.30 |
||
|
9048001071
|
9048001071
90480-01071
Grommet, No.2(For Front Brake Tube)
|
90480-01071 |
— | ||
|
9048001122
|
9048001122
90480-01122
Grommet(For Brake Tube)
|
90480-01122 |
— | ||
|
9048001193
|
9048001193
90480-01193 New Genuine Part |
90480-01193 |
US $3.93 |
||
|
9048001194
|
9048001194
90480-01194 New Genuine Part |
90480-01194 |
US $7.57 |
||
|
9048001196
|
9048001196
90480-01196 New Genuine Part |
90480-01196 |
US $7.57 |
||
|
9048001219
|
9048001219
90480-01219 New Genuine Part |
90480-01219 |
US $3.49 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161140828
|
9161140828
91611-40828 Bolt(For Clutch Release Cylinder Setting) |
91611-40828 |
US $2.77 |
||
| replacement | |||||
|
9161140828
|
9161140828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
|
9622130905
|
9622130905
96221-30905 CLAMP |
96221-30905 |
from US $6.63 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.19 |
||
