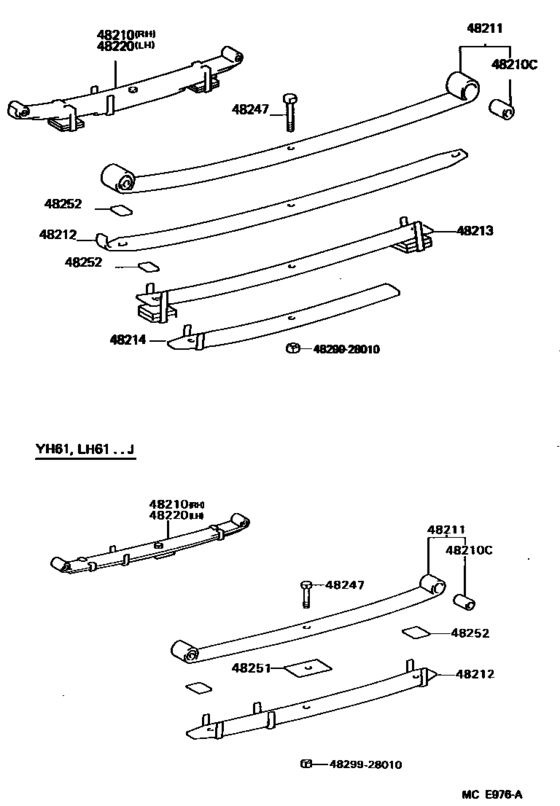

Rear Spring & Shock Absorber ([08.1987 - ] (8708- )LH61,YH61) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- YH61
- grade
- STD
- body
- V
- ENGINE
- 3Y
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-26260 Spring Assy, Rear Rh[08.1987 - 08.1989] LH61,YH61..03S,15S,R,U |
48210-26260 |
US $679.95 |
||
|
48210C
|
48210C
90389-14007 Bush(For Rear Spring Leaf)[08.1987 - 08.1989] LH56,66,YH56,66 NO.1; LH51,61,YH51,61 |
90389-14007 |
from US $13.22 |
||
|
48211
|
48211
48201-26250
Leaf, Rear Spring, No.1
[08.1987 - 08.1989] LH51,61,YH51,61..03S,15S,R,U |
48201-26250 |
— | ||
|
48212
|
48212
48212-26250 Leaf, Rear Spring, No.2[08.1987 - 08.1989] LH51,61,YH51,61..03S,15S,R,U |
48212-26250 |
US $145.60 |
||
|
48213
|
48213
48202-26260 Leaf, Rear Spring, No.3[08.1987 - 08.1989] LH61,YH61..03S,15S,R,U |
48202-26260 |
US $107.74 |
||
|
48214
|
48214
48203-26250 Leaf, Rear Spring, No.4[08.1987 - 08.1989] LH51,61,YH51,61..03S,15S,R,U |
48203-26250 |
US $152.88 |
||
| replacement | |||||
|
48214
|
48214
48203-26590 Leaf, Rear Spring, No.4[08.1987 - 08.1989] LH51,61,YH51,61..03S,15S,R,U |
48203-26590 |
US $123.76 |
||
|
48220
|
48220
48210-26260 Spring Assy, Rear Rh[08.1987 - 08.1989] LH61,YH61..03S,15S,R,U |
48210-26260 |
US $679.95 |
||
|
48247
|
48247
48247-26260 Bolt, Rear Spring, Center[08.1987 - 08.1989] LH51,61,YH51,61..03S,15S,R,U |
48247-26260 |
US $4.40 |
||
|
48252
|
48252
48252-26070 Silencer, Front Spring[08.1987 - 08.1989] LH51,61,YH51,61..03S,15S,R,U |
48252-26070 |
from US $1.93 |
||
|
4829928010
|
4829928010
48299-28010 Nut, Rear Spring Center Bolt |
48299-28010 |
US $3.35 |
||
