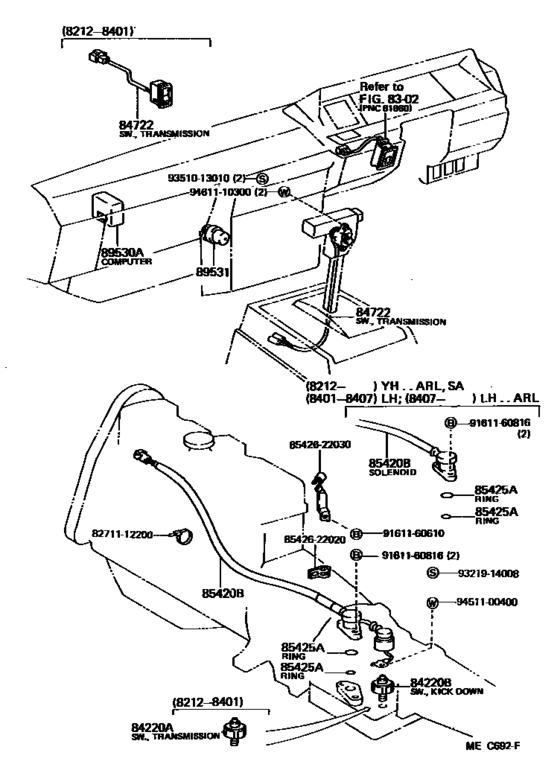

Overdrive & Electronic Controlled Transmission ([12.1982 - ] (8212- )ATM) Diagram Toyota HIACE
- Year
- 1984 - 1986
- Sales region
- General
- Frame
- YH61
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 3Y
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 01.1984
- To
- 08.1986
- Gear Shift Type
- 4HC
- No.of Doors
- V4D
- Seating Capacity
- 06S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- RHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85420B
|
85420B
85420-22060
Solenoid Assy, Transmission
[12.1982 - 08.1985] YH51..4HC..SA;YH50,61..4HC..ARL |
85420-22060 |
— | ||
|
85420B
|
85420B
85420-30090 Solenoid Assy, Transmission[08.1985 - 08.1986] YH51..ATM..GL;YH61..V4D..4HC |
85420-30090 |
US $244.61 |
||
| replacement | |||||
|
85420B
|
85420B
85420-22090
Solenoid Assy, Transmission
[08.1985 - 08.1986] YH51..ATM..GL;YH61..V4D..4HC |
85420-22090 |
— | ||
|
85425A
|
85425A
90301-11001 Ring, O (For Transmission Oil Filler Plug)[12.1982 - 07.1988] LH50,51,61,YH50,51,61..ATM ID=11 |
90301-11001 |
US $1.93 |
||
|
85425A
|
85425A
90301-23001 Ring, O (For Transmission Solenoid)[12.1982 - 07.1988] LH50,51,61,YH50,51,61..ATM ID=23 |
90301-23001 |
US $4.68 |
||
|
89531
|
89531
90987-03001 Relay, Lpg Preheater Cut[01.1984 - 08.1986] YH51..ATM..GL;YH61..V4D..4HC |
90987-03001 |
from US $26.14 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $1.51 |
||
|
8542622020
|
8542622020
85426-22020 Clamp(For Clutch Tube) |
85426-22020 |
US $9.32 |
||
|
8542622030
|
8542622030
85426-22030 Clamp, Over Drive Solenoid |
85426-22030 |
US $9.03 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $0.83 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.95 |
||
|
9321914008
|
9321914008
93219-14008 Screw, W/washer(For Bearing Cover Setting) |
93219-14008 |
from US $0.76 |
||
|
9351013010
|
9351013010
93510-13010 Bolt Or Pin (For Shift Lever Knob Setting) |
93510-13010 |
US $1.38 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $2.48 |
||
|
9461110300
|
9461110300
94611-10300
New Genuine Part
|
94611-10300 |
— | ||
