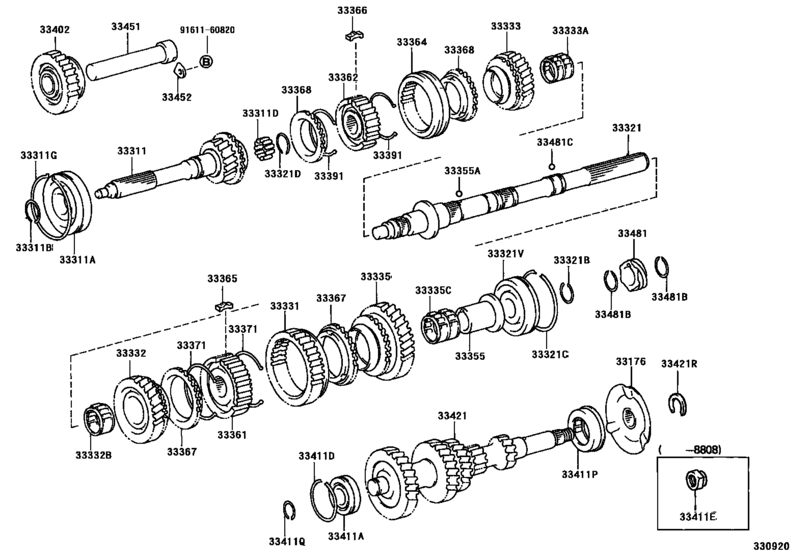

Transmission Gear (Mtm) ([08.1987 - ] G45 (8708- )4H) Diagram Toyota HIACE
- Year
- 1992 - 2005
- Sales region
- General
- Frame
- YH63
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- DESTINATION
- SA
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 06.1992
- To
- 01.2005
- Gear Shift Type
- 4H
- No.of Doors
- V4D
- Seating Capacity
- 03S
- Vehicle Model
- Hiace Van, Commuter Bus
- Driver's Position
- RHD
- Side Window
- VSP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33176
|
33176
33176-35011 Separator, Manual Transmission Oil, No.1[03.1998 -] YH63..03S |
33176-35011 |
US $26.50 |
||
|
33311
|
33311
33301-0W020 Shaft, InputINPUT [03.1998 - 03.2004] YH63 |
33301-0W020 |
US $198.02 |
||
|
33311
|
33311
33301-26040 Shaft, Input[06.1989 - 03.1998] LH51,61,71,YH5#,6#,73..MTM |
33301-26040 |
US $331.97 |
||
| replacement | |||||
|
33311
|
33311
33301-35071 Shaft, Input[06.1989 - 03.1998] LH51,61,71,YH5#,6#,73..MTM |
33301-35071 |
from US $220.15 |
||
|
33311
|
33311
33301-35071 Shaft, Input[03.2004 -] YH63 |
33301-35071 |
from US $220.15 |
||
|
33311A
|
33311A
90363-32024 Bearing (For Input Shaft Front)[12.1990 -] YH53,6#..MTM |
90363-32024 |
from US $26.89 |
||
|
33311B
|
33311B
90520-30214 Ring, Shaft Snap (For Front Bearing)[12.1990 -] YH53,6#..MTM T=2.05,MARK 0 |
90520-30214 |
US $3.23 |
||
|
33311B
|
33311B
90520-30215 Ring, Shaft Snap (For Front Bearing)[12.1990 -] YH53,6#..MTM T=2.10,MARK 1 |
90520-30215 |
US $2.20 |
||
|
33311B
|
33311B
90520-30216 Ring, Shaft Snap (For Front Bearing)[12.1990 -] YH53,6#..MTM T=2.15,MARK 2 |
90520-30216 |
US $3.23 |
||
|
33311B
|
33311B
90520-30217 Ring, Shaft Snap (For Front Bearing)[12.1990 -] YH53,6#..MTM T=2.20,MARK 3 |
90520-30217 |
US $2.62 |
||
|
33311B
|
33311B
90520-30218 Ring, Shaft Snap (For Front Bearing)[12.1990 -] YH53,6#..MTM T=2.25,MARK 4 |
90520-30218 |
US $3.23 |
||
|
33311B
|
33311B
90520-30219 Ring, Shaft Snap (For Front Bearing)[12.1990 -] YH53,6#..MTM T=2.30,MARK 5 |
90520-30219 |
US $2.62 |
||
|
33311D
|
33311D
90361-06002 Bearing, Input Shaft[10.1989 -] YH53,6#..MTM |
90361-06002 |
from US $1.09 |
||
|
33311G
|
33311G
90520-76002 Ring, Shaft Snap (For Front Bearing)[10.1989 -] YH53,6#..MTM |
90520-76002 |
US $5.24 |
||
|
33321
|
33321
33321-0W010
Shaft, Output
[03.1998 - 03.2004] YH63 |
33321-0W010 |
— | ||
|
33321
|
33321
33321-26050 Shaft, Output[10.1989 - 03.1998] YH53,6#..MTM |
33321-26050 |
from US $291.78 |
||
|
33321B
|
33321B
90520-25005 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=2.67-2.72,MARK A |
90520-25005 |
from US $1.05 |
||
|
33321B
|
33321B
90520-25006 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=2.73-2.78,MARK B |
90520-25006 |
US $1.05 |
||
|
33321B
|
33321B
90520-25009 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=2.79-2.84,MARK C |
90520-25009 |
US $1.05 |
||
|
33321B
|
33321B
90520-25010 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=2.85-2.90,MARK D |
90520-25010 |
US $2.15 |
||
|
33321B
|
33321B
90520-25011 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=2.91-2.96,MARK E |
90520-25011 |
US $0.96 |
||
|
33321B
|
33321B
90520-25012 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=2.97-3.02,MARK F |
90520-25012 |
US $2.15 |
||
|
33321B
|
33321B
90520-25013 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=3.03-3.08,MARK G |
90520-25013 |
US $2.15 |
||
|
33321B
|
33321B
90520-25014 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=3.09-3.14,MARK H |
90520-25014 |
US $2.15 |
||
|
33321B
|
33321B
90520-25015 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=3.15-3.20,MARK J |
90520-25015 |
US $2.15 |
||
|
33321B
|
33321B
90520-25016 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=3.21-3.26,MARK K |
90520-25016 |
from US $0.96 |
||
|
33321B
|
33321B
90520-25017 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=3.27-3.32,MARK L |
90520-25017 |
US $1.05 |
||
|
33321C
|
33321C
90520-71221 Ring, Shaft Snap (For Front Bearing)[12.1990 -] YH53,6#..MTM T=1.65,ID=71.1 |
90520-71221 |
US $4.12 |
||
|
33321D
|
33321D
90520-28010 Ring, Shaft Snap (For Clutch Hub Set)[12.1990 -] YH53,6#..MTM T=1.85-1.90,MARK D-1 |
90520-28010 |
from US $3.43 |
||
|
33321D
|
33321D
90520-28011 Ring, Shaft Snap (For Clutch Hub Set)[12.1990 -] YH53,6#..MTM T=1.95-2.00,MARK E-1 |
90520-28011 |
from US $2.48 |
||
|
33321D
|
33321D
90520-28012 Ring, Shaft Snap (For Clutch Hub Set)[12.1990 -] YH53,6#..MTM T=1.75-1.80,MARK C-1 |
90520-28012 |
from US $2.15 |
||
|
33321D
|
33321D
90520-28013 Ring, Shaft Snap (For Clutch Hub Set)[12.1990 -] YH53,6#..MTM T=2.05-2.10,MARK F-1 |
90520-28013 |
from US $1.60 |
||
|
33321D
|
33321D
90520-28245 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=1.80-1.85,MARK D |
90520-28245 |
from US $2.18 |
||
|
33321D
|
33321D
90520-28246 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=1.90-1.95,MARK E |
90520-28246 |
US $1.49 |
||
|
33321D
|
33321D
90520-28248 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=2.00-2.05,MARK F |
90520-28248 |
US $2.33 |
||
|
33321V
|
33321V
90363-30059 Bearing (For Input Shaft Front)[10.1989 -] YH53,6#..MTM |
90363-30059 |
from US $28 |
||
|
33331
|
33331
33331-0W010 Gear, ReverseREVERSE [03.1998 - 03.2004] YH63 |
33331-0W010 |
US $174.72 |
||
| replacement | |||||
|
33331
|
33331
33331-71010 Gear, Reverse[03.1998 - 03.2004] YH63 |
33331-71010 |
from US $99 |
||
|
33331
|
33331
33331-35061
Gear, Reverse
[12.1990 - 03.1998] YH53,6#..MTM |
33331-35061 |
— | ||
| replacement | |||||
|
33331
|
33331
33331-71010 Gear, Reverse[12.1990 - 03.1998] YH53,6#..MTM |
33331-71010 |
from US $99 |
||
|
33332
|
33332
33033-26011 Gear, 2Nd[07.1988 -] YH63..V..MTM;LH51,61,71,YH5#,60,61,73..MTM..(03S,05S,06S,12S,15S) |
33033-26011 |
from US $131.04 |
||
|
33332B
|
33332B
90364-38002 Bearing, Needle Roller (For 2Nd Gear)[12.1990 -] YH53,6#..MTM |
90364-38002 |
from US $32.42 |
||
|
33333
|
33333
33034-0W030 Gear, 3Rd[03.1998 - 03.2004] YH63..03S |
33034-0W030 |
US $157.25 |
||
|
33333
|
33333
33034-26051 Gear, 3Rd[08.1988 - 03.1998] YH63..V..MTM;LH51,61,71,YH5#,60,61,73..MTM..(03S,05S,06S,12S,15S) |
33034-26051 |
US $158.70 |
||
| replacement | |||||
|
33333
|
33333
33034-27010 Gear, 3Rd[08.1988 - 03.1998] YH63..V..MTM;LH51,61,71,YH5#,60,61,73..MTM..(03S,05S,06S,12S,15S) |
33034-27010 |
from US $131.04 |
||
|
33333
|
33333
33034-27010 Gear, 3Rd[03.2004 -] YH63..03S |
33034-27010 |
from US $131.04 |
||
|
33333A
|
33333A
90364-35005 Bearing, Needle Roller (For 2Nd Gear)[12.1990 -] YH53,6#..MTM |
90364-35005 |
from US $18.35 |
||
|
33335
|
33335
33032-0W020 Gear, 1St1ST [03.1998 - 03.2004] YH63..03S |
33032-0W020 |
US $145.60 |
||
|
33335
|
33335
33032-26030 Gear, 1St[06.1989 - 03.1998] YH63..V..MTM;LH51,61,71,YH5#,60,61,73..MTM..(03S,05S,06S,12S,15S) |
33032-26030 |
US $141.52 |
||
|
33335C
|
33335C
90364-39011 Bearing, Needle Roller(For 1St Gear)[12.1990 -] YH53,6#..MTM |
90364-39011 |
from US $20.87 |
||
|
33355
|
33355
33355-0W010 Race, 1St Gear Bearing Inner[03.1998 - 03.2004] YH63 |
33355-0W010 |
US $29.99 |
||
|
33355
|
33355
33355-35020 Race, 1St Gear Bearing Inner[10.1989 - 03.1998] YH53,6#..MTM |
33355-35020 |
US $26.38 |
||
|
33355A
|
33355A
90360-06004 Ball, Detent(For Gear Shift Head No.4)[08.1988 -] YH63..15S; YH63..V4D..VSP..MTM |
90360-06004 |
from US $0.84 |
||
| replacement | |||||
|
33355A
|
33355A
90080-36191
Ball, Check Valve
[08.1988 -] YH63..15S; YH63..V4D..VSP..MTM |
90080-36191 |
— | ||
|
33361
|
33361
33361-0W010
Hub, Transmission Clutch, No.1
[03.1998 - 03.2004] YH63 |
33361-0W010 |
— | ||
| replacement | |||||
|
33361
|
33361
33361-35020 Hub, Transmission Clutch, No.1[03.1998 - 03.2004] YH63 |
33361-35020 |
from US $73.57 |
||
|
33361
|
33361
33361-35020 Hub, Transmission Clutch, No.1[10.1989 - 03.1998] YH53,6#..MTM |
33361-35020 |
from US $73.57 |
||
|
33362
|
33362
33362-0K010
Hub, Transmission Clutch, No.2
[10.2004 - 11.2005] YH63 |
33362-0K010 |
— | ||
| replacement | |||||
|
33362
|
33362
33362-35040 Hub, Transmission Clutch, No.2[10.2004 - 11.2005] YH63 |
33362-35040 |
from US $57.29 |
||
|
33362
|
33362
33362-0W010
Hub, Transmission Clutch, No.2
[03.1998 - 10.2004] YH63 |
33362-0W010 |
— | ||
| replacement | |||||
|
33362
|
33362
33362-35040 Hub, Transmission Clutch, No.2[03.1998 - 10.2004] YH63 |
33362-35040 |
from US $57.29 |
||
|
33362
|
33362
33362-35040 Hub, Transmission Clutch, No.2[10.1989 - 03.1998] YH53,6#..MTM |
33362-35040 |
from US $57.29 |
||
|
33364
|
33364
33364-0W010
Sleeve, Transmission Hub, No.2
[03.1998 - 03.2004] YH63 |
33364-0W010 |
— | ||
|
33364
|
33364
33364-26020 Sleeve, Transmission Hub, No.2[09.1992 - 03.1998] YH53,63 |
33364-26020 |
from US $59.23 |
||
|
33364
|
33364
33364-35030
Sleeve, Transmission Hub, No.2
[08.1988 - 08.1992] LH51,61,71,YH5#,6#,73..MTM |
33364-35030 |
— | ||
| replacements | |||||
|
33364
|
33364
33213-35034 Fork, Gear Shift, No.2[08.1988 - 08.1992] LH51,61,71,YH5#,6#,73..MTM |
33213-35034 |
from US $23.94 |
||
|
33364
|
33364
33220-26010 Fork, Gear Shift, No.2[08.1988 - 08.1992] LH51,61,71,YH5#,6#,73..MTM |
33220-26010 |
US $53.64 |
||
|
33364
|
33364
33364-26020 Sleeve, Transmission Hub, No.2[08.1988 - 08.1992] LH51,61,71,YH5#,6#,73..MTM |
33364-26020 |
from US $59.23 |
||
|
33365
|
33365
33365-35020
Key, Synchromesh Shifting, No.1
[10.1989 - 12.2003] YH53,6#..MTM |
33365-35020 |
— | ||
| replacement | |||||
|
33365
|
33365
33365-35021 Key, Synchromesh Shifting, No.1[10.1989 - 12.2003] YH53,6#..MTM |
33365-35021 |
from US $2.57 |
||
|
33365
|
33365
33365-35021 Key, Synchromesh Shifting, No.1[12.2003 -] YH63 |
33365-35021 |
from US $2.57 |
||
|
33366
|
33366
33366-35040
Key, Synchromesh Shifting, No.2
[10.1989 - 12.2003] YH53,6#..MTM |
33366-35040 |
— | ||
| replacement | |||||
|
33366
|
33366
33366-35041 Key, Synchromesh Shifting, No.2[10.1989 - 12.2003] YH53,6#..MTM |
33366-35041 |
from US $2.28 |
||
|
33366
|
33366
33366-35041 Key, Synchromesh Shifting, No.2[12.2003 -] YH63 |
33366-35041 |
from US $2.28 |
||
|
33367
|
33367
33368-20012 Ring, Synchronizer, No.1[10.1989 -] YH53,6#..MTM |
33368-20012 |
from US $26.46 |
||
|
33368
|
33368
33367-14010 Ring, Synchronizer, No.1[08.1988 -] YH63..15S; YH63..V4D..VSP..MTM |
33367-14010 |
from US $20.90 |
||
|
33371
|
33371
33371-14031 Spring, Synchromesh Shifting Key, No.1[10.1989 -] YH53,6#..MTM |
33371-14031 |
from US $1.19 |
||
|
33391
|
33391
33371-14010 Spring, Synchromesh Shifting Key, No.1[08.1988 - 03.1998] LH71,YH73; YH61..5H; YH63..5H..06S; YH63..V5D; YH63..V4D..VSP..MTM; LH51,61..5H |
33371-14010 |
from US $1.17 |
||
|
33402
|
33402
33402-0W010 Gear Sub-Assy, Reverse IdlerREVERSE IDLER [03.1998 - 03.2004] YH63 |
33402-0W010 |
US $154.34 |
||
| replacement | |||||
|
33402
|
33402
33402-60040 Gear Sub-Assy, Reverse Idler[03.1998 - 03.2004] YH63 |
33402-60040 |
from US $104.09 |
||
|
33402
|
33402
33402-35050 Gear Sub-Assy, Reverse Idler[06.1989 - 03.1998] LH51,61,71,YH5#,6#,73..MTM |
33402-35050 |
US $126.67 |
||
| replacement | |||||
|
33402
|
33402
33402-60040 Gear Sub-Assy, Reverse Idler[06.1989 - 03.1998] LH51,61,71,YH5#,6#,73..MTM |
33402-60040 |
from US $104.09 |
||
|
33411A
|
33411A
90365-25023 Bearing Or Roller(For Counter Gear Front)[05.1993 - 08.2007] YH53,63 |
90365-25023 |
from US $48.05 |
||
|
33411A
|
33411A
90365-25025 Bearing Or Roller(For Counter Gear Front)[08.1988 - 05.1993] LH51,61,71,YH5#,6#,73..MTM |
90365-25025 |
US $54.75 |
||
| replacement | |||||
|
33411A
|
33411A
90365-25023 Bearing Or Roller(For Counter Gear Front)[08.1988 - 05.1993] LH51,61,71,YH5#,6#,73..MTM |
90365-25023 |
from US $48.05 |
||
|
33411A
|
33411A
90365-25027 Bearing Or Roller(For Counter Gear Front)[08.2007 -] YH63 |
90365-25027 |
from US $42.28 |
||
|
33411D
|
33411D
90520-49222 Ring, Counter Gear Front Bearing Snap, No.1[12.1990 -] YH53,6#..MTM T=1.07,OD=55.6 |
90520-49222 |
US $3.76 |
||
|
33411P
|
33411P
90365-31006 Bearing, Counter Shaft Center[12.1990 -] YH53,6#..MTM |
90365-31006 |
from US $34.59 |
||
|
33411Q
|
33411Q
90520-23089 Ring, Shaft Snap (For Input Shaft)[12.1990 -] YH53,6#..MTM T=2.10-2.15 |
90520-23089 |
from US $2.33 |
||
|
33411Q
|
33411Q
90520-23090 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=2.20-2.25 |
90520-23090 |
US $2.33 |
||
|
33411Q
|
33411Q
90520-23115 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=2.05-2.10 |
90520-23115 |
US $2.33 |
||
|
33411Q
|
33411Q
90520-23143 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=2.15-2.20 |
90520-23143 |
US $2.33 |
||
|
33411Q
|
33411Q
90520-23144 Ring, Shaft Snap (For Input Shaft)[12.1990 -] YH53,6#..MTM T=2.25-2.30 |
90520-23144 |
US $1.05 |
||
|
33411Q
|
33411Q
90520-23145 Ring, Shaft Snap (For Output Shaft Bearing)[12.1990 -] YH53,6#..MTM T=2.30-2.35 |
90520-23145 |
US $1.05 |
||
|
33421
|
33421
33421-0W040 Gear, CounterCOUNTER [03.1998 - 03.2004] YH63..03S |
33421-0W040 |
US $272.27 |
||
|
33421
|
33421
33421-26100 Gear, Counter[06.1989 - 03.1998] YH63..V..MTM;LH51,61,71,YH5#,60,61,73..MTM..(03S,05S,06S,12S,15S) |
33421-26100 |
US $457.77 |
||
|
33421
|
33421
33421-35150 Gear, Counter[03.2004 -] YH63..03S |
33421-35150 |
US $435.34 |
||
|
33421R
|
33421R
90520-19008 Ring, Shaft Snap[12.1990 -] YH53,6#..MTM T=2.85 |
90520-19008 |
US $0.61 |
||
|
33421R
|
33421R
90520-19009 Ring, Shaft Snap[12.1990 -] YH53,6#..MTM T=2.90 |
90520-19009 |
US $0.61 |
||
|
33421R
|
33421R
90520-19010 Ring, Shaft Snap[12.1990 -] YH53,6#..MTM T=2.95 |
90520-19010 |
US $1.43 |
||
|
33421R
|
33421R
90520-19011 Ring, Shaft Snap[12.1990 -] YH53,6#..MTM T=3.00 |
90520-19011 |
US $0.61 |
||
|
33421R
|
33421R
90520-19012 Ring, Shaft Snap[12.1990 -] YH53,6#..MTM T=3.05 |
90520-19012 |
US $0.61 |
||
|
33421R
|
33421R
90520-19013 Ring, Shaft Snap[12.1990 -] YH53,6#..MTM T=3.10 |
90520-19013 |
US $0.61 |
||
|
33421R
|
33421R
90520-19014 Ring, Snap, Counter Gear Rear Bearing[12.1990 -] YH53,6#..MTM T=3.15 |
90520-19014 |
US $1.02 |
||
|
33451
|
33451
33451-28010 Shaft, Reverse Idler Gear[10.1989 - 05.2004] YH53,6#..MTM |
33451-28010 |
US $39.31 |
||
| replacement | |||||
|
33451
|
33451
33451-28011 Shaft, Reverse Idler Gear[10.1989 - 05.2004] YH53,6#..MTM |
33451-28011 |
US $27.26 |
||
|
33451
|
33451
33451-28011 Shaft, Reverse Idler Gear[05.2004 -] YH63 |
33451-28011 |
US $27.26 |
||
|
33452
|
33452
33452-36030 Stopper, Reverse Idler Gear Shaft[10.1989 -] YH53,6#..MTM |
33452-36030 |
US $2.27 |
||
|
33481
|
33481
33481-22010 Gear, Speedometer Drive (Mtm)[08.1988 -] YH63..V4D..MTM..(GEN,SA) N=6,MARK 6X18-20 |
33481-22010 |
from US $19.04 |
||
|
33481B
|
33481B
90520-26061 Ring Or Spacer (For Mtm Speedometer Drive Gear)[10.1991 -] YH53,6#..MTM T=1.50,OD=31.3 |
90520-26061 |
US $0.96 |
||
|
33481C
|
33481C
90360-06004 Ball, Detent(For Gear Shift Head No.4)[08.1988 -] LH51,61,71,YH5#,6#,73..MTM |
90360-06004 |
from US $0.84 |
||
| replacement | |||||
|
33481C
|
33481C
90080-36191
Ball, Check Valve
[08.1988 -] LH51,61,71,YH5#,6#,73..MTM |
90080-36191 |
— | ||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.21 |
||
