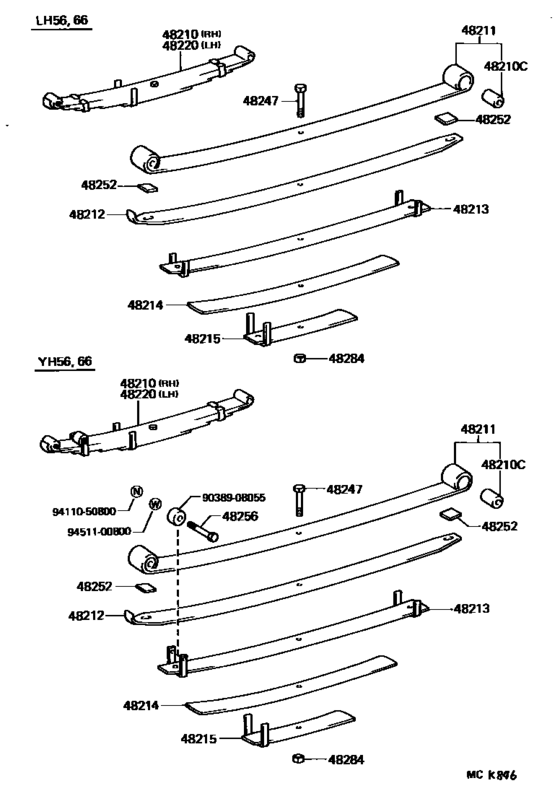

Rear Spring & Shock Absorber ([08.1986 - 08.1987] (8608-8708)LH56,66,YH56,66) Diagram Toyota HIACE
- Year
- 1986 - 1987
- Sales region
- Europe
- Frame
- YH66
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- CATEGORY
- N1
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1986
- To
- 08.1987
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Vehicle Model
- Hiace Van, Commuter Bus
- Seat Type
- R
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-26460 Spring Assy, Rear RhREAR RH [08.1986 - 08.1987] LH56,YH56;LH66,YH66..N1 |
48210-26460 |
US $749.84 |
||
|
48210C
|
48210C
90389-14007 Bush(For Rear Spring Leaf)[12.1982 - 07.1988] LH5#,6#,7#,YH5#,6#,7# |
90389-14007 |
from US $18.65 |
||
|
48211
|
48211
48201-26460 Leaf, Rear Spring, No.1REAR SPRING, NO.1 [08.1986 - 08.1987] LH56,YH56;LH66,YH66..N1 |
48201-26460 |
US $205.30 |
||
|
48212
|
48212
48212-26460 Leaf, Rear Spring, No.2REAR SPRING, NO.2 [08.1986 - 08.1987] LH56,YH56;LH66,YH66..N1 |
48212-26460 |
US $160.16 |
||
|
48213
|
48213
48202-26460 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [08.1986 - 08.1987] LH56,YH56;LH66,YH66..N1 |
48202-26460 |
US $132.50 |
||
| replacement | |||||
|
48213
|
48213
48202-26470 Leaf, Rear Spring, No.3REAR SPRING, NO.3 [08.1986 - 08.1987] LH56,YH56;LH66,YH66..N1 |
48202-26470 |
US $133.95 |
||
|
48214
|
48214
48214-26460 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [08.1986 - 08.1987] LH56,YH56;LH66,YH66..N1 |
48214-26460 |
US $144.14 |
||
| replacement | |||||
|
48214
|
48214
48214-26470 Leaf, Rear Spring, No.4REAR SPRING, NO.4 [08.1986 - 08.1987] LH56,YH56;LH66,YH66..N1 |
48214-26470 |
US $145.60 |
||
|
48215
|
48215
48203-26460 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [08.1986 - 08.1987] LH56,YH56;LH66,YH66..N1 |
48203-26460 |
US $132.50 |
||
| replacement | |||||
|
48215
|
48215
48203-26470 Leaf, Rear Spring, No.5REAR SPRING, NO.5 [08.1986 - 08.1987] LH56,YH56;LH66,YH66..N1 |
48203-26470 |
US $133.95 |
||
|
48220
|
48220
48210-26460 Spring Assy, Rear RhREAR RH [08.1986 - 08.1987] LH56,YH56;LH66,YH66..N1 |
48210-26460 |
US $749.84 |
||
|
48247
|
48247
48247-26280 Bolt, Rear Spring, Center[08.1986 - 08.1987] LH56,66,YH56,66 |
48247-26280 |
US $4.12 |
||
|
48252
|
48252
48252-26070 Silencer, Front Spring[12.1982 - 07.1988] LH5#,6#,7#,YH5#,6#,7# |
48252-26070 |
from US $2.13 |
||
|
48256
|
48256
48256-26450 Bolt, Hexagon(For Rear Spring Clip Set)[08.1986 - 08.1987] LH56,66,YH56,66 |
48256-26450 |
US $5.10 |
||
|
48284
|
48284
48299-28010 Nut, Rear Spring Center Bolt[12.1982 - 07.1988] LH5#,6#,7#,YH5#,6#,7# |
48299-28010 |
US $3.35 |
||
|
9038908055
|
9038908055
90389-08055 Damper, Leaf Spring Dynamic |
90389-08055 |
US $18.35 |
||
| replacement | |||||
|
9038908055
|
9038908055
48375-26010 Damper, Leaf Spring Dynamic |
48375-26010 |
US $63.77 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
