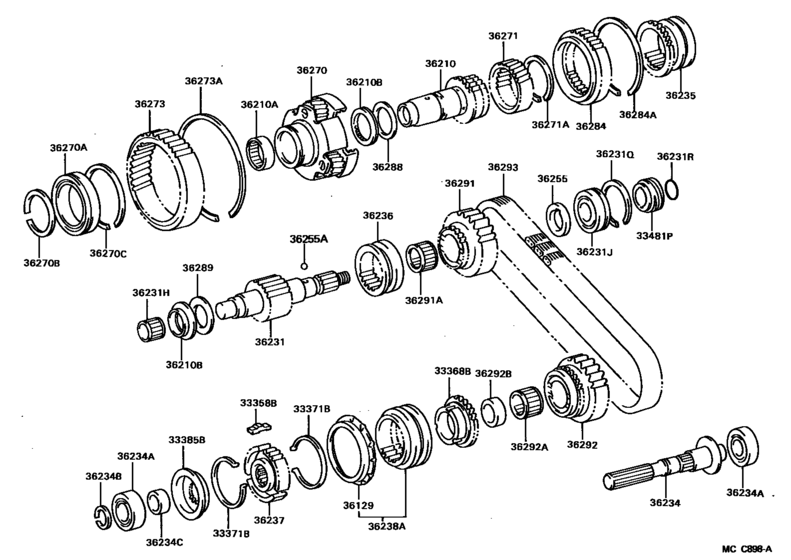

Transfer Gear ([08.1986 - 08.1987] (8608-8708)LH56,66,YH56,66) Diagram Toyota HIACE
- Year
- 1986 - 1987
- Sales region
- Europe
- Frame
- YH66
- grade
- STD
- body
- V
- Roof
- SRF
- ENGINE
- 4Y
- TRANSMISSION
- MTM
- DESTINATION
- EUR
- CATEGORY
- N1
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1986
- To
- 08.1987
- Gear Shift Type
- 5F
- No.of Doors
- V4D
- Vehicle Model
- Hiace Van, Commuter Bus
- Seat Type
- R
- Driver's Position
- LHD
- Side Window
- VSG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33358B
|
33358B
33358-28010 Key, Synchromesh Shifting (For Transfer Fr Drive Clutch)[08.1986 - 08.1987] LH56,66,YH56,66 |
33358-28010 |
US $4.51 |
||
|
33368B
|
33368B
33368-20012 Ring, Synchronizer, No.1[08.1986 - 08.1987] LH56,66,YH56,66 |
33368-20012 |
from US $26.46 |
||
|
33371B
|
33371B
33371-14031 Spring, Synchromesh Shifting Key, No.1[08.1986 - 08.1987] LH56,66,YH56,66 |
33371-14031 |
from US $1.19 |
||
|
33385B
|
33385B
33385-28010 Retainer, Shifting Key (For Transfer Front Drive Clutch)[08.1986 - 08.1987] LH56,66,YH56,66 |
33385-28010 |
US $15.43 |
||
|
33481P
|
33481P
33481-28010 Gear, Speedometer Drive (For Transfer)[12.1986 - 08.1987] YH56,66 N=6,MARK 1 |
33481-28010 |
US $35.53 |
||
|
36129
|
36129
36129-28010
Plate, Transfer Oil Supply
[08.1986 - 08.1987] LH56,66,YH56,66 |
36129-28010 |
— | ||
|
36210
|
36210
36210-28020 Shaft Assy, Transfer Input[08.1986 - 08.1987] LH56,66,YH56,66 |
36210-28020 |
US $208.21 |
||
|
36210A
|
36210A
90364-47001
Bearing (For Transfer Input Shaft)
[08.1986 - 08.1987] LH56,66,YH56,66 |
90364-47001 |
— | ||
| replacement | |||||
|
36210A
|
36210A
90364-47013 Bearing (For Transfer Input Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 |
90364-47013 |
from US $25.29 |
||
|
36210B
|
36210B
90374-39002 Bearing, Thrust (For Transfer Input Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 RR |
90374-39002 |
US $13.98 |
||
|
36210B
|
36210B
90374-49001 Bearing, Thrust (For Transfer Input Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 FR |
90374-49001 |
from US $14.13 |
||
|
36231
|
36231
36231-28010 Shaft, Transfer Output, Rear[08.1986 - 08.1987] LH56,66,YH56,66 |
36231-28010 |
US $238.78 |
||
|
36231H
|
36231H
90364-28004 Bearing, Needle Roller (For Transfer Output Shaft Front)[08.1986 - 08.1987] LH56,66,YH56,66 |
90364-28004 |
from US $24.57 |
||
|
36231J
|
36231J
90363-32006 Bearing (For Transfer Counter Gear)[08.1986 - 08.1987] LH56,66,YH56,66 |
90363-32006 |
from US $27.86 |
||
|
36231Q
|
36231Q
90520-71221 Ring, Shaft Snap (For Front Bearing)[08.1986 - 08.1987] LH56,66,YH56,66 |
90520-71221 |
US $4.12 |
||
|
36231R
|
36231R
96721-24028 Ring, O(For Oil Strainer)[10.1986 - 08.1987] LH56,66,YH56,66 |
96721-24028 |
from US $2.05 |
||
|
36234
|
36234
36234-28011 Shaft, Transfer Output, Front[08.1986 - 08.1987] LH56,66,YH56,66 |
36234-28011 |
US $230.05 |
||
|
36234A
|
36234A
90363-28004 Bearing, Radial Ball (For Transfer Input Gear)[08.1986 - 08.1987] LH56,66,YH56,66 RR |
90363-28004 |
from US $18.17 |
||
|
36234A
|
36234A
90363-30051 Bearing (For Transfer Output Front Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 FR |
90363-30051 |
US $36.25 |
||
| replacement | |||||
|
36234A
|
36234A
90363-30050 Bearing (For Transfer Output Front Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 FR |
90363-30050 |
US $36.25 |
||
|
36234B
|
36234B
90520-27024 Ring, Snap (For Transfer Output Front Shaft Bearing)[08.1986 - 08.1987] LH56,66,YH56,66 T=1.95,MARK 1,T=1.95 |
90520-27024 |
US $2.18 |
||
|
36234B
|
36234B
90520-27025 Ring, Snap (For Transfer Output Front Shaft Bearing)[08.1986 - 08.1987] LH56,66,YH56,66 T=2.00,MARK 2,T=2.00 |
90520-27025 |
US $2.33 |
||
|
36234B
|
36234B
90520-27026 Ring, Snap (For Transfer Output Front Shaft Bearing)[08.1986 - 08.1987] LH56,66,YH56,66 T=2.05,MARK 3,T=2.05 |
90520-27026 |
US $2.18 |
||
|
36234B
|
36234B
90520-27027 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[08.1986 - 08.1987] LH56,66,YH56,66 T=2.10,MARK 4,T=2.10 |
90520-27027 |
US $2.18 |
||
|
36234B
|
36234B
90520-27028 Ring, Shaft Snap (For Transmission Clutch Hub No.3)[08.1986 - 08.1987] LH56,66,YH56,66 T=2.15,MARK 5,T=2.15 |
90520-27028 |
US $2.33 |
||
|
36234B
|
36234B
90520-27029 Ring, Snap (For Transfer Output Front Shaft Bearing)[08.1986 - 08.1987] LH56,66,YH56,66 T=2.20,MARK 6,T=2.20 |
90520-27029 |
US $2.18 |
||
|
36234B
|
36234B
90520-27030 Ring, Snap (For Transfer Output Front Shaft Bearing)[08.1986 - 08.1987] LH56,66,YH56,66 T=2.25,MARK 7,T=2.25 |
90520-27030 |
US $2.18 |
||
|
36234B
|
36234B
90520-27031 Ring, Snap (For Transfer Output Front Shaft Bearing)[08.1986 - 08.1987] LH56,66,YH56,66 T=2.30,MARK 8,T=2.30 |
90520-27031 |
US $2.33 |
||
|
36234B
|
36234B
90520-27032 Ring, Snap (For Transfer Output Front Shaft Bearing)[08.1986 - 08.1987] LH56,66,YH56,66 T=2.35,MARK 9,T=2.35 |
90520-27032 |
US $2.18 |
||
|
36234B
|
36234B
90520-27033 Ring, Snap (For Transfer Output Front Shaft Bearing)[08.1986 - 08.1987] LH56,66,YH56,66 T=2.40,MARK 10,T=2.40 |
90520-27033 |
US $2.18 |
||
|
36234B
|
36234B
90520-27034 Ring, Snap (For Transfer Output Front Shaft Bearing)[08.1986 - 08.1987] LH56,66,YH56,66 T=2.45,MARK 11,T=2.45 |
90520-27034 |
US $2.18 |
||
|
36234B
|
36234B
90520-27035 Ring, Snap (For Transfer Output Front Shaft Bearing)[08.1986 - 08.1987] LH56,66,YH56,66 T=2.50,MARK 12,T=2.50 |
90520-27035 |
US $2.18 |
||
|
36234C
|
36234C
90560-33002 Spacer (For Transfer Output Front Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 |
90560-33002 |
US $6.84 |
||
|
36235
|
36235
36235-28010 Sleeve, Transfer High & Low Clutch[08.1986 - 08.1987] LH56,66,YH56,66 |
36235-28010 |
US $180.54 |
||
|
36236
|
36236
36236-28010 Sleeve, Front Drive Clutch[08.1986 - 08.1987] LH56,66,YH56,66 |
36236-28010 |
US $123.76 |
||
|
36237
|
36237
33361-35020 Hub, Transmission Clutch, No.1[08.1986 - 08.1987] LH56,66,YH56,66 |
33361-35020 |
from US $73.57 |
||
|
36238A
|
36238A
36206-28010 Sleeve Sub-Assy, Trnsfr Fr Drive Clutch[08.1986 - 08.1987] LH56,66,YH56,66 |
36206-28010 |
US $133.95 |
||
| replacement | |||||
|
36238A
|
36238A
36238-28010 Sleeve Sub-Assy, Trnsfr Fr Drive Clutch[08.1986 - 08.1987] LH56,66,YH56,66 |
36238-28010 |
US $154.34 |
||
|
36255
|
36255
36255-28010 Spacer, Transfer Output Shaft, No.1[08.1986 - 08.1987] LH56,66,YH56,66 |
36255-28010 |
US $15.43 |
||
| replacement | |||||
|
36255
|
36255
36255-35020 Spacer, Transfer Output Shaft, No.1[08.1986 - 08.1987] LH56,66,YH56,66 |
36255-35020 |
US $9.90 |
||
|
36255A
|
36255A
90360-05012 Ball, Reverse Shift Restrict[08.1986 - 08.1987] LH56,66,YH56,66 |
90360-05012 |
from US $0.86 |
||
|
36270
|
36270
36270-28011 Gear Assy, Transfer Low Planetary[08.1986 - 08.1987] LH56,66,YH56,66 |
36270-28011 |
US $960.96 |
||
| replacements | |||||
|
36270
|
36270
36270-28030 Gear Assy, Transfer Low Planetary[08.1986 - 08.1987] LH56,66,YH56,66 |
36270-28030 |
US $1,020.66 |
||
|
36270
|
36270
36284-26010 Piece, Transfer Low Planetary Gear Spline[08.1986 - 08.1987] LH56,66,YH56,66 |
36284-26010 |
US $44.84 |
||
|
36270
|
36270
90521-99056 Ring, Shaft Snap (For Transfer Low Planetary Gear)[08.1986 - 08.1987] LH56,66,YH56,66 |
90521-99056 |
US $3.14 |
||
|
36270A
|
36270A
90363-75001 Bearing (For Transfer Input Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 |
90363-75001 |
from US $26.56 |
||
|
36270B
|
36270B
90520-72001 Ring, Hole Snap (For Transfer Input Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 T=1.45,MARK 1,T=1.45 |
90520-72001 |
US $1.05 |
||
|
36270B
|
36270B
90520-72002 Ring, Hole Snap (For Transfer Input Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 T=1.50,MARK 2,T=1.50 |
90520-72002 |
US $1.75 |
||
|
36270B
|
36270B
90520-72003 Ring, Hole Snap (For Transfer Input Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 T=1.55,MARK 3,T=1.55 |
90520-72003 |
US $1.75 |
||
|
36270B
|
36270B
90520-72004 Ring, Hole Snap (For Transfer Input Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 T=1.60,MARK 4,T=1.60 |
90520-72004 |
US $1.75 |
||
|
36270B
|
36270B
90520-72005 Ring, Hole Snap (For Transfer Input Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 T=1.65,MARK 5,T=1.65 |
90520-72005 |
US $1.75 |
||
|
36270C
|
36270C
90520-99001 Ring, Shaft Snap (For Transfer Input Shaft)[08.1986 - 08.1987] LH56,66,YH56,66 |
90520-99001 |
US $1.49 |
||
|
36271
|
36271
36271-28010 Gear, Transfer Low Planetary Sun[08.1986 - 08.1987] LH56,66,YH56,66 |
36271-28010 |
US $128.13 |
||
|
36271A
|
36271A
90520-68001
Ring, Shaft Snap (For Transfer Low Planetary Sun Gear)
[08.1986 - 08.1987] LH56,66,YH56,66 |
90520-68001 |
— | ||
|
36273
|
36273
36273-28011 Gear, Transfer Low Planetary Ring[08.1986 - 08.1987] LH56,66,YH56,66 |
36273-28011 |
US $205.30 |
||
| replacement | |||||
|
36273
|
36273
36273-35030 Gear, Transfer Low Planetary Ring[08.1986 - 08.1987] LH56,66,YH56,66 |
36273-35030 |
from US $45.08 |
||
|
36273A
|
36273A
90521-99052 Ring, Hole Snap (For Transfer Low Planetary Ring Gear)[08.1986 - 08.1987] LH56,66,YH56,66 |
90521-99052 |
US $6.99 |
||
| replacement | |||||
|
36273A
|
36273A
90520-99078 Ring, Shaft Snap (For Transfer Low Planetary Gear)[08.1986 - 08.1987] LH56,66,YH56,66 |
90520-99078 |
US $4.02 |
||
|
36284
|
36284
36284-28010 Piece, Transfer Low Planetary Gear Spline[08.1986 - 08.1987] LH56,66,YH56,66 |
36284-28010 |
US $116.48 |
||
|
36284A
|
36284A
90521-99055 Ring, Hole Snap(For Transfer Spline Piece)[08.1986 - 08.1987] LH56,66,YH56,66 |
90521-99055 |
US $5.53 |
||
|
36288
|
36288
36288-28010 Race, Transfer Thrust Bearing, No.1[08.1986 - 08.1987] LH56,66,YH56,66 |
36288-28010 |
from US $8.60 |
||
|
36289
|
36289
36289-28010 Race, Transfer Thrust Bearing, No.2[08.1986 - 08.1987] LH56,66,YH56,66 |
36289-28010 |
US $10.48 |
||
|
36291
|
36291
36291-28010 Sprocket, Transfer Drive[08.1986 - 08.1987] LH56,66,YH56,66 |
36291-28010 |
US $230.05 |
||
|
36291A
|
36291A
90364-37006 Bearing (For Transfer Drive Sprocket)[08.1986 - 08.1987] LH56,66,YH56,66 |
90364-37006 |
US $28.25 |
||
|
36292
|
36292
36292-28010 Sprocket, Transfer Driven[08.1986 - 08.1987] LH56,66,YH56,66 |
36292-28010 |
US $248.98 |
||
|
36292A
|
36292A
90364-37006 Bearing (For Transfer Drive Sprocket)[08.1986 - 08.1987] LH56,66,YH56,66 |
90364-37006 |
US $28.25 |
||
|
36292B
|
36292B
90560-37002 Spacer (For Transfer Driven Sprocket)[08.1986 - 08.1987] LH56,66,YH56,66 |
90560-37002 |
US $5.24 |
||
|
36293
|
36293
36293-28010 Chain, Transfer Front Drive[08.1986 - 08.1987] LH56,66,YH56,66 |
36293-28010 |
US $422.24 |
||
