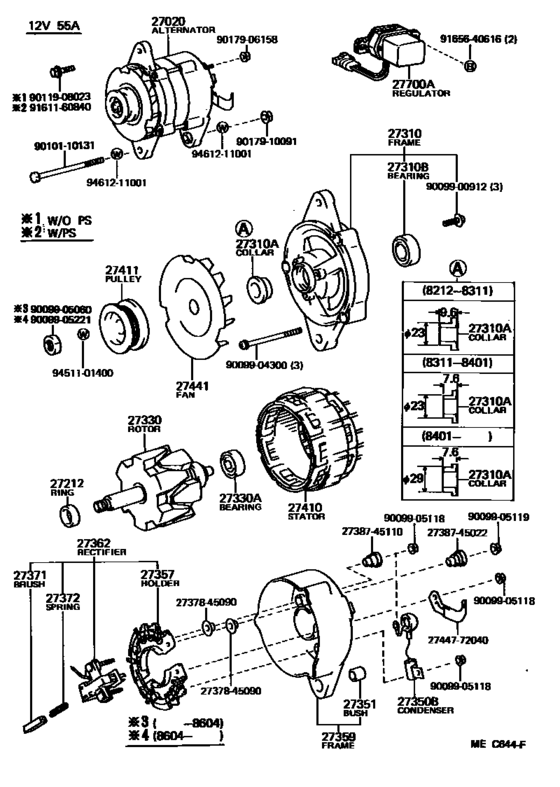

Alternator ([12.1982 - ] (8212- )2Y,3Y,3YJ) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27020-72010 Alternator Assy[12.1982 - 08.1985] 3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) １２Ｖ ５５Ａ,12V 55A |
27020-72010 |
US $1,054.14 |
||
|
27212
|
27212
27412-45070
Ring, Space(For Alternator Rotor)
[12.1982 - 08.1985] 3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
27412-45070 |
— | ||
|
27310
|
27310
27310-45110
Frame Assy, Drive End, Alternator
[12.1982 - 11.1983] 3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A; 3YU..YH51,61 12V 65A |
27310-45110 |
— | ||
|
27310
|
27310
27310-72040
Frame Assy, Drive End, Alternator
[11.1983 - 01.1984] 3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A; 3YU..YH51,61 12V 65A |
27310-72040 |
— | ||
| replacements | |||||
|
27310
|
27310
27310-72041
Frame Assy, Drive End, Alternator
[11.1983 - 01.1984] 3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A; 3YU..YH51,61 12V 65A |
27310-72041 |
— | ||
|
27310
|
27310
27412-16030
Collar Or Nut(For Alternator Drive End Frame)
[11.1983 - 01.1984] 3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A; 3YU..YH51,61 12V 65A |
27412-16030 |
— | ||
|
27310
|
27310
27310-72041
Frame Assy, Drive End, Alternator
[01.1984 - 08.1985] 3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A; 3Y..YH61..V5D..06S 12V 55A |
27310-72041 |
— | ||
|
27310A
|
27310A
27412-16030
Collar Or Nut(For Alternator Drive End Frame)
[01.1984 - 08.1987] 2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
27412-16030 |
— | ||
|
27310A
|
27310A
27412-31040
Collar Or Nut(For Alternator Drive End Frame)
[12.1982 - 11.1983] 2Y,3Y#..YH5#,61,71 12V 40A,45A,55A,65A |
27412-31040 |
— | ||
|
27310A
|
27310A
27412-63030
Collar Or Nut(For Alternator Drive End Frame)
[11.1983 - 01.1984] 3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A; 3YU..YH51,61 12V 65A |
27412-63030 |
— | ||
|
27310B
|
27310B
90099-10125 Bearing(For Alternator Drive End Frame)[12.1982 - 11.1983] 3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A; 3YU..YH51,61 12V 65A |
90099-10125 |
from US $8.74 |
||
|
27310B
|
27310B
90099-10142 Bearing(For Alternator Drive End Frame)[11.1983 - 01.1984] 3Y,3YJ..YH71;2Y,3Y..YH50,61..V4D..VSG 12V 55A; 3YU..YH51,61 12V 65A |
90099-10142 |
US $17.39 |
||
|
27330
|
27330
27330-63010
Rotor Assy, Alternator
[12.1982 - 08.1985] 3Y,3YJ..YH52,62,71 12V 55A; 2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
27330-63010 |
— | ||
|
27330A
|
27330A
90099-10116
Bearing(For Alternator Rotor)
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
90099-10116 |
— | ||
|
27350B
|
27350B
90099-52065 Condenser, Alternator[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
90099-52065 |
US $3.39 |
||
| replacement | |||||
|
27350B
|
27350B
90099-52034
Condenser, Alternator
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
90099-52034 |
— | ||
|
27351
|
27351
27351-38051
Bush(For Alternator Rectifier End Frame)
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
27351-38051 |
— | ||
|
27357
|
27357
27357-63011
Holder, Alternator, W/rectifier
[12.1982 - 08.1985] 3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
27357-63011 |
— | ||
|
27359
|
27359
27359-72010
Frame, Alternator Rectifier End
[12.1982 - 08.1985] 3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
27359-72010 |
— | ||
|
27362
|
27362
27362-63011 Rectifier Assy, W/brush[12.1982 - 08.1985] 3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
27362-63011 |
US $406.40 |
||
|
27371
|
27371
27371-31011 Brush, Alternator[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
27371-31011 |
from US $2.45 |
||
|
27372
|
27372
27372-31011
Spring, Alternator Brush
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
27372-31011 |
— | ||
|
27410
|
27410
27410-43040
Stator Assy, Alternator
[12.1982 - 08.1985] 3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
27410-43040 |
— | ||
|
27411
|
27411
27411-72040
Pulley, Alternator
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 12V 40A,45A,55A,65A |
27411-72040 |
— | ||
|
27441
|
27441
27441-63030
Fan, Alternator
[12.1982 - 08.1985] 3Y,3YJ..YH52,62,71;2Y,3Y..YH50,61..V4D..(06S,09S) 12V 55A |
27441-63030 |
— | ||
|
27700A
|
27700A
27700-13040
Regulator Assy, Generator
[12.1982 - 05.1984] L,2L,2Y,3Y,3YJ..LH5#,6#,7#,YH50,52,6#,71..COM,V 12V 40A,45A,55A |
27700-13040 |
— | ||
|
27700A
|
27700A
27700-72020
Regulator Assy, Generator
[05.1984 - 08.1984] L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A,COLD SPEC |
27700-72020 |
— | ||
| replacement | |||||
|
27700A
|
27700A
27700-72010
Regulator Assy, Generator
[05.1984 - 08.1984] L,2L,2Y,3Y,3YJ..LH5#,61,71,YH50,52,6#,71..COM,V 12V 40A,45A,55A,COLD SPEC |
27700-72010 |
— | ||
|
2737845090
|
2737845090
27378-45090
Insulator, Alternator, No.1
|
27378-45090 |
— | ||
|
2738745022
|
2738745022
27387-45022
Insulator, Terminal
|
27387-45022 |
— | ||
|
2738745110
|
2738745110
27387-45110
Insulator, Terminal
|
27387-45110 |
— | ||
|
2744772040
|
2744772040
27447-72040
Clip, Alternator Cord
|
27447-72040 |
— | ||
|
9009900912
|
9009900912
90099-00912
New Genuine Part
|
90099-00912 |
— | ||
|
9009904300
|
9009904300
90099-04300
New Genuine Part
|
90099-04300 |
— | ||
|
9009905060
|
9009905060
90099-05060
Collar Or Nut(For Alternator Drive End Frame)
|
90099-05060 |
— | ||
|
9009905118
|
9009905118
90099-05118
New Genuine Part
|
90099-05118 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905221
|
9009905221
90099-05221
New Genuine Part
|
90099-05221 |
— | ||
|
9010110131
|
9010110131
90101-10131 Shaft, Clutch Pedal |
90101-10131 |
US $3.84 |
||
|
9011908023
|
9011908023
90119-08023 BOLT |
90119-08023 |
US $2.48 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017910091
|
9017910091
90179-10091 Nut (For Front Lower Ball Joint Setting) |
90179-10091 |
US $2.77 |
||
| replacement | |||||
|
9017910091
|
9017910091
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
