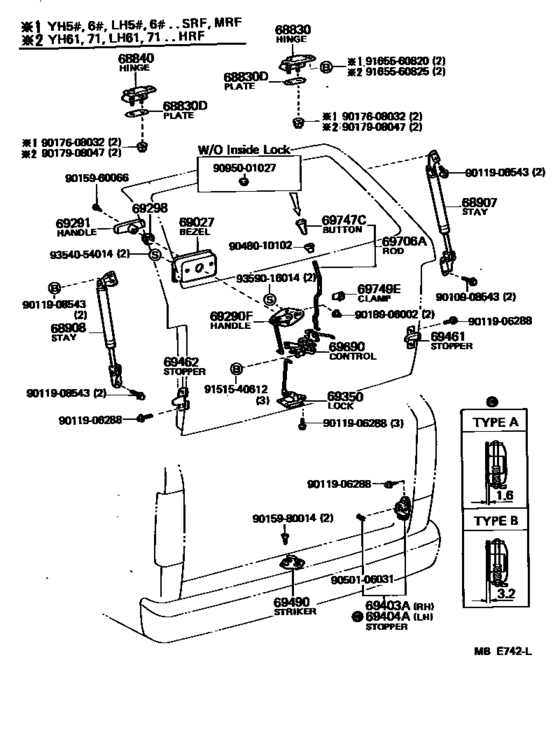

Back Door Lock & Hinge ([12.1982 - ] (8212- )) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68830
|
68830
68810-90C00
Hinge Assy, Back Door, Upper
[12.1982 - 08.1987] LH61,7#,YH61,71..HRF |
68810-90C00 |
— | ||
|
68830D
|
68830D
68868-90C01
Plate, Back Door Hinge
[12.1982 - 08.1987] LH61,7#,YH61,71..HRF T=1.0 |
68868-90C01 |
— | ||
| replacement | |||||
|
68830D
|
68830D
68868-95J00
Seal, Back Door Hinge
[12.1982 - 08.1987] LH61,7#,YH61,71..HRF T=1.0 |
68868-95J00 |
— | ||
|
68840
|
68840
68820-90C00
Hinge Assy, Back Door, Upper
[12.1982 - 08.1987] LH61,7#,YH61,71..HRF |
68820-90C00 |
— | ||
|
68907
|
68907
68950-90C00
Stay Sub-Assy, Back Door Damper, Rh
[12.1982 - 08.1985] LH61,7#,YH61,71..HRF..DLX |
68950-90C00 |
— | ||
| replacement | |||||
|
68907
|
68907
68950-90C01
Stay Sub-Assy, Back Door Damper, Rh
[12.1982 - 08.1985] LH61,7#,YH61,71..HRF..DLX |
68950-90C01 |
— | ||
|
68907
|
68907
68950-90C01
Stay Sub-Assy, Back Door Damper, Rh
[12.1982 - 01.1984] LH70,YH71..DLX COLD SPEC OR RR WIPER |
68950-90C01 |
— | ||
|
68907
|
68907
68950-90C02 Stay Sub-Assy, Back Door Damper, Rh[12.1982 - 08.1987] LH7#..GL COLD SPEC; LH61,71,YH61,71..HRF..DLX COLD SPEC,W/RR WIPER |
68950-90C02 |
US $292.66 |
||
|
68907
|
68907
68950-90C05 Stay Sub-Assy, Back Door Damper, Rh[04.1983 - 08.1987] LH7#,YH71..DLX..15S HANDY CAB,COLD SPEC,W/RR WIPER |
68950-90C05 |
US $292.66 |
||
|
68907
|
68907
68950-90C06 Stay Sub-Assy, Back Door Damper, Rh[07.1983 - 08.1987] LH7#,YH71..DLX..15S HANDY CAB |
68950-90C06 |
US $292.66 |
||
|
68908
|
68908
68960-90C00
Stay Sub-Assy, Back Door Damper, Lh
[12.1982 - 08.1985] LH61,7#,YH61,71..HRF..DLX |
68960-90C00 |
— | ||
| replacement | |||||
|
68908
|
68908
68960-90C01
Stay Sub-Assy, Back Door Damper, Lh
[12.1982 - 08.1985] LH61,7#,YH61,71..HRF..DLX |
68960-90C01 |
— | ||
|
68908
|
68908
68960-90C01
Stay Sub-Assy, Back Door Damper, Lh
[12.1982 - 01.1984] LH70,YH71..DLX COLD SPEC OR RR WIPER |
68960-90C01 |
— | ||
|
68908
|
68908
68960-90C02 Stay Sub-Assy, Back Door Damper, Lh[12.1982 - 08.1987] LH7#..GL COLD SPEC; LH61,71,YH61,71..HRF..DLX COLD SPEC,W/RR WIPER |
68960-90C02 |
US $292.66 |
||
|
68908
|
68908
68960-90C05 Stay Sub-Assy, Back Door Damper, Lh[04.1983 - 08.1987] LH7#,YH71..DLX..15S HANDY CAB,COLD SPEC |
68960-90C05 |
US $292.66 |
||
|
68908
|
68908
68960-90C06 Stay Sub-Assy, Back Door Damper, Lh[07.1983 - 08.1987] LH7#,YH71..DLX..15S HANDY CAB |
68960-90C06 |
US $292.66 |
||
|
69027
|
69027
69027-95J00-05
Bezel Sub-Assy, Back Door Inside Handle
[12.1982 - 01.1984] LH50,60,70,YH50,61,71..COM,V BEIGE,BEIGE |
69027-95J00-05 |
— | ||
| replacement | |||||
|
69027
|
69027
69783-95J00-B0
Holder, Door Lock Control Knob
[12.1982 - 01.1984] LH50,60,70,YH50,61,71..COM,V BEIGE,BEIGE |
69783-95J00-B0 |
— | ||
|
69290F
|
69290F
69290-95J00
Handle Assy, Back Door Inside
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..COM,V |
69290-95J00 |
— | ||
|
69291
|
69291
69291-95J00-05 Handle Assy, Back Door Inside[12.1982 - 01.1984] LH50,60,70,YH50,61,71..COM,V BEIGE,BEIGE |
69291-95J00-05 |
US $10.19 |
||
| replacement | |||||
|
69291
|
69291
69291-95J00-25
Handle Assy, Back Door Inside
[12.1982 - 01.1984] LH50,60,70,YH50,61,71..COM,V BEIGE,BEIGE |
69291-95J00-25 |
— | ||
|
69291
|
69291
69291-95J00-15 Handle Assy, Back Door Inside[01.1984 - 08.1985] LH5#,61,71,YH50,52,6#,71..COM,V BEIGE,BEIGE |
69291-95J00-15 |
US $10.19 |
||
| replacement | |||||
|
69291
|
69291
69291-95J00-25
Handle Assy, Back Door Inside
[01.1984 - 08.1985] LH5#,61,71,YH50,52,6#,71..COM,V BEIGE,BEIGE |
69291-95J00-25 |
— | ||
|
69291
|
69291
69291-95J00-26
Handle Assy, Back Door Inside
[08.1985 - 08.1987] LH71 BROWN,BROWN; LH5#,6#,YH50,6#,71..COM,V BROWN,BROWN |
69291-95J00-26 |
— | ||
| replacement | |||||
|
69291
|
69291
69291-95J00-B6 Handle Assy, Back Door Inside[08.1985 - 08.1987] LH71 BROWN,BROWN; LH5#,6#,YH50,6#,71..COM,V BROWN,BROWN |
69291-95J00-B6 |
from US $7.96 |
||
|
69298
|
69298
69298-95J00 Cover, Back Door Inside Handle[01.1984 - 08.1987] LH5#,6#,71,YH5#,6#,71..COM,V |
69298-95J00 |
US $3.67 |
||
|
69350
|
69350
69350-95J00 Lock Assy, Back Door[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
69350-95J00 |
US $101.34 |
||
|
69403A
|
69403A
69403-95J00
Stopper Sub-Assy, Back Door Side Female, Rh
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
69403-95J00 |
— | ||
|
69403A
|
69403A
69403-95J01
Stopper Sub-Assy, Back Door Side Female, Rh
[08.1985 - 01.1986] LH51,61,71,YH5#,6#,71 |
69403-95J01 |
— | ||
|
69404A
|
69404A
69404-95J00
Stopper Sub-Assy, Back Door Side Female, Lh
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
69404-95J00 |
— | ||
|
69404A
|
69404A
69404-95J01
Stopper Sub-Assy, Back Door Side Female, Lh
[08.1985 - 01.1986] LH51,61,71,YH5#,6#,71 |
69404-95J01 |
— | ||
|
69461
|
69461
69461-95J00
Stopper, Back Door Side Male, Rh
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
69461-95J00 |
— | ||
|
69461
|
69461
69461-95J01
Stopper, Back Door Side Male, Rh
[08.1985 - 01.1986] LH51,61,71,YH5#,6#,71 |
69461-95J01 |
— | ||
|
69462
|
69462
69462-95J00
Stopper, Back Door Side Male, Lh
[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
69462-95J00 |
— | ||
|
69462
|
69462
69462-95J01
Stopper, Back Door Side Male, Lh
[08.1985 - 01.1986] LH51,61,71,YH5#,6#,71 |
69462-95J01 |
— | ||
|
69490
|
69490
69450-95J00
Striker Assy, Back Door Lock
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
69450-95J00 |
— | ||
|
69690
|
69690
69690-95J01
Control Assy, Back Door Remote
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..COM,V |
69690-95J01 |
— | ||
|
69706A
|
69706A
69706-95J00
Rod Sub-Assy, Back Door Lock Remote Control
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..COM,V |
69706-95J00 |
— | ||
|
69747C
|
69747C
69747-20020-01
Button, Door Locking
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..COM,V BLACK,BLACK |
69747-20020-01 |
— | ||
| replacement | |||||
|
69747C
|
69747C
69747-20020-C0 Button, Door Locking(For Front Door)[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..COM,V BLACK,BLACK |
69747-20020-C0 |
US $4.48 |
||
|
69749E
|
69749E
69749-30020 Clamp, No.1(For Back Door Lock Control Cable)[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..COM,V |
69749-30020 |
US $5.02 |
||
|
9010908543
|
9010908543
90109-08543
New Genuine Part
|
90109-08543 |
— | ||
|
9011906288
|
9011906288
90119-06288
BOLT
|
90119-06288 |
— | ||
| replacement | |||||
|
9011906288
|
9011906288
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9011908543
|
9011908543
90119-08543
Bolt
|
90119-08543 |
— | ||
| replacement | |||||
|
9011908543
|
9011908543
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9015960066
|
9015960066
90159-60066 New Genuine Part |
90159-60066 |
US $2.33 |
||
|
9015980014
|
9015980014
90159-80014 SCREW |
90159-80014 |
US $2.15 |
||
|
9017608032
|
9017608032
90176-08032 New Genuine Part |
90176-08032 |
US $1.51 |
||
|
9017908047
|
9017908047
90179-08047 New Genuine Part |
90179-08047 |
US $4.08 |
||
| replacement | |||||
|
9017908047
|
9017908047
90179-08224 New Genuine Part |
90179-08224 |
US $2.04 |
||
|
9018906002
|
9018906002
90189-06002 GROMMET, SCREW |
90189-06002 |
US $2.87 |
||
|
9048010102
|
9048010102
90480-10102
Grommet(For Door Panel Lock Button)
|
90480-10102 |
— | ||
| replacement | |||||
|
9048010102
|
9048010102
90480-10102-01 Grommet(For Rear Door Panel Lock Button) |
90480-10102-01 |
from US $1.21 |
||
|
9050106031
|
9050106031
90501-06031
New Genuine Part
|
90501-06031 |
— | ||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.58 |
||
|
9151540612
|
9151540612
91515-40612 New Genuine Part |
91515-40612 |
US $1.46 |
||
| replacement | |||||
|
9151540612
|
9151540612
91511-40608 New Genuine Part |
91511-40608 |
US $1.05 |
||
|
9165560820
|
9165560820
91655-60820
BOLT
|
91655-60820 |
— | ||
| replacement | |||||
|
9165560820
|
9165560820
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
|
9165560825
|
9165560825
91655-60825 Bolt, Radiator Side Support Plate |
91655-60825 |
US $2.18 |
||
| replacement | |||||
|
9165560825
|
9165560825
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $0.98 |
||
|
9359016014
|
9359016014
93590-16014 New Genuine Part |
93590-16014 |
US $5.02 |
||
