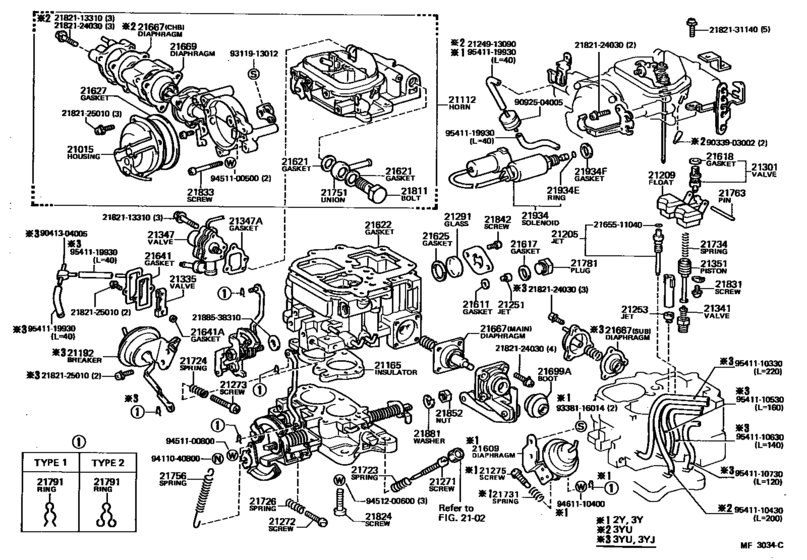

Carburetor ([12.1982 - 08.1985] (8212-8508)2Y,3Y#) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21015
|
21015
21015-73020 Housing Sub-Assy, Coil[12.1982 - 08.1987] 3YJ..YH52,62,71 |
21015-73020 |
US $237.33 |
||
|
21112
|
21112
21112-73020
Horn, Air
[12.1982 - 01.1984] 3YJ..YH71 |
21112-73020 |
— | ||
|
21112
|
21112
21112-73021 Horn, Air[01.1984 - 07.1985] 3YJ..YH52,62,71 |
21112-73021 |
US $666.85 |
||
| replacement | |||||
|
21112
|
21112
21112-73170 Horn, Air[01.1984 - 07.1985] 3YJ..YH52,62,71 |
21112-73170 |
US $642.10 |
||
|
21112
|
21112
21112-73170 Horn, Air[07.1985 - 08.1987] 3YJ..YH52,62,71 |
21112-73170 |
US $642.10 |
||
|
21165
|
21165
21165-71010
Insulator
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21165-71010 |
— | ||
| replacement | |||||
|
21165
|
21165
21165-73100
Insulator
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21165-73100 |
— | ||
|
21192
|
21192
21192-71010 Breaker[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
21192-71010 |
US $186.37 |
||
|
21205
|
21205
21205-35210
Jet Sub-Assy, Slow
[12.1982 - 08.1987] 3YJ..YH52,62,71 |
21205-35210 |
— | ||
| replacement | |||||
|
21205
|
21205
21205-35410 Jet Sub-Assy, SlowSLOW [12.1982 - 08.1987] 3YJ..YH52,62,71 |
21205-35410 |
US $10.05 |
||
|
21209
|
21209
21209-37041
Float Sub-Assy
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21209-37041 |
— | ||
|
21251
|
21251
90999-41104 Jet, 1St Main[12.1982 - 08.1987] 3YJ..YH52,62,71 |
90999-41104 |
US $4.95 |
||
|
21253
|
21253
21253-37040
Jet, 2Nd Main
[12.1982 - 08.1985] 2Y,3Y#..YH5#,6#,71 TYPE A |
21253-37040 |
— | ||
| replacement | |||||
|
21253
|
21253
21253-35410 Jet, 2Nd Main2ND MAIN [12.1982 - 08.1985] 2Y,3Y#..YH5#,6#,71 TYPE A |
21253-35410 |
US $5.97 |
||
|
21253
|
21253
21253-73010 Jet, 2Nd Main[08.1985 - 08.1987] 2Y,3Y#..YH5#,6#,71 TYPE B |
21253-73010 |
US $5.39 |
||
|
21271
|
21271
21271-15230
Screw, Idle Adjusting
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21271-15230 |
— | ||
|
21272
|
21272
21272-71010 Screw, 1St Idle Adjusting[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21272-71010 |
US $5.24 |
||
|
21273
|
21273
21273-71010 Screw, Throttle Adjusting[12.1982 - 07.1983] 2Y,3Y#..YH5#,61,71 |
21273-71010 |
US $9.03 |
||
|
21273
|
21273
21273-71011 Screw, Throttle Adjusting[07.1983 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21273-71011 |
US $4.22 |
||
| replacement | |||||
|
21273
|
21273
21273-35210 Screw, Throttle Adjusting[07.1983 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21273-35210 |
US $9.03 |
||
|
21291
|
21291
21291-34320
Glass, Level Gage
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21291-34320 |
— | ||
|
21301
|
21301
21301-35010
Valve Sub-Assy, Needle
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21301-35010 |
— | ||
|
21335
|
21335
21335-34660
Valve, Thermostatic
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21335-34660 |
— | ||
|
21341
|
21341
21304-61060
Valve, Power
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21304-61060 |
— | ||
|
21347
|
21347
21347-73010 Valve, Solenoid[12.1982 - 01.1984] 3YU,3YJ..YH51,61,71 |
21347-73010 |
US $262.08 |
||
|
21347
|
21347
21347-73011 Valve, Solenoid[01.1984 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
21347-73011 |
US $260.62 |
||
| replacement | |||||
|
21347
|
21347
21347-72310 Valve, Solenoid[01.1984 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
21347-72310 |
US $256.26 |
||
|
21347A
|
21347A
21641-35010 Gasket(For Valve, Solenoid)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21641-35010 |
US $5.53 |
||
| replacement | |||||
|
21347A
|
21347A
21641-35510 Gasket(For Valve, Solenoid)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21641-35510 |
US $5.68 |
||
|
21351
|
21351
21351-37040 Piston, Power[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21351-37040 |
US $9.61 |
||
|
21611
|
21611
21611-22010 Gasket, Main Jet[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21611-22010 |
US $3.32 |
||
|
21617
|
21617
21617-30010 Gasket, Main Passage Plug[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21617-30010 |
US $3.55 |
||
|
21618
|
21618
21618-14010
Gasket, Needle Valve Seat
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21618-14010 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21633-24030 |
US $4.89 |
||
|
21622
|
21622
21622-37040
Gasket, Air Horn
[12.1982 - 03.1983] 2Y,3Y#..YH5#,61,71 |
21622-37040 |
— | ||
| replacement | |||||
|
21622
|
21622
21622-71010
Gasket, Air Horn
[12.1982 - 03.1983] 2Y,3Y#..YH5#,61,71 |
21622-71010 |
— | ||
|
21622
|
21622
21622-71010
Gasket, Air Horn
[03.1983 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21622-71010 |
— | ||
|
21625
|
21625
21655-60200 Gasket, Level Gage[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21655-60200 |
US $9.90 |
||
|
21627
|
21627
21627-28150 Gasket, Coil Housing[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21627-28150 |
US $3.84 |
||
|
21641
|
21641
21641-37041 Gasket(For Thermostatic Valve Cover)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21641-37041 |
US $4.37 |
||
|
21641A
|
21641A
21641-24030
Gasket(For Thermostatic Valve Cover No.2)
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21641-24030 |
— | ||
|
21667
|
21667
21667-37040
Diaphragm
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 MAIN |
21667-37040 |
— | ||
| replacement | |||||
|
21667
|
21667
21667-72200
Diaphragm
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 MAIN |
21667-72200 |
— | ||
|
21667
|
21667
21667-38310
Diaphragm
[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 SUB |
21667-38310 |
— | ||
| replacement | |||||
|
21667
|
21667
21675-35510 Diaphragm[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 SUB |
21675-35510 |
from US $16.84 |
||
|
21669
|
21669
21669-37040
Diaphragm
[12.1982 - 08.1987] 2Y,3Y,3YJ..YH5#,6#,71 |
21669-37040 |
— | ||
| replacement | |||||
|
21669
|
21669
21669-35510
Diaphragm
[12.1982 - 08.1987] 2Y,3Y,3YJ..YH5#,6#,71 |
21669-35510 |
— | ||
|
21699A
|
21699A
21699-37040 Boot(For Acceleration Pump)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21699-37040 |
US $11.05 |
||
|
21723
|
21723
21723-21030 Spring, Idle Adjusting[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21723-21030 |
US $3.72 |
||
|
21724
|
21724
21723-38330 Spring, Throttle Adjusting[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21723-38330 |
US $5.68 |
||
|
21726
|
21726
21726-38310 Spring, 1St Idle Adjusting[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21726-38310 |
US $4.95 |
||
|
21734
|
21734
21734-71010 Spring, Power Piston[12.1982 - 08.1987] 3YJ..YH52,62,71 |
21734-71010 |
US $5.53 |
||
|
21751
|
21751
21894-71010
Union, Nipple
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21894-71010 |
— | ||
|
21756
|
21756
21869-72030
Spring, Back(For Throttle Shaft)
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21869-72030 |
— | ||
|
21763
|
21763
21763-34320 Pin, Float Lever[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21763-34320 |
US $5.53 |
||
|
21781
|
21781
21781-15230 Plug, Main Passage(For Carburetor Jet)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21781-15230 |
US $5.82 |
||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[12.1982 - 08.1987] 2Y,3Y#..YH5#,61,71 TYPE2 |
21791-13010 |
US $3.32 |
||
|
21791
|
21791
21791-60010
Ring, Snap, No.1(For Carburetor Link)
[12.1982 - 08.1987] 2Y,3Y#..YH5#,61,71 TYPE1 |
21791-60010 |
— | ||
| replacement | |||||
|
21791
|
21791
21791-13010 Ring, Snap, No.1(For Carburetor Link)[12.1982 - 08.1987] 2Y,3Y#..YH5#,61,71 TYPE1 |
21791-13010 |
US $3.32 |
||
|
21811
|
21811
21811-11060 Bolt, Union Nipple[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21811-11060 |
US $9.46 |
||
|
21824
|
21824
21844-26400 Screw, Set(For 1St Idle Cam Follower Set)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21844-26400 |
US $4.95 |
||
|
21831
|
21831
21821-15060 Screw, 2Nd Throttle Valve Set[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21821-15060 |
US $3.06 |
||
|
21833
|
21833
21833-33010
Screw, Set, No.1(For Carburetor Body Set)
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21833-33010 |
— | ||
|
21842
|
21842
21842-33010
Screw, Power Piston Stop
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21842-33010 |
— | ||
|
21852
|
21852
21852-30010 Nut, Throttle Lever Set[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21852-30010 |
US $4.22 |
||
|
21881
|
21881
21881-60010 Washer, Lock(For Throttle Shaft)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21881-60010 |
US $3.79 |
||
|
21934
|
21934
21062-73010 Solenoid, Throttle Valve[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
21062-73010 |
US $152.88 |
||
| replacement | |||||
|
21934
|
21934
21062-73011 Solenoid, Throttle Valve[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
21062-73011 |
US $149.97 |
||
|
21934E
|
21934E
21655-44101 Ring, O(For Lifter Rod)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21655-44101 |
US $7.86 |
||
|
21934F
|
21934F
21617-10010
Gasket
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
21617-10010 |
— | ||
|
2124913090
|
2124913090
21249-13090 Pipe Or Hose |
21249-13090 |
US $4.51 |
||
| replacement | |||||
|
2124913090
|
2124913090
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
2165511040
|
2165511040
21655-11040 Ring, O(For Pump Jet) |
21655-11040 |
from US $3.96 |
||
|
2182113310
|
2182113310
21821-13310 Screw, 2Nd Throttle Valve Set |
21821-13310 |
US $2.62 |
||
|
2182124030
|
2182124030
21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set) |
21821-24030 |
US $3.79 |
||
|
2182125010
|
2182125010
21821-25010 Screw, Coil Housing Set |
21821-25010 |
US $3.84 |
||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.20 |
||
|
2188538310
|
2188538310
21885-38310 New Genuine Part |
21885-38310 |
US $2.62 |
||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $3.23 |
||
|
9041304005
|
9041304005
90413-04005 Way, 3, No.1 (For Front Drive Shift) |
90413-04005 |
from US $3.40 |
||
|
9092504005
|
9092504005
90925-04005 Jet(For Carburetor) |
90925-04005 |
US $10.73 |
||
|
9311913012
|
9311913012
93119-13012 New Genuine Part |
93119-13012 |
US $1.75 |
||
|
9338116014
|
9338116014
93381-16014 New Genuine Part |
93381-16014 |
US $0.87 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.33 |
||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
|
9541110330
|
9541110330
95411-10330 Hose, Vacuum, No.1 (For Front Drive Shift) |
95411-10330 |
US $6.70 |
||
| replacement | |||||
|
9541110330
|
9541110330
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110430
|
9541110430
95411-10430 Hose (For Idle Up Device) |
95411-10430 |
US $6.84 |
||
| replacement | |||||
|
9541110430
|
9541110430
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110530
|
9541110530
95411-10530 Hose, No.1(For Opener) |
95411-10530 |
US $6.41 |
||
| replacement | |||||
|
9541110530
|
9541110530
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110630
|
9541110630
95411-10630 Hose, Fuel, No.1(For Charcoal Canister) |
95411-10630 |
US $6.70 |
||
| replacement | |||||
|
9541110630
|
9541110630
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541110730
|
9541110730
95411-10730 Hose, Vacuum, No.7 (For Heater Or Air Conditioner) |
95411-10730 |
US $6.70 |
||
| replacement | |||||
|
9541110730
|
9541110730
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9541119930
|
9541119930
95411-19930
Hose(For Carburetor To Manifold)
|
95411-19930 |
— | ||
| replacement | |||||
|
9541119930
|
9541119930
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
