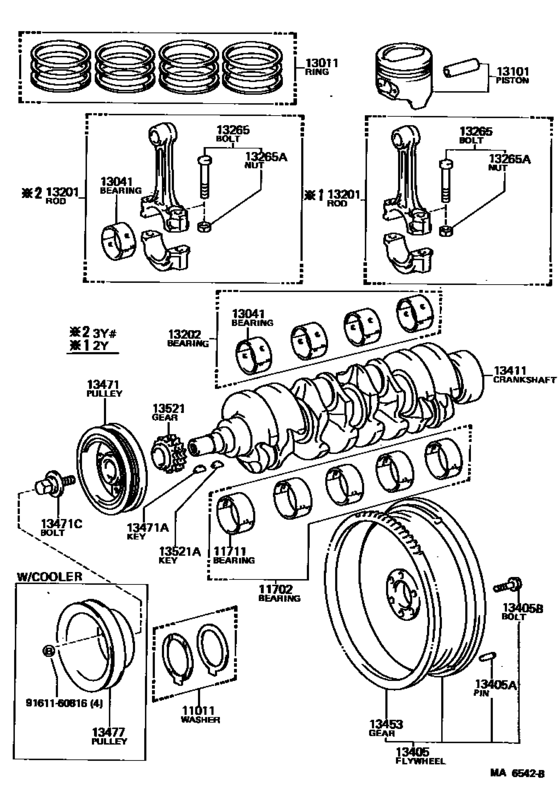

Crankshaft & Piston ([12.1982 - ] (8212- )2Y,3Y#) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 ＳＴＤ |
11011-25010 |
from US $22.85 |
||
|
11711
|
11711
11701-71020-01 Bearing, Crankshaft[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 MARK"1",MARK 1 |
11701-71020-01 |
from US $22.89 |
||
|
11711
|
11711
11701-71020-02 Bearing, Crankshaft[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 MARK"2",MARK 2 |
11701-71020-02 |
from US $22.89 |
||
|
11711
|
11711
11701-71020-03 Bearing, Crankshaft[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 MARK"3",MARK 3 |
11701-71020-03 |
US $45.43 |
||
|
13011
|
13011
13011-71020 Ring Set, Piston[12.1982 - 02.1987] 2Y,3Y#..YH5#,6#,71 ＳＴＤ,STD |
13011-71020 |
US $218.40 |
||
| replacement | |||||
|
13011
|
13011
13011-71012 Ring Set, Piston (STD)[12.1982 - 02.1987] 2Y,3Y#..YH5#,6#,71 ＳＴＤ,STD |
13011-71012 |
US $218.40 |
||
|
13011
|
13011
13011-71021
Ring Set, Piston
[02.1987 - 08.1987] 2Y,3Y#..YH5#,6#,71 ＳＴＤ,STD |
13011-71021 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-71012 Ring Set, Piston (STD)[02.1987 - 08.1987] 2Y,3Y#..YH5#,6#,71 ＳＴＤ,STD |
13011-71012 |
US $218.40 |
||
|
13011
|
13011
13013-71020 Ring Set, Piston[12.1982 - 02.1987] 2Y,3Y#..YH5#,6#,71 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-71020 |
US $218.40 |
||
| replacement | |||||
|
13011
|
13011
13013-71021 Ring Set, Piston (0.50)[12.1982 - 02.1987] 2Y,3Y#..YH5#,6#,71 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-71021 |
US $227.14 |
||
|
13011
|
13011
13013-71021 Ring Set, Piston (0.50)[02.1987 - 08.1987] 2Y,3Y#..YH5#,6#,71 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-71021 |
US $227.14 |
||
|
13011
|
13011
13014-71020 Ring Set, Piston[12.1982 - 02.1987] 2Y,3Y#..YH5#,6#,71 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-71020 |
US $218.40 |
||
| replacement | |||||
|
13011
|
13011
13014-71021 Ring Set, Piston (0.75)[12.1982 - 02.1987] 2Y,3Y#..YH5#,6#,71 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-71021 |
US $204.42 |
||
|
13011
|
13011
13014-71021 Ring Set, Piston (0.75)[02.1987 - 08.1987] 2Y,3Y#..YH5#,6#,71 Ｏ／Ｓ ０．７５,O/S 0.75 |
13014-71021 |
US $204.42 |
||
|
13011
|
13011
13015-71020 Ring Set, Piston[12.1982 - 02.1987] 2Y,3Y#..YH5#,6#,71 Ｏ／Ｓ １．００,O/S 1.00 |
13015-71020 |
US $218.40 |
||
| replacement | |||||
|
13011
|
13011
13015-71021 Ring Set, Piston (1.00)[12.1982 - 02.1987] 2Y,3Y#..YH5#,6#,71 Ｏ／Ｓ １．００,O/S 1.00 |
13015-71021 |
US $135.41 |
||
|
13011
|
13011
13015-71021 Ring Set, Piston (1.00)[02.1987 - 08.1987] 2Y,3Y#..YH50,6#,71 Ｏ／Ｓ １．００,O/S 1.00 |
13015-71021 |
US $135.41 |
||
|
13041
|
13041
13041-71021-06
Bearing, Connecting Rod
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 MARK"6",MARK 6 |
13041-71021-06 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-06 Bearing, Connecting Rod[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 MARK"6",MARK 6 |
13041-73010-06 |
from US $16.95 |
||
|
13041
|
13041
13041-71021-07
Bearing, Connecting Rod
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 MARK"7",MARK 7 |
13041-71021-07 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-73010-07 Bearing, Connecting Rod[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 MARK"7",MARK 7 |
13041-73010-07 |
US $34.42 |
||
|
13041
|
13041
13041-71021-08 Bearing, Connecting Rod[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 MARK"8",MARK 8 |
13041-71021-08 |
US $28.83 |
||
| replacement | |||||
|
13041
|
13041
13041-73010-08 Bearing, Connecting Rod[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 MARK"8",MARK 8 |
13041-73010-08 |
US $35.38 |
||
|
13101
|
13101
13101-73010 Piston Sub-Assy, W/pin[12.1982 - 08.1987] 3Y#..YH51,52,6#,71 ＳＴＤ,STD |
13101-73010 |
US $100.46 |
||
| replacement | |||||
|
13101
|
13101
13101-73010-02 Piston Sub-Assy, W/pin[12.1982 - 08.1987] 3Y#..YH51,52,6#,71 ＳＴＤ,STD |
13101-73010-02 |
from US $69.13 |
||
|
13101
|
13101
13103-73010 Piston Sub-Assy, W/pin[12.1982 - 08.1987] 3Y#..YH51,52,6#,71 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-73010 |
from US $58.29 |
||
|
13101
|
13101
13104-73010
Piston Sub-Assy, W/pin
[12.1982 - 08.1987] 3Y#..YH51,52,6#,71 Ｏ／Ｓ ０．７５,O/S 0.75 |
13104-73010 |
— | ||
|
13101
|
13101
13105-73010 Piston Sub-Assy, W/pin[12.1982 - 08.1987] 3Y#..YH51,52,6#,71 Ｏ／Ｓ １．００,O/S 1.00 |
13105-73010 |
US $60.28 |
||
|
13201
|
13201
13201-79045 Rod Sub-Assy, Connecting[12.1982 - 08.1987] 3Y#..YH51,52,6#,71 |
13201-79045 |
US $168.90 |
||
| replacement | |||||
|
13201
|
13201
13201-79046 Rod Sub-Assy, Connecting[12.1982 - 08.1987] 3Y#..YH51,52,6#,71 |
13201-79046 |
US $168.90 |
||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
13265-29025 |
US $13.62 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[03.1983 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
90170-09001 |
US $3.05 |
||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[12.1982 - 03.1983] 2Y,3Y#..YH5#,61,71 |
90170-09195 |
US $3.20 |
||
|
13405
|
13405
13405-79065 Flywheel Sub-Assy[12.1982 - 08.1987] 3Y#..YH51,52,6#,71..MTM |
13405-79065 |
US $222.77 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71..MTM 長さ＝２３，外径＝８,L=23,OD=8; L,2L#..LH5#,6#,7#..MTM 長さ＝２３，外径＝８,L=23,OD=8 |
90250-08054 |
from US $0.98 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71..MTM |
90105-10042 |
from US $1.29 |
||
|
13411
|
13411
13411-73010 Crankshaft[12.1982 - 08.1987] 3Y#..YH51,52,6#,71 |
13411-73010 |
US $1,316.22 |
||
| replacement | |||||
|
13411
|
13411
13411-73900 Crankshaft[12.1982 - 08.1987] 3Y#..YH51,52,6#,71 |
13411-73900 |
US $1,316.22 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71..MTM N=115 |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13408-71010 Pulley, Crankshaft[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
13408-71010 |
US $176.47 |
||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[12.1982 - 09.1986] 2Y,3Y#..YH5#,6#,71 |
90280-05010 |
from US $1.74 |
||
|
13471C
|
13471C
90105-14013 Bolt(For Crankshaft Pulley Set)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
90105-14013 |
US $17.04 |
||
| replacement | |||||
|
13471C
|
13471C
90105-14069 Bolt(For Crankshaft Pulley Set)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
90105-14069 |
US $14 |
||
|
13477
|
13477
88451-28010
Pulley, Crankshaft, No.2
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 W/COOLER |
88451-28010 |
— | ||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 N=18 |
13521-33010 |
from US $35.80 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[12.1982 - 09.1986] 2Y,3Y#..YH5#,6#,71 |
90280-05010 |
from US $1.74 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
