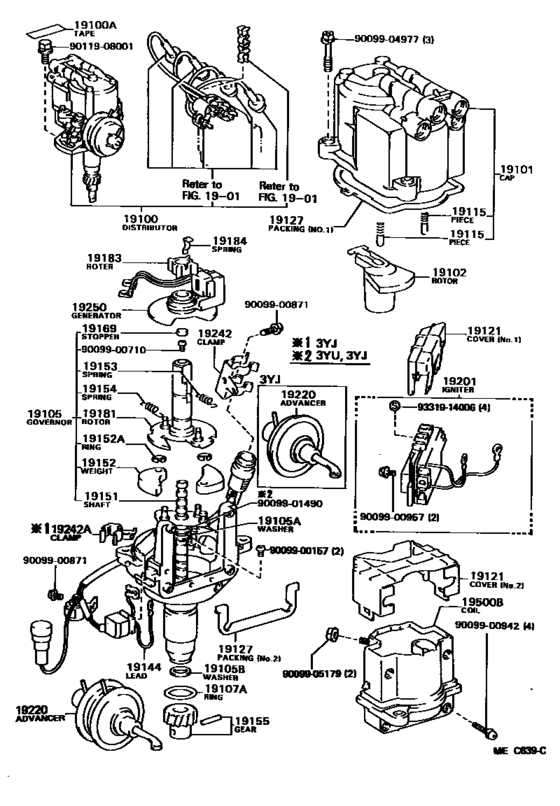

Distributor ([12.1982 - ] (8212- )3YU,3YJ ; (8212- )2Y,3Y..YH50,61.. LPG) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19030-71060
Distributor Assy
[12.1982 - 08.1987] 3YJ..YH52,62,71 |
19030-71060 |
— | ||
|
19100A
|
19100A
90919-24004
Tape, Sealing
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
90919-24004 |
— | ||
| replacement | |||||
|
19100A
|
19100A
90919-24003
Tape, Sealing
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
90919-24003 |
— | ||
|
19101
|
19101
19101-71010 Cap Sub-Assy, Distributor[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
19101-71010 |
US $149.24 |
||
|
19102
|
19102
19102-63010
Rotor Sub-Assy, Distributor
[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
19102-63010 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-73021 Rotor Sub-Assy, Distributor[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
19102-73021 |
US $19.15 |
||
|
19105
|
19105
19105-71060 Governor Sub-Assy[12.1982 - 08.1987] 3YJ..YH52,62,71 |
19105-71060 |
US $165.98 |
||
|
19105A
|
19105A
90099-01486
Washer(For Governor Shaft Thrust)
[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 厚さ＝０．３,T=0.3 |
90099-01486 |
— | ||
|
19105A
|
19105A
90099-01487
Washer(For Governor Shaft Thrust)
[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 厚さ＝０．４,T=0.4 |
90099-01487 |
— | ||
|
19105A
|
19105A
90099-01488
Washer(For Governor Shaft Thrust)
[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 厚さ＝０．６,T=0.6 |
90099-01488 |
— | ||
|
19105A
|
19105A
90099-01489
Washer(For Governor Shaft Thrust)
[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 厚さ＝０．５,T=0.5 |
90099-01489 |
— | ||
|
19105B
|
19105B
90099-01429
Washer, No.2(For Governor Shaft Thrust)
[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
90099-01429 |
— | ||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
90099-14090 |
from US $2.80 |
||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[12.1983 - 05.1985] 3YU,3YJ..YH51,52,6#,71 |
19115-63010 |
from US $1.40 |
||
|
19115
|
19115
19115-71010
Piece, Distributor Cap, Center
[05.1985 - 05.1987] 3YU,3YJ..YH51,52,6#,71 |
19115-71010 |
— | ||
| replacement | |||||
|
19115
|
19115
19115-63010 Piece, Distributor Cap, Center[05.1985 - 05.1987] 3YU,3YJ..YH51,52,6#,71 |
19115-63010 |
from US $1.40 |
||
|
19121
|
19121
19121-63010
Cover, Dust Proof
[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 NO.1 |
19121-63010 |
— | ||
|
19121
|
19121
19121-63040
Cover, Dust Proof
[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 NO.2 |
19121-63040 |
— | ||
|
19127
|
19127
19127-63010 Packing, Dust Proof[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 NO.1 |
19127-63010 |
from US $7.34 |
||
|
19127
|
19127
19127-63020 Packing, Dust Proof[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 NO.2 |
19127-63020 |
US $4.37 |
||
|
19144
|
19144
19144-71060
Lead, Distributor Breaker
[12.1982 - 12.1983] 3YJ..YH71 |
19144-71060 |
— | ||
| replacement | |||||
|
19144
|
19144
19144-71061
Lead, Distributor Breaker
[12.1982 - 12.1983] 3YJ..YH71 |
19144-71061 |
— | ||
|
19144
|
19144
19144-71061
Lead, Distributor Breaker
[12.1983 - 08.1987] 3YJ..YH52,62,71 |
19144-71061 |
— | ||
|
19151
|
19151
19151-71010 Shaft, Governor[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
19151-71010 |
US $39.46 |
||
|
19152
|
19152
19152-35030 Weight, Governor[12.1982 - 12.1983] 3YU,3YJ..YH51,61,71 |
19152-35030 |
US $13.10 |
||
|
19152
|
19152
19152-63010
Weight, Governor
[12.1983 - 08.1985] 2Y,3Y..YH50,61,71; 3YU,3YJ..YH51,52,6#,71 |
19152-63010 |
— | ||
|
19152
|
19152
19152-71010 Weight, Governor[08.1985 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
19152-71010 |
US $12.38 |
||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[12.1982 - 12.1983] 2Y,3Y#..YH5#,61,71 |
90099-07109 |
— | ||
|
19152A
|
19152A
90099-07122
Ring, Snap(For Governor Weight)
[12.1983 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
90099-07122 |
— | ||
|
19153
|
19153
19153-71060 Spring, Governor, A[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
19153-71060 |
US $5.39 |
||
|
19154
|
19154
19153-71060 Spring, Governor, A[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
19153-71060 |
US $5.39 |
||
|
19155
|
19155
19195-71010
Gear, Spiral, Distributor
[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
19195-71010 |
— | ||
| replacement | |||||
|
19155
|
19155
19195-72090 Gear, Spiral, Distributor[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
19195-72090 |
US $43.68 |
||
|
19169
|
19169
19169-32010
Stopper, Cam Grease
[12.1982 - 05.1987] 2Y,3Y#..YH5#,6#,71 |
19169-32010 |
— | ||
| replacement | |||||
|
19169
|
19169
19169-63011
Stopper, Cam Grease
[12.1982 - 05.1987] 2Y,3Y#..YH5#,6#,71 |
19169-63011 |
— | ||
|
19181
|
19181
19181-71060
Rotor, Distributor, Signal
[12.1982 - 08.1987] 3YJ..YH52,62,71 |
19181-71060 |
— | ||
| replacement | |||||
|
19181
|
19181
19181-73020
Rotor, Distributor, Signal
[12.1982 - 08.1987] 3YJ..YH52,62,71 |
19181-73020 |
— | ||
|
19183
|
19183
19183-63030
Rotor, Signal
[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
19183-63030 |
— | ||
|
19184
|
19184
19184-63010
Spring, Rotor Set
[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
19184-63010 |
— | ||
|
19201
|
19201
89620-32020 Igniter[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
89620-32020 |
US $285.38 |
||
|
19220
|
19220
19220-71060
Advancer Assy, Vacuum, Distributor
[12.1982 - 08.1987] 3YJ..YH52,62,71 |
19220-71060 |
— | ||
|
19242
|
19242
19242-71010 Clamp, Cord[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
19242-71010 |
US $10.77 |
||
|
19242A
|
19242A
19242-71060 Clamp, Cord[12.1982 - 08.1987] 3YJ..YH52,62,71 |
19242-71060 |
US $18.05 |
||
|
19250
|
19250
19251-63010 Generator Assy, Signal[12.1982 - 12.1983] 3YU,3YJ..YH51,61,71 |
19251-63010 |
US $186.37 |
||
| replacement | |||||
|
19250
|
19250
19251-63011 Generator Assy, Signal[12.1982 - 12.1983] 3YU,3YJ..YH51,61,71 |
19251-63011 |
US $177.63 |
||
|
19250
|
19250
19251-63011 Generator Assy, Signal[12.1983 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
19251-63011 |
US $177.63 |
||
|
19500B
|
19500B
90919-02139 Coil Assy, Ignition[12.1982 - 08.1987] 3YU,3YJ..YH51,52,6#,71 |
90919-02139 |
US $169.48 |
||
|
9009900157
|
9009900157
90099-00157
Bush, Commutator End Frame
|
90099-00157 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900942
|
9009900942
90099-00942 New Genuine Part |
90099-00942 |
US $1.75 |
||
|
9009900957
|
9009900957
90099-00957
New Genuine Part
|
90099-00957 |
— | ||
|
9009901490
|
9009901490
90099-01490
New Genuine Part
|
90099-01490 |
— | ||
|
9009904977
|
9009904977
90099-04977 BOLT |
90099-04977 |
from US $1.46 |
||
|
9009905179
|
9009905179
90099-05179
New Genuine Part
|
90099-05179 |
— | ||
|
9011908001
|
9011908001
90119-08001 New Genuine Part |
90119-08001 |
US $2.87 |
||
|
9331914006
|
9331914006
93319-14006 SCREW WITH WASHER |
93319-14006 |
US $0.52 |
||
