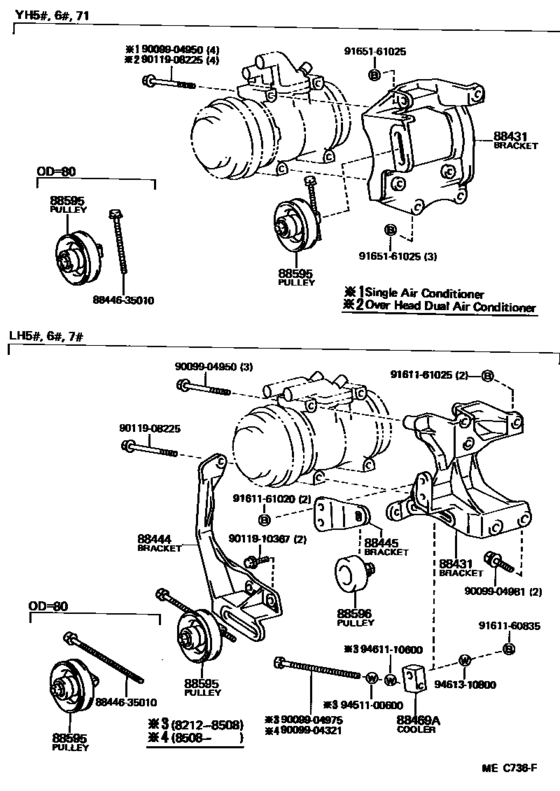

Heating & Air Conditioning - Compressor ([12.1982 - ] (8212- )) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88431
|
88431
88431-26160
Bracket, Compressor Mounting, No.1
[12.1982 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S W/*ODAC |
88431-26160 |
— | ||
|
88595
|
88595
88440-28050
Pulley, Cooler Compressor Idle
[12.1982 - 11.1984] YH5#,6#,71 OD=90 |
88440-28050 |
— | ||
|
88595
|
88595
88440-35020 Pulley Assy, Idle[11.1984 - 08.1987] YH5#,6#,71 OD=80 |
88440-35020 |
from US $93.48 |
||
|
8844635010
|
8844635010
88446-35010 Bolt, Idle Pulley |
88446-35010 |
from US $3.32 |
||
|
9009904321
|
9009904321
90099-04321 Bolt, Idle Pulley |
90099-04321 |
US $2.45 |
||
|
9009904950
|
9009904950
90099-04950 BOLT |
90099-04950 |
from US $1.89 |
||
|
9009904975
|
9009904975
90099-04975
New Genuine Part
|
90099-04975 |
— | ||
|
9009904981
|
9009904981
90099-04981
New Genuine Part
|
90099-04981 |
— | ||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9011910367
|
9011910367
90119-10367 BOLT |
90119-10367 |
from US $1.40 |
||
|
9161160835
|
9161160835
91611-60835 Bolt(For Clutch Release Cylinder Setting) |
91611-60835 |
from US $1.61 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.70 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.61 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
