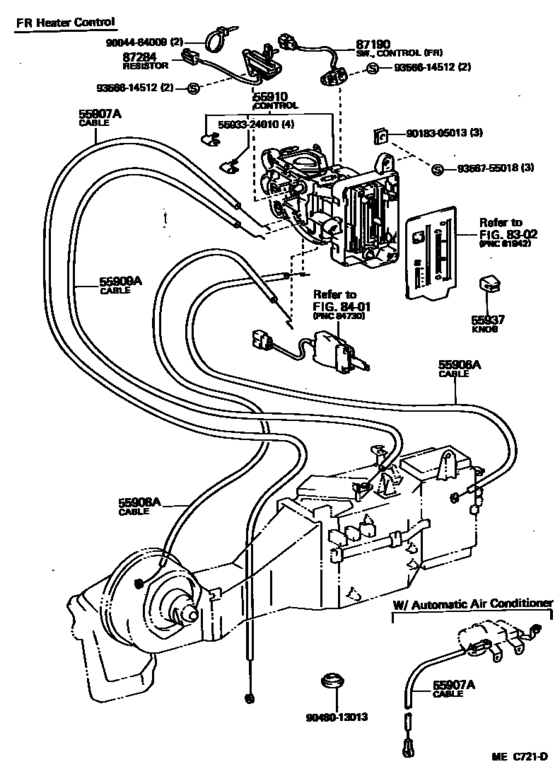

Heating & Air Conditioning - Control & Air Duct ([12.1982 - ] (8212- )) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55906A
|
55906A
55906-95J00 Cable Sub-Assy, Defroster Damper Control[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD |
55906-95J00 |
US $8.44 |
||
|
55907A
|
55907A
55907-95J00 Cable Sub-Assy, Water Valve Control[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 FR HEATER |
55907-95J00 |
US $17.33 |
||
|
55908A
|
55908A
55908-95J00 Cable Sub-Assy, Air Inlet Damper Control[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
55908-95J00 |
US $16.02 |
||
|
55909A
|
55909A
55909-95J00 Cable Sub-Assy, Airmix Damper Control[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
55909-95J00 |
US $9.32 |
||
|
55910
|
55910
55910-95J00 Control Assy, Heater Or Boost Ventilator[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD FR HEATER |
55910-95J00 |
US $71.93 |
||
|
55910
|
55910
55910-95J04 Control Assy, Heater Or Boost Ventilator[12.1982 - 08.1987] LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST RR HEATER; LH50,51,60,61,7#,YH51,61,71..(COM,WG)..(09S,10S,15S) RR HEATER |
55910-95J04 |
US $81.54 |
||
|
55937
|
55937
55905-12070 Knob, Heater Control[01.1984 - 08.1987] LH5#,6#,71,YH5#,6#,71 FR,DEF-VENT,WARM-COOL,HI-OFF |
55905-12070 |
US $5.56 |
||
|
55937
|
55937
55905-95703 Knob, Heater Control Lever[12.1982 - 08.1987] LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST RR HEATER,NO.1; LH50,51,60,61,7#,YH51,61,71..(COM,WG)..(09S,10S,15S) RR HEATER,NO.1 |
55905-95703 |
US $13.54 |
||
|
55937
|
55937
55905-95J01
Knob, Heater Control
[01.1984 - 08.1987] LH5#,6#,71,YH5#,6#,71 FR HEATER,FRESH-RECIRC |
55905-95J01 |
— | ||
| replacement | |||||
|
55937
|
55937
55905-89110 Knob, Heater Control[01.1984 - 08.1987] LH5#,6#,71,YH5#,6#,71 FR HEATER,FRESH-RECIRC |
55905-89110 |
from US $4.41 |
||
|
5593324010
|
5593324010
55933-24010 Clamp, Heater Control Wire |
55933-24010 |
US $2.62 |
||
|
9004464009
|
9004464009
90044-64009 CLAMP |
90044-64009 |
from US $1.79 |
||
|
9018305013
|
9018305013
90183-05013 New Genuine Part |
90183-05013 |
US $1.89 |
||
| replacement | |||||
|
9018305013
|
9018305013
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9048013013
|
9048013013
90480-13013 Grommet(For Heater Control Cable) |
90480-13013 |
from US $5.67 |
||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
from US $0.64 |
||
|
9356755018
|
9356755018
93567-55018
New Genuine Part
|
93567-55018 |
— | ||
| replacement | |||||
|
9356755018
|
9356755018
93568-55018 SCREW |
93568-55018 |
from US $0.60 |
||
