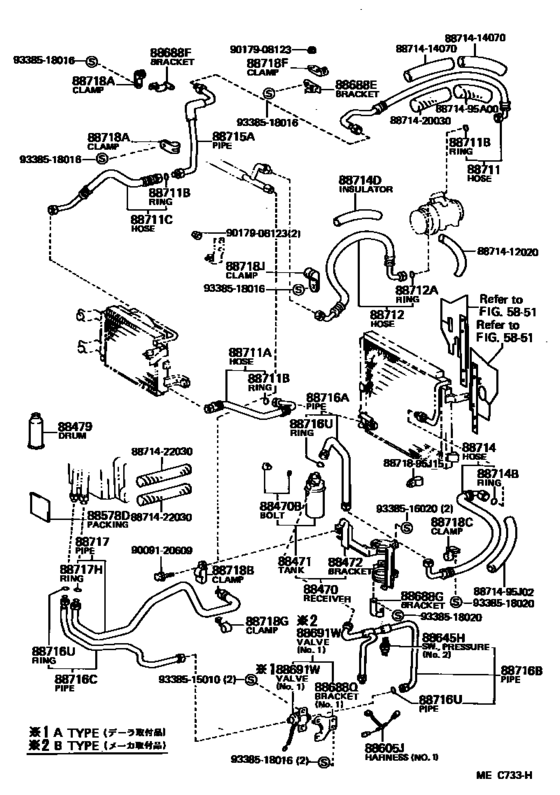

Heating & Air Conditioning - Cooler Piping ([12.1982 - ] (8212- )YH51,61,71..07S,08S,09S,10S,15S) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88470B
|
88470B
90099-04579
Bolt, Fuse
[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 |
90099-04579 |
— | ||
| replacement | |||||
|
88470B
|
88470B
88475-12020
Bolt, Fuse
[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 |
88475-12020 |
— | ||
|
88471
|
88471
88471-95J00 Tank, Receiver Air Conditioner[12.1982 - 08.1987] LH50,51,6#,7#,YH5#,6#,71 |
88471-95J00 |
US $136.86 |
||
|
88472
|
88472
88472-95J00
Bracket, Receiver Tank, No.1
[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 |
88472-95J00 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 ４００Ｇ |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 ４００Ｇ |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 ４００Ｇ |
90986-02005 |
— | ||
|
88578D
|
88578D
88578-30360
Packing, Cooler Pipe, No.1
[12.1982 - 10.1986] LH50,51,60,61,7#,YH5#,6#,71 |
88578-30360 |
— | ||
|
88645H
|
88645H
88645-30250
Switch, Pressure
[12.1982 - 01.1984] LH50,60,70,YH51,61,71..08S,09S,10S,15S |
88645-30250 |
— | ||
|
88645H
|
88645H
88645-95J00
Switch, Pressure
[01.1984 - 08.1987] LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S NO.1 |
88645-95J00 |
— | ||
| replacement | |||||
|
88645H
|
88645H
88645-12020 Switch, Pressure[01.1984 - 08.1987] LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S NO.1 |
88645-12020 |
US $27.61 |
||
|
88688E
|
88688E
88688-95J26
Bracket, Cooler Refrigerant Hose, No.1
[12.1982 - 08.1987] YH5#,6#,71; LH50,51,60,61,7#..MTM..DSL |
88688-95J26 |
— | ||
|
88688F
|
88688F
88688-95J25
Bracket, Cooler Refrigerant Hose, No.2
[12.1982 - 08.1987] YH5#,6#,71; LH50,51,60,61,7#..MTM..DSL |
88688-95J25 |
— | ||
|
88688G
|
88688G
88688-95J36
Bracket, Cooler Refrigerant Pipe
[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 |
88688-95J36 |
— | ||
|
88688Q
|
88688Q
88688-95J07
Bracket (For Magnet Valve)
[12.1982 - 08.1985] LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S NO.1 |
88688-95J07 |
— | ||
|
88688Q
|
88688Q
88688-95J08
Bracket (For Magnet Valve)
[12.1982 - 08.1985] LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S NO.2 |
88688-95J08 |
— | ||
|
88688Q
|
88688Q
88688-95J45
Bracket (For Magnet Valve)
[08.1985 - 08.1987] LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S NO.1 |
88688-95J45 |
— | ||
|
88688Q
|
88688Q
88688-95J49
Bracket (For Magnet Valve)
[08.1985 - 08.1987] LH51..4FC..TD;LH51,61,71,YH51,61,71..(07S,08S,09S,10S,15S)..(CBR,DSL) NO.2 |
88688-95J49 |
— | ||
|
88691W
|
88691W
88691-95J00
Valve, Magnet
[12.1982 - 08.1987] LH50,51,60,61,7#,YH51,61,71..(07S,08S,09S,10S,15S)..(CBR,DSL) NO.1 & NO.2,A TYPE |
88691-95J00 |
— | ||
|
88711
|
88711
88711-95J03 Hose, Cooler Refrigerant Discharge, No.1[12.1982 - 03.1984] YH5#,6#,71 |
88711-95J03 |
US $225.68 |
||
|
88711
|
88711
88711-95J17 Hose, Cooler Refrigerant Discharge, No.1[03.1984 - 08.1987] YH5#,6#,71 |
88711-95J17 |
US $177.63 |
||
|
88711A
|
88711A
88711-95J04 Hose, Cooler Refrigerant Discharge, No.2[12.1982 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S W/*ODAC |
88711-95J04 |
US $155.79 |
||
| replacement | |||||
|
88711A
|
88711A
88711-26490 Hose, Cooler Refrigerant Discharge, No.2[12.1982 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S W/*ODAC |
88711-26490 |
US $82.99 |
||
|
88711B
|
88711B
90099-14046 Ring, O(For Cooler Refrigerant Discharge Hose)[12.1982 - 08.1987] LH50,51,60,61,7#,YH51,61,71..08S,09S,10S,15S |
90099-14046 |
from US $0.55 |
||
|
88711C
|
88711C
88711-22200 Hose, Cooler Refrigerant Discharge, No.1[12.1982 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S A TYPE; LH50,51,6#,7#..MTM..(08S,09S,10S,15S)..DSL A TYPE |
88711-22200 |
US $138.32 |
||
| replacement | |||||
|
88711C
|
88711C
88708-95J00 Hose, Cooler Refrigerant Discharge, No.3[12.1982 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S A TYPE; LH50,51,6#,7#..MTM..(08S,09S,10S,15S)..DSL A TYPE |
88708-95J00 |
US $109.20 |
||
|
88712
|
88712
88712-95J04 Hose, Cooler Refrigerant Suction, No.1[12.1982 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S W/*ODAC,A TYPE |
88712-95J04 |
US $269.36 |
||
| replacement | |||||
|
88712
|
88712
88712-26470 Hose, Cooler Refrigerant Suction, No.1[12.1982 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S W/*ODAC,A TYPE |
88712-26470 |
US $107.74 |
||
|
88712A
|
88712A
90099-14045
Ring, O(For Cooler Refrigerant Suction Hose)
[12.1982 - 08.1985] LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
90099-14045 |
— | ||
|
88714
|
88714
88721-95J00 Hose, Cooler Refrigerant Liquid, No.1[12.1982 - 08.1987] YH5#,6#,71 A TYPE |
88721-95J00 |
US $155.79 |
||
| replacement | |||||
|
88714
|
88714
88704-95J00 Hose, Cooler Refrigerant Liquid, No.1[12.1982 - 08.1987] YH5#,6#,71 A TYPE |
88704-95J00 |
US $128.13 |
||
|
88714B
|
88714B
90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose)[12.1982 - 08.1985] YH5#,6#,71; LH5#,6#,7#..MTM..(08S,09S,10S,15S) |
90099-14044 |
US $0.70 |
||
|
88714D
|
88714D
88714-14100
Insulator, Cooler Refrigerant Hose, No.2
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..CBR,DSL |
88714-14100 |
— | ||
|
88715A
|
88715A
88715-95J06
Pipe, Cooler Refrigerant Discharge, A
[12.1982 - 03.1984] YH51,61,71..08S,09S,10S,15S W/*ODAC |
88715-95J06 |
— | ||
|
88715A
|
88715A
88715-95J09 Pipe, Cooler Refrigerant Discharge, A[03.1984 - 08.1987] YH51,61,71..07S,08S,09S,10S,15S W/*ODAC |
88715-95J09 |
US $69.60 |
||
|
88716A
|
88716A
88716-95J00 Pipe, Cooler Refrigerant Liquid, A[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 |
88716-95J00 |
US $40.19 |
||
|
88716B
|
88716B
88716-95J02 Pipe, Cooler Refrigerant Liquid, B[12.1982 - 08.1985] LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S W/*ODAC |
88716-95J02 |
US $115.02 |
||
|
88716B
|
88716B
88716-95J28 Pipe, Cooler Refrigerant Liquid, B[08.1985 - 08.1987] LH51..5F..TD; LH51,61,YH51,61..WG..(CBR,DSL); LH61,71,YH61,71..09S,15S W/*ODAC |
88716-95J28 |
US $138.32 |
||
|
88716C
|
88716C
88716-95J03 Pipe, Cooler Refrigerant Liquid, C[12.1982 - 08.1985] LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
88716-95J03 |
US $66.98 |
||
|
88716C
|
88716C
88716-95J32 Pipe, Cooler Refrigerant Liquid, C[08.1985 - 08.1987] LH51,61,71,YH51,61,71..07S,08S,09S,10S,15S |
88716-95J32 |
US $75.71 |
||
|
88716U
|
88716U
90099-14044 Ring, O(For Cooler Refrigerant Liquid Hose)[12.1982 - 08.1985] LH5#,6#,7#,YH5#,6#,71 |
90099-14044 |
US $0.70 |
||
|
88717
|
88717
88717-95J00 Pipe, Cooler Refrigerant Suction, No.1[12.1982 - 08.1985] LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S W/*ODAC |
88717-95J00 |
US $171.81 |
||
|
88717
|
88717
88717-95J16 Pipe, Cooler Refrigerant Suction, No.1[08.1985 - 08.1987] LH51..5F..TD W/*ODAC; LH51,61,71,YH51,61,71..(07S,08S,09S,10S,15S)..(CBR,DSL) W/*ODAC |
88717-95J16 |
US $171.81 |
||
|
88717H
|
88717H
90099-14045
Ring, O(For Cooler Refrigerant Suction Hose)
[12.1982 - 08.1985] LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
90099-14045 |
— | ||
|
88718A
|
88718A
88718-95J17
Clamp(For Cooler Refrigerant Pipe), No.1
[12.1982 - 08.1987] YH5#,6#,71; LH5#,6#,7#..MTM..DSL |
88718-95J17 |
— | ||
|
88718B
|
88718B
88718-95J05
Clamp(For Cooler Refrigerant Pipe), No.2
[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 |
88718-95J05 |
— | ||
|
88718C
|
88718C
88718-95J01
Clamp(For Cooler Refrigerant Pipe), No.3
[12.1982 - 08.1987] YH5#,6#,71 |
88718-95J01 |
— | ||
|
88718F
|
88718F
88718-95J18
Clamp(For Cooler Refrigerant Hose), No.1
[12.1982 - 08.1987] YH5#,6#,71; LH5#,6#,7#..MTM..DSL |
88718-95J18 |
— | ||
|
88718G
|
88718G
88718-95J02
Clamp(For Cooler Refrigerant Hose), No.2
[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 |
88718-95J02 |
— | ||
|
88718J
|
88718J
88718-95J00
Clamp(For Cooler Refrigerant Hose), No.4
[12.1982 - 08.1987] LH50,51,60,61,7#,YH5#,6#,71 |
88718-95J00 |
— | ||
|
8871495A00
|
8871495A00
88714-95A00
Insulator, Cooler Refrigerant Hose, No.1
|
88714-95A00 |
— | ||
| replacement | |||||
|
8871495A00
|
8871495A00
88714-12050
Insulator, Cooler Refrigerant Hose, No.1
|
88714-12050 |
— | ||
|
8871495J02
|
8871495J02
88714-95J02
Hose, Cooler Refrigerant Liquid, No.1
|
88714-95J02 |
— | ||
|
8871895J15
|
8871895J15
88718-95J15
Pipe, Cooler Refrigerant Suction, No.2
|
88718-95J15 |
— | ||
|
8871412020
|
8871412020
88714-12020
Insulator, Cooler Refrigerant Hose, No.4
|
88714-12020 |
— | ||
| replacement | |||||
|
8871412020
|
8871412020
87173-36040
Insulator, Cooler Refrigerant Hose, No.4
|
87173-36040 |
— | ||
|
8871414070
|
8871414070
88714-14070
Insulator, Cooler Refrigerant Hose, No.2
|
88714-14070 |
— | ||
|
8871420030
|
8871420030
88714-20030
Insulator, Cooler Refrigerant Hose, No.2
|
88714-20030 |
— | ||
|
8871422030
|
8871422030
88714-22030
Insulator, Cooler Refrigerant Hose, No.1
|
88714-22030 |
— | ||
| replacement | |||||
|
8871422030
|
8871422030
88714-12050
Insulator, Cooler Refrigerant Hose, No.1
|
88714-12050 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.25 |
||
|
9338516020
|
9338516020
93385-16020
New Genuine Part
|
93385-16020 |
— | ||
| replacement | |||||
|
9338516020
|
9338516020
93385-26020 New Genuine Part |
93385-26020 |
US $1.61 |
||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
|
9338518020
|
9338518020
93385-18020
New Genuine Part
|
93385-18020 |
— | ||
