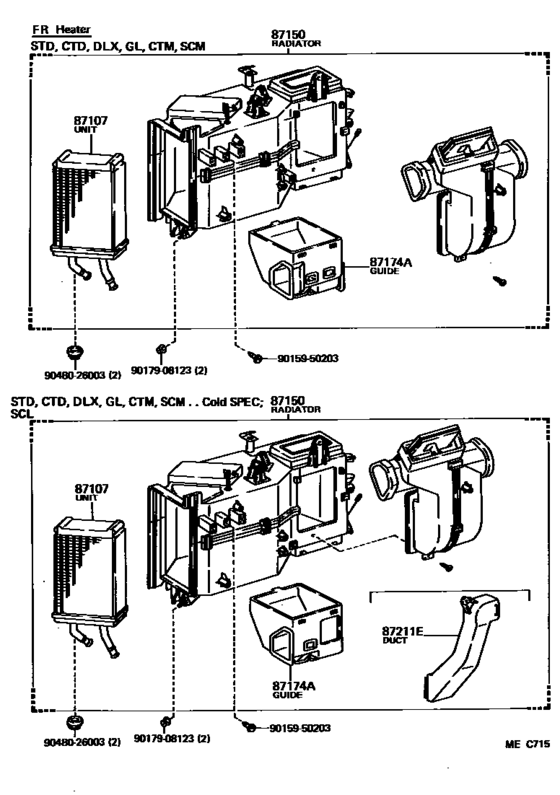

Heating & Air Conditioning - Heater Unit & Blower ([12.1982 - ] (8212- )) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87107
|
87107
87107-95J00
Unit Sub-Assy, Heater Radiator
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD |
87107-95J00 |
— | ||
|
87107
|
87107
87107-95J01
Unit Sub-Assy, Heater Radiator
[12.1982 - 09.1983] LH50,60,70,YH5#,61,71 COLD SPEC |
87107-95J01 |
— | ||
| replacement | |||||
|
87107
|
87107
87107-95J06
Unit Sub-Assy, Heater Radiator
[12.1982 - 09.1983] LH50,60,70,YH5#,61,71 COLD SPEC |
87107-95J06 |
— | ||
|
87107
|
87107
87107-95J06
Unit Sub-Assy, Heater Radiator
[09.1983 - 08.1987] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD COLD SPEC |
87107-95J06 |
— | ||
|
87150
|
87150
87150-95J00
Radiator Assy, Heater
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD |
87150-95J00 |
— | ||
|
87150
|
87150
87150-95J01
Radiator Assy, Heater
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD COLD SPEC |
87150-95J01 |
— | ||
|
87174A
|
87174A
87174-95J00
Guide, Air Heater
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD |
87174-95J00 |
— | ||
|
87174A
|
87174A
87174-95J01
Guide, Air Heater
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD COLD SPEC |
87174-95J01 |
— | ||
|
87211E
|
87211E
87211-95J02
Duct, Air
[12.1982 - 06.1987] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD COLD SPEC |
87211-95J02 |
— | ||
| replacement | |||||
|
87211E
|
87211E
87211-95J10
Duct, Air
[12.1982 - 06.1987] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD COLD SPEC |
87211-95J10 |
— | ||
|
87211E
|
87211E
87211-95J11
Duct, Air, No.1
[06.1987 - 08.1987] LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL,SCM COLD SPEC |
87211-95J11 |
— | ||
|
9015950203
|
9015950203
90159-50203 New Genuine Part |
90159-50203 |
US $1.05 |
||
|
9017908123
|
9017908123
90179-08123 Nut (For Front Wiper Arm Setting) |
90179-08123 |
from US $0.80 |
||
|
9048026003
|
9048026003
90480-26003 Grommet (For Cooler Unit) |
90480-26003 |
US $2.80 |
||
