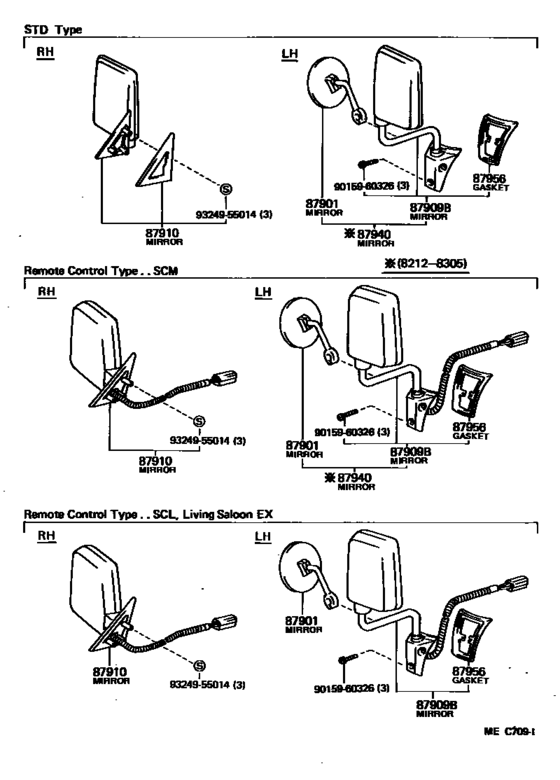

Mirror ([12.1982 - ] (8212- )) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87901
|
87901
87907-95J00
Mirror Sub-Assy, Outer Under View
[12.1982 - 01.1984] LH50,60,70,YH5#,61,71 STD TYPE |
87907-95J00 |
— | ||
| replacement | |||||
|
87901
|
87901
87907-95J04
Mirror Sub-Assy, Outer Under View
[12.1982 - 01.1984] LH50,60,70,YH5#,61,71 STD TYPE |
87907-95J04 |
— | ||
|
87901
|
87901
87907-95J04
Mirror Sub-Assy, Outer Under View
[01.1984 - 08.1985] LH5#,61,71,YH5#,6#,71 STD TYPE |
87907-95J04 |
— | ||
|
87909B
|
87909B
87906-29015
Mirror Sub-Assy, Lh
[12.1982 - 01.1984] LH50,60,70,YH5#,61,71 STD TYPE |
87906-29015 |
— | ||
|
87909B
|
87909B
87906-29035
Mirror Sub-Assy, Lh
[01.1984 - 08.1985] LH5#,61,71,YH5#,6#,71 STD TYPE |
87906-29035 |
— | ||
|
87909B
|
87909B
87906-95J05
Mirror Sub-Assy, Outer Rear View, Lh
[01.1984 - 08.1987] LH5#,6#,71,YH5#,6#,71 LARGE TYPE |
87906-95J05 |
— | ||
|
87910
|
87910
87901-95700
Mirror Sub-Assy, Outer Rear View, Lh
[01.1984 - 08.1987] LH5#,6#,71,YH5#,6#,71 LARGE TYPE |
87901-95700 |
— | ||
|
87910
|
87910
87910-80018
Mirror Assy, Outer Rear View, Rh
[12.1982 - 01.1984] LH50,60,70,YH5#,61,71 STD TYPE |
87910-80018 |
— | ||
| replacement | |||||
|
87910
|
87910
87910-95J10
Mirror Assy, Outer Rear View, Rh
[12.1982 - 01.1984] LH50,60,70,YH5#,61,71 STD TYPE |
87910-95J10 |
— | ||
|
87910
|
87910
87910-80131 Mirror Assy, Outer Rear View, Rh[01.1984 - 08.1985] LH5#,61,71,YH5#,6#,71 STD TYPE |
87910-80131 |
US $84.45 |
||
| replacement | |||||
|
87910
|
87910
87910-95J10
Mirror Assy, Outer Rear View, Rh
[01.1984 - 08.1985] LH5#,61,71,YH5#,6#,71 STD TYPE |
87910-95J10 |
— | ||
|
87940
|
87940
87901-95700
Mirror Sub-Assy, Outer Rear View, Lh
[01.1984 - 08.1987] LH5#,6#,71,YH5#,6#,71 LARGE TYPE |
87901-95700 |
— | ||
|
87940
|
87940
87940-80018
Mirror Assy, Outer Rear View, Lh
[12.1982 - 05.1983] LH50,60,70,YH5#,61,71 STD TYPE |
87940-80018 |
— | ||
| replacements | |||||
|
87940
|
87940
87907-95J04
Mirror Sub-Assy, Outer Under View
[12.1982 - 05.1983] LH50,60,70,YH5#,61,71 STD TYPE |
87907-95J04 |
— | ||
|
87940
|
87940
87906-29015
Mirror Sub-Assy, Lh
[12.1982 - 05.1983] LH50,60,70,YH5#,61,71 STD TYPE |
87906-29015 |
— | ||
|
87956
|
87956
87956-95J00
Gasket, Outer Rear View Mirror Base, Lower Lh
[12.1982 - 08.1987] LH5#,6#,7#,YH50,51,71 |
87956-95J00 |
— | ||
|
9015960326
|
9015960326
90159-60326
New Genuine Part
|
90159-60326 |
— | ||
|
9324955014
|
9324955014
93249-55014
New Genuine Part
|
93249-55014 |
— | ||
