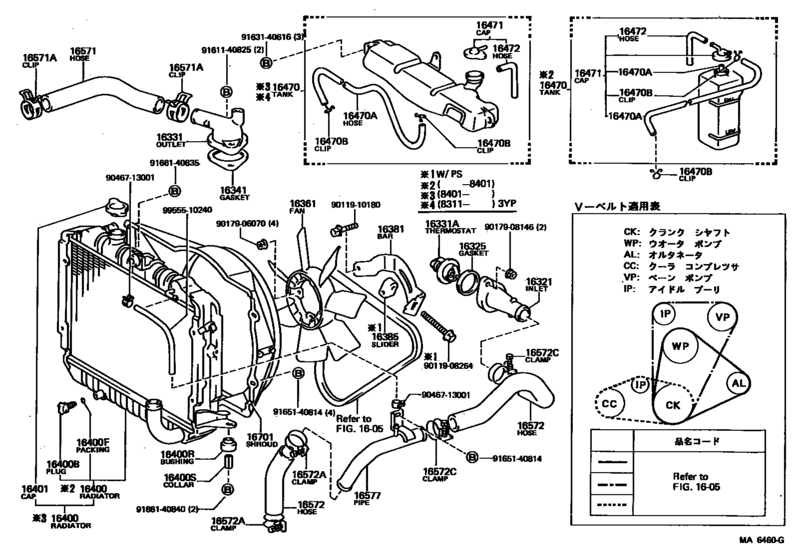

Radiator & Water Outlet ([12.1982 - ] (8212- )2Y,3Y#) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16321
|
16321
16321-71010 Inlet, Water[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
16321-71010 |
from US $38.14 |
||
|
16325
|
16325
16325-63010
Gasket, Water Inlet Housing, No.1
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
16325-63010 |
— | ||
| replacement | |||||
|
16325
|
16325
16325-63011 Gasket, Water Inlet Housing, No.1[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
16325-63011 |
from US $3.92 |
||
|
16331
|
16331
16331-71010 Outlet, Water[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
16331-71010 |
from US $38.42 |
||
|
16331A
|
16331A
90916-03046 Thermostat[12.1982 - 02.1985] 2Y,3Y#..YH5#,6#,71 ＊ＷＡＸ ８２−９５ |
90916-03046 |
from US $22.27 |
||
|
16331A
|
16331A
90916-03069
Thermostat
[02.1985 - 08.1987] 2Y,3Y#..YH5#,6#,71 ＊ＷＡＸ ８２−９５ |
90916-03069 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03046 Thermostat[02.1985 - 08.1987] 2Y,3Y#..YH5#,6#,71 ＊ＷＡＸ ８２−９５ |
90916-03046 |
from US $22.27 |
||
|
16341
|
16341
16341-71010
Gasket, Water Outlet
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
16341-71010 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-71011 Gasket, Water Outlet[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
16341-71011 |
US $3.05 |
||
|
16361
|
16361
16361-38010 Fan[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
16361-38010 |
from US $79.42 |
||
|
16381
|
16381
16381-71010 Bar, Fan Belt Adjusting[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
16381-71010 |
US $13.10 |
||
|
16385
|
16385
16385-71010 Slider, Fan Belt Adjusting[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 W/PS |
16385-71010 |
US $12.23 |
||
|
16400
|
16400
16400-72050 Radiator Assy[01.1984 - 08.1987] 3Y,3YJ..YH52,6#,71..MTM |
16400-72050 |
US $1,308.94 |
||
|
16400
|
16400
16410-72050
Radiator Assy
[12.1982 - 01.1984] 3Y,3YJ..YH61,71..4H |
16410-72050 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-72050 Radiator Assy[12.1982 - 01.1984] 3Y,3YJ..YH61,71..4H |
16400-72050 |
US $1,308.94 |
||
|
16400B
|
16400B
16417-24200 Plug, Radiator Drain Cock[12.1982 - 08.1987] L,2L#..LH5#,6#,7#; 2Y,3Y#..YH5#,6#,71 |
16417-24200 |
from US $3.59 |
||
|
16400F
|
16400F
16418-24200 Packing(For Radiator Drain Cock)[12.1982 - 08.1987] L,2L#..LH5#,6#,7#; 2Y,3Y#..YH5#,6#,71 |
16418-24200 |
from US $1.27 |
||
|
16400R
|
16400R
90540-10019 Bushing(For Radiator)[12.1982 - 08.1987] L,2L#..LH5#,6#,7#; 2Y,3Y#..YH5#,6#,71 |
90540-10019 |
from US $3.68 |
||
|
16400S
|
16400S
90440-11042 Collar(For Radiator)[12.1982 - 08.1987] L,2L#..LH5#,6#,7#; 2Y,3Y#..YH5#,6#,71 |
90440-11042 |
US $2.18 |
||
|
16401
|
16401
16401-71010
Cap Sub-Assy(For Water Outlet)
[12.1982 - 08.1987] L,2L#..LH5#,6#,7#; 2Y,3Y#..YH5#,6#,71 |
16401-71010 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-54750 Radiator Cap[12.1982 - 08.1987] L,2L#..LH5#,6#,7#; 2Y,3Y#..YH5#,6#,71 |
16401-54750 |
from US $16.13 |
||
|
16470
|
16470
16470-54030 Tank Assy, Radiator Reserve[12.1982 - 01.1984] L..LH50,60,70; 2Y,3Y#..YH5#,61,71 |
16470-54030 |
US $43.53 |
||
|
16470
|
16470
16470-54040 Tank Assy, Radiator Reserve[01.1984 - 08.1987] 2Y,3Y#..YH5#,6#,71; L,2L#..LH5#,6#,71 |
16470-54040 |
US $45.14 |
||
|
16470A
|
16470A
90099-33534 Hose Or Pipe(For Radiator Reserve Tank)[12.1982 - 01.1984] L..LH50,60,70 ＊Ｈ，Ｌ＝９００; 2Y,3Y#..YH5#,61,71 ＊Ｈ，Ｌ＝９００ |
90099-33534 |
US $5.42 |
||
|
16470A
|
16470A
90445-12078 Hose(For Radiator Breather)[10.1982 - 01.1984] L..LH50,60,70 ＊Ｈ，Ｌ＝２３０; 2Y,3Y#..YH5#,61,71 ＊Ｈ，Ｌ＝２３０ |
90445-12078 |
from US $6.75 |
||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[12.1982 - 08.1987] L,2L#..LH5#,6#,7#; 2Y,3Y#..YH5#,6#,71 |
90467-11085 |
from US $0.72 |
||
|
16471
|
16471
16405-54040 Cap Sub-Assy, Reserve Tank[12.1982 - 01.1984] L..LH50,60,70; 2Y,3Y#..YH5#,61,71 |
16405-54040 |
US $24.32 |
||
|
16471
|
16471
16405-54050 Cap Sub-Assy, Reserve Tank[01.1984 - 08.1987] 2Y,3Y#..YH5#,6#,71; L,2L#..LH5#,6#,71 |
16405-54050 |
US $8.74 |
||
|
16472
|
16472
85338-30010
Hose(For Radiator Drain Cock)
[12.1982 - 01.1984] L..LH50,60,70; 2Y,3Y#..YH5#,61,71 |
85338-30010 |
— | ||
|
16472
|
16472
90445-12078 Hose(For Radiator Breather)[01.1984 - 08.1987] 2Y,3Y#..YH5#,6#,71 ＊Ｈ，Ｌ＝１２０; L,2L#..LH5#,6#,71 ＊Ｈ，Ｌ＝１２０ |
90445-12078 |
from US $6.75 |
||
|
16571
|
16571
16571-72020 Hose, Radiator, Inlet[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
16571-72020 |
US $24.98 |
||
|
16571A
|
16571A
90467-37001
Clip(For Water Inlet Hose)
[12.1982 - 08.1987] L,2L#..LH5#,6#,7#; 2Y,3Y#..YH5#,6#,71 |
90467-37001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[12.1982 - 08.1987] L,2L#..LH5#,6#,7#; 2Y,3Y#..YH5#,6#,71 |
90467-37003 |
from US $4.56 |
||
|
16572
|
16572
16572-72020
Hose, Radiator, Outlet
[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 WATER PUMP SIDE |
16572-72020 |
— | ||
|
16572
|
16572
16573-54030 Hose, Radiator, Outlet[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 RADIATOR SIDE; L,2L#..LH50,51,60,61,7# RADIATOR SIDE |
16573-54030 |
US $18.52 |
||
|
16572A
|
16572A
90460-47036 Clamp Or Clip, Hose(For Radiator Inlet)[12.1982 - 08.1987] L,2L#..LH5#,6#,7#; 2Y,3Y#..YH5#,6#,71 |
90460-47036 |
US $3.94 |
||
|
16572C
|
16572C
96111-10440 Clamp Or Clip, Hose(For Radiator Inlet)[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
96111-10440 |
US $4.12 |
||
|
16577
|
16577
16577-72010 Pipe, Radiator, No.7[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
16577-72010 |
US $63.48 |
||
|
16701
|
16701
16701-72010 Shroud Sub-Assy, Fan[12.1982 - 08.1987] 2Y,3Y#..YH5#,6#,71 |
16701-72010 |
US $106.29 |
||
|
9011908264
|
9011908264
90119-08264
New Genuine Part
|
90119-08264 |
— | ||
|
9011910180
|
9011910180
90119-10180 Bolt (For Transfer Extension Rear Housing) |
90119-10180 |
US $2.33 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9161140825
|
9161140825
91611-40825
Bolt(For Clutch Release Cylinder Setting)
|
91611-40825 |
— | ||
| replacement | |||||
|
9161140825
|
9161140825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9163140616
|
9163140616
91631-40616 Bolt(For Head To Camshaft Bearing Cap) |
91631-40616 |
US $3.05 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9166140835
|
9166140835
91661-40835
New Genuine Part
|
91661-40835 |
— | ||
| replacement | |||||
|
9166140835
|
9166140835
91631-40835 New Genuine Part |
91631-40835 |
US $1.02 |
||
|
9166140840
|
9166140840
91661-40840 New Genuine Part |
91661-40840 |
US $2.04 |
||
|
9955510240
|
9955510240
99555-10240 Hose, Rear Heater Water Outlet, E (To Engine) |
99555-10240 |
US $7.86 |
||
| replacement | |||||
|
9955510240
|
9955510240
99555-10500 Hose, Water, No.1 |
99555-10500 |
from US $19.32 |
||
