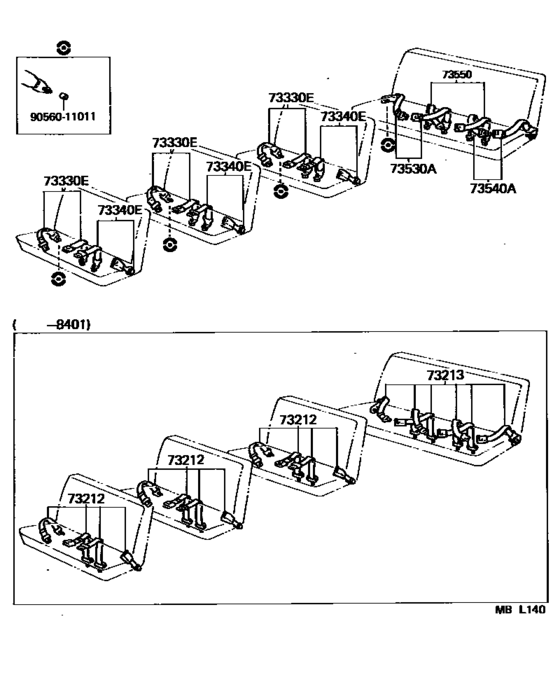

Seat Belt ([12.1982 - ] (8212- )15S) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73212
|
73212
73330-90C00
Belt Assy, Passenger Seat, No.1
[12.1982 - 01.1984] LH60,70,YH71..15S |
73330-90C00 |
— | ||
|
73213
|
73213
73340-90C00
Belt Assy, Passenger Seat, No.2
[12.1982 - 01.1984] LH60,70,YH71..15S |
73340-90C00 |
— | ||
|
73330E
|
73330E
73330-95J04
Belt Assy, Rear No.1 Seat Lap Type, Rh
[01.1984 - 08.1985] LH61,71,YH71..15S |
73330-95J04 |
— | ||
|
73330E
|
73330E
73330-95J08-06 Belt Assy, Rear No.1 Seat Lap Type, Rh[08.1985 - 08.1987] LH61,71,YH71..15S BROWN,BROWN |
73330-95J08-06 |
US $109.20 |
||
|
73340E
|
73340E
73340-95J04
Belt Assy, Rear No.1 Seat Lap Type, Lh
[01.1984 - 08.1985] LH61,71,YH71..15S |
73340-95J04 |
— | ||
|
73340E
|
73340E
73340-95J07-06 Belt Assy, Rear No.1 Seat Lap Type, Lh[08.1985 - 08.1986] LH61,71,YH71..15S BROWN,BROWN |
73340-95J07-06 |
US $109.20 |
||
|
73530A
|
73530A
73530-95J02
Belt Assy, Rear No.2 Seat Lap Type, Rh
[01.1984 - 08.1985] LH61,71,YH71..15S |
73530-95J02 |
— | ||
|
73530A
|
73530A
73530-95J06-06 Belt Assy, Rear No.2 Seat Lap Type, Rh[08.1985 - 08.1987] LH61,71,YH71..15S BROWN,BROWN |
73530-95J06-06 |
US $109.20 |
||
|
73540A
|
73540A
73540-95J00
Belt Assy, Rear No.2 Seat Lap Type, Lh
[01.1984 - 08.1985] LH61,71,YH71..15S |
73540-95J00 |
— | ||
|
73540A
|
73540A
73540-95J02-06 Belt Assy, Rear No.2 Seat Lap Type, Lh[08.1985 - 08.1987] LH61,71,YH71..15S BROWN,BROWN |
73540-95J02-06 |
US $109.20 |
||
|
73550
|
73550
73550-95J00
Belt Assy, Rear No.2 Seat Lap Type, Center
[01.1984 - 08.1985] LH61,71,YH71..15S |
73550-95J00 |
— | ||
|
73550
|
73550
73550-95J02-06
Belt Assy, Rear No.2 Seat Lap Type, Center
[08.1985 - 08.1986] LH61,71,YH71..15S ROWN,BROWN |
73550-95J02-06 |
— | ||
|
9056011011
|
9056011011
90560-11011 New Genuine Part |
90560-11011 |
US $5.24 |
