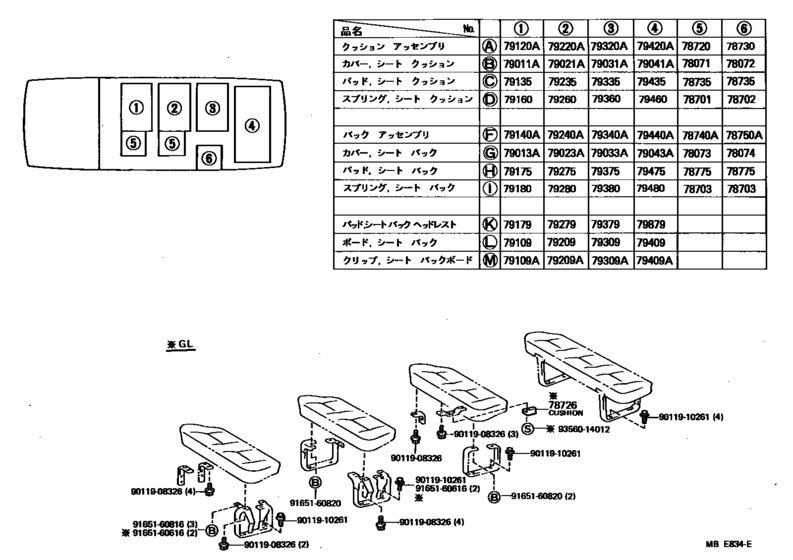

Seat & Seat Track ([12.1982 - ] (8212- )15S) Diagram Toyota HIACE
- Year
- 1982 - 1985
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 12.1982
- To
- 08.1985
- Gear Shift Type
- 4H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78071
|
78071
78071-90C00
Cover Sub-Assy, Sub Seat Cushion, Rh
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
78071-90C00 |
— | ||
|
78071
|
78071
78071-90C06
Cover Sub-Assy, Sub Seat Cushion, Rh
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
78071-90C06 |
— | ||
|
78071
|
78071
78071-95J00-06 Cover Sub-Assy, Sub Seat Cushion, Rh[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
78071-95J00-06 |
US $232.96 |
||
|
78072
|
78072
78072-90C01
Cover Sub-Assy, Sub Seat Cushion, Lh
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
78072-90C01 |
— | ||
|
78072
|
78072
78072-90C05
Cover Sub-Assy, Sub Seat Cushion, Lh
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
78072-90C05 |
— | ||
|
78072
|
78072
78072-95J02-06 Cover Sub-Assy, Sub Seat Cushion, Lh[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
78072-95J02-06 |
US $232.96 |
||
|
78073
|
78073
78073-90C00
Cover Sub-Assy, Sub Seat Back, Rh
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
78073-90C00 |
— | ||
|
78073
|
78073
78073-90C05
Cover Sub-Assy, Sub Seat Back, Rh
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
78073-90C05 |
— | ||
|
78073
|
78073
78073-95J00-06 Cover Sub-Assy, Sub Seat Back, Rh[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
78073-95J00-06 |
US $205.30 |
||
|
78074
|
78074
78073-90C00
Cover Sub-Assy, Sub Seat Back, Rh
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
78073-90C00 |
— | ||
|
78074
|
78074
78073-90C05
Cover Sub-Assy, Sub Seat Back, Rh
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
78073-90C05 |
— | ||
|
78074
|
78074
78073-95J00-06 Cover Sub-Assy, Sub Seat Back, Rh[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
78073-95J00-06 |
US $205.30 |
||
|
78701
|
78701
78701-90C01
Frame Sub-Assy, Sub Seat Cushion, Rh
[12.1982 - 01.1984] LH60,70,YH71..15S |
78701-90C01 |
— | ||
|
78701
|
78701
78701-90C03
Frame Sub-Assy, Sub Seat Cushion, Rh
[01.1984 - 08.1985] LH61,71,YH71..15S |
78701-90C03 |
— | ||
|
78701
|
78701
78701-95J01-06 Frame Sub-Assy, Sub Seat Cushion, Rh[08.1985 - 08.1987] LH61,71,YH71..15S BROWN,BROWN |
78701-95J01-06 |
US $173.26 |
||
|
78702
|
78702
78702-90C01
Frame Sub-Assy, Sub Seat Cushion, Lh
[12.1982 - 01.1984] LH60,70,YH71..15S |
78702-90C01 |
— | ||
|
78702
|
78702
78702-90C04
Frame Sub-Assy, Sub Seat Cushion, Lh
[01.1984 - 08.1985] LH61,71,YH71..15S |
78702-90C04 |
— | ||
|
78702
|
78702
78702-95J01-06 Frame Sub-Assy, Sub Seat Cushion, Lh[08.1985 - 08.1987] LH61,71,YH71..15S BROWN,BROWN |
78702-95J01-06 |
US $171.81 |
||
|
78703
|
78703
78703-90C00
Frame Sub-Assy, Sub Seat Back
[12.1982 - 01.1984] LH60,70,YH71..15S |
78703-90C00 |
— | ||
|
78703
|
78703
78703-90C01
Frame Sub-Assy, Sub Seat Back
[01.1984 - 08.1985] LH61,71,YH71..15S |
78703-90C01 |
— | ||
|
78703
|
78703
78703-95J00-06 Frame Sub-Assy, Sub Seat Back[08.1985 - 08.1987] LH61,71,YH71..15S BROWN,BROWN |
78703-95J00-06 |
US $63.04 |
||
|
78720
|
78720
78720-90C00
Cushion Assy, Sub Seat, Rh
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
78720-90C00 |
— | ||
|
78720
|
78720
78720-90C06
Cushion Assy, Sub Seat, Rh
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
78720-90C06 |
— | ||
|
78720
|
78720
78720-95J00-06
Cushion Assy, Sub Seat, Rh
[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
78720-95J00-06 |
— | ||
|
78726
|
78726
78726-90B00 Cushion, Sub Seat Cushion Frame[12.1982 - 08.1987] LH60,61,7#,YH71..15S RH SUB SEAT |
78726-90B00 |
US $5.23 |
||
|
78726
|
78726
78726-90C00 Cushion, Sub Seat Cushion Frame[12.1982 - 08.1987] LH60,61,7#,YH71..15S LH SUB SEAT |
78726-90C00 |
US $8.44 |
||
|
78730
|
78730
78730-90C00
Cushion Assy, Sub Seat, Lh
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
78730-90C00 |
— | ||
|
78730
|
78730
78730-90C08
Cushion Assy, Sub Seat, Lh
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
78730-90C08 |
— | ||
|
78730
|
78730
78730-95J00-06
Cushion Assy, Sub Seat, Lh
[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
78730-95J00-06 |
— | ||
|
78735
|
78735
78735-90B00 Pad, Sub Seat Cushion[12.1982 - 08.1987] LH60,61,7#,YH71..15S RH |
78735-90B00 |
US $32.18 |
||
|
78735
|
78735
78735-90C00 Pad, Sub Seat Cushion[12.1982 - 08.1987] LH60,61,7#,YH71..15S LH |
78735-90C00 |
US $30.58 |
||
|
78740A
|
78740A
78740-90C00
Back Assy, Sub Seat, Rh
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
78740-90C00 |
— | ||
|
78740A
|
78740A
78740-90C06
Back Assy, Sub Seat, Rh
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
78740-90C06 |
— | ||
|
78740A
|
78740A
78740-95J00-06
Back Assy, Sub Seat, Rh
[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
78740-95J00-06 |
— | ||
|
78750A
|
78750A
78740-90C00
Back Assy, Sub Seat, Rh
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
78740-90C00 |
— | ||
|
78750A
|
78750A
78740-90C06
Back Assy, Sub Seat, Rh
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
78740-90C06 |
— | ||
|
78750A
|
78750A
78740-95J00-06
Back Assy, Sub Seat, Rh
[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
78740-95J00-06 |
— | ||
|
78775
|
78775
78775-90B00 Pad, Sub Seat Back[12.1982 - 08.1987] LH60,61,7#,YH71..15S |
78775-90B00 |
US $19.95 |
||
|
79011A
|
79011A
79011-90C01
Cover Sub-Assy, No.1 Seat Cushion
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79011-90C01 |
— | ||
|
79011A
|
79011A
79011-90C08
Cover Sub-Assy, No.1 Seat Cushion
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79011-90C08 |
— | ||
|
79011A
|
79011A
79011-95J38-06 Cover Sub-Assy, No.1 Seat Cushion[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79011-95J38-06 |
US $362.54 |
||
|
79013A
|
79013A
79013-90C01
Cover Sub-Assy, No.1 Seat Back
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79013-90C01 |
— | ||
|
79013A
|
79013A
79013-90C07
Cover Sub-Assy, No.1 Seat Back
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79013-90C07 |
— | ||
|
79013A
|
79013A
79013-95J45-06 Cover Sub-Assy, No.1 Seat Back[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79013-95J45-06 |
US $601.33 |
||
|
79021A
|
79021A
79011-90C01
Cover Sub-Assy, No.1 Seat Cushion
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79011-90C01 |
— | ||
|
79021A
|
79021A
79011-90C08
Cover Sub-Assy, No.1 Seat Cushion
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79011-90C08 |
— | ||
|
79021A
|
79021A
79011-95J38-06 Cover Sub-Assy, No.1 Seat Cushion[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79011-95J38-06 |
US $362.54 |
||
|
79023A
|
79023A
79013-90C01
Cover Sub-Assy, No.1 Seat Back
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79013-90C01 |
— | ||
|
79023A
|
79023A
79013-90C07
Cover Sub-Assy, No.1 Seat Back
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79013-90C07 |
— | ||
|
79023A
|
79023A
79013-95J45-06 Cover Sub-Assy, No.1 Seat Back[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79013-95J45-06 |
US $601.33 |
||
|
79031A
|
79031A
79011-90C01
Cover Sub-Assy, No.1 Seat Cushion
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79011-90C01 |
— | ||
|
79031A
|
79031A
79011-90C08
Cover Sub-Assy, No.1 Seat Cushion
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79011-90C08 |
— | ||
|
79031A
|
79031A
79011-95J38-06 Cover Sub-Assy, No.1 Seat Cushion[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79011-95J38-06 |
US $362.54 |
||
|
79033A
|
79033A
79013-90C01
Cover Sub-Assy, No.1 Seat Back
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79013-90C01 |
— | ||
|
79033A
|
79033A
79013-90C07
Cover Sub-Assy, No.1 Seat Back
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79013-90C07 |
— | ||
|
79033A
|
79033A
79013-95J45-06 Cover Sub-Assy, No.1 Seat Back[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79013-95J45-06 |
US $601.33 |
||
|
79041A
|
79041A
79041-90C01
Cover Sub-Assy, No.4 Seat Cushion
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79041-90C01 |
— | ||
|
79041A
|
79041A
79041-90C07
Cover Sub-Assy, No.4 Seat Cushion
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79041-90C07 |
— | ||
|
79041A
|
79041A
79041-95J00-06 Cover Sub-Assy, No.4 Seat Cushion[08.1985 - 08.1987] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79041-95J00-06 |
US $487.76 |
||
|
79043A
|
79043A
79043-90C05
Cover Sub-Assy, No.4 Seat Back
[12.1982 - 01.1984] LH60,70,YH61,71..DLX..(10S,15S) F-VL |
79043-90C05 |
— | ||
|
79043A
|
79043A
79043-90C10
Cover Sub-Assy, No.4 Seat Back
[01.1984 - 08.1985] LH61,71,YH61,71..DLX..(10S,15S) F-VL |
79043-90C10 |
— | ||
|
79043A
|
79043A
79043-95J06-06 Cover Sub-Assy, No.4 Seat Back[08.1985 - 04.1986] LH61,71,YH61,71..DLX..(10S,15S) F-VL,BROWN,BROWN |
79043-95J06-06 |
US $513.97 |
||
|
79120A
|
79120A
79120-90C00
Cushion Assy, No.1 Seat
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79120-90C00 |
— | ||
|
79120A
|
79120A
79120-90C09
Cushion Assy, No.1 Seat
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79120-90C09 |
— | ||
|
79120A
|
79120A
79120-95J57-06 Cushion Assy, No.1 Seat[08.1985 - 08.1986] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79120-95J57-06 |
US $1,485.12 |
||
| replacement | |||||
|
79120A
|
79120A
79120-95J76-06
Cushion Assy, No.1 Seat
[08.1985 - 08.1986] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79120-95J76-06 |
— | ||
|
79135
|
79135
79015-90C00 Pad, No.1 Seat Cushion[12.1982 - 08.1987] LH60,61,7#,YH71..DLX..15S |
79015-90C00 |
US $135.41 |
||
|
79140A
|
79140A
79140-90C00
Back Assy, No.1 Seat
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79140-90C00 |
— | ||
|
79140A
|
79140A
79140-90C08
Back Assy, No.1 Seat
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79140-90C08 |
— | ||
|
79140A
|
79140A
79140-95J51-06 Back Assy, No.1 Seat[08.1985 - 05.1986] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79140-95J51-06 |
US $1,006.10 |
||
| replacement | |||||
|
79140A
|
79140A
79140-95J75-06
Back Assy, No.1 Seat
[08.1985 - 05.1986] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79140-95J75-06 |
— | ||
|
79160
|
79160
79160-90C01 Spring Assy, No.1 Seat Cushion[12.1982 - 08.1986] LH6#,7#,YH71..DLX..15S |
79160-90C01 |
US $553.28 |
||
| replacement | |||||
|
79160
|
79160
79160-95J29 Spring Assy, No.1 Seat Cushion[12.1982 - 08.1986] LH6#,7#,YH71..DLX..15S |
79160-95J29 |
US $513.97 |
||
|
79160
|
79160
79160-95J29 Spring Assy, No.1 Seat Cushion[08.1986 - 08.1987] LH61,71,YH71..DLX..15S |
79160-95J29 |
US $513.97 |
||
|
79175
|
79175
79175-90C01 Pad, No.1 Seat Back[12.1982 - 08.1987] LH60,61,7#,YH71..DLX..15S |
79175-90C01 |
US $155.79 |
||
|
79180
|
79180
79103-90C01
Spring Assy, No.1 Seat Back
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S |
79103-90C01 |
— | ||
|
79180
|
79180
79103-90C04
Spring Assy, No.1 Seat Back
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S |
79103-90C04 |
— | ||
|
79180
|
79180
79103-95J11-06 Frame Sub-Assy, No.1 Seat Back[08.1985 - 08.1987] LH61,71,YH71..DLX..15S BROWN,BROWN |
79103-95J11-06 |
US $362.54 |
||
|
79220A
|
79220A
79220-90C00
Cushion Assy, No.2 Seat
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79220-90C00 |
— | ||
|
79220A
|
79220A
79220-90C08
Cushion Assy, No.2 Seat
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79220-90C08 |
— | ||
|
79220A
|
79220A
79220-95J30-06 Cushion Assy, No.2 Seat[08.1985 - 08.1986] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79220-95J30-06 |
US $1,485.12 |
||
| replacement | |||||
|
79220A
|
79220A
79220-95J42-06
Cushion Assy, No.2 Seat
[08.1985 - 08.1986] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79220-95J42-06 |
— | ||
|
79235
|
79235
79015-90C00 Pad, No.1 Seat Cushion[12.1982 - 08.1987] LH60,61,7#,YH71..DLX..15S |
79015-90C00 |
US $135.41 |
||
|
79240A
|
79240A
79140-90C00
Back Assy, No.1 Seat
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79140-90C00 |
— | ||
|
79240A
|
79240A
79140-90C08
Back Assy, No.1 Seat
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79140-90C08 |
— | ||
|
79240A
|
79240A
79140-95J51-06 Back Assy, No.1 Seat[08.1985 - 05.1986] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79140-95J51-06 |
US $1,006.10 |
||
| replacement | |||||
|
79240A
|
79240A
79140-95J75-06
Back Assy, No.1 Seat
[08.1985 - 05.1986] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79140-95J75-06 |
— | ||
|
79260
|
79260
79260-90C00 Spring Assy, No.2 Seat Cushion[12.1982 - 08.1986] LH6#,7#,YH71..DLX..15S |
79260-90C00 |
US $518.34 |
||
| replacement | |||||
|
79260
|
79260
79260-95J11 Spring Assy, No.2 Seat Cushion[12.1982 - 08.1986] LH6#,7#,YH71..DLX..15S |
79260-95J11 |
US $515.42 |
||
|
79275
|
79275
79175-90C01 Pad, No.1 Seat Back[12.1982 - 08.1987] LH60,61,7#,YH71..DLX..15S |
79175-90C01 |
US $155.79 |
||
|
79280
|
79280
79103-90C01
Spring Assy, No.1 Seat Back
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S |
79103-90C01 |
— | ||
|
79280
|
79280
79103-90C04
Spring Assy, No.1 Seat Back
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S |
79103-90C04 |
— | ||
|
79280
|
79280
79103-95J11-06 Frame Sub-Assy, No.1 Seat Back[08.1985 - 08.1987] LH61,71,YH71..DLX..15S BROWN,BROWN |
79103-95J11-06 |
US $362.54 |
||
|
79320A
|
79320A
79320-90C00
Cushion Assy, No.3 Seat
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79320-90C00 |
— | ||
|
79320A
|
79320A
79320-90C07
Cushion Assy, No.3 Seat
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79320-90C07 |
— | ||
|
79320A
|
79320A
79320-95J24-06 Cushion Assy, No.3 Seat[08.1985 - 08.1986] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79320-95J24-06 |
US $1,099.28 |
||
| replacement | |||||
|
79320A
|
79320A
79320-95J39-06
Cushion Assy, No.3 Seat
[08.1985 - 08.1986] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79320-95J39-06 |
— | ||
|
79335
|
79335
79035-90C00 Pad, No.3 Seat Cushion[12.1982 - 08.1987] LH60,61,7#,YH71..DLX..15S |
79035-90C00 |
US $135.41 |
||
|
79340A
|
79340A
79140-90C00
Back Assy, No.1 Seat
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S F-VL |
79140-90C00 |
— | ||
|
79340A
|
79340A
79140-90C08
Back Assy, No.1 Seat
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S F-VL |
79140-90C08 |
— | ||
|
79340A
|
79340A
79140-95J51-06 Back Assy, No.1 Seat[08.1985 - 05.1986] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79140-95J51-06 |
US $1,006.10 |
||
| replacement | |||||
|
79340A
|
79340A
79140-95J75-06
Back Assy, No.1 Seat
[08.1985 - 05.1986] LH61,71,YH71..DLX..15S F-VL,BROWN,BROWN |
79140-95J75-06 |
— | ||
|
79360
|
79360
79360-90C00 Spring Assy, No.3 Seat Cushion[12.1982 - 08.1986] LH6#,7#,YH71..DLX..15S |
79360-90C00 |
US $518.34 |
||
| replacement | |||||
|
79360
|
79360
79360-95J27 Spring Assy, No.3 Seat Cushion[12.1982 - 08.1986] LH6#,7#,YH71..DLX..15S |
79360-95J27 |
US $515.42 |
||
|
79375
|
79375
79175-90C01 Pad, No.1 Seat Back[12.1982 - 08.1987] LH60,61,7#,YH71..DLX..15S |
79175-90C01 |
US $155.79 |
||
|
79380
|
79380
79103-90C01
Spring Assy, No.1 Seat Back
[12.1982 - 01.1984] LH60,70,YH71..DLX..15S |
79103-90C01 |
— | ||
|
79380
|
79380
79103-90C04
Spring Assy, No.1 Seat Back
[01.1984 - 08.1985] LH61,71,YH71..DLX..15S |
79103-90C04 |
— | ||
|
79380
|
79380
79103-95J11-06 Frame Sub-Assy, No.1 Seat Back[08.1985 - 08.1987] LH61,71,YH71..DLX..15S BROWN,BROWN |
79103-95J11-06 |
US $362.54 |
||
|
79420A
|
79420A
79420-90C00
Cushion Assy, No.4 Seat
[12.1982 - 01.1984] LH70,YH71..DLX..15S F-VL |
79420-90C00 |
— | ||
|
79420A
|
79420A
79420-90C10
Cushion Assy, No.4 Seat
[01.1984 - 08.1985] LH71,YH71..DLX..15S F-VL |
79420-90C10 |
— | ||
|
79420A
|
79420A
79420-95J00-06 Cushion Assy, No.4 Seat[08.1985 - 08.1986] LH71,YH71..DLX..15S F-VL,BROWN,BROWN |
79420-95J00-06 |
US $1,485.12 |
||
| replacement | |||||
|
79420A
|
79420A
79420-95J12-06
Cushion Assy, No.4 Seat
[08.1985 - 08.1986] LH71,YH71..DLX..15S F-VL,BROWN,BROWN |
79420-95J12-06 |
— | ||
|
79435
|
79435
79045-90C00 Pad, No.4 Seat Cushion[12.1982 - 08.1987] LH60,61,7#,YH61,71..10S,15S |
79045-90C00 |
US $205.30 |
||
|
79440A
|
79440A
79440-90C00
Back Assy, No.4 Seat
[12.1982 - 01.1984] LH70,YH71..DLX..15S F-VL; LH60,YH61..DLX..10S F-VL |
79440-90C00 |
— | ||
|
79440A
|
79440A
79440-90C09
Back Assy, No.4 Seat
[01.1984 - 08.1985] LH61,YH61..DLX..10S F-VL; LH71,YH71..DLX..15S F-VL |
79440-90C09 |
— | ||
|
79440A
|
79440A
79440-95J10-06
Back Assy, No.4 Seat
[08.1985 - 08.1987] LH61,YH61..10S F-VL,BROWN,BROWN; LH71,YH71..DLX..15S F-VL,BROWN,BROWN |
79440-95J10-06 |
— | ||
|
79460
|
79460
79460-90C02 Spring Assy, No.4 Seat Cushion[12.1982 - 08.1986] LH7#,YH71..15S |
79460-90C02 |
US $1,227.41 |
||
| replacement | |||||
|
79460
|
79460
79460-95J05 Spring Assy, No.4 Seat Cushion[12.1982 - 08.1986] LH7#,YH71..15S |
79460-95J05 |
US $1,228.86 |
||
|
79475
|
79475
79475-90C01 Pad, No.4 Seat Back[12.1982 - 08.1987] LH60,61,7#,YH61,71..(DLX,STD)..(10S,15S) |
79475-90C01 |
US $180.54 |
||
|
79480
|
79480
79403-90C00
Spring Assy, No.4 Seat Back
[12.1982 - 01.1984] LH60,YH61..10S; LH70,YH71..DLX..15S |
79403-90C00 |
— | ||
|
79480
|
79480
79403-90C04
Spring Assy, No.4 Seat Back
[01.1984 - 08.1985] LH61,YH61..10S; LH71,YH71..DLX..15S |
79403-90C04 |
— | ||
|
79480
|
79480
79403-95J00-06 Frame Sub-Assy, No.4 Seat Back[08.1985 - 08.1987] LH61,YH61..10S BROWN,BROWN; LH71,YH71..DLX..15S BROWN,BROWN |
79403-95J00-06 |
US $579.49 |
||
|
9011908326
|
9011908326
90119-08326 New Genuine Part |
90119-08326 |
US $3.06 |
||
|
9011910261
|
9011910261
90119-10261 New Genuine Part |
90119-10261 |
US $2.62 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.94 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9356014012
|
9356014012
93560-14012 SCREW |
93560-14012 |
US $1.25 |
||
