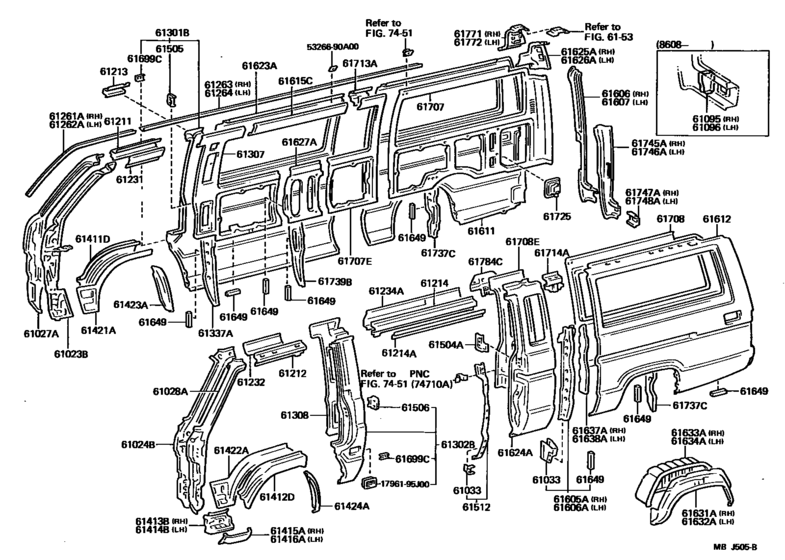

Side Member ([08.1985 - ] (8508- )LH71,YH71) Diagram Toyota HIACE
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- YH71B
- grade
- DLX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1985
- To
- 08.1987
- Gear Shift Type
- 5H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61023B
|
61023B
61023-95J00 Pillar Sub-Assy, Front Body, Inner Rh[12.1982 - 01.1986] LH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD |
61023-95J00 |
US $477.57 |
||
|
61023B
|
61023B
61023-95J06 Pillar Sub-Assy, Front Body, Inner Rh[01.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71..CTD,DLX,GL; LH51,YH51..CTM |
61023-95J06 |
US $476.11 |
||
|
61024B
|
61024B
61024-95J00 Pillar Sub-Assy, Front Body, Inner Lh[12.1982 - 01.1986] LH5#,YH51..SRF..(CTM,SCM); LH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD |
61024-95J00 |
US $477.57 |
||
|
61024B
|
61024B
61024-95J04
Pillar Sub-Assy, Front Body, Inner Lh
[01.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71..CTD,DLX,GL; LH51,YH51..SRF..(CTM,SCM) |
61024-95J04 |
— | ||
|
61027A
|
61027A
61027-95J00 Pillar Sub-Assy, Front Body, Outer Rh[01.1985 - 08.1987] LH5#,6#,71,YH5#,6#,71..(HRF,SRF)..(CTD,CTM,DLX,GL,SCM) |
61027-95J00 |
US $460.10 |
||
|
61028A
|
61028A
61028-95J00
Pillar Sub-Assy, Front Body, Outer Lh
[01.1985 - 08.1987] LH5#,6#,71,YH5#,6#,71..HRF,SRF |
61028-95J00 |
— | ||
|
61033
|
61033
61033-95J00 Extension Sub-Assy, Quarter Lock Pillar[12.1982 - 08.1987] LH6#,7#,YH6#,71..ST LH; LH6#,YH6#..ST RH |
61033-95J00 |
US $21.55 |
||
|
61095
|
61095
61095-95J00 Plate Sub-Assy, Back Door Opening, Lower Rh[08.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
61095-95J00 |
US $13.69 |
||
|
61096
|
61096
61096-95J00 Plate Sub-Assy, Back Door Opening, Lower Lh[08.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
61096-95J00 |
US $13.69 |
||
|
61211
|
61211
61211-95J00 Rail, Roof Side, Outer Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61211-95J00 |
US $161.62 |
||
|
61212
|
61212
61212-95J00 Rail, Roof Side, Outer Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61212-95J00 |
US $161.62 |
||
|
61213
|
61213
61215-90C00 Rail, Roof Side, Outer Rear Rh[12.1982 - 08.1987] LH7#,YH71 |
61215-90C00 |
US $82.99 |
||
|
61214
|
61214
61204-95J00 Rail, Roof Side, Outer Rear Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61204-95J00 |
US $257.71 |
||
|
61214A
|
61214A
67161-95J00 Retainer, Slide Door Weatherstrip, Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
67161-95J00 |
US $17.47 |
||
|
61231
|
61231
61231-95J01 Rail, Roof Side, Inner Rh[12.1982 - 08.1987] LH50,51,YH51..SRF..(CTM,SCM); LH7#,YH71..15S |
61231-95J01 |
US $88.82 |
||
| replacement | |||||
|
61231
|
61231
61231-95J00 Rail, Roof Side, Inner Rh[12.1982 - 08.1987] LH50,51,YH51..SRF..(CTM,SCM); LH7#,YH71..15S |
61231-95J00 |
US $88.82 |
||
|
61232
|
61232
61232-95J01 Rail, Roof Side, Inner Lh[12.1982 - 08.1987] LH50,51,YH51..SRF..(CTM,SCM); LH7#,YH71..15S |
61232-95J01 |
US $88.82 |
||
| replacement | |||||
|
61232
|
61232
61232-95J00 Rail, Roof Side, Inner Lh[12.1982 - 08.1987] LH50,51,YH51..SRF..(CTM,SCM); LH7#,YH71..15S |
61232-95J00 |
US $88.82 |
||
|
61234A
|
61234A
61234-95J00 Rail, Roof Side, Inner No.2 Lh[01.1984 - 08.1987] LH71,YH71..15S |
61234-95J00 |
US $119.39 |
||
|
61261A
|
61261A
61263-95J00 Channel, Roof Drip Side, Front Rh[12.1982 - 05.1986] LH5#,6#,7#,YH5#,6#,71 |
61263-95J00 |
US $68.58 |
||
|
61261A
|
61261A
61263-95J01 Channel, Roof Drip Side, Front Rh[05.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
61263-95J01 |
US $68.87 |
||
|
61262A
|
61262A
61264-95J00 Channel, Roof Drip Side, Front Lh[12.1982 - 05.1986] LH5#,6#,71,YH5#,6#,71 |
61264-95J00 |
US $68.58 |
||
|
61262A
|
61262A
61264-95J01 Channel, Roof Drip Side, Front Lh[05.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
61264-95J01 |
US $68.87 |
||
|
61263
|
61263
61267-95J02 Channel, Roof Drip, Rear Rh[12.1982 - 09.1985] LH7#,YH71 |
61267-95J02 |
US $112.11 |
||
|
61263
|
61263
61267-95J05 Channel, Roof Drip, Rear Rh[05.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
61267-95J05 |
US $104.83 |
||
|
61264
|
61264
61268-95J02 Channel, Roof Drip, Rear Lh[12.1982 - 09.1985] LH7#,YH71 |
61268-95J02 |
US $112.11 |
||
|
61264
|
61264
61268-95J05 Channel, Roof Drip, Rear Lh[05.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71 |
61268-95J05 |
US $104.83 |
||
|
61301B
|
61301B
61301-90C00 Pillar, Center Body, Outer Rh[12.1982 - 08.1987] LH7#,YH71 |
61301-90C00 |
US $508.14 |
||
| replacement | |||||
|
61301B
|
61301B
61301-95J08 Pillar, Center Body, Outer RhCENTER BODY, OUTER RH [12.1982 - 08.1987] LH7#,YH71 |
61301-95J08 |
US $506.69 |
||
|
61302B
|
61302B
61302-95J00 Pillar, Center Body, Outer Lh[12.1982 - 01.1986] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
61302-95J00 |
US $403.31 |
||
| replacement | |||||
|
61302B
|
61302B
61302-95J09 Pillar, Center Body, Outer Lh[12.1982 - 01.1986] LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
61302-95J09 |
US $477.57 |
||
|
61302B
|
61302B
61302-95J09 Pillar, Center Body, Outer Lh[01.1986 - 08.1987] LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL |
61302-95J09 |
US $477.57 |
||
|
61307
|
61307
61307-95J20 Pillar Sub-Assy, Center Body, Inner Rh[08.1985 - 08.1987] LH71,YH71..DLX..15S |
61307-95J20 |
US $627.54 |
||
|
61308
|
61308
61308-95J12 Pillar Sub-Assy, Center Body, Inner Lh[01.1984 - 08.1985] LH5#,YH5#,62..DLX,GL,STD;LH61,71,YH61,71..03S,06S,10S,15S |
61308-95J12 |
US $286.83 |
||
|
61337A
|
61337A
61337-95J00 Reinforcement, Center Body Pillar, Inner Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61337-95J00 |
US $70.76 |
||
|
61411D
|
61411D
61411-95J00 Panel, Fender, Outer Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61411-95J00 |
US $353.81 |
||
|
61412D
|
61412D
61412-95J00 Panel, Fender, Outer Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61412-95J00 |
US $353.81 |
||
|
61413B
|
61413B
61413-95J00
Panel, Front Step, Rh
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61413-95J00 |
— | ||
|
61414B
|
61414B
61414-95J00
Panel, Front Step, Lh
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61414-95J00 |
— | ||
|
61415A
|
61415A
61415-95J00
Panel, Front Step, Under, Rh
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61415-95J00 |
— | ||
|
61416A
|
61416A
61416-95J00
Panel, Front Step Under, Lh
[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61416-95J00 |
— | ||
|
61421A
|
61421A
61421-95J00 Panel, Fender, Inner Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61421-95J00 |
US $145.60 |
||
|
61422A
|
61422A
61422-95J00 Panel, Fender, Inner Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61422-95J00 |
US $145.60 |
||
|
61423A
|
61423A
61423-95J00 Panel, Fender, Inner Lower Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61423-95J00 |
US $90.27 |
||
|
61424A
|
61424A
61424-95J00 Panel, Fender, Inner Lower Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61424-95J00 |
US $90.27 |
||
|
61504A
|
61504A
61504-95J00 Reinforce Sub-Assy, Slide Door Lock Striker, Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61504-95J00 |
US $19.80 |
||
|
61505
|
61505
61505-95J00 Reinforce Sub-Assy, Front Door Lock Striker, Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61505-95J00 |
US $15.29 |
||
|
61506
|
61506
61506-95J00 Reinforce Sub-Assy, Front Door Lock Striker, Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61506-95J00 |
US $15.29 |
||
|
61512
|
61512
61502-95J07 Pillar, Quarter Lock, Lh[12.1982 - 08.1987] LH60,61,7#,YH71..15S |
61502-95J07 |
US $168.90 |
||
|
61605A
|
61605A
61605-90C00 Reinforcement Sub-Assy, Quarter Panel, Rh[12.1982 - 08.1987] LH7#,YH71 |
61605-90C00 |
US $216.94 |
||
|
61606
|
61606
61705-90C00 Frame Sub-Assy, Back Door Opening Side, Rh[12.1982 - 01.1986] LH61,7#,YH61,71..HRF |
61705-90C00 |
US $445.54 |
||
|
61606
|
61606
61705-95J04 Frame Sub-Assy, Back Door Opening Side, Rh[01.1986 - 08.1987] LH61,71,YH61,71..HRF |
61705-95J04 |
US $445.54 |
||
|
61606A
|
61606A
61606-90C00 Reinforcement Sub-Assy, Quarter Panel, Lh[12.1982 - 08.1987] LH7#,YH71 |
61606-90C00 |
US $216.94 |
||
|
61607
|
61607
61706-90C00 Frame Sub-Assy, Back Door Opening Side, Lh[12.1982 - 01.1986] LH61,7#,YH61,71..HRF |
61706-90C00 |
US $445.54 |
||
|
61607
|
61607
61706-95J04 Frame Sub-Assy, Back Door Opening Side, Lh[01.1986 - 08.1987] LH61,71,YH61,71..HRF |
61706-95J04 |
US $445.54 |
||
|
61611
|
61611
61611-90C00 Panel, Quarter, Rh[12.1982 - 08.1987] LH7#,YH71 |
61611-90C00 |
US $762.94 |
||
|
61612
|
61612
61612-90C00 Panel, Quarter, Lh[12.1982 - 08.1987] LH7#,YH71 |
61612-90C00 |
US $762.94 |
||
|
61615C
|
61615C
61203-95J02 Panel, Quarter Inner, Center Rh[12.1982 - 08.1987] LH7#,YH71..15S |
61203-95J02 |
US $218.40 |
||
| replacement | |||||
|
61615C
|
61615C
61203-95J06 Rail Sub-Assy, Roof Side, Inner Rh[12.1982 - 08.1987] LH7#,YH71..15S |
61203-95J06 |
US $90.27 |
||
|
61623A
|
61623A
61623-90C00 Extension, Quarter Panel, Outer Rh[12.1982 - 08.1987] LH7#,YH71 |
61623-90C00 |
US $745.47 |
||
|
61624A
|
61624A
61624-90C00 Extension, Quarter Panel, Outer Lh[12.1982 - 08.1987] LH7#,YH71 |
61624-90C00 |
US $380.02 |
||
|
61625A
|
61625A
61625-90C01 Extension Sub-Assy, Quarter Panel, Rh[12.1982 - 08.1987] LH7#,YH71..15S |
61625-90C01 |
US $276.64 |
||
|
61626A
|
61626A
61626-90C01 Extension Sub-Assy, Quarter Panel, Lh[12.1982 - 08.1987] LH7#,YH71..15S |
61626-90C01 |
US $276.64 |
||
|
61627A
|
61627A
61627-90C00 Extension, Quarter Panel, Lower Rh[12.1982 - 08.1987] LH7#,YH71..DLX |
61627-90C00 |
US $211.12 |
||
|
61631A
|
61631A
61631-95J00 Panel, Quarter Wheel House, Outer Rh[12.1982 - 08.1987] LH60,61,YH61..10S; LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
61631-95J00 |
US $286.83 |
||
|
61632A
|
61632A
61632-95J00 Panel, Quarter Wheel House, Outer Lh[12.1982 - 08.1987] LH60,61,YH61..10S; LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
61632-95J00 |
US $286.83 |
||
|
61633A
|
61633A
65605-90C00 Panel, Quarter Wheel House, Inner Rh[12.1982 - 08.1986] LH7#,YH71..15S |
65605-90C00 |
US $366.91 |
||
| replacement | |||||
|
61633A
|
61633A
65605-95J15
Panel, Quarter Wheel House, Inner Rh
[12.1982 - 08.1986] LH7#,YH71..15S |
65605-95J15 |
— | ||
|
61633A
|
61633A
65605-95J08 Panel, Quarter Wheel House, Inner Rh[08.1986 - 08.1987] LH71,YH71..15S |
65605-95J08 |
US $339.25 |
||
| replacement | |||||
|
61633A
|
61633A
65605-95J15
Panel, Quarter Wheel House, Inner Rh
[08.1986 - 08.1987] LH71,YH71..15S |
65605-95J15 |
— | ||
|
61634A
|
61634A
61634-95J00 Panel, Quarter Wheel House, Inner Lh[04.1983 - 08.1986] LH71,YH71..DLX..15S HANDY CAB. |
61634-95J00 |
US $139.78 |
||
| replacement | |||||
|
61634A
|
61634A
61634-95J04
Panel, Quarter Wheel House, Inner Lh
[04.1983 - 08.1986] LH71,YH71..DLX..15S HANDY CAB. |
61634-95J04 |
— | ||
|
61634A
|
61634A
61634-95J01 Panel, Quarter Wheel House, Inner Lh[08.1986 - 08.1987] LH61,YH61..10S; LH5#,6#,71,YH5#,6#,71..V..ST; LH71,YH71..DLX..15S HANDY CAB. |
61634-95J01 |
US $141.23 |
||
| replacement | |||||
|
61634A
|
61634A
61634-95J04
Panel, Quarter Wheel House, Inner Lh
[08.1986 - 08.1987] LH61,YH61..10S; LH5#,6#,71,YH5#,6#,71..V..ST; LH71,YH71..DLX..15S HANDY CAB. |
61634-95J04 |
— | ||
|
61634A
|
61634A
65606-95J02
Panel, Quarter Wheel House, Inner Lh
[12.1982 - 08.1986] LH6#,7#,YH71..15S |
65606-95J02 |
— | ||
| replacements | |||||
|
61634A
|
61634A
65606-95J14 Panel, Quarter Wheel House, Inner Lh[12.1982 - 08.1986] LH6#,7#,YH71..15S |
65606-95J14 |
US $441.17 |
||
|
61634A
|
61634A
65606-95J17 Panel, Quarter Wheel House, Inner Lh[12.1982 - 08.1986] LH6#,7#,YH71..15S |
65606-95J17 |
US $441.17 |
||
|
61634A
|
61634A
65606-95J08 Panel, Quarter Wheel House, Inner Lh[08.1986 - 08.1987] LH61,71,YH71..15S |
65606-95J08 |
US $339.25 |
||
| replacement | |||||
|
61634A
|
61634A
65606-95J17 Panel, Quarter Wheel House, Inner Lh[08.1986 - 08.1987] LH61,71,YH71..15S |
65606-95J17 |
US $441.17 |
||
|
61637A
|
61637A
61637-90C00 Brace, Quarter Panel, Rh[12.1982 - 08.1987] LH7#,YH71 |
61637-90C00 |
US $71.34 |
||
|
61638A
|
61638A
61638-90C00 Brace, Quarter Panel, Lh[12.1982 - 08.1987] LH7#,YH71 |
61638-90C00 |
US $71.34 |
||
|
61649
|
61649
61667-95J03
Pad, Quarter Panel, Outer
[07.1983 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61667-95J03 |
— | ||
|
61699C
|
61699C
61699-95J00 Retainer, Courtesy Switch[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61699-95J00 |
US $5.24 |
||
|
61707
|
61707
61613-90C02
Panel Sub-Assy, Quarter, Inner Rear Rh
[12.1982 - 08.1987] LH7#,YH71..DLX..15S |
61613-90C02 |
— | ||
|
61707E
|
61707E
61735-90C00
Extension Sub-Assy, Quarter Panel, Rh
[12.1982 - 08.1985] LH7#,YH71..DLX..(06S,15S) |
61735-90C00 |
— | ||
|
61708
|
61708
61608-95J22
Panel Sub-Assy, Quarter, Inner Rear Lh
[08.1985 - 08.1987] LH71,YH71..DLX..15S |
61608-95J22 |
— | ||
|
61708
|
61708
61614-90C00
Panel Sub-Assy, Quarter, Inner Rear Lh
[08.1986 - 08.1987] LH71..DLX..15S *63; LH71,YH71 HANDY CAB. |
61614-90C00 |
— | ||
|
61708
|
61708
61614-90C02 Panel Sub-Assy, Quarter, Inner Rear Lh[12.1982 - 08.1985] LH7#,YH71..DLX..15S |
61614-90C02 |
US $793.52 |
||
|
61708E
|
61708E
61736-90C00 Extension Sub-Assy, Quarter Panel, Lh[12.1982 - 08.1987] LH7#,YH71..DLX..15S |
61736-90C00 |
US $668.30 |
||
|
61713A
|
61713A
61713-90C00 Extension, Roof Side, Outer Rh[12.1982 - 08.1987] LH7#,YH71 |
61713-90C00 |
US $71.34 |
||
|
61714A
|
61714A
61714-90C00 Extension, Roof Side, Outer Lh[12.1982 - 08.1987] LH7#,YH71 |
61714-90C00 |
US $71.34 |
||
|
61725
|
61725
77304-95J00 Box, Fuel Inlet[01.1984 - 08.1987] LH5#,6#,71,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
77304-95J00 |
US $58.82 |
||
|
61737C
|
61737C
61737-95J00 Reinforcement, Quarter, Inner[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71..ST |
61737-95J00 |
US $36.69 |
||
|
61739B
|
61739B
61739-90C00 Reinforcement, Extension Quarter Inner Panel[12.1982 - 08.1987] LH7#,YH71 |
61739-90C00 |
US $88.82 |
||
|
61745A
|
61745A
61745-95J00 Reinforcement, Back Door Opening, Lower Rh[12.1982 - 08.1987] LH61,7#,YH61,71..HRF |
61745-95J00 |
US $208.21 |
||
|
61746A
|
61746A
61746-95J00 Reinforcement, Back Door Opening, Lower Lh[12.1982 - 08.1987] LH61,7#,YH61,71..HRF |
61746-95J00 |
US $208.21 |
||
|
61747A
|
61747A
61747-95J00 Extension, Back Door Opening Lower Reinforcement, Rh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61747-95J00 |
US $38.73 |
||
|
61748A
|
61748A
61748-95J00 Extension, Back Door Opening Lower Reinforcement, Lh[12.1982 - 08.1987] LH5#,6#,7#,YH5#,6#,71 |
61748-95J00 |
US $38.73 |
||
|
61771
|
61771
61771-90C00 Patch, Back Door Opening, Upper Rh[12.1982 - 08.1987] LH61,7#,YH61,71..HRF |
61771-90C00 |
US $193.65 |
||
|
61772
|
61772
61772-90C00 Patch, Back Door Opening, Upper Lh[12.1982 - 08.1987] LH61,7#,YH61,71..HRF |
61772-90C00 |
US $193.65 |
||
|
61784C
|
61784C
61784-95J00 Brace, Quarter Panel, Inner Lh[12.1982 - 08.1985] LH5#,6#,YH5#,6#..MRF,SRF; LH7#,YH71..09S,15S |
61784-95J00 |
US $28.54 |
||
| replacement | |||||
|
61784C
|
61784C
61784-95J02 Brace, Quarter Panel, Inner Lh[12.1982 - 08.1985] LH5#,6#,YH5#,6#..MRF,SRF; LH7#,YH71..09S,15S |
61784-95J02 |
US $28.54 |
||
|
1796195J00
|
1796195J00
17961-95J00 Inlet, Cool Air |
17961-95J00 |
US $30.87 |
||
|
5326690A00
|
5326690A00
53266-90A00 Cover, Radiator Opening |
53266-90A00 |
US $6.12 |
||
