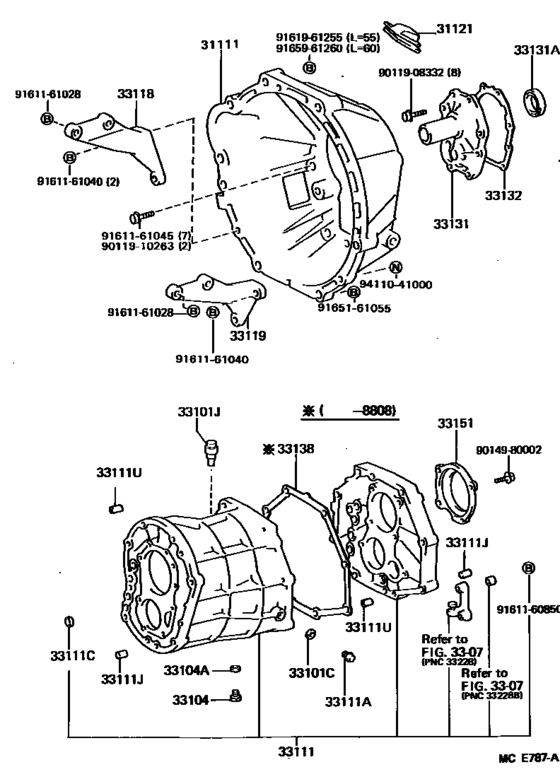

Clutch Housing & Transmission Case (Mtm) ([08.1987 - ] G55,G56 (8708- )YH50,51,52,6#,71..MTM) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH71B
- grade
- DX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-30190 Housing, Clutch[08.1987 - 08.1989] YH50,51,52,6#,71..MTM |
31111-30190 |
US $374.19 |
||
|
31121
|
31121
31121-30040 Cover, Clutch Housing, No.1[08.1987 - 08.1989] YH50,51,52,6#,71..MTM |
31121-30040 |
US $19.95 |
||
| replacement | |||||
|
31121
|
31121
31121-35020 Cover, Clutch Housing, No.1[08.1987 - 08.1989] YH50,51,52,6#,71..MTM |
31121-35020 |
US $16.31 |
||
|
33101C
|
33101C
90430-18008 Gasket[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
90430-T0021 |
US $1.01 |
||
|
33101J
|
33101J
90930-03085 Plug, Breather[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
90930-03085 |
US $6.33 |
||
|
33104
|
33104
90341-18057 Drain Plug (with Magnet)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM |
90341-18057 |
from US $6.27 |
||
|
33104A
|
33104A
90430-18008 Gasket[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33101-26900 Case, Manual Transmission[08.1987 - 08.1988] YH61,71..10S,15S;LH51,61,71,YH51,52,62..MTM |
33101-26900 |
US $628.99 |
||
| replacements | |||||
|
33111
|
33111
33101-26060 Case, Manual Transmission[08.1987 - 08.1988] YH61,71..10S,15S;LH51,61,71,YH51,52,62..MTM |
33101-26060 |
US $438.55 |
||
|
33111
|
33111
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [08.1987 - 08.1988] YH61,71..10S,15S;LH51,61,71,YH51,52,62..MTM |
90341-18032 |
from US $3.76 |
||
|
33111
|
33111
33101-28020 Case, Manual Transmission[08.1988 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM |
33101-28020 |
US $628.99 |
||
| replacements | |||||
|
33111
|
33111
33101-26060 Case, Manual Transmission[08.1988 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM |
33101-26060 |
US $438.55 |
||
|
33111
|
33111
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [08.1988 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM |
90341-18032 |
from US $3.76 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
90341-18006 |
from US $3.23 |
||
|
33111C
|
33111C
90331-14004 Plug, Manual Transmission Case[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM 外径＝１４ |
90331-14004 |
US $4.68 |
||
|
33111J
|
33111J
90250-12002 Pin, Straight(For Manual Transmission Case)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM 長さ＝１６，外径＝１２ |
90250-12002 |
from US $1.27 |
||
|
33111U
|
33111U
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM 長さ＝１１，外径＝１１ |
90253-11001 |
US $2.15 |
||
|
33111U
|
33111U
90253-15001 Pin, Straight(For Clutch Housing Set)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM 長さ＝１４，外径＝１５ |
90253-15001 |
from US $1.07 |
||
|
33118
|
33118
33118-36031
Plate, Stiffener, Rh(Mtm)
[08.1987 - 08.1989] YH50; YH51,52,57,6#,71..MTM |
33118-36031 |
— | ||
|
33119
|
33119
33119-36030 Plate, Stiffener, Lh(Mtm)[08.1987 - 08.1989] YH50; YH51,52,57,6#,71..MTM |
33119-36030 |
US $16.02 |
||
|
33131
|
33131
33131-26020 Retainer, Bearing, Front(Mtm)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM |
33131-26020 |
US $70.41 |
||
|
33131A
|
33131A
90311-30010
Seal, Oil(For Transmission Front Bearing Retainer)
[08.1988 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM |
90311-30010 |
— | ||
| replacement | |||||
|
33131A
|
33131A
90311-30014 Seal, Oil(For Transmission Front Bearing Retainer)[08.1988 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM |
90311-30014 |
from US $5.38 |
||
|
33131A
|
33131A
90311-30115 Seal, Oil(For Transmission Front Bearing Retainer)[08.1987 - 08.1988] LH51,61,71,YH50,51,52,6#,71..MTM |
90311-30115 |
from US $3.94 |
||
|
33132
|
33132
33132-28010 Gasket, Front Bearing Retainer(Mtm)[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM |
33132-28010 |
from US $3.55 |
||
|
33138
|
33138
33138-28010 Gasket, Intermediate Plate[08.1987 - 08.1988] LH51,61,71,YH50,51,52,6#,71..MTM |
33138-28010 |
US $9.76 |
||
|
33151
|
33151
33151-28010
Retainer, Output Shaft Rear Bearing(Mtm)
[08.1987 - 08.1988] LH51,61,71,YH50,51,52,6#,71..MTM |
33151-28010 |
— | ||
|
33151
|
33151
33151-35030 Retainer, Output Shaft Rear Bearing(Mtm)[08.1988 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM |
33151-35030 |
from US $20.16 |
||
|
9011908332
|
9011908332
90119-08332 Bolt(For Manual Transmission Oil Pump Cover) |
90119-08332 |
from US $1.23 |
||
|
9011910263
|
9011910263
90119-10263
New Genuine Part
|
90119-10263 |
— | ||
| replacement | |||||
|
9011910263
|
9011910263
91651-61045 BOLT |
91651-61045 |
US $0.96 |
||
|
9014980002
|
9014980002
90149-80002 BOLT |
90149-80002 |
US $0.51 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $2.15 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.15 |
||
|
9161961255
|
9161961255
91619-61255 Bolt(For Transaxle & Engine Setting) |
91619-61255 |
US $2.15 |
||
|
9165161055
|
9165161055
91651-61055 New Genuine Part |
91651-61055 |
US $2.62 |
||
| replacement | |||||
|
9165161055
|
9165161055
91651-61060 New Genuine Part |
91651-61060 |
US $0.96 |
||
|
9165961260
|
9165961260
91659-61260 Bolt(For Transaxle & Engine Setting) |
91659-61260 |
US $3.64 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
