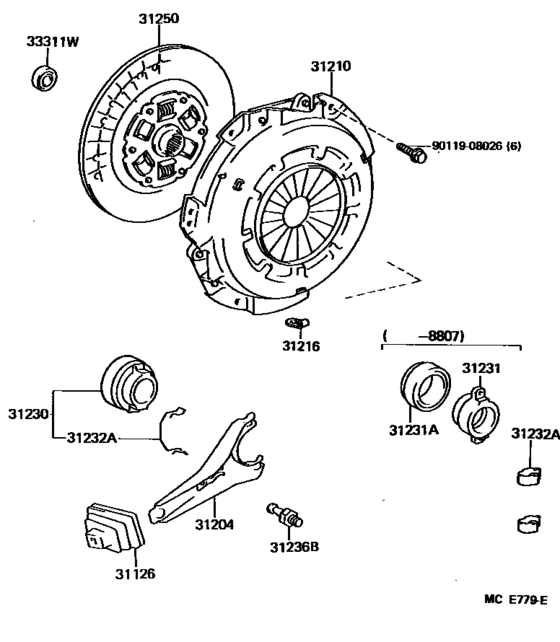

Clutch & Release Fork ([08.1987 - ] (8708- )YH5#,6#,71..MTM) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH71B
- grade
- DX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-20060 Boot, Clutch Release Fork[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH56,YH5#,6#,71..MTM |
31126-20060 |
from US $13.83 |
||
|
31204
|
31204
31204-20071 Fork Sub-Assy, Clutch Release[08.1987 - 08.1989] YH50,51,52,6#,71..MTM |
31204-20071 |
from US $22.29 |
||
|
31210
|
31210
31210-26050 Cover Assy, Clutch[08.1987 - 08.1989] YH52,6#,71..(COM,V)..MTM |
31210-26050 |
US $232.96 |
||
| replacement | |||||
|
31210
|
31210
31210-30231
Cover Assy, Clutch
[08.1987 - 08.1989] YH52,6#,71..(COM,V)..MTM |
31210-30231 |
— | ||
|
31216
|
31216
31216-14010 Spring, Clutch Retracting[08.1987 - 08.1989] YH52,6#,71..(COM,V)..MTM |
31216-14010 |
US $3.79 |
||
|
31230
|
31230
31230-35090
Bearing Assy, Clutch Release
[07.1988 - 08.1989] YH50,51,52,6#,71..MTM |
31230-35090 |
— | ||
| replacement | |||||
|
31230
|
31230
31230-35091 Bearing Assy, Clutch Release[07.1988 - 08.1989] YH50,51,52,6#,71..MTM |
31230-35091 |
from US $54.97 |
||
|
31231
|
31231
31231-36070 Hub, Clutch Release Bearing[08.1987 - 07.1988] YH50,51,52,6#,71..MTM |
31231-36070 |
US $29.40 |
||
|
31231A
|
31231A
90363-40022 Bearing, Ball(For Clutch Release Hub)[08.1987 - 03.1988] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
90363-40022 |
from US $40.89 |
||
|
31232A
|
31232A
31232-22010 Clip Or Spring, Release Bearing Hub[08.1987 - 07.1988] LH51,61,71,YH50,51,52,6#,71..MTM |
31232-22010 |
from US $1.60 |
||
|
31232A
|
31232A
31232-35020 Clip Or Spring, Release Bearing Hub[07.1988 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM ＮＳＫ |
31232-35020 |
from US $2.34 |
||
|
31236B
|
31236B
31236-30060 Ball, Release Fork[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..MTM |
31236-30060 |
from US $10.24 |
||
|
31250
|
31250
31250-26062 Disc Assy, Clutch[08.1987 - 08.1989] YH52,6#,71..(COM,V)..MTM |
31250-26062 |
US $228.59 |
||
| replacement | |||||
|
31250
|
31250
31250-20263 Disc Assy, Clutch[08.1987 - 08.1989] YH52,6#,71..(COM,V)..MTM |
31250-20263 |
from US $143.29 |
||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM |
90363-12024 |
from US $5.67 |
||
|
9011908026
|
9011908026
90119-08026
Bolt(For Transmission Input Damper Cover & Flywheel)
|
90119-08026 |
— | ||
| replacement | |||||
|
9011908026
|
9011908026
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
