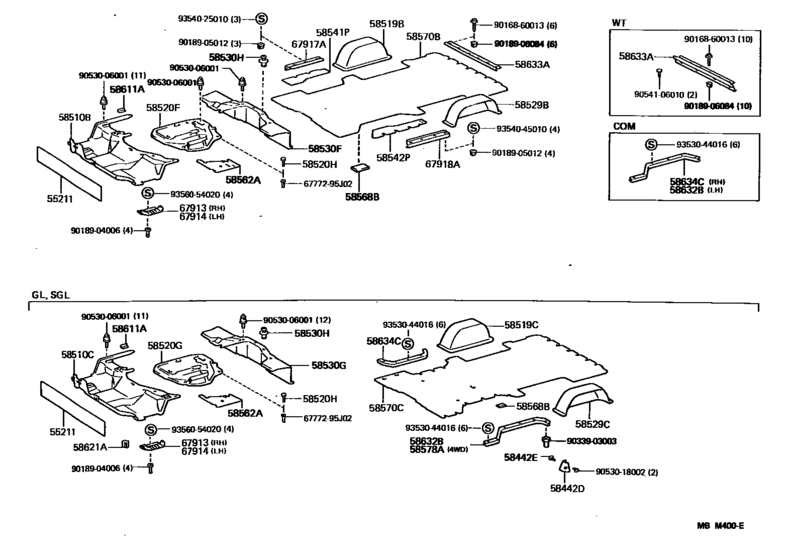

Floor Mat & Silencer Pad ([08.1987 - ] (8708- )COM,V) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH71B
- grade
- DX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55211
|
55211
55211-95J00
Silencer, Front Panel
[08.1987 - 08.1989] LH51,61,71,YH51,57,61..WG; LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S) ｶﾝﾚｲﾁ ｼﾖｳ |
55211-95J00 |
— | ||
|
58442D
|
58442D
58442-95J03-06 Cover, Jack[08.1987 - 08.1989] LH51,71,YH51..(GL,SCM)..(08S,15S) BROWN,TRIM4#; YH71..15S ﾊﾝﾃﾞｲ ｷﾔﾌﾞ,BROWN,TRIM4#; LH71..DX..15S ﾖｳｼﾞ ﾊﾞｽ,BROWN,TRIM4#; LH61..10S ｸﾞﾗﾝﾄﾞ ﾀｸｼ- OR ﾖｳｼﾞ ﾊﾞｽ,BROWN,TRIM4# |
58442-95J03-06 |
US $24.61 |
||
|
58442E
|
58442E
90467-09064-01
Clip, Radiator Support To Frame
[08.1987 - 08.1989] LH71..GL;LH51,61,YH51..CTM,SCL,SCM,SGL BLACK,TRIM4#,8#; YH71..15S ﾊﾝﾃﾞｲ ｷﾔﾌﾞ,BLACK,TRIM4#; LH71..DX..15S ﾖｳｼﾞ ﾊﾞｽ,BLACK,TRIM4#; LH61..10S ｸﾞﾗﾝﾄﾞ ﾀｸｼ- OR ﾖｳｼﾞ ﾊﾞｽ,BLACK,TRIM4# |
90467-09064-01 |
— | ||
|
58510B
|
58510B
58510-95J52-06 Mat, Front Floor, Front[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..(4HC,5H)..(CD,DX) BROWN,TRIM4# |
58510-95J52-06 |
US $331.97 |
||
|
58510B
|
58510B
58510-95J53-06 Mat, Front Floor, Front[08.1987 - 08.1988] LH51,61,71,YH50,51,52,6#,71..(4HC,5H)..(CD,DX) ｶﾝﾚｲﾁ ｼﾖｳ,BROWN,TRIM4# |
58510-95J53-06 |
US $467.38 |
||
|
58519B
|
58519B
58519-95J08-06 Mat, Rear Wheel House, Rh[08.1987 - 10.1988] YH71..15S ﾊﾝﾃﾞｲ ｷﾔﾌﾞ & ﾌﾛｱ ｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ,BROWN,TRIM4# |
58519-95J08-06 |
US $132.50 |
||
|
58519B
|
58519B
58519-95J12-06 Mat, Rear Wheel House, Rh[08.1987 - 10.1988] LH71,YH71..DX..15S ｱﾘ(ﾌﾛｱ ｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ),BROWN,TRIM4# |
58519-95J12-06 |
US $132.50 |
||
|
58520F
|
58520F
58520-95J26-06 Mat Assy, Engine Cover[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..(4HC,5H)..(CD,DX) BROWN,TRIM4# |
58520-95J26-06 |
US $141.23 |
||
|
58520H
|
58520H
90467-09010-16 Clip(For Engine Cover Mat)[08.1987 - 08.1989] LH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM DARK BROWN,TRIM4# |
90467-09010-16 |
US $2.33 |
||
|
58529B
|
58529B
58519-95J08-06 Mat, Rear Wheel House, Rh[08.1987 - 10.1988] YH71..15S ﾊﾝﾃﾞｲ ｷﾔﾌﾞ & ｱﾘ(ﾌﾛｱ ｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ),BROWN,TRIM4# |
58519-95J08-06 |
US $132.50 |
||
|
58529B
|
58529B
58529-95J07-06 Mat, Rear Wheel House, Lh[08.1987 - 10.1988] LH61,71,YH71..DX..15S ｱﾘ(ﾌﾛｱ ｾﾂﾄ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ),BROWN,TRIM4# |
58529-95J07-06 |
US $132.50 |
||
|
58530F
|
58530F
58530-95J49-06
Mat, Front Floor, Rear
[08.1987 - 08.1989] LH51..DX..09S;LH61..VSG..03S;LH51..VSG..(03S,06S);LH61..(4HC,5H)..DX..ST;LH71,YH50 ,51,52,6#,71..5H..(CD,DX)..ST BROWN,TRIM4# |
58530-95J49-06 |
— | ||
|
58530H
|
58530H
90467-08076-06 Clip(For Front Floor Rear Carpet)[08.1987 - 08.1989] LH71,YH57;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
90467-08076-06 |
US $2.62 |
||
|
58542P
|
58542P
58056-95J02-06 Mat, Step, Lh[08.1987 - 08.1989] LH51,61,71,YH51,61,71..(COM,WG)..(DX,GL,SCM) BROWN,TRIM4# |
58056-95J02-06 |
US $54.16 |
||
|
58568B
|
58568B
58568-95J01 Spacer, Rear Floor Carpet[08.1987 - 08.1989] LH71,YH71..15S 50X30; LH51,66,YH51,57..(CTM,SCM,SGL)..(08S,09S);LH5#,6#,YH50,61..V4D..(GL,SGL)..(05S,09S ) |
58568-95J01 |
US $4.22 |
||
|
58568B
|
58568B
58568-95J02 Spacer, Rear Floor Carpet[08.1987 - 08.1989] LH71,YH71..15S 220X25 |
58568-95J02 |
US $3.49 |
||
|
58570B
|
58570B
58570-95N38-06 Mat Assy, Rear Floor[08.1987 - 08.1989] LH71,YH71..DX..15S BROWN,TRIM4# |
58570-95N38-06 |
US $827.01 |
||
|
58611A
|
58611A
58621-95J00 Plate, Mat Set, No.1 Rh[08.1987 - 08.1989] LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
58621-95J00 |
US $5.68 |
||
|
58632B
|
58632B
58632-95J00 Set Plate, Rear Floor Mat Side, Front Lh[08.1987 - 08.1989] LH61,YH61..GL;LH61,YH61..10S,15S;LH71,YH50,71..05S,10S,15S;LH51,YH51..(CTM,DX,GL). .(05S,09S) |
58632-95J00 |
US $103.38 |
||
|
58633A
|
58633A
58633-95J00 Plate, Back Door Scuff[08.1987 - 08.1989] LH71;LH61,YH61..(CD,DX)..ST;LH5#,66,YH50,52,62,71..(COM,V)..(CD,DX) |
58633-95J00 |
US $27.08 |
||
|
67913
|
67913
67913-95J00-16
Plate, Front Door Scuff, Rh
[08.1987 - 08.1989] LH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM BROWN,TRIM4# |
67913-95J00-16 |
— | ||
|
67914
|
67914
67914-95J00-16
Plate, Front Door Scuff, Lh
[08.1987 - 08.1989] LH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM BROWN,TRIM4# |
67914-95J00-16 |
— | ||
| replacement | |||||
|
67914
|
67914
67914-95J00-B0
Plate, Front Door Scuff, Lh
[08.1987 - 08.1989] LH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM BROWN,TRIM4# |
67914-95J00-B0 |
— | ||
|
67918A
|
67918A
67918-95J00
Plate, Rear Door Scuff, Lh
[08.1987 - 08.1989] LH61,YH61..GL;LH61,YH61..10S,15S;LH71,YH50,71..05S,10S,15S;LH51,YH51..(CTM,DX,GL). .(05S,09S) |
67918-95J00 |
— | ||
|
6777295J02
|
6777295J02
67772-95J02 Cap, Front Door Trim Retainer |
67772-95J02 |
US $2.06 |
||
|
9016860013
|
9016860013
90168-60013 SCREW |
90168-60013 |
US $1.61 |
||
|
9018904006
|
9018904006
90189-04006
New Genuine Part
|
90189-04006 |
— | ||
|
9018905012
|
9018905012
90189-05012 New Genuine Part |
90189-05012 |
US $3.94 |
||
|
9018906084
|
9018906084
90189-06084 NUT |
90189-06084 |
US $1.97 |
||
|
9033903003
|
9033903003
90339-03003 New Genuine Part |
90339-03003 |
US $1.05 |
||
|
9053006001
|
9053006001
90530-06001 Fastener, Hook |
90530-06001 |
US $1.97 |
||
|
9053018002
|
9053018002
90530-18002 Hook, Male, No.1 |
90530-18002 |
US $1.60 |
||
|
9054106010
|
9054106010
90541-06010 Cushion(For Back Door Lock Striker) |
90541-06010 |
US $3.49 |
||
|
9353044016
|
9353044016
93530-44016 New Genuine Part |
93530-44016 |
US $1.60 |
||
|
9354025010
|
9354025010
93540-25010 Screw, Pillar Joint Setting |
93540-25010 |
US $1.89 |
||
|
9354045010
|
9354045010
93540-45010
New Genuine Part
|
93540-45010 |
— | ||
|
9356054020
|
9356054020
93560-54020 New Genuine Part |
93560-54020 |
US $1.97 |
||
