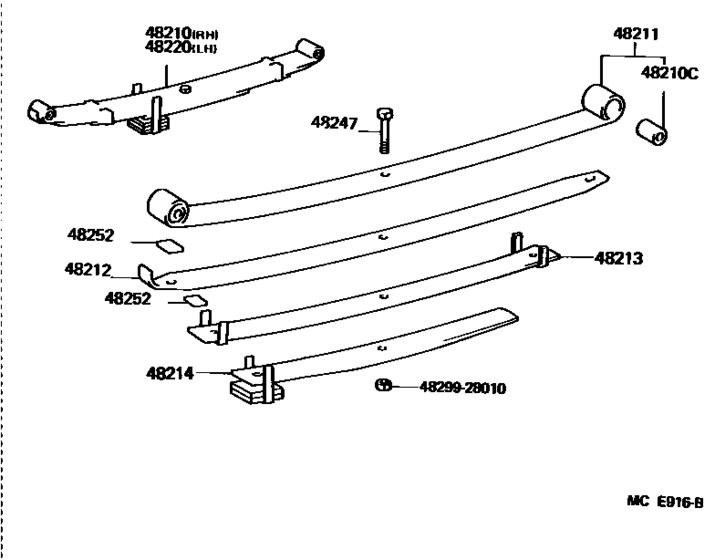

Rear Spring & Shock Absorber ([08.1987 - ] (8708- )YH71) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH71B
- grade
- DX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48210
|
48210
48210-26301 Spring Assy, Rear Rh[08.1987 - 08.1989] LH71,YH71..15S |
48210-26301 |
US $669.76 |
||
|
48210C
|
48210C
90389-14007 Bush(For Rear Spring Leaf)[08.1987 - 08.1989] LH56,66..05S;LH66..(DX,SGL)..08S; LH61,71,YH61..ST;LH51,YH50,51,52,62,71..COM,V |
90389-14007 |
from US $18.65 |
||
|
48211
|
48211
48201-26291 Leaf, Rear Spring, No.1[08.1987 - 08.1989] LH61,71,YH71..15S |
48201-26291 |
US $205.30 |
||
|
48212
|
48212
48212-26291 Leaf, Rear Spring, No.2[08.1987 - 08.1989] LH61,71,YH71..15S |
48212-26291 |
US $155.79 |
||
| replacement | |||||
|
48212
|
48212
48212-26330 Leaf, Rear Spring, No.2[08.1987 - 08.1989] LH61,71,YH71..15S |
48212-26330 |
US $145.60 |
||
|
48213
|
48213
48202-26301 Leaf, Rear Spring, No.3[08.1987 - 08.1989] LH71,YH71..15S |
48202-26301 |
US $155.79 |
||
|
48214
|
48214
48203-26301 Leaf, Rear Spring, No.4[08.1987 - 08.1989] LH71,YH71..15S |
48203-26301 |
US $174.72 |
||
| replacement | |||||
|
48214
|
48214
48203-26300 Leaf, Rear Spring, No.4[08.1987 - 08.1989] LH71,YH71..15S |
48203-26300 |
US $173.26 |
||
|
48220
|
48220
48210-26301 Spring Assy, Rear Rh[08.1987 - 08.1989] LH71,YH71..15S |
48210-26301 |
US $669.76 |
||
|
48247
|
48247
48247-26260 Bolt, Rear Spring, Center[08.1987 - 08.1989] LH51,61,71,YH50,51,52,6#,71..(COM,V)..ST |
48247-26260 |
US $6.27 |
||
|
48252
|
48252
48252-26070 Silencer, Front Spring[08.1987 - 08.1989] LH61,71,YH61..ST;LH51,YH50,51,52,62,71..COM,V; LH66..V4D..DX..05S 4WD ｷﾕｳｷﾕｳｼﾔ |
48252-26070 |
from US $2.13 |
||
|
4829928010
|
4829928010
48299-28010 Nut, Rear Spring Center Bolt |
48299-28010 |
US $3.35 |
||
