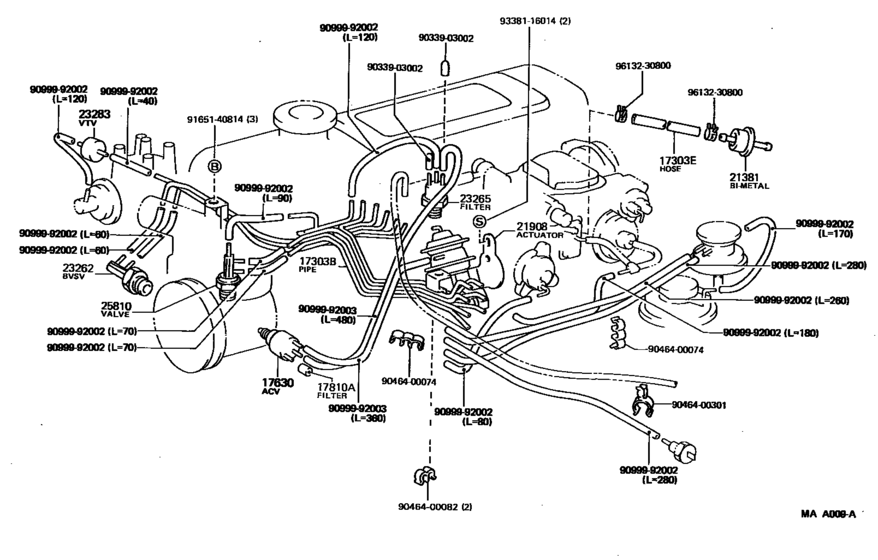

Vacuum Piping ([08.1987 - ] (8708- )3YJ) Diagram Toyota HIACE
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- YH71B
- grade
- DX
- body
- COM
- Roof
- HRF
- ENGINE
- 3YJ
- TRANSMISSION
- MTM
- Model
- HIACE VAN/WAGON/COMMUTER BUS
- From
- 08.1987
- To
- 08.1989
- Gear Shift Type
- 5H
- Seating Capacity
- 15S
- Vehicle Model
- Hiace Van,Wagon
- Fuel Induction
- CBR
- Rear Tire
- ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303B
|
17303B
17303-71020 Pipe Sub-Assy, Air, No.1[08.1987 - 08.1989] 3YJ..YH52,62,71 |
17303-71020 |
US $65.96 |
||
|
17303E
|
17303E
90445-14104 Hose, No.1(For Air Pipe)[08.1987 - 08.1988] 2Y,3Y#..YH50,51,52,6#,71 |
90445-14104 |
US $9.03 |
||
| replacement | |||||
|
17303E
|
17303E
95326-09030 Hose, No.1(For Air Pipe)[08.1987 - 08.1988] 2Y,3Y#..YH50,51,52,6#,71 |
95326-09030 |
US $9.90 |
||
|
17630
|
17630
17630-28020 Valve Assy, Air Control[08.1987 - 08.1989] 2Y,3Y,3YJ..YH50,52,6#..03S; 2Y,3Y#..YH50,51,57,61,71..CTM,DX,GL,SCL,SCM |
17630-28020 |
US $205.30 |
||
|
17810A
|
17810A
90925-06007 Filter Assy, Air[08.1987 - 08.1989] 2Y,3Y,3YJ..YH50,52,6#..03S; 2Y,3Y#..YH50,51,57,61,71..CTM,DX,GL,SCL,SCM |
90925-06007 |
US $7.86 |
||
|
21381
|
21381
21381-71040
Bimetal, Thermostatic
[08.1987 - 08.1988] 2Y,3Y#..YH50,51,52,6#,71 |
21381-71040 |
— | ||
|
21908
|
21908
21908-71010 Actuator Sub-Assy, Idle-Up[08.1987 - 08.1988] 3YJ..YH52,62; 2Y,3Y..YH50,61..03S; 2Y,3Y,3YJ..YH50,51,61,71..DX,GL |
21908-71010 |
US $170.35 |
||
|
23262
|
23262
90925-05017 Valve, Bimetal Vacuum Switching, No.1[08.1987 - 08.1989] 3YJ..YH52,62,71 |
90925-05017 |
US $46.37 |
||
|
23265
|
23265
90917-11024
Filter, Gas, No.1
[08.1987 - 08.1989] 2Y,3Y#..YH5#,6#,71 |
90917-11024 |
— | ||
| replacement | |||||
|
23265
|
23265
90917-11027 Filter, Gas, No.1[08.1987 - 08.1989] 2Y,3Y#..YH5#,6#,71 |
90917-11027 |
from US $26.21 |
||
|
23283
|
23283
90925-01019 Valve, Vacuum Transmitting, No.1[08.1987 - 08.1989] 3YJ..YH52,62,71 |
90925-01019 |
US $25.33 |
||
|
25810
|
25810
25810-27010
Valve, Bimetal Vacuum Switching, No.1
[08.1987 - 08.1989] 3YJ..YH52,62,71; 3YU..YH51,57,61 ＮＯ．１ |
25810-27010 |
— | ||
|
9033903002
|
9033903002
90339-03002 PLUG |
90339-03002 |
from US $3.23 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400301
|
9046400301
90464-00301 Clamp |
90464-00301 |
US $1.61 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9338116014
|
9338116014
93381-16014 New Genuine Part |
93381-16014 |
US $0.87 |
||
|
9613230800
|
9613230800
96132-30800
Clip, No.3(For Idle-Up Hose)
|
96132-30800 |
— | ||
| replacement | |||||
|
9613230800
|
9613230800
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
