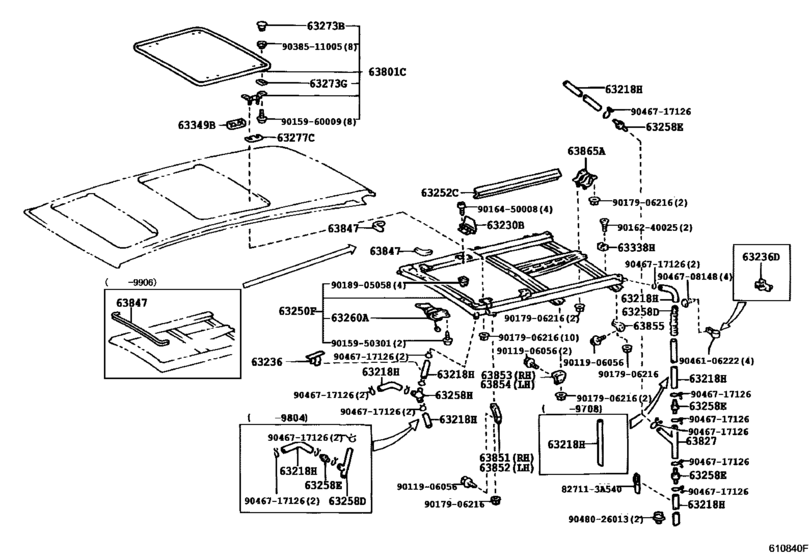

Roof Panel & Back Panel ([04.1997 - ] ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ) (9704- )KCH4#,RCH41,47) Diagram Toyota HIACE REGIUS
- Year
- 1999 - 2002
- Sales region
- Japan
- Frame
- KCH40
- grade
- WISTD
- body
- WG
- ENGINE
- 1KZTE
- TRANSMISSION
- ATM
- Model
- HIACE REGIUS
- From
- 07.1999
- To
- 05.2002
- No.of Doors
- 4D
- Seating Capacity
- W08S
- Vehicle Model
- Hiace Regius
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63218H
|
63218H
63249-26210 Hose, Sliding Roof Drain[08.1997 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=1025 |
63249-26210 |
US $94.64 |
||
| replacement | |||||
|
63218H
|
63218H
63249-26080 Hose, Sliding Roof Drain[08.1997 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=1025 |
63249-26080 |
US $25.92 |
||
|
63218H
|
63218H
63249-26220 Hose, Sliding Roof Drain[08.1997 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ＝２４０ |
63249-26220 |
US $24.61 |
||
| replacement | |||||
|
63218H
|
63218H
63249-26230 Hose, Sliding Roof Drain[08.1997 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ＝２４０ |
63249-26230 |
US $34.65 |
||
|
63218H
|
63218H
63249-26230 Hose, Sliding Roof Drain[08.1997 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ＝４４５ |
63249-26230 |
US $34.65 |
||
|
63218H
|
63218H
63249-26290 Hose, Sliding Roof Drain[04.1998 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD L=100 |
63249-26290 |
US $6.12 |
||
|
63218H
|
63218H
63249-26300 Hose, Sliding Roof Drain[04.1998 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ＝４５ |
63249-26300 |
US $4.37 |
||
|
63218H
|
63218H
63249-26310 Hose, Sliding Roof Drain[04.1998 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ＝３００ |
63249-26310 |
US $8.59 |
||
| replacement | |||||
|
63218H
|
63218H
63249-95J07 Hose(For Sliding Roof Or Removable Roof Drain)[04.1998 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD 長さ＝３００ |
63249-95J07 |
US $9.17 |
||
|
63230B
|
63230B
63230-26010 Panel Assy, Roof Wind Deflector[04.1997 -] KCH4#,RCH41,47 |
63230-26010 |
US $41.06 |
||
|
63236
|
63236
63236-26010 Clamp, Sliding Roof Or Removable Roof Drain Hose[04.1998 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
63236-26010 |
US $4.66 |
||
|
63236D
|
63236D
63236-26020 Clamp, Sliding Roof Or Removable Roof Drain Hose[07.1999 -] KCH4#,RCH41,47 |
63236-26020 |
US $15 |
||
|
63250F
|
63250F
63250-26040 Housing Assy, Sliding Roof[04.1997 -] KCH4#,RCH41,47 |
63250-26040 |
US $1,747.20 |
||
|
63252C
|
63252C
63252-26010 Weatherstrip, Sliding Roof, Rear[04.1997 -] KCH4#,RCH41,47 |
63252-26010 |
US $216.94 |
||
|
63258E
|
63258E
63258-95J01 Joint, Slide Roof Drain Hose[07.1999 -] KCH4#,RCH41,47 |
63258-95J01 |
US $5.24 |
||
|
63258H
|
63258H
63258-26030 Joint, Slide Roof Drain Hose[04.1998 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
63258-26030 |
US $8.64 |
||
|
63260A
|
63260A
63260-26091 Gear Sub-Assy, Sliding Roof Drive[04.1997 -] KCH4#,RCH41,47 |
63260-26091 |
US $684.32 |
||
|
63273B
|
63273B
62735-95D00 Retainer, Quarter Window Hinge[04.1997 -] KCH4#,RCH41,47 |
62735-95D00 |
from US $6.03 |
||
|
63273G
|
63273G
63273-95J00 Packing, Slide Roof[04.1997 -] KCH4#,RCH41,47 |
63273-95J00 |
US $2.04 |
||
|
63277C
|
63277C
63277-95701 Shim, Sliding Roof Rail[04.1997 -] KCH4#,RCH41,47 厚さ＝１．０ |
63277-95701 |
US $4.08 |
||
|
63338H
|
63338H
63338-95J03 Stopper, Sunshade Lock, No.2[04.1997 -] KCH4#,RCH41,47 |
63338-95J03 |
US $4.08 |
||
|
63349B
|
63349B
63349-26010 Garnish, Roof Headlining, Rear[04.1997 -] KCH4#,RCH41,47 |
63349-26010 |
US $12.08 |
||
|
63801C
|
63801C
63801-26070 Glass Sub-Assy, Rear Slide Roof[04.1997 -] KCH4#,RCH41,47 ＊ＴＥＭ，厚さ＝５．０，グリーン |
63801-26070 |
US $895.44 |
||
|
63827
|
63827
63827-95J00 Joint, Rear Slide Roof Drain Hose[08.1997 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
63827-95J00 |
US $7.43 |
||
|
63847
|
63847
63257-26030
Seal, Sliding Roof
[06.1999 -] KCH4#,RCH41,47 |
63257-26030 |
— | ||
|
63851
|
63851
63851-26010 Bracket, Rear Slide Roof Housing, No.1 Rh[04.1997 -] KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
63851-26010 |
US $10.92 |
||
|
63852
|
63852
63852-26010 Bracket, Rear Slide Roof Housing, No.1 Lh[04.1997 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
63852-26010 |
US $11.94 |
||
|
63853
|
63853
63853-26030 Bracket, Rear Slide Roof Housing, No.2 Rh[04.1997 -] KCH4#,RCH41,47..4D..(G,STD,V,WINT,WISTD) |
63853-26030 |
US $19.66 |
||
|
63854
|
63854
63854-26020 Bracket, Rear Slide Roof Housing, No.2 Lh[04.1997 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
63854-26020 |
US $19.66 |
||
|
63855
|
63855
63855-26030 Bracket, Rear Slide Roof Housing, No.3[04.1997 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
63855-26030 |
US $10.19 |
||
|
63865A
|
63865A
63865-26040 Bracket, Rear Slide Roof Housing, No.2 Rear Rh[04.1997 -] KCH4#,RCH41,47..G,STD,V,WINT,WISTD |
63865-26040 |
US $19.66 |
||
|
827113A540
|
827113A540
82711-3A540 Clamp, Sliding Roof Drain Hose |
82711-3A540 |
US $1.44 |
||
|
9011906056
|
9011906056
90119-06056 New Genuine Part |
90119-06056 |
US $2.04 |
||
|
9015950301
|
9015950301
90159-50301 New Genuine Part |
90159-50301 |
US $1.60 |
||
|
9015960009
|
9015960009
90159-60009 New Genuine Part |
90159-60009 |
US $1.18 |
||
|
9016240025
|
9016240025
90162-40025 New Genuine Part |
90162-40025 |
US $1.46 |
||
|
9016450008
|
9016450008
90164-50008 SCREW |
90164-50008 |
from US $0.84 |
||
|
9017906216
|
9017906216
90179-06216
Direct
|
90179-06216 |
— | ||
| replacement | |||||
|
9017906216
|
9017906216
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9018905058
|
9018905058
90189-05058 GROMMET |
90189-05058 |
US $1.28 |
||
|
9038511005
|
9038511005
90385-11005 BUSH |
90385-11005 |
from US $1.42 |
||
|
9046106222
|
9046106222
90461-06222 New Genuine Part |
90461-06222 |
US $1.31 |
||
|
9046708148
|
9046708148
90467-08148 Clip, Roof Headlining |
90467-08148 |
US $1.89 |
||
|
9046717126
|
9046717126
90467-17126 Clip Or Clamp(For Ventilation Hose) |
90467-17126 |
US $1.92 |
||
|
9048026013
|
9048026013
90480-26013
New Genuine Part
|
90480-26013 |
— | ||
