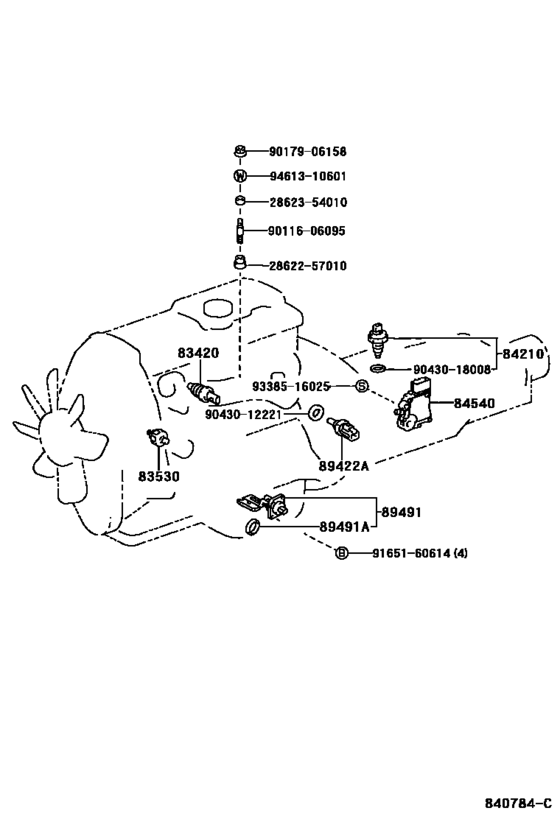

Switch & Relay & Computer ([06.1997 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9706- )LXH4#) Diagram Toyota HIACE REGIUS
- Year
- 1997 - 2002
- Sales region
- Japan
- Frame
- LXH43
- grade
- STD
- body
- VAN
- ENGINE
- 5L
- TRANSMISSION
- ATM
- Model
- HIACE REGIUS
- From
- 06.1997
- To
- 05.2002
- No.of Doors
- 5D
- Vehicle Model
- Hiace Regius
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[04.1997 -] KCH4#,LXH4#,RCH42 |
83420-16040 |
from US $30.71 |
||
|
83530
|
83530
83530-30060
Switch Assy, Oil Pressure (For Engine)
[06.1997 - 03.1998] LXH4# |
83530-30060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[06.1997 - 03.1998] LXH4# |
83530-60030 |
from US $25.68 |
||
|
83530
|
83530
83530-60030 Switch Assy, Oil Pressure (For Engine)[03.1998 -] LXH4# |
83530-60030 |
from US $25.68 |
||
|
84540
|
84540
84540-30290 Switch Assy, Neutral Start[04.1997 - 07.1999] RCH41..4D;LXH4#..ATM;RCH47..W08S 東海理化 |
84540-30290 |
US $145.44 |
||
|
84540
|
84540
84540-30300 Switch Assy, Neutral Start[04.1997 - 07.1999] RCH41..4D;LXH4#..ATM;RCH47..W08S ＭＡＴＳＵＳＨＩＴＡ |
84540-30300 |
US $143.27 |
||
|
89422A
|
89422A
89422-20010 Sensor, Water Temperature (For E.f.i.)[06.1997 -] LXH4# |
89422-20010 |
from US $36.78 |
||
|
89491
|
89491
89491-26160 Sensor, Engine Oil Level[06.1997 -] LXH4# |
89491-26160 |
US $204.48 |
||
|
89491A
|
89491A
89493-60010 Gasket, Engine Oil Level Sensor[04.1997 - 08.1997] LXH4#,RCH47 |
89493-60010 |
from US $2.24 |
||
|
2862257010
|
2862257010
28622-57010 Insulator, Glow Plug Resistor, No.1 |
28622-57010 |
from US $1.40 |
||
|
2862354010
|
2862354010
28623-54010 Insulator, Glow Plug Resistor, No.2 |
28623-54010 |
from US $1.40 |
||
|
9011606095
|
9011606095
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.99 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
|
9461310601
|
9461310601
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
